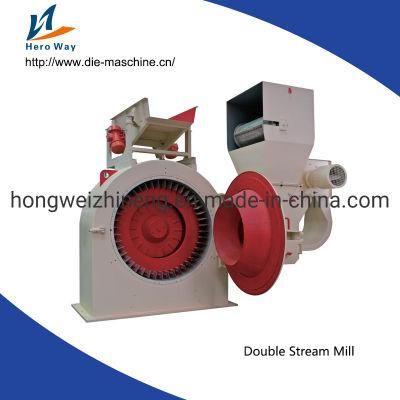

Ring Mill Hw5615 Double-Stream Mill

CHANGZHOU HONGWEI IN-TECH CO., LTD.
  • Automatic Grade：Automatic
  • Energy Saving：Energy Saving
  • Warranty：1 Year
  • Customized：Customized
  • Condition：New
  • Color：Multi Color

Base Info

  • Model NO.：HW5615
  • Transport Package：Wooden Case or Nude
  • Specification：Standard or Customized
  • Trademark：HWZL
  • Origin：China

Description




                                       Model
Specifications
                  HW566HW568HW5610HW5610JHW5612HW5615
Dia.of screen ringmm6008001000100012001500
Rotation speed of knife-ringrpm150175180210210280
griddle mm110×2116×2160×2180×2180×2218×2
Impeller diametermm58078098098011801480
Rotation speed of impellerrpm295023201850185014501320
Number of tooth grindingpcs304252626276
Capacitykg/h300-800500-1000800-1600950-19501400-26003000-5000
Main drive motor powerkW5590132132200315
Vibration motor powerkW0.25×20.25×20.25×20.25×20.37×20.75×2
Ring Mill Hw5615 Double-Stream Mill
