Pneumatic/Hydraulic Clamp Windmill-Type/Chain Type Carrier for Wood Solid Wood Composer Clamper Carrier
Suzhou Trillion Shine Import & Export Co., Ltd.- Condition：New
- Certification：ISO, CE
- Power Type：Hydraulic
- Voltage：Customerized
- Transport Package：in Plywood Case
- Specification：2500
Base Info
- Model NO.：0001
- Trademark：TRILLION SHIEN
- Origin：China
- HS Code：8465990000
- Production Capacity：5100 Sets,Year
Description
Basic Info.
Model NO. 0001 Trademark TRILLION SHIEN Origin China HS Code 8465990000 Production Capacity 5100 Sets/YearProduct Description
Application:
Clamp carrier is a necessary machine for sawn tree and wood floor industry,utility furniture industry, and so on.It splices small boards which have been processed and treated in advance into big board, and it improves the wood utilization rate. It has the features of homogeneous pressure, steady performance,high production efficency,etc.
Features:
-Pneumatic/hydraulic clamp, Windmill-type/Chain type can be choosen.
-Clamping fixture rows can be 6, 8,10,14,20,30,40
Parameter:
| Model | Number of rows | Specification | Power |
| MY2500-6A | 6 | 2500X1000mm | 0.5 kw |
| MY2500-6B | 6 | 2500X1250mm | 0.5 kw |
| MY2500-8A | 8 | 2500X1000mm | 1.1 kw |
| MY2500-8B | 8 | 2500X1250mm | 1.1 kw |
| MY2500-10A | 10 | 2500X1000mm | 1.1 kw |
| MY2500-10B | 10 | 2500X1250mm | 1.1 kw |
| MY2500-14A | 14 | 2500X1000mm | 1.1 kw |
| MY2500-14B | 14 | 2500X1250mm | 1.1 kw |
| MY2500-20A | 20 | 2500X1000mm | 1.1 kw |
| MY2500-20B | 20 | 2500X1250mm | 1.1 kw |
| MY2500-30A | 30 | 2500X1000mm | 1.1 kw |
| MY2500-30B | 30 | 2500X1250mm | 1.1 kw |
| MY2500-40A | 40 | 2500X1000mm | 2.2 kw |
| MY2500-40B | 40 | 2500X1250mm | 2.2 kw |

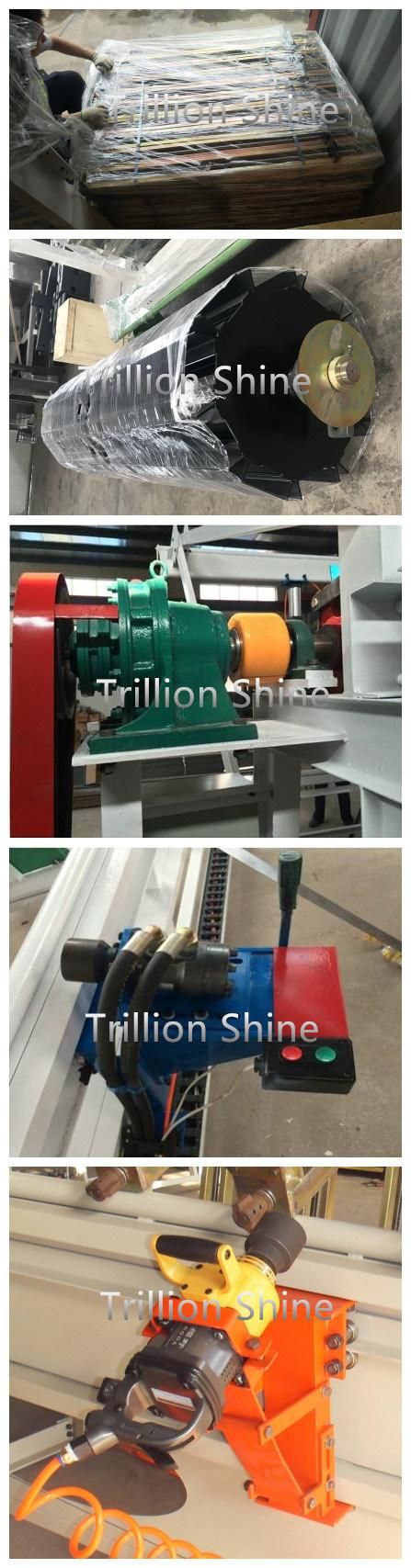

Detailed Show:
