• Model NO.：SU130R-R
• Color：Iron Grey
• Primer Sander Working Width：30-1300mm Primer Sander
• Primer Sander Thickness of Sanded Panel：6-110mm Primer Sander
• Primer Sander The First Group Belt Speed：Frequency Speed Primer Sander
• Primer Sanderthe Second Group Belt Speed：Frequency Speed Primer Sander
• Primer Sanderthe First Group Motor Power：15kw Primer Sander
• Primer Sandethe Second Group Motor Power：11kw Primer Sander
• Primer Sander Conveyor Motor：4kw Primer Sander
• Primer Sander Dimensions：1880*2000*1960mm Primer Sander
• Primer Sander Weight：3400kgs Primer Sander
• Transport Package：Pallet
• Specification：ISO9001 CE
• Trademark：HZH
• Origin：Qingdao
• HS Code：8465930000
• Production Capacity：5 Sets,Month

Basic Info.

Model NO. SU130R-R Color Iron Grey Primer Sander Working Width 30-1300mm Primer Sander Primer Sander Thickness of Sanded Panel 6-110mm Primer Sander Primer Sander The First Group Belt Speed Frequency Speed Primer Sander Primer Sanderthe Second Group Belt Speed Frequency Speed Primer Sander Primer Sanderthe First Group Motor Power 15kw Primer Sander Primer Sandethe Second Group Motor Power 11kw Primer Sander Primer Sander Conveyor Motor 4kw Primer Sander Primer Sander Dimensions 1880*2000*1960mm Primer Sander Primer Sander Weight 3400kgs Primer Sander Transport Package Pallet Specification ISO9001 CE Trademark HZH Origin Qingdao HS Code 8465930000 Production Capacity 5 Sets/Month

Product Description

We supply Primer Wide Belt Sanding Machine

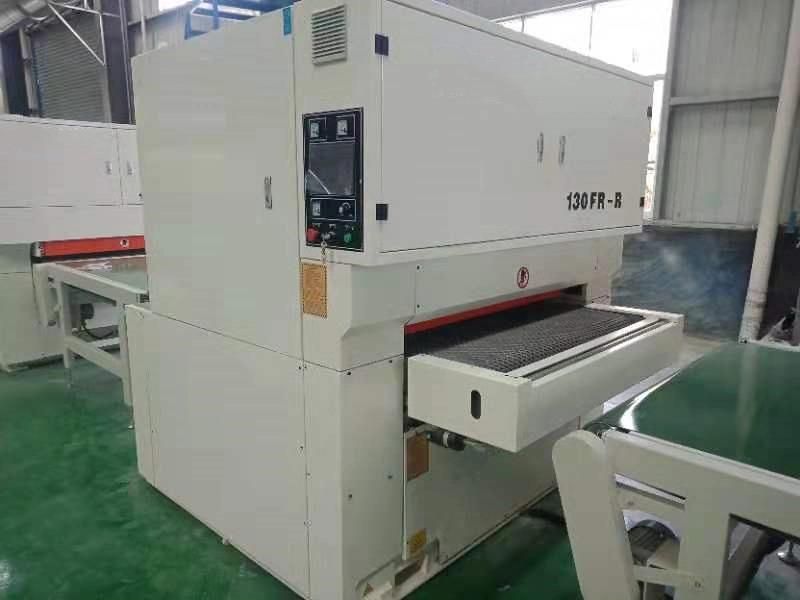

1.Prodcut show


2. Product Description

Model	SF100R-R	SF1300R-R
Working Width	40-1000mm	40-1300mm
Working Thickness	3-100mm	3-120mm
Working length	>550 mm	>450 mm
First sand belt Speed	13m/s frequency	13m/s frequency
Second sand belt Speed	10m/s frequency	10m/s frequency
Feed Speed	5-35m/min	5-35m/min
Size of Sand belt	1030*2620mm	1330*2200mm
Sand roller diameter	Φ240 mm	Φ300 mm
No.1 Motor Power	7.5kw	15kw
No.2 Motor Power	5.5kw	11kw
Feeding power	2.2kw	4kw
Lifting power	0.37kw	0.75kw
Brush Roller	0.37kw	0.37kw
Total Motor Power	15.94kw	31.12kw
Working Air Pressure	>=0.8Mpa	>=0.8Mpa
Speed of Sucked Air	>=25m/s	>=25m/s
Air volume of dust collector	8000 m³/h	8000 m³/h
Overall Dimensions	2000*1800*2000mm	2200*2500*2300mm
Weight	3000kg	5000kg

3. Function and Characteristics:
This sander moves the upper unit up and down, while the work table keeps still. It is mainly used in furniture, flooring and panel sanding line.

4. Standard installation:
(1). The press roller and press shoes protects device to keep the board on the feeding table

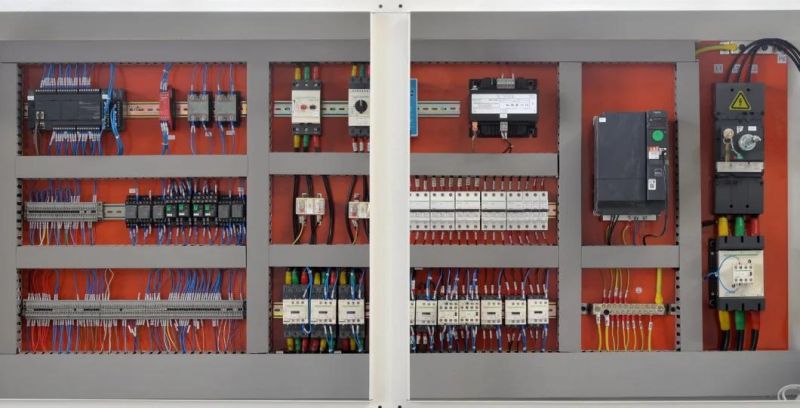

(2). Schneider Electrical component
(3). Photoelectric control equipment which control vibrating of abrasive belt along center.
(4). Brush roller cleaning the panel after sanding
(5). Oil/air filters supply purity air continually
(6). Japanese NSK internal bearing reduce vibration of belt
(7). Touch screen operate the machine easily
(8). Operation & Maintenance manuals in English, Maintenance Kit

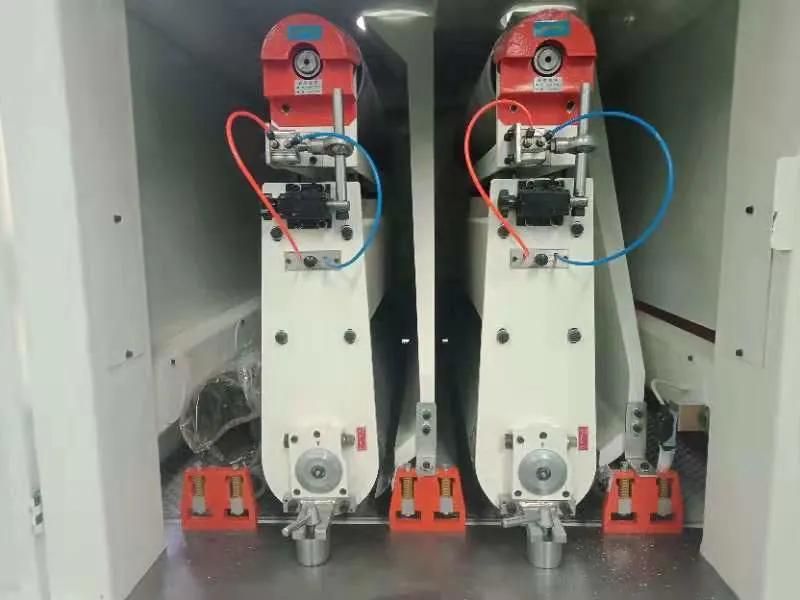

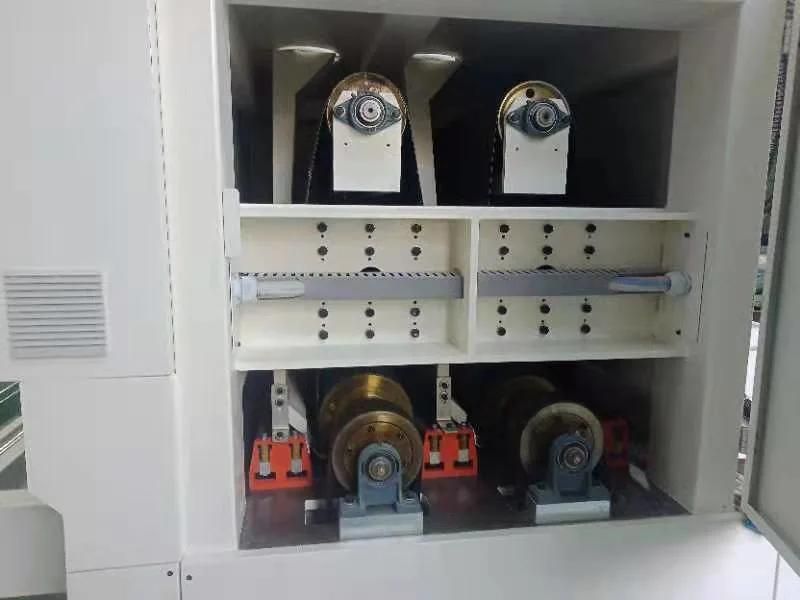

5.Products details











6.Company Information

Qingdao Haozhonghao Woodworking Machinery Co., Ltd. previously was Qingdao Woodworking Machinery Manufacturing Company, and was established in 1958.

With more than 50 year experience in making woodworking machines, our main products are Sanding Machine, Panel Saw, Guillotine, Veneer Slicer and Grinder. We firstly put BB1342 vertical slicer into the market in China. We developed BB1135B Horizontal Veneer slicer by integrating the internal and international technologies, the max slicing width reaches 1300mm. We are the first company which was certified by ISO9001 in the industry, and also a hi-tech enterprise in Qingdao.

We have more than ten years experiences in exporting high quality woodworking machinery, especially Sanding Machine, Veneer Slicer and Grinder.

Our website is sandingmachine.en.made-in-china.com; you could get more information about our company and our products.



7.Packaging & Shipping
