High Speed 1325 CNC Engraving Machine Wood Working 3D CNC Router with Ce

Jinan Blue Elephant CNC Machinery Co., Ltd.
  • Type：Vertical Uniaxial Wood Router
  • Spindle Layout：Spindle Over
  • Spindle Number：Single-Spindle
  • Feed Mode：Mechanical
  • Controlling Mode：CNC
  • Certification：CE, ISO, SGS BV TUV

Base Info

  • Model NO.：ELE1325
  • Customized：Customized
  • Condition：New
  • Color：Customized
  • Voltage：AC380V,50,60Hz, 3pH (Option: 220V)
  • Dimension(L*W*H)：1300*2500*300mm
  • Control System：DSP B18 Control System
  • Spindle：2.2kw*8 Water Cooling Spindle
  • Inverter：2.2kw*8 Fuling Inverter
  • Motor & Driver：8 Piece*FL 118 Stepper Motor and Yako 2811 Bigger
  • Software Compatibility：Type 3,Artcam
  • Linear Rail：Sweden Abba #20 Linear Guide for All Axis
  • Transport Package：Standard Marine Export Plywood Cases
  • Trademark：Blue Elephant
  • Origin：Shandong, China
  • Production Capacity：200set,Sets Per Month

Description

Descriptions

Parameters

Product name

ELE1325-8s

Model

1325-8s+8r

Working area

1300*2500*300mm

Control system

DSP B18 control system

Spindle

2.2kw*8 water cooling spindle

Spindle speed

0-24000RPM

Inverter

2.2kw*8 fuling inverter

Motor and driver

8 piece*FL 118 stepper motor and YAKO 2811 bigger and stronger driver

Voltage

380V, 3ph, 50Hz

Linear rail

Sweden ABBA #20 linear guide for all axis

Table structure

New type thicker and bigger heavy duty welded frame and gantry

Table surface

Removable T-slot work table

X,Y axis transmission

Helical rack and pinion drive for X,Y axis

Z axis transmission

Taiwan TBI ball screw for z axis

lubrication system

Manual lubrication system

Rotary device

Rotary device with 200mm diameter

PS: All the working area and specifications can be customized according to your requests.

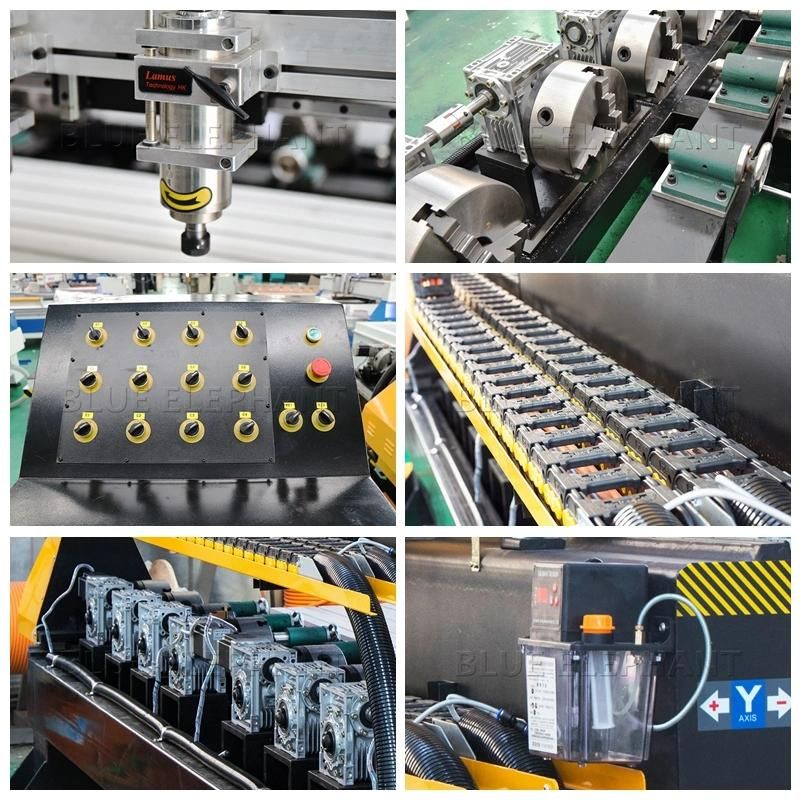

Detail Image


High Speed 1325 CNC Engraving Machine Wood Working 3D CNC Router with Ce

Application

1. Wood Furniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.

2. Advertising Industry: Advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.

3. Die Industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.


Packaging Details:

1. Outside package: Standard marine export plywood case.

2. inner package: Stretchy film and plastic film for humidity.

3. We can package according to your requests.

Delivery Detail: Shipped in 25-30 working days after payment.
High Speed 1325 CNC Engraving Machine Wood Working 3D CNC Router with Ce


Guarantee and After-sale service:

1. 12 months warranty for the whole machine.

2. Technical support by phone, email or WhatsApp/Skype around the clock.

3. Friendly English version manual and operation video CD disk.

4. Engineer available to service machinery overseas.

BLUEELEPHANT

Jinan Blue Elephant CNC Machinery Co., Ltd is located in Jinan City , Shandong Province .

We have always been developing to the research and manufacturer of CNC router machine, plasma cutter, laser cutting engraving machine, which have passed CE, SGS, TUV etc certification.
