• Model NO.：FM-1325
• Customized：Customized
• Condition：New
• Color：Customized
• Table Size(Mm)：1800*3100
• Engraving Area：1300*2500*200
• Spindle Power：3.0kw Water Cooling Spindle
• Spindle Rotate(Rpm)：6000~24000
• Transport Package：Standard Export Wooden Case
• Specification：CE, SGS
• Trademark：FIRM
• Origin：Shandong, Jinan
• HS Code：84649012
• Production Capacity：200sets,Month

Basic Info.

Model NO. FM-1325 Customized Customized Condition New Color Customized Table Size(Mm) 1800*3100 Engraving Area 1300*2500*200 Spindle Power 3.0kw Water Cooling Spindle Spindle Rotate(Rpm) 6000~24000 Transport Package Standard Export Wooden Case Specification CE, SGS Trademark FIRM Origin Shandong, Jinan HS Code 84649012 Production Capacity 200sets/Month

Product Description

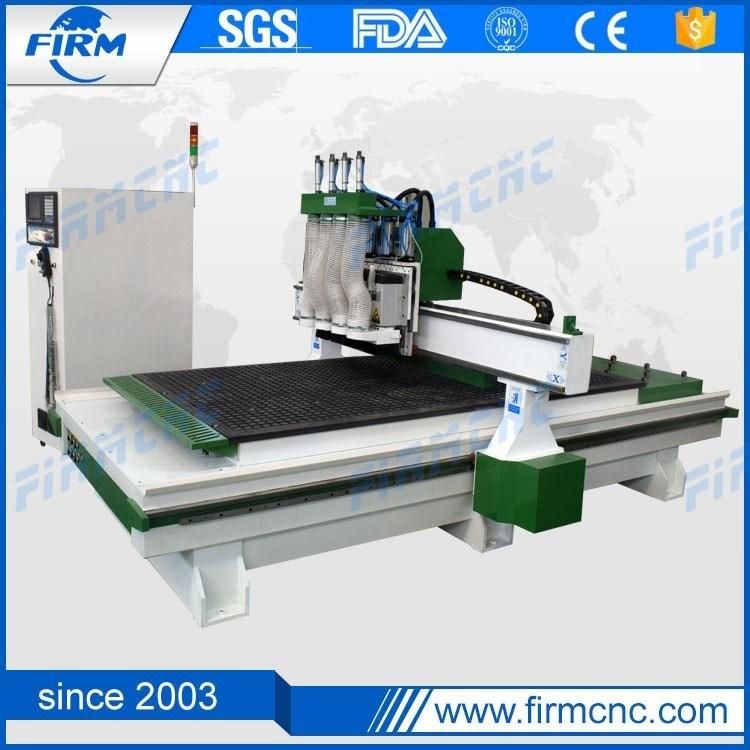

New Designed Four Heads ATC Woodworking Engraving CNC Router



Main Feature

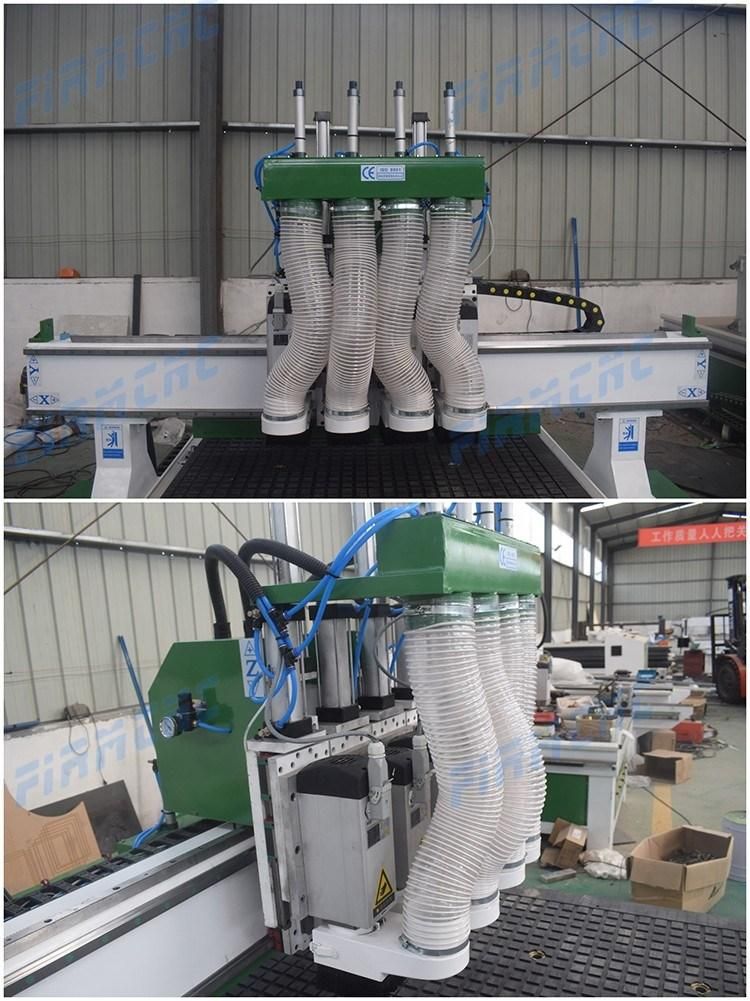

*Four air cooled spindlem  (HQD or Italy HSD spindle optional ),high quality and 24h continuously work.
*HIWIN square rail,good occlusion and rigidity,no distortion for long time use.
*High speed gear rack transmission for XY axis, and high precision ball screw transmission for Z axis,
ensuring high speed and high precision at same time.
*Pneumatic ATC for 3 spindles with different tools.Automatic tool changing saves time to manually change tools.

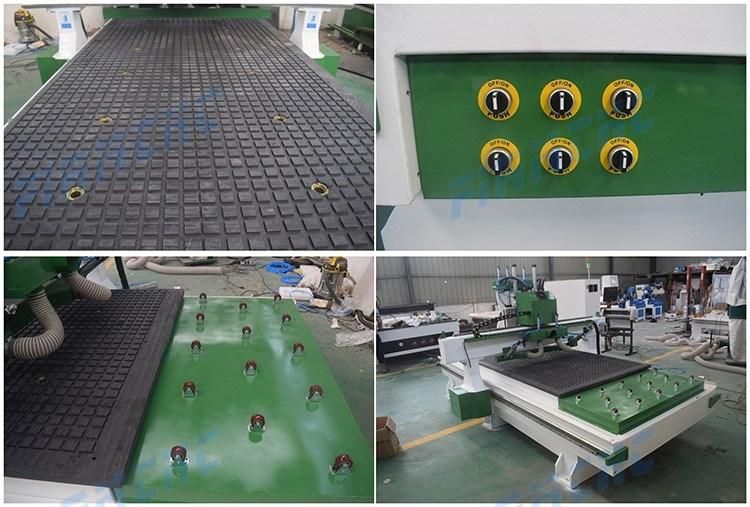

*Vacuum table with vacuum pump,can quickly and stably fix materials on the table for engraving,saving time and long service life.
*Control system:We use the advanced Dsp, Nc-studio control system, Syntec from Taiwan or OSAI from Europ.

Technical Date

Item	Model	FM1325
1	Working area	1300*2500*250mm
2	Feeding height	250mm
3	X/Y/Z axis reposition accurancy	+/- 0.02mm
4	Max running speed	50m/min
5	Max working speed	30m/min
6	X/Y axis transmission	Gear and rack
7	Z axis transmission	Ball screw
8	Guide rail	Taiwan HIWIN square guide rail
9	Working table	Vacuum and T-slot table
10	Spindle power	4.5kw air cooled spindle * 4pcs
11	Max spindle speed	18000 rpm/min
12	Collet	ER32
13	Control system	NK260 or Syntec control system
14	Motor	Leadshine servo motor / Yaskawa servo motor
15	Working voltage	380V/ 3P/ 50HZ -60HZ
16	G.W./ N.W.	1800KG / 1600KG
17	Command	G Gode
18	Computer interface	USB port
19	Limit switch	Japan Omron






Application
1.Wood working :Solid wave board process,door of cabinet,wooden door,artistic wooden door ,no-paint door,avoid wind,process of the artistic window,
shoes cleaning machine,the cabinet of the playing machine and the board, mahjong table,computer table .
2 Advertising:Advertising board,Label design,Acrylic cutting,model, of the multi material decoration products.
3.Model industry:It can engrave on the steal materials such as copper, aluminum ,iron etc and  non-mental materials such as man-made marble,
sand, plastic board PVC materials, wood board etc.
4.Other field:It can engrave many image, embossment,and widely used in artistic industry.

Package:
1) Foam and wrapping film on the surface of the machine inside. Rain-proof, Dust proof.
2)Standard export plywood case. Upwards, moistureproof shipping marks. Safety guaranteed.
3) fumigation-free
4)With shipping mark if you like.
5)Outside: Marked packing size, model, weight and other information

After sale service
1. 24 hour Technical support by phone, e-mail or MSN around the clock.
2. Friendly English version manual and operation video CD disk.
3.7-15 working days after down payment or full payment.
4. Machine will be adjusted before it is delivered; operation disk/CD was included.
5. Our technician can give you remote guide online (Skype or MSN) if you have any question.
6. Engineers available to service machinery overseas, seller and buyer discuss the charges.
