STRUCTURE & FUNCTION OF DRUM CHIPPER

Drum chipper is composed of feeding system, chipping system, outlet system and control system. The raw materials will become final needed wood chips as the following steps:

Feeding conveyor---Force feed roller---Chipping---Outlet conveyor

1.Force feed roller have large amount of teeth around the roller. The raw materials will be forcefully pushed into the chipping system.

2.Chipping system consist of knife drum, bed knife assembly and sieve mesh. There are different quantity of knives ( 2-12 pcs ) installed on the drum for making different size of wood chips. The length of the wood chips is customized accordance with the requirement of different industries.

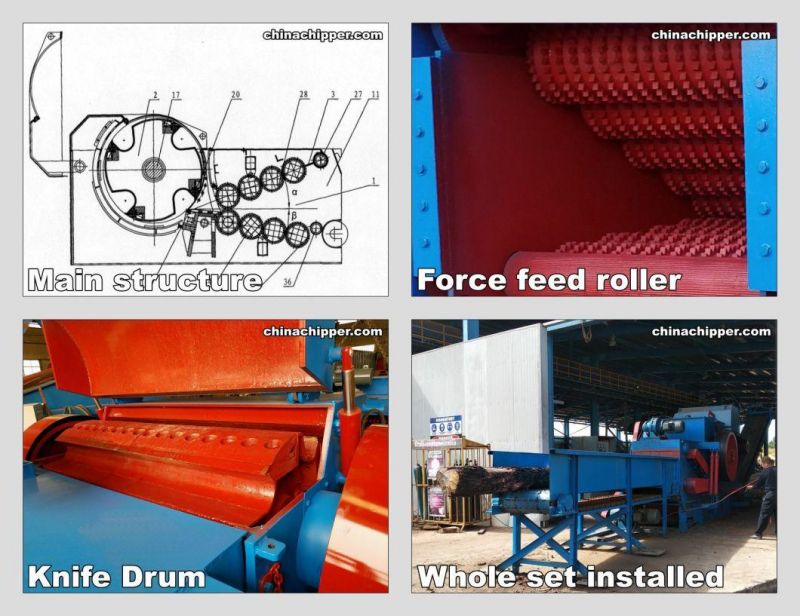

Structure of drum chipper

FEATURES & ADVANTAGES OF DRUM CHIPPER

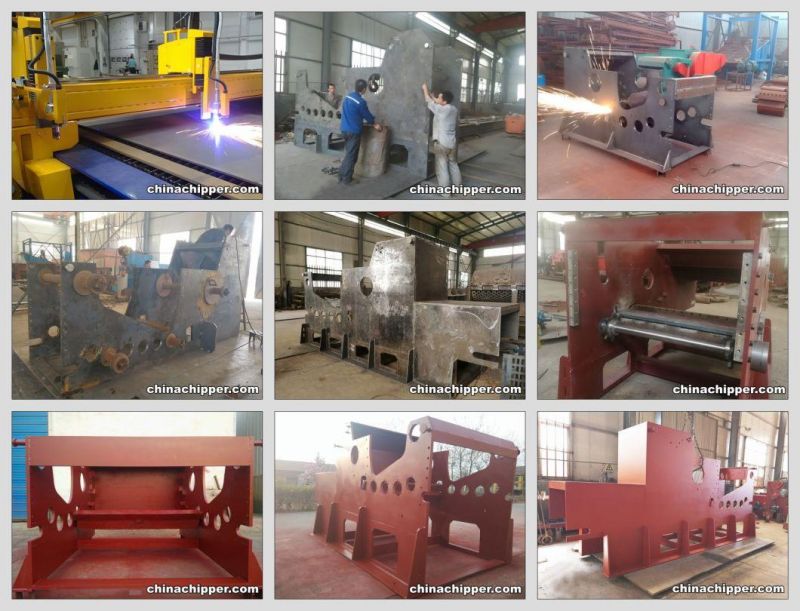

1. The main body of our drum chipper is welding structure with high strength steel plate. Thickness of steel plate is from 25mm to 50mm for different model. The strong structure and the strict welding control ensure the chippers run steadily and safely with very low noise and vibration.

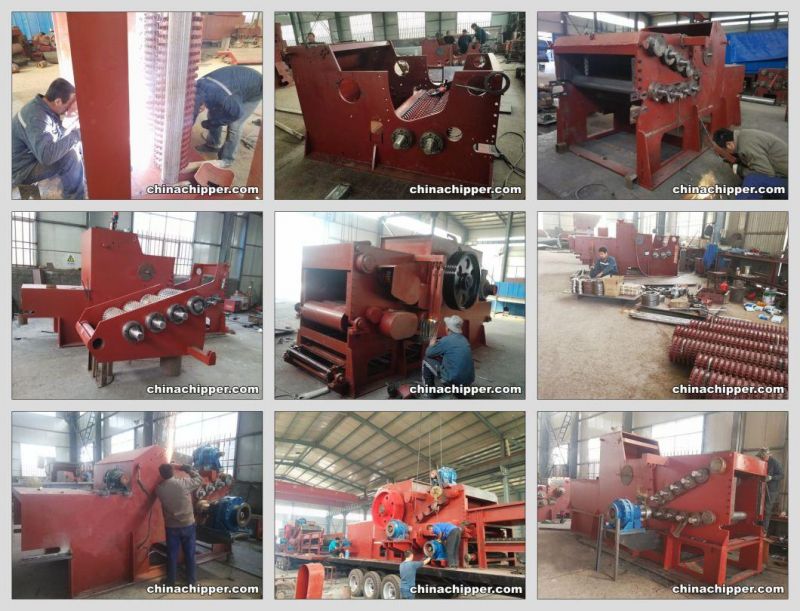

2. The whole process of chipper's assembling is under strict supervision. All assembly process must comply with the technical standard. Our chipper are keeping much low failure rate and working for long life because of the meticulous assembly. We continuously improve the design and assembly of equipment details according to user feedback. Our chippers are becoming easier and easier to install, operate and maintain.

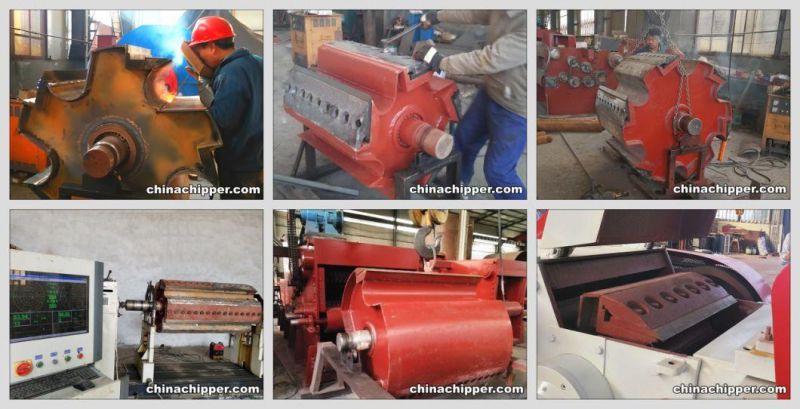

3. Drum chipper can make wood chips of different size by adopting different quantity of knives on drum. The quantity is from 2 pcs to 12 pcs. With different quantity of knives, the wood chips length are standard designed from 10mm to 50mm. In a reasonable scope, other size of chips could be customized as user's requirement. We adopt different hardness of wood chipper knife to work with different kinds of woods. With special design and reliable knives layout, our drum chipper works more efficiently.

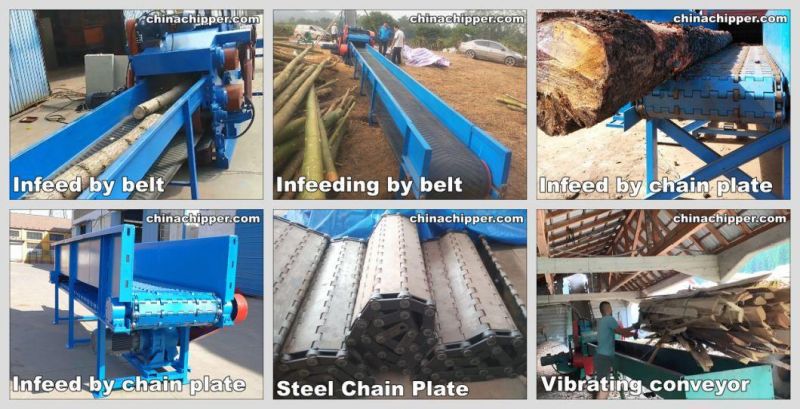

4. There are several types of feed conveyor for choice. Rubber belt conveyor for light raw materials such as tree branches and small logs. For heave wood materials, steel chain plate conveyor is a better solution. It is of much strong and have much longer running life. For loose materials, vibrating conveyor is the best choice.

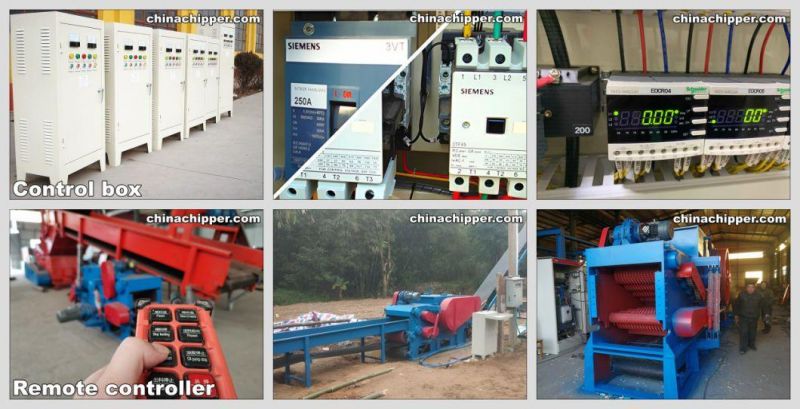

5. All the running section of the wood chipper is controlled by one combined control panel. It is equipped with infeed, outfeed, feed reverse, oil pump and emergency stop control buttons. All the control panel have motor protection function.

For security, there is remote controlling for choice. It is a effective solution to protect the wood chipper operators.

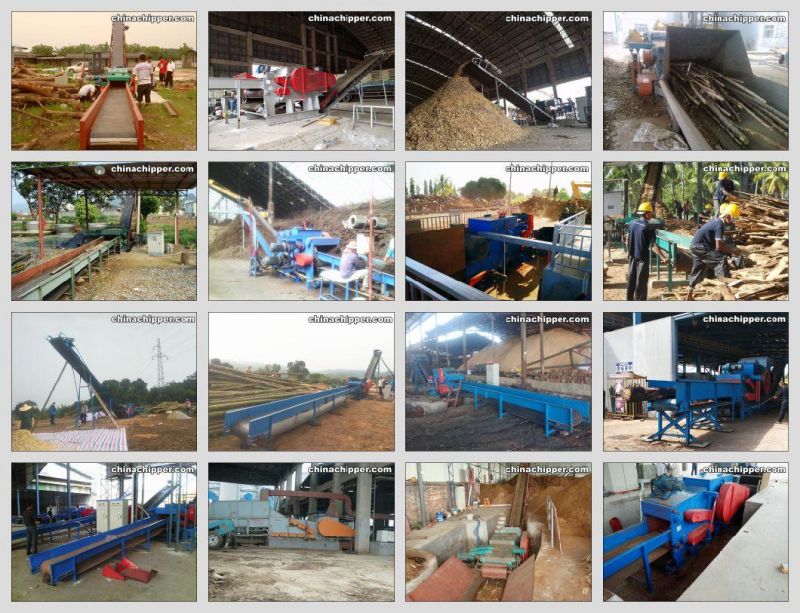

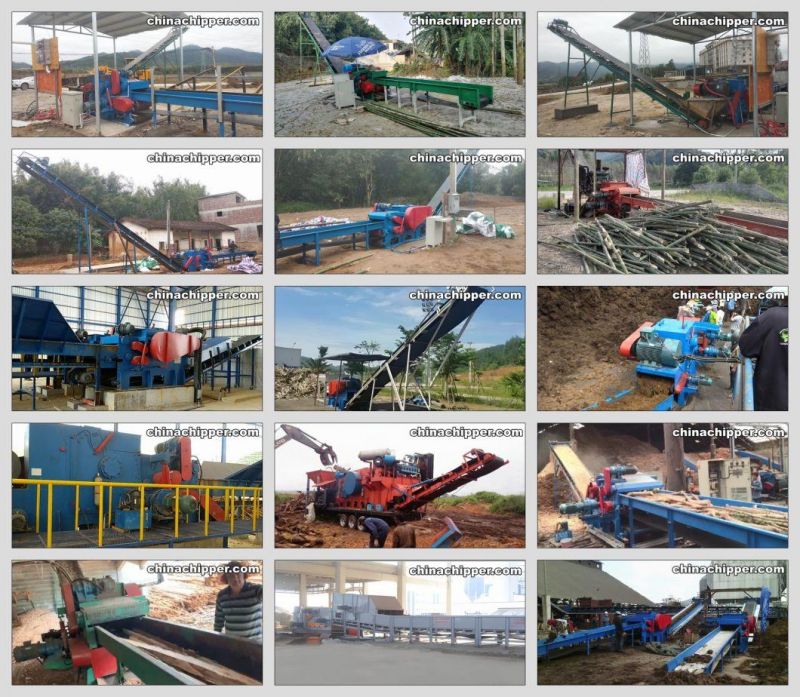

After 30 years of unremitting efforts and development, we have delivered more than 30,000 sets of machines to all over the world.
We have kind customers from more than 100 countries in Asia, Europe, Africa, Latin America, etc.
