Best Price Ele 1530 Wood Furniture Machinery CNC 4 Axis Router Rotary / CNC Router 2 Heads for Hot Sale
Jinan Blue Elephant CNC Machinery Co., Ltd.- Type：Engraving Router
- Spindle Layout：Spindle Over
- Spindle Number：Double-Spindle
- Feed Mode：Mechanical
- Controlling Mode：CNC
- Certification：CE, ISO, SGS BV TUV
Base Info
- Model NO.：ELECNC-1530
- Customized：Customized
- Condition：New
- Color：Customized
- Voltage：415V, 3phase, 50Hz (220V 380V for Optional)
- Dimension(L*W*H)：3800*2300*1900mm
- Control System：DSP A123 Control System
- Spindle：2 Sets 3.5kw Hqd Air Cooling Spindles
- Rotary Device：400mm Diameter for Y Axis Direction
- Spindle Speed：0-18000rpm
- Motor：FL118 Stepper Motors
- Driver：Yako 2811 Big Drivers
- Inverter：5.5kw Fuling Inverter
- Table Surface：T-Slot and Vacuum Working Table
- Transport Package：Standard Export Wooden Case
- Specification：CE, ISO, SGS
- Trademark：BLUE ELEPHANT
- Origin：Shandong, China
- Production Capacity：200 Sets Per Month
Description
Basic Info.
Model NO. ELECNC-1530 Customized Customized Condition New Color Customized Voltage 415V, 3phase, 50Hz (220V 380V for Optional) Dimension(L*W*H) 3800*2300*1900mm Control System DSP A123 Control System Spindle 2 Sets 3.5kw Hqd Air Cooling Spindles Rotary Device 400mm Diameter for Y Axis Direction Spindle Speed 0-18000rpm Motor FL118 Stepper Motors Driver Yako 2811 Big Drivers Inverter 5.5kw Fuling Inverter Table Surface T-Slot and Vacuum Working Table Transport Package Standard Export Wooden Case Specification CE, ISO, SGS Trademark BLUE ELEPHANT Origin Shandong, China Production Capacity 200 Sets Per MonthProduct Description
Best Price ele 1530 wood furniture machinery cnc 4 axis router rotary / cnc router 2 heads for hot sale
1530 Multi spindles cnc router 4 axis with rotary device advantages
1. heavy duty frame and gantry , very durable
2. The machine has two spindles, they do different works, the two spindles work one by one, it is a simple automatic tool changer machine.
3. Equipped with a 400 mm diameter rotating device in the Y axis direction, can be used to process the cylinder.
1530 Multi spindles cnc router 4 axis with rotary device parameters
| Descriptions | Parameters |
| Modle | ELECNC1530-2S-4 |
| Working area | 1500*3000*300mm |
| Control system | Richauto DSP A123 control system |
| Working Voltage | 415V, 3Ph, 50Hz (220V 380V for optional) |
| Spindle | 2 sets 3.5kw HQD air cooling spindle |
| Spindle speed | 0-18000rpm |
| Inverter | 5.5kw Fuling inverter |
| Motor and Driver | FL118 stepper motor and Yako 2811 big driver |
| Table surface | T-slot and vacuum working table |
| Structure | New type thicker and bigger heavy duty welded frame and gantry |
| Lubrication system | Manual lubrication system |
| Transmission | X,Y axis: rack and pinion drive Z axis: Taiwan TBI ball screw X,Y,Z axis: ABBA linear square rail #20 |
| Vacuum pump | 7.5kw air type vacuum pump, 220V, 3Ph, 60Hz |
| Control box | Separate double-sided control box |
| Rotary device | Diameters: 400mm, length: 2000mm |
| Software | Artcam |
| Vacuum Pump | 5.5kw Water cycle vacuum pump (415V, 3PH, 50HZ) |
| Dust collector | 1.5kw new type double bag vacuum cleaner (415V, 3PH, 50HZ) |
| Others | Omron limit switch Cardiff wire |

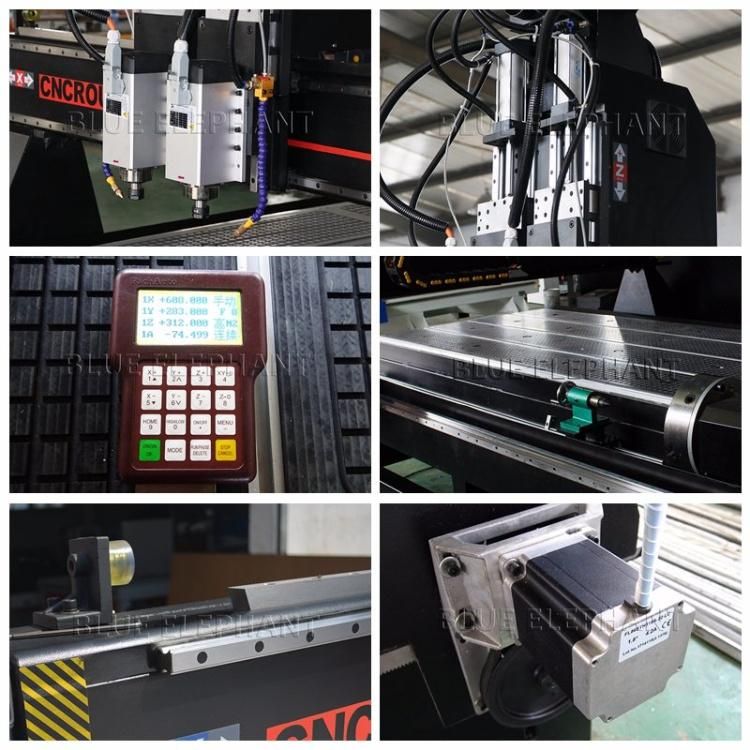

1530 Multi spindles cnc router 4 axis with rotary device product details
1530 Multi spindles cnc router 4 axis with rotary device features
- 1500*3000*300mm effective working area
- 3kw HQD air cooling spindle (2 spindles)
- 3.7kw Fuling inverter
- FL118 stepper motor and YAKO2811 big driver
- DSP A18 control system
- 20mm original Sweden SKF group international advanced self-lubricant linear guide
- French Schneider safety switch;
- Vacuum and T-slot working table
- Japan OMRON limit switch for X, Y, Z axis
- Highly flexible towline, fire-resistant double-sheathed Shanghai Gardiff cable with UL certificate
- 10~12mm Heavy duty Body
- 5.5kw water vacuum pump
- Newest double bags dust collection system with CE certificate
- Manual lubrication System
- 400mm diameter*3000mm length rotary
- Mist spray cooling system
- Artcam 2012 software for free;
- Tool sensor calibration
apply for the wood , MDF acrylic etc cutting and engraving.
The rotating device can process the cylinder.
Packaging & Delivery
Packaging Details: 1.Outside package:Standard marine export plywood case.
2.inner package:Stretch film and plastic film for humidity.
We can package according to your requests.
Delivery Detail: Shipped in 15 working days after payment.
Our Service
1.Teach you professional cnc router machine technology.
2.Provide you lifelong cnc router technology support service.
3.One year for the whole machine, lifelong maintenance.
4.Within 24 hours to solve the problem you're facing, high efficiency, high quality.
5.Network video communication and online telephone service in our work day.
6.Engineers always stand by at any time for going abroad for after sales service face to face if you need.
7.Completely service system on pre-sales, in sales, after sales, protecting customer's constantly working, equipped with easy learned installation guide, maintenance guide, instructions for use, etc.
Our factory
1.10 years factory experience
2.Professional CNC machinery manufacturer
3.Very professionally produce 3 axis,4 axis, 5 axis, ATC cnc router,laser cutting machine
4.The price will be 20% off in 2018
Looking forward for the agents from all over the world! Welcome to contact us!
