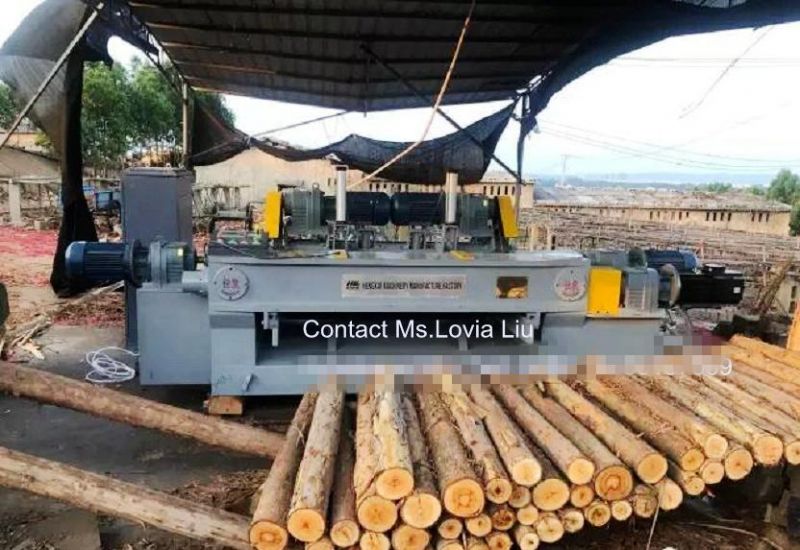

2600mm Rotary Spindle Less Peeling Machine for Plywood Production

Linyi Sin San Lin Smart Machinery Co., Ltd.
  • Certification：CE, ISO, FDA
  • Peeling Speed：60m,Min
  • Max. Working Diameter：500mm
  • Veneer Thickness Range：0.5~4mm
  • Weight：11500kgs
  • Capacity：50cbm,8hours

Base Info

  • Model NO.：BXQS1827,500
  • Transport Package：Standard Export Packing
  • Specification：5400x2200x1760mm
  • Trademark：METRO
  • Origin：China
  • HS Code：8465960000
  • Production Capacity：500sets,Year

Description

Max. working length2600mmWorking diameter range22~500mmMax. woring speed60m/minVeneer thickness0.5~4mmDouble rollers motor power11.5kw x 2setsSingle roller motor power7.5kw x 2setsScrew Feeding motor power11kwRotary clipper motor power4kwRubber belt conveyor motor4kwMachine size5900x2200x1750mmMachine weight10500kgs2600mm Rotary Spindle Less Peeling Machine for Plywood Production

2600mm Rotary Spindle Less Peeling Machine for Plywood Production
Packing and Shipping
1. Machine body packed in plastic film
2. Spare parts and electrical parts packed in plywood boxes.
3. Fixed in container with steel wires.

Our Services
1. Design and produce based upon your production need. Provide full sets of drawings and manuals.
2. One year warranty for the machine. Liftetime after-sales service and maintenance.
3. Professional team for oversea machine installation&debugging.
4. Help train and guide machine operating.
