• Model NO.：LT-1325 ATC
• Table Surface：Vacuum Table with 7.5kw Vacuum Pump
• Control System：Syntec FC Control System
• Guide Rail：Square Linear Guide Rail
• Transmission：X, Y Axis by Helical Gear Rack, Z Axis by Tbi
• Motors and Drivers：2206 AC Hybrid Servo Motor & Driver
• Reducer：Japan Shimpo Reducer
• Tool Magazines：Automatic Linear Tool Magazines with 8 Tools
• Bed Structure：Welded Steel Tube, Cast Iron Vertical Shafts a
• Inverter：Fuling Inverter
• Software：Artcam,Type3
• Transport Package：Plywood Case
• Specification：3300*1950*1950mm
• Trademark：LINTCNC
• Origin：China
• HS Code：8465990000
• Production Capacity：400sets,Year

ModelLT-1325 ATC wood CNC RouterWorking area1300(X)*2500(Y)*200(Z)mmMachine structurewelded steel tube, cast iron vertical shafts and steel gantryWorking tableVacuum table with 7.5kw vacuum pump or T-slot tableSpindleQiancheng 9.0KW HQD air cooling spindleSpindle rotating speed6000-24000 rpmMax. Tool holder diameterΦ12.7mmTools magazineLinear tool changer magazine with 8 tools on the gantryGuide railTaiwan Hiwin linear square guide railDriving methodX,Y axis by helical gear rack, Z axis by TBI ball screwMotors and driversLeadshine 2206AC hybird servo motor & driverControl systemTaiwan SYNTEC FC control systemReducerJapan SHIMPO reducerInverterFuling inverterTool sensorAutomatic tool sensorDust collectorWith dust collector to suck the processing dustMax. idling speed60m/minMax. working speed25m/minWorking Accuracy<0.05/300mmInstruction formatG code *.u00 *.mmg *.pltWorking voltageAC380V, 3 phase,50HZStandard softwareArtcam 2010Compatible softwareType3/Castmate/Coreldraw/AutoCAD and other CAM/CADsoftwareOtherOiling system; Water pump; Tool Box,English manuals etc.OptionsRotary axis for engraving round wood:price depends on its diameter

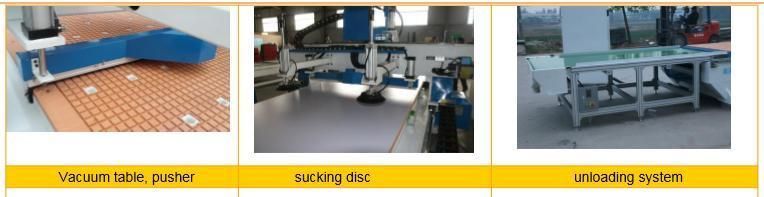

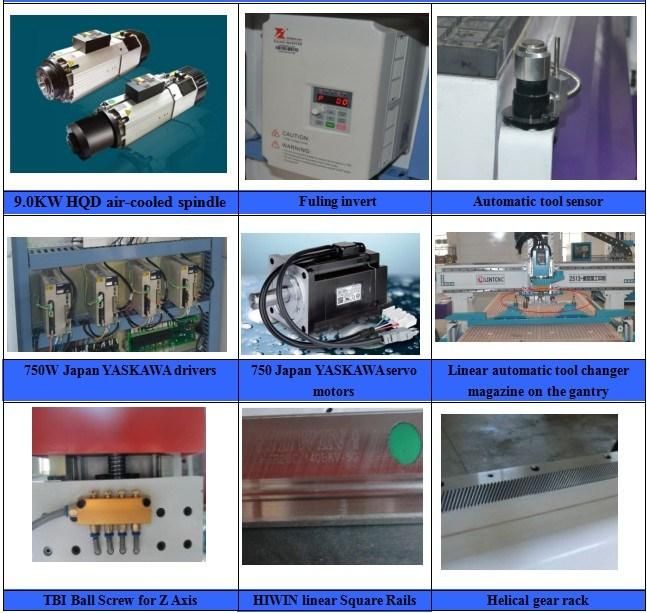

Main parts of the machine:

Performance feature
1.Imported linear guide rail, double-row four columns ball bearings, huge bearing capacity, good moving stability,
long lifetime. Imported ball-screw, high precision.
2.Adopting high-precision gear rack transmission, faster working and high precision.
3.Equipped with USB of remote operation and DSP operating system, lever operation is very simple and advanced.
4.Be compatible with several CAD/CAM designing software, type3, ARTCAM, CASTMATE, UCANCAM etc.

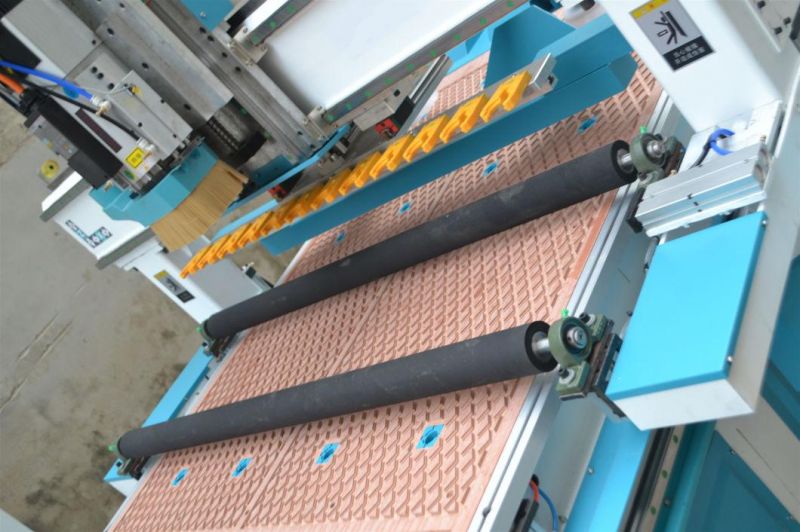

5.Adopting the international advanced technology of vacuum absorption mesa, equipped with
the strongly vacuum pump, the six zones design can absorb the different area of the material strongly.
6.Adopting the stepper motor drives, Y axis adopts double motor drive to make the spindle engrave faster

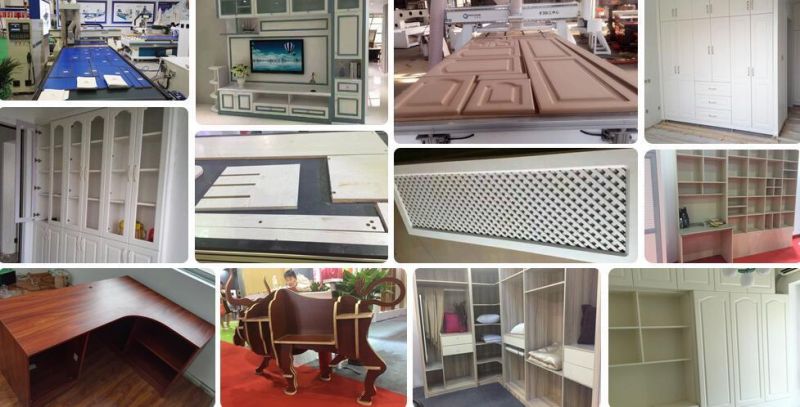

Application:
Furniture Decoration industry:A large area flat plate engraving, wood, panel furniture carving,
wood art murals, wood cabinet doors carving.
Wood Products Processing: Sewing machine table,electrical counter table, sports equipment.
Artwork : Photo Frame, jewelry box.
Musical instrument industry: instrument three-dimensional surface engraving, shape cutting.

Packaging & Shipping

Our Services

 After-sale service
1.Two years quality guaranty for the machine and online service everyday day, free technical support.
2.Free training to guarantee you can operate machine correctly.
3.We will provide the consumable parts at an agency price when you need replacement.
4.Our staff can be sent to your company to install or adjust if necessary.
5.The processing demo video and E-catalogue will be mailed as your request.
Technical service
1. Professional technical suggestion before you order a machine.
2. Professional instruction for the operation of machine
3. Compleed machine manual and CD will be provided together with machine.
4. Machine has been adjusted before delivery.
5. 24-hour technical support by email or calling.
6. Machine can e shipped to port within 7 working days after receiving payment.

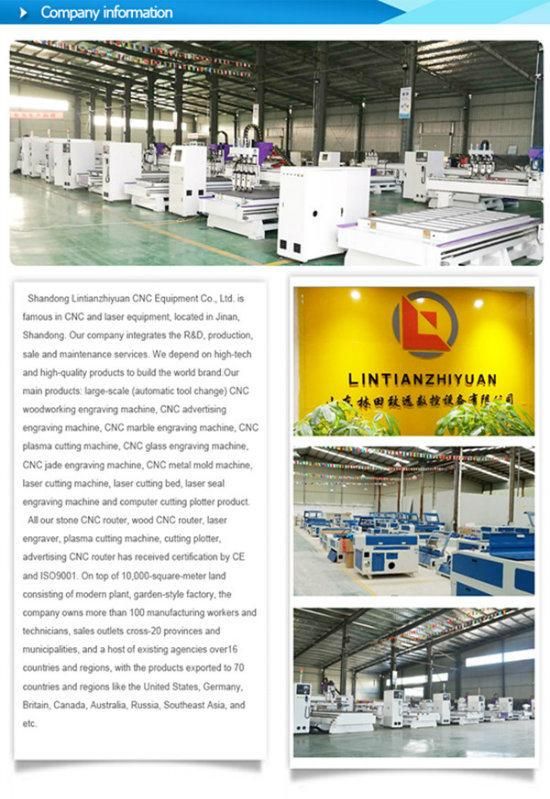

Company Information

FAQ

 1) This is the first time I use this kind of machine, is it easy operate?

There is English manual or guide video that show how to use machine.
If there is still have any question, we can talk from phone or Skype.

2)Can you recommend a CNC ROUTER MACHINE to me,thanks?

Yes, In order to give you a suitable router machine, pls tell me the max working area, materials
for processing and the thickness for materials processing engraving or cutting.
Then perfect suitable cnc router will be recommended

3) If machine have any problem after I ordered it, how could I do?

 Free parts send to you in machine warranty period if machine have any problem.
 Free after-sales service life for machine, please feel free contact us if your machine have
any problem.
we will give you 24hours service from phone and Skype.
