• Model NO.：RMZ-166EC
• Certification：CE
• Processing Efficiency：80-100PCS Per Hour
• Panel Length：200-2800mm
• Panel Width：50-800mm*2PCS
• Panel Thickness：9-40mm
• Spindle Speed：18000rpm
• Power of Main Shaft：3.5kw*4
• Upper Vertical Drill：12*2groups
• Upper Horizontal Drill：X:2*2*2+Y: 2*2*2
• Bottom Vertical Drill：9 PCS*2groups
• Transport Package：Soft Packing & Plywood Packing
• Specification：RMZ-166EC
• Trademark：SAMACH
• Origin：China
• HS Code：84659500
• Production Capacity：10sets,Month

Basic Info.

Model NO. RMZ-166EC Certification CE Processing Efficiency 80-100PCS Per Hour Panel Length 200-2800mm Panel Width 50-800mm*2PCS Panel Thickness 9-40mm Spindle Speed 18000rpm Power of Main Shaft 3.5kw*4 Upper Vertical Drill 12*2groups Upper Horizontal Drill X:2*2*2+Y: 2*2*2 Bottom Vertical Drill 9 PCS*2groups Transport Package Soft Packing & Plywood Packing Specification RMZ-166EC Trademark SAMACH Origin China HS Code 84659500 Production Capacity 10sets/Month

Product Description

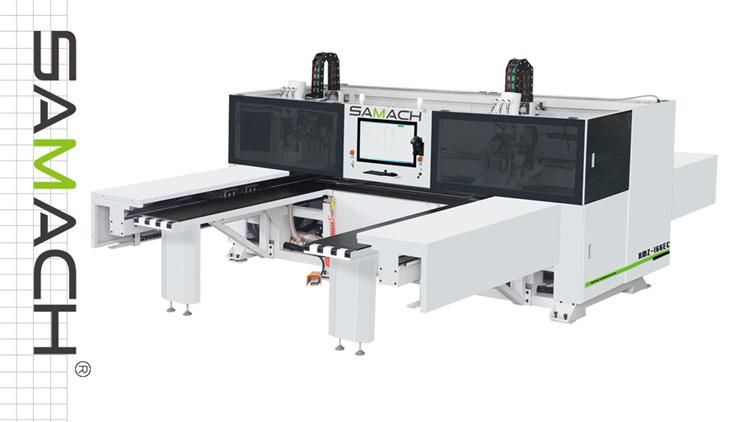

Multi-Drilling Machine CNC Boring Machine

Model	RMZ-166EC
Efficiency	80-100pcs per hour
Length of board	200-2800mm
Width of board	50-800mm*2pcs
Thickness of board	9-40mm
X/Y/Z MAX.Speed	120/80/30m/min
Power of main shaft	3.5kw*4
Speed of main shaft	18000rpm
Upper vertical drill	12*2groups
Upper horizontal drill	X:2*2*2+Y: 2*2*2
Bottom vertical drill	9 pcs*2groups
Overall dimensions	6300*2580*2150mm
