Mf320 Semi Automatic Economic Carpentry Tape Linear Edge Bander Machine Edge Banding Machine

Shanghai Win Star Woodworking Machinery Co., Ltd.
  • Function:Gluing, Fine Trimming, Scraping, Buffing
  • Type:Straight Line

Base Info

  • Model NO.:MF320
  • Edging thickness:0.4-3mm
  • Automatic Grade:Semiautomatic
  • Panel Feeding Speed:18m,Min
  • Certification:CE, ISO
  • Panel Thinkness:12-60mm
  • Min.length panel:80mm
  • Min.width panel:80mm
  • Manufacturing Principles:Glue Tank Underneath
  • Customized:Customized
  • After-sales Service:12 Months
  • Name:Edge Banding Machine
  • Model:Mf320
  • Total Power:5kw
  • Processing Thickness:10-55mm
  • Weight:700kg
  • Trimming Motor:0.55kw
  • Buffing Motor:0.18kw*2
  • Working Air Pressure:0.6MPa
  • Color:as Required
  • Certificate:CE
  • MOQ:1
  • Overall Size:2600mm*900mm*1700mm
  • Voltage:220V,380V
  • Package:Wooden Case
  • Heating:0.55kw
  • Transport Package:Wooden Case
  • Specification:2600mm*900mm*1700mm
  • Trademark:HiWinstar
  • Origin:China
  • Production Capacity:100set,Month
  • Package size per unit product:260.00cm * 90.00cm * 170.00cm
  • Gross weight per unit product:700.000kg

Description

model noMF320name semi automatic edge banding machinetotal power5kwmotor power0.75kw*2feeding speed18m/minair pressure0.7mpaprocessing thickness10-55mmmin processing width80mmmin porcessing length80mmedge band height12-60mmedge band thickness0.4-3mmnet weight700kgoverall dimensions2600mm*900mm*1700mm

MF320 semi automatic edge banding machine function
gluing and pressing- fine trimming-scraping-buffing
Features
1.Through special structure, the edge-sealing sheet and the edge-sealing material are evenly coated and pressed, so that the edge-sealing strip is more firmly attached.
2.Fine trimming,ensure that the upper and lower plates are smoother and more tidy when trimming.
3.Used to eliminate the ripples caused by the cutting process of trimming non-linear motion.
4.Clean the finished plate with a cotton polishing wheel and smooth the edge of the edge by polishing.

Detailed Description
Mf320 Semi Automatic Economic Carpentry Tape Linear Edge Bander Machine Edge Banding MachineMf320 Semi Automatic Economic Carpentry Tape Linear Edge Bander Machine Edge Banding Machine

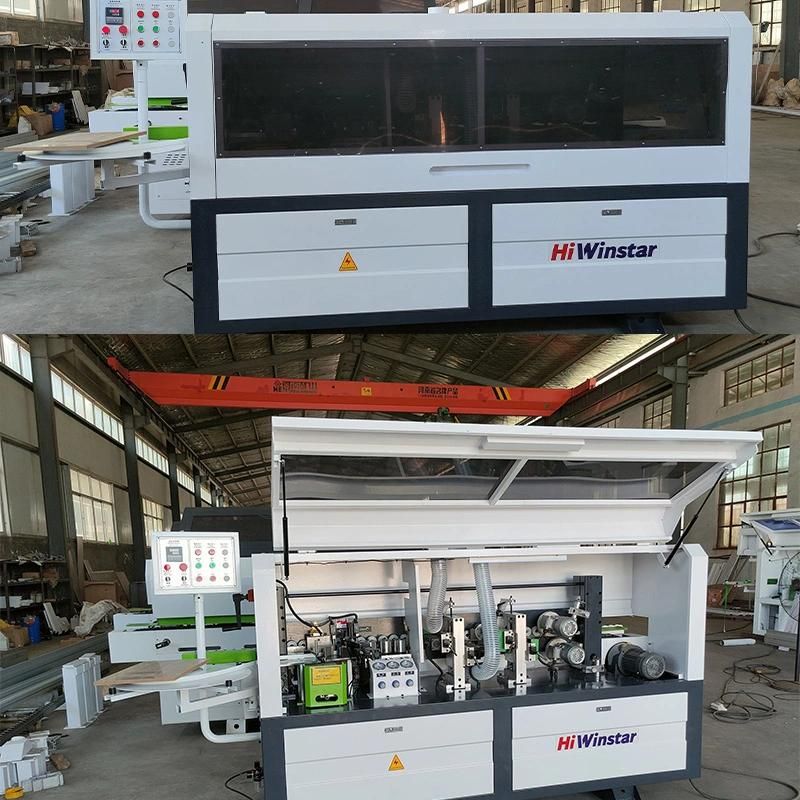

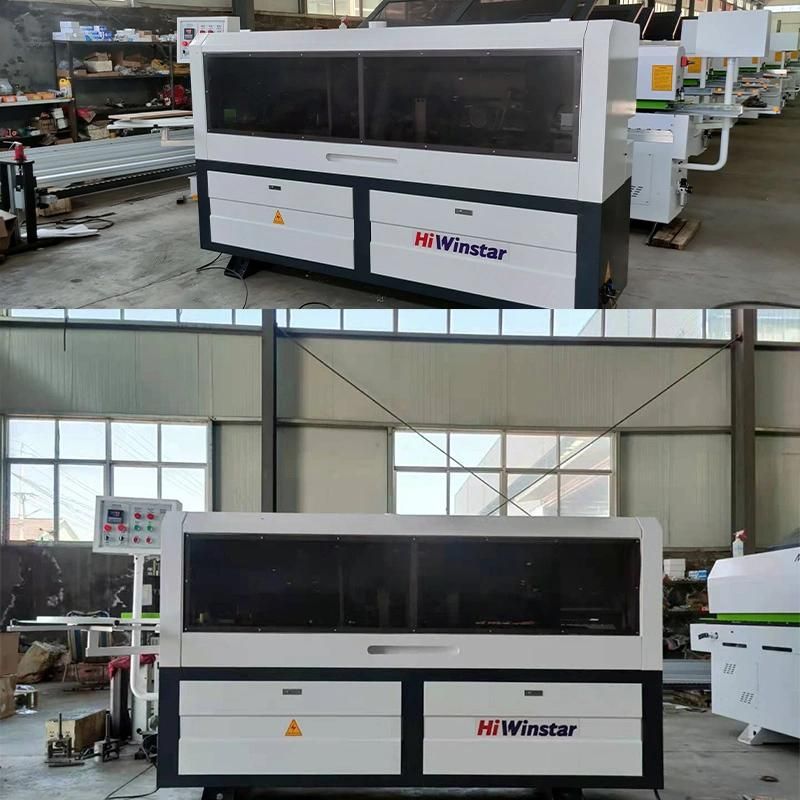

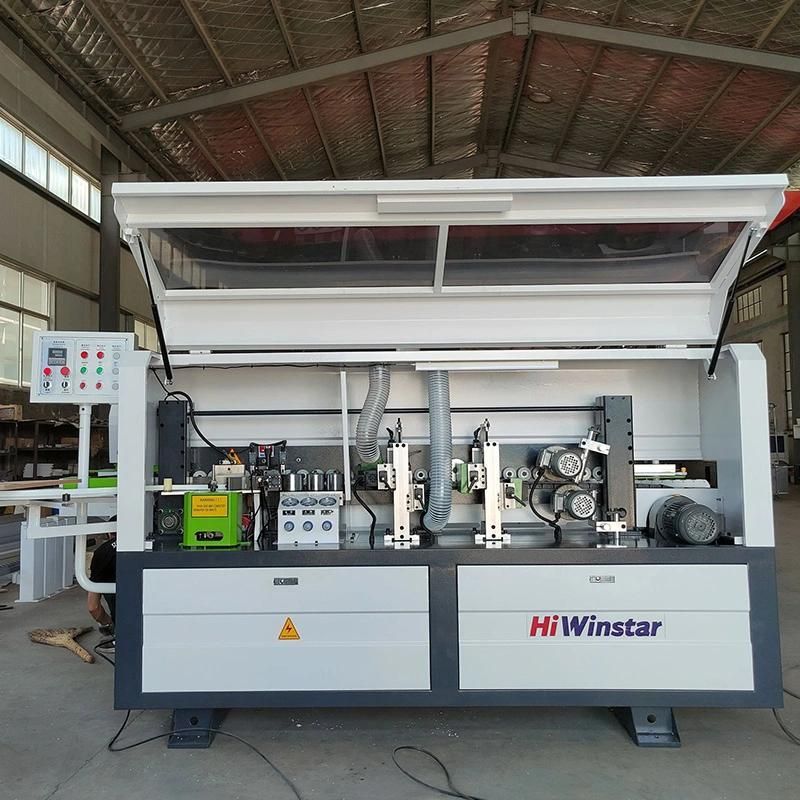

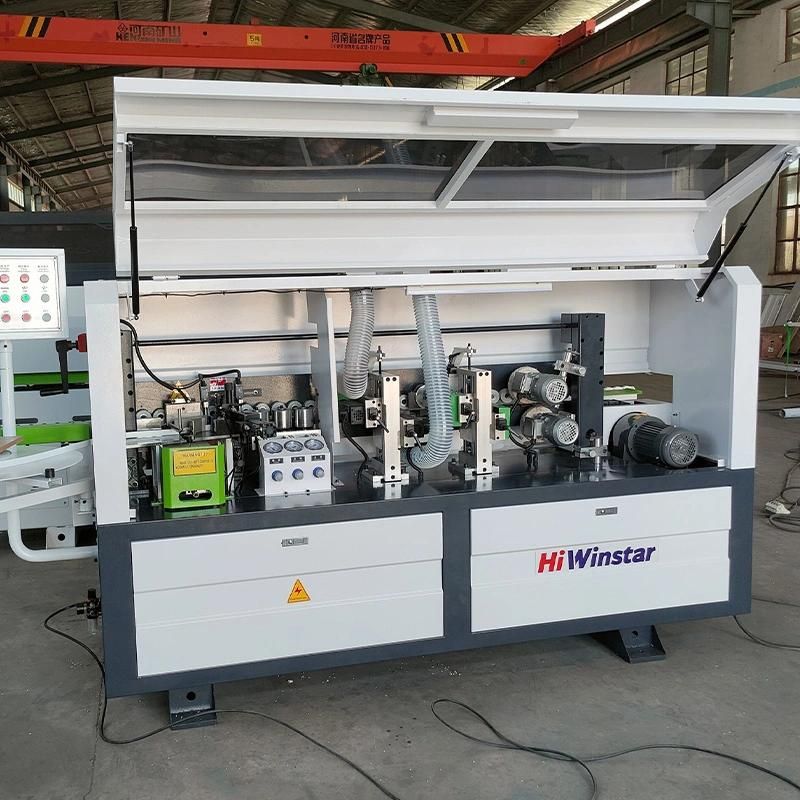

Detailed Pictures
Mf320 Semi Automatic Economic Carpentry Tape Linear Edge Bander Machine Edge Banding MachineMf320 Semi Automatic Economic Carpentry Tape Linear Edge Bander Machine Edge Banding MachineMf320 Semi Automatic Economic Carpentry Tape Linear Edge Bander Machine Edge Banding MachineMf320 Semi Automatic Economic Carpentry Tape Linear Edge Bander Machine Edge Banding MachinePackaging & Shipping
Mf320 Semi Automatic Economic Carpentry Tape Linear Edge Bander Machine Edge Banding MachineMf320 Semi Automatic Economic Carpentry Tape Linear Edge Bander Machine Edge Banding MachineCompany Information
Mf320 Semi Automatic Economic Carpentry Tape Linear Edge Bander Machine Edge Banding MachineMf320 Semi Automatic Economic Carpentry Tape Linear Edge Bander Machine Edge Banding Machine
FAQ
1,Can you offer good price with fine quality also?

Surely,if without quality,we cannot win long market.we will loose long-terms customers.Quality is our responsibility.we must produce and test machine well.Becasue we are always expecing long term business.Regarding the price.
we are not sure if it is lowest or highest,But we will be offering reasonble.We don't want heavy profits,we want a acceptable price to you,and we are expecting a bigger quantities of sales for different wood machines.

2,We will be protetcted if we are paying for orders?

Surely yes,we have been exported 1000000$ different wood machine every year,We received the payment,we should produce for you and ship to you without delay. It is honesty and reputy.We could understand that you paid,you want to see machines soon and use soon. and these years alibaba trade assurance you could rely on,you will be protected very well.

3,What's your warranty? can you do more service for us? we wish woud be protected after purchasing machine.

We are pleased to give life continious aftersales service. within 12 months, if spareparts broken,we will send you new for change. we would like to help to solve any troubles when you use machine at any time.and don't be worried,we will keep opening 24 hours for all customers problem or difficilaty. we must help to make solutions within 48 hours.

4,What's your production time? we want faster shipping time also.

Mostly machine we have in stock, some machine we produce need about 7-10days. make fast shipment always. shipping time depends on shipping company.
