• Model NO.：R7
• Panel Thinkness：10-60mm
• Min.length panel：100mm
• Min.width panel：50mm
• Manufacturing Principles：Glue Tank Overhead
• Customized：Customized
• Heating Power：1.5kw
• Feeding Motor Power：2.2kw
• Glue Spreading Motor Power：0.37kw
• End Trimming Motor Power：0.55kw*2
• Fine Trimming Motor Power：0.75kw*2
• Polishing Motor Power：0.18kw*2
• Air Pressure：0.7MPa
• Overall Dimension：4120*850*1520mm
• Pre-Milling Motor Power：1.5kw*2
• Rough Trimming Motor Power：0.75kw*2
• Transport Package：Wooden Case
• Specification：8CBM
• Trademark：QDZD
• Origin：Qingdao
• HS Code：84659400
• Production Capacity：500sets,Year

Basic Info.

Model NO. R7 Panel Thinkness 10-60mm Min.length panel 100mm Min.width panel 50mm Manufacturing Principles Glue Tank Overhead Customized Customized Heating Power 1.5kw Feeding Motor Power 2.2kw Glue Spreading Motor Power 0.37kw End Trimming Motor Power 0.55kw*2 Fine Trimming Motor Power 0.75kw*2 Polishing Motor Power 0.18kw*2 Air Pressure 0.7MPa Overall Dimension 4120*850*1520mm Pre-Milling Motor Power 1.5kw*2 Rough Trimming Motor Power 0.75kw*2 Transport Package Wooden Case Specification 8CBM Trademark QDZD Origin Qingdao HS Code 84659400 Production Capacity 500sets/Year

Product Description

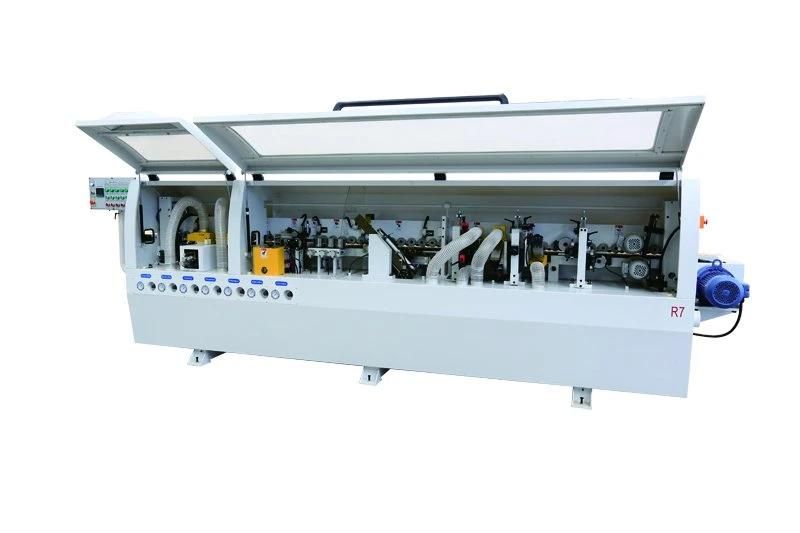

R7A Automatic Edge Banding Machine
Technical Specification:


Type	R7A
Banding tape thickness	0.4-3 mm
Banding tape width	10-60 mm
Work piece thickness	10-60 mm
Work piece length	>=100 mm
Work piece width	>=50 mm
Heating power	1.5 KW
Feeding motor power	2.2 KW
Glue spreading power	0.37 KW
Rough trimming power	0.75 KW x 2
End trimming power	0.55 KW x 2
Fine trimming power	0.75 KW x 2
Polishing motor power	0.18 KW x 2
Feeding speed	13 m/min
Air pressure	0.7 Mpa
Total Power	10.63 KW
Overall dimension	4940x900x1500 mm
Packing size	5000x1000x1600 mm
N.W.	1600 KGS
G.W.	1870 KGS

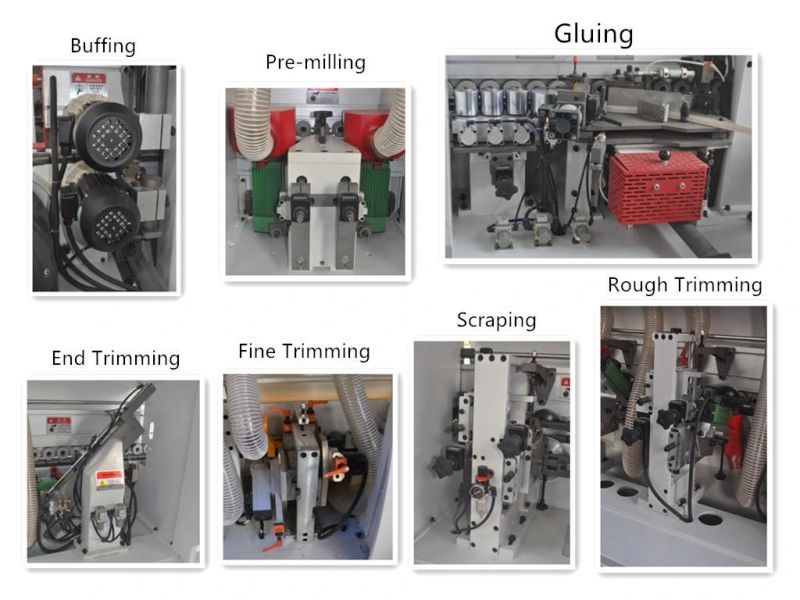

Feature:

1. The glue mechanism adopts a special structure to gelatinize the plates and costing materials uniformly, ensure a more solid conglutination.
2. End trimming mechanism through a precise guide track movement; adopt automatic tracking and high frequency motor fast cutting structure to ensure the cutting surface smoothly.
3. Rough/fine trimming mechanism is used for repairing the excess edge materials, adopt automatic tracking and high frequency motor fast cutting structure to ensure the trimming plates smoothly.
4. Scraping unit is for a perfect finishing of the applied edge.
5. The buffing device adopts the board processed by cotton polishing wheel, by end polishing to make a smoother surface.
6. Pre-milling equipment with double trimming blades works on the waved effect that is caused by precise sliding table saw.


Product Details:








Certificate:

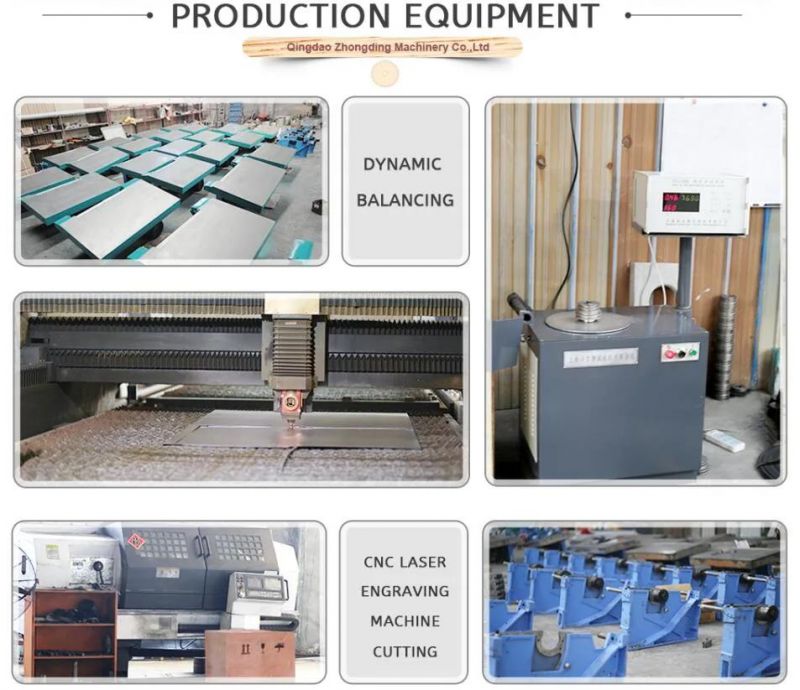

Our company:




Qingdao Zhongding Machinery Co., Ltd is professional at manufacturing woodworking machines. Our main products includes: sliding table saw(panel saw), edge banding machine, hydraulic cold press, hot press, carpenter drilling machine ( boring machine), etc. We are factory, we provide the machine with reasonable price and high quality, and welcome to visit our factory and our products.
