Irregular Baluster Columns Staircase Making Automatic Feeding CNC Wood Lathe

Jinan Firm CNC Equipment Co., Ltd.
  • Type：Vertical Lathe
  • Voltage：380V
  • Tool Holder：Double-tool Holder CNC Lathe
  • Automatic Grade：Automatic
  • Precision：High Precision
  • Setting Mode：Floor-type

Base Info

  • Model NO.：FM1530
  • Controlling Mode：CNC
  • Power Source：Mechanical Drive
  • Processing Accessory：Chuck CNC Lathe
  • Certification：CE, ISO, FDA
  • Engraving Machine Type：Wood Lathe Machine
  • Control：CNC
  • Current：AC
  • Tool Type：Double
  • Structure：Cast Iron
  • Working Area：Diameter300mm, Length 1500mm
  • Guide Rail：Taiwan Hiwin Square
  • Control System：Richauto DSP
  • Motor：450b Stepper
  • Working Voltage：380V
  • Transport Package：Standard Export Woode Case
  • Specification：Diameter300mm, length 1500mm
  • Trademark：FIRMCNC
  • Origin：Jinan Shandong China
  • HS Code：8456100090
  • Production Capacity：100 Sets,Month

Description

collect2 pieceWith spindlenoneWithout spindleLimit switch1 piece E-stop switch1 piece switch1 piece

Irregular Baluster Columns Staircase Making Automatic Feeding CNC Wood Lathe
Configurations of CNC wood lathe machine
#Cast iron bed
#RICHAUTO DSP control system
#Taiwan HIWIN squral rails
#CS 3.5KW air cooling spindle
#Taiwan TBI ball screw
#Fuling inverter
#450B stepper motor
#CAD software
Irregular Baluster Columns Staircase Making Automatic Feeding CNC Wood Lathe

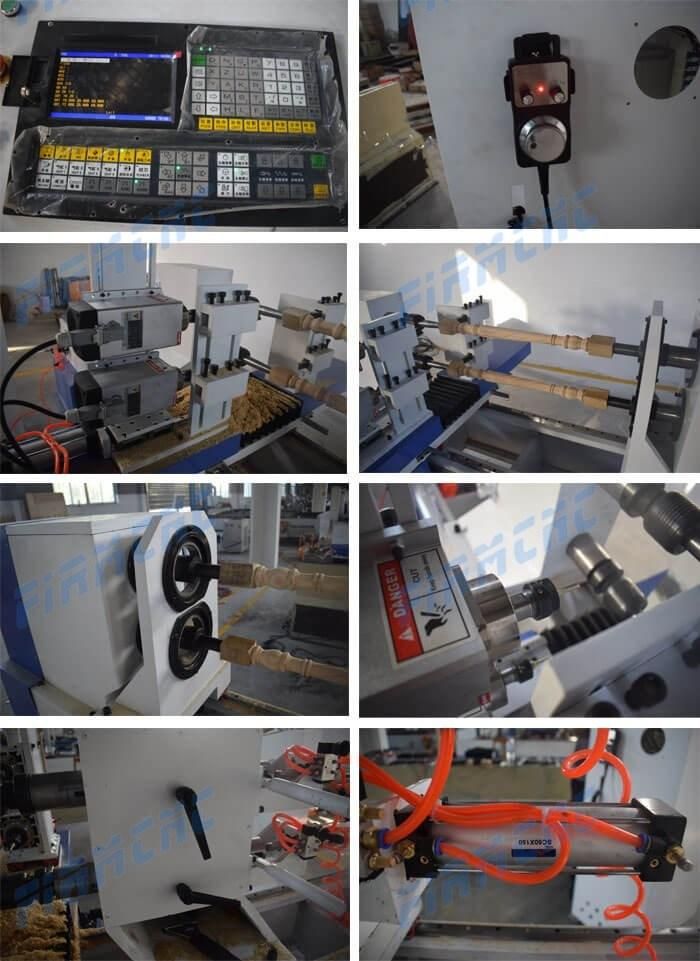

Details of CNC wood lathe machine

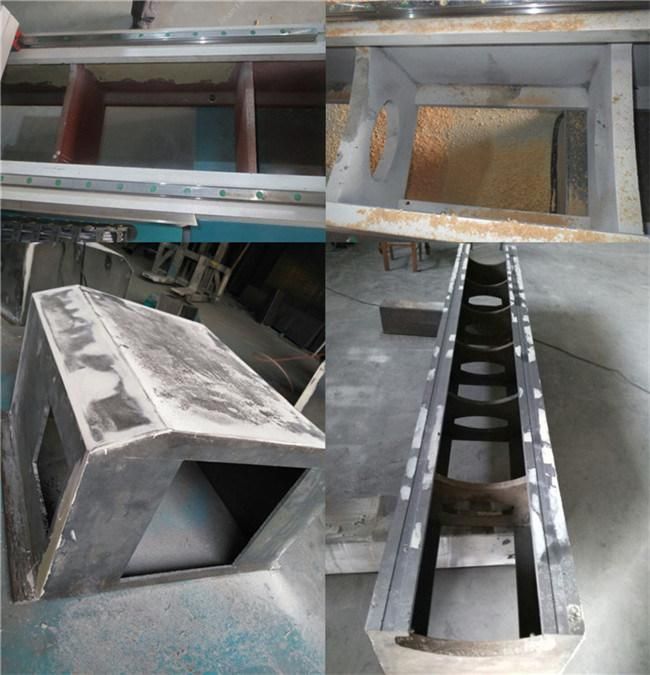

Cast iron structure bed,very heavy and very stable
Irregular Baluster Columns Staircase Making Automatic Feeding CNC Wood Lathe

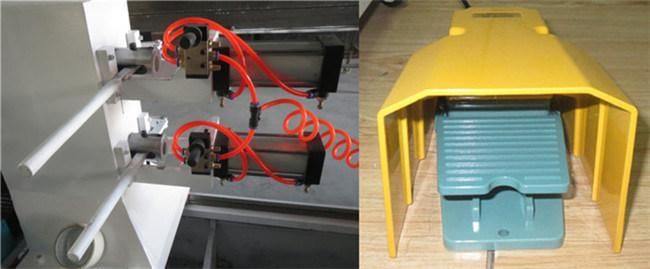

Air cylinder,can be controlled by foot-switch and  fix materials firmly.
Irregular Baluster Columns Staircase Making Automatic Feeding CNC Wood Lathe

Irregular Baluster Columns Staircase Making Automatic Feeding CNC Wood Lathe
Packing & shipment :

Save space as much as possible for container loading.

  • Inside:Water-proof Plastic Film Package With Foam Protection
  • Outside:Solid Seaworthy Wood Box Package
  • Below: Steel Tube

Irregular Baluster Columns Staircase Making Automatic Feeding CNC Wood Lathe

FAQ:

Question 1:How long about the machine's guarantee ?
Answer :2 years
Question 2:How about your after service ?
Answer :Technical support by phone, e-mail or MSN around the clock.
Question 3: How can we install the machine?
Answer :Friendly English version manual and operation video CD disk.
Question 4: How about the payment terms?
Answer:30% T/T for deposit, 70%T/T paid before shipping.
T/T, West Union, Paypal
Question: Do You Arrange Shipment For The Machines?
Answer: Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price,
clients need to arrange shipment by themselves or their agents.
