Hot selling wooden round bar making machine/shovel handle making machine/wood stick making machine
Zhengzhou Hento Machinery Co., Ltd.- Warranty:2years
- Type:round bar cutter
- Voltage:380V
- Tool Holder:Single-tool Holder CNC Lathe
- Automatic Grade:Semiautomatic
- Precision:Precision
Base Info
- Setting Mode:Table
- Controlling Mode:CNC
- Power Source:Electric
- Processing Accessory:Centre CNC Lathe
- Certification:CE
- After-sales Service:on line
- Transport Package:Wooden Box
- Specification:1200*56*1100
- Trademark:hento
- Origin:China
- Production Capacity:3-5m,Min
Description

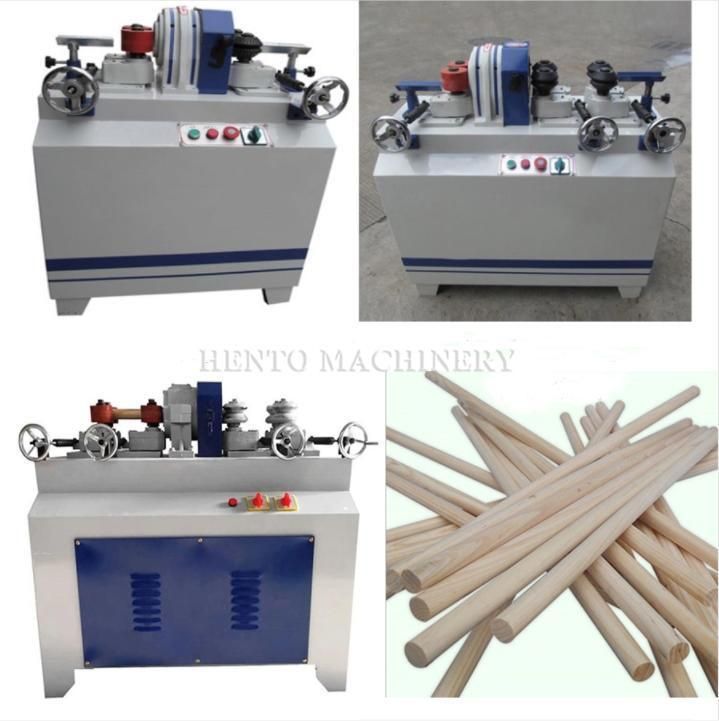

Type one : Single round bar forming machine (makes one round bar at a time)
Product ParametersDetailed Photos 3.Equipment picture :

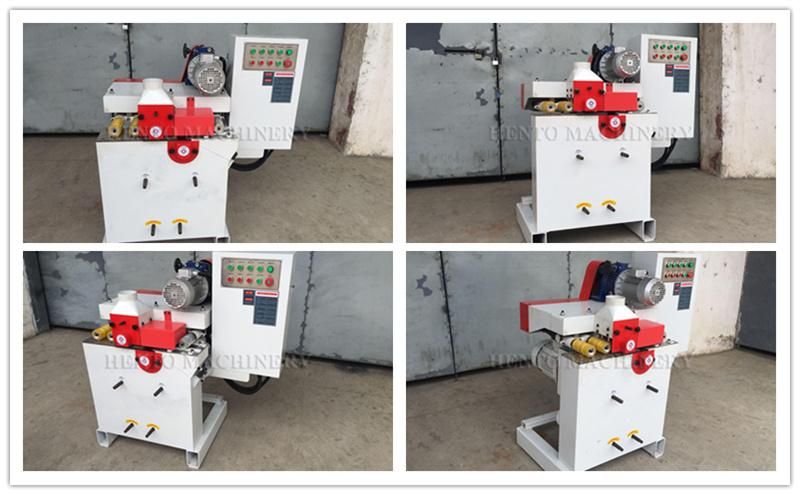

Type two: Single round bar forming machine (makes one round bar at a time)
1.Product introduction:

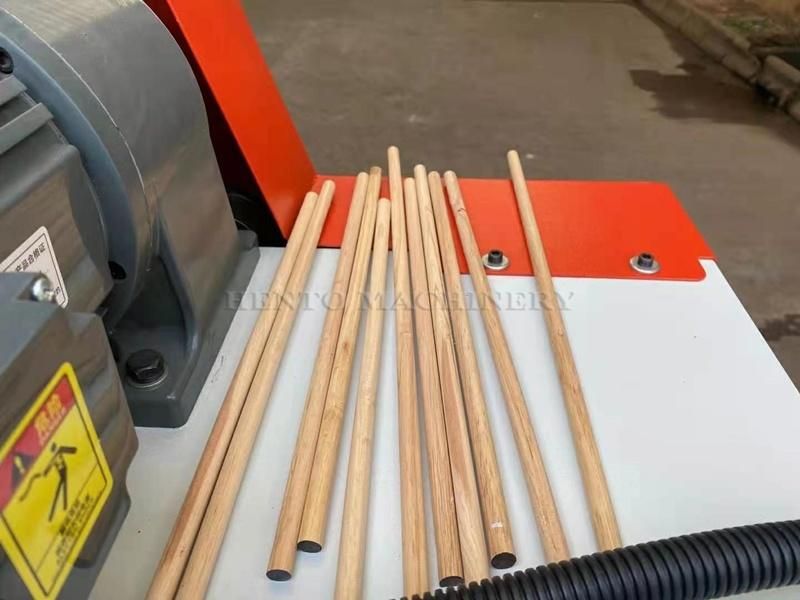

The machine is used for making the wood broom handle,it can produce 1-8 sticks/tim e.We will assemble and test the machine well before delivery, you just need connect t he electric wire, it can be used. We will send you a simple instructions with the machi ne.
Product Feature
1.materials widely, can process square stock and round stock embryo.
2.smooth surface, the output round stick close to sanding effect, saves sanding process by changing speed.
3.high productivity, the fastest feed can reach 18m/min, we can also design output mo re round sticks at one time according to customer's need
2.Technical parameters & Quotation
3.Details picture Model HT-MB9010T HT-MB9010C HT-MB9015C Minimum Length 250mm 250mm 250mm Maximum Length 6000mm 6000mm 6000mm Maximum Width 120mm 120mm 150mm Thickness 4-100mm 4-100mm 4-100m Wooden Rod Diameter Φ4-38mm Φ4-50mm Φ6-70mm Feed Motor Power 1.1kw 1.5kw 2.2kw Feed Speed 6-30m/min 6-30m/min 6-30m/min 1st Lower Shaft 5.5kw 7.5kw 11kw 2nd Upper Shaft 5.5kw 7.5kw 11kw Lifting Motor Power / 0.37kw 0.37kw Maximum Cutter Diameter 100mm 100mm 120mm Extraction Outlet Size 100mm 100mm 120mm Spindle Diameter 30mm 30mm 35mm Total Power 12.5kw 18.37kw 25.37kw
Type three:packing and delivery Type four : Certificate
