• Model NO.：XGJ560+7
• Warranty：1 Year
• Customized：Customized
• Condition：New
• Color：Multi Color
• Place of Origin：China
• Model：7th Xgj560
• Power：132kw
• Capacity：1.5-2t,H
• Machine Dimension：2600X1300X2300(mm)
• Pellets Diameter：4-10mm
• Weight：4.6t
• Suitable Materials：Wood, Sawdust, Rice Husk, Biomass Waste and So on
• Material Moisture：10-15%
• Transport Package：Container
• Specification：CE ISO SGS
• Trademark：YU LONG
• Origin：China
• Production Capacity：100 Sets ,Month

Basic Info.

Model NO. XGJ560+7 Warranty 1 Year Customized Customized Condition New Color Multi Color Place of Origin China Model 7th Xgj560 Power 132kw Capacity 1.5-2t/H Machine Dimension 2600X1300X2300(mm) Pellets Diameter 4-10mm Weight 4.6t Suitable Materials Wood, Sawdust, Rice Husk, Biomass Waste and So on Material Moisture 10-15% Transport Package Container Specification CE ISO SGS Trademark YU LONG Origin China Production Capacity 100 Sets /Month

Product Description

Yulong 1500-2000kg/h CE Approved Industry Wood Pellet Mill

Brief Introduction:
Bioenergy pellet machine/Wood pellet mill is our company patent products, our company is the pellet machine

Manufacturer, produce the wood pellet production line and our main products include: Pellet machine, hammer mill, wood chipper, sawdust machine, drying and cooling machine, packing machine.

This series pellet machine/ briquette machine is applied to the materials with low adhesiveness and low shaping, such as biomass waste from sawdust, rice husk, coffee husk, agricultural stalk, straw, peanut shell, sun flower seed, palm shell, paper, plastic etc, fertilizer materials such as animal manure, plant waste etc.

Bioenergy rice straw pellet press adopts the hart part adopts "double-layer die" as the unique structure; The roller are made by abrasion proof alloy stell improving the use life to spare part greatly; For the drive parts, the grease is filtrated automatically lubricated properly; Special design, rational structure, low power consumption, high efficiency.

Our pellet press contains automatical lubricate spare parts oil systems, which can lubricate spare parts oil automatically---- such as rollers, vertical shaft, gears, bearings, this technology got national patent.

Bioenergy rice straw pellet press works with air fan and bags dust filter, on one hand, it will clean dust, very environmental protection. On the other hand, it can cool pellet machine inner spare parts heat temperature, making sure long continuous working hours. This character is our products different from other suppliers products.


Mainly Parameter of the Wood Pellet Mill:

Model	Power (kw)	Capacity for wood pellets(kgs/h)	Weight of the  machine(kgs)	Dimension of the  machine (mm)
XGJ560	90+1.5+0.37+1.5	1000-1500	6100	2600x1300x2300
7th XGJ560	132+1.5+0.37+1.5	1500-2000	4600	2100x1700x1600
XGJ850	220+3+0.37(0.55)+2.2	2000-3000	14500	3300x1400x3100
6th XGJ850	220+3+0.37(0.55)+2.2	2500-3500	9600	2600x1600x1950
XGJ920	315+5.5+0.55+1.5+2.2	3000-4000	18000	3800x1680x3400
XGJ1050	450+5.5+0.55+1.5+3	5000-6000	23000	3980×2060×3450

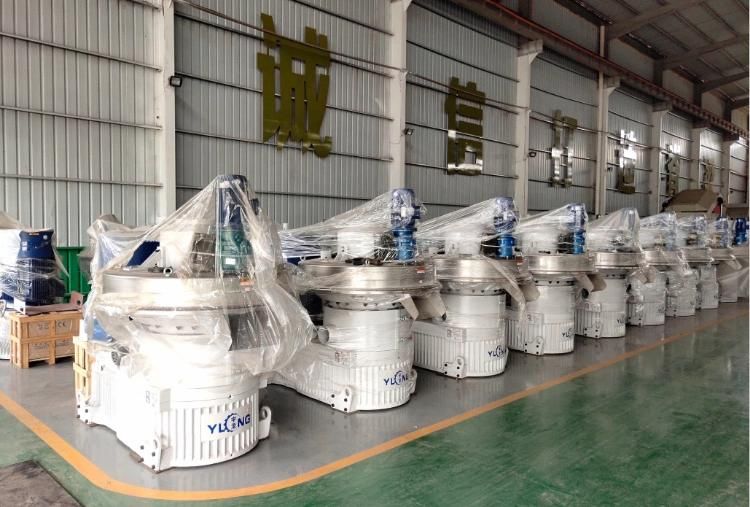

Photos of the Wood Pellet Mill:
