• Model NO.：MX71160,MX71180MX71200,MX71220
• After-Sales Service：24 Hours Technical Support by Email, Call, Video
• Warranty Time：Offer Free Spare Parts and Service Within 12 Month
• Working Experience：Twenty Years′ Experience
• Range of Cutting Diameter：Diameter 500-1800mm
• Max Cutting Thickness：130mm
• Transport Package：Standard Package, Be Made According Cutomer Need
• Specification：2610*2170*1930mm
• Trademark：XINLIHUI Open Type Four Sides Hydraulic Clamp Carr
• Origin：Qingdao City
• HS Code：84659100
• Production Capacity：100,Week

Basic Info.

Model NO. MX71160/MX71180MX71200/MX71220 After-Sales Service 24 Hours Technical Support by Email, Call, Video Warranty Time Offer Free Spare Parts and Service Within 12 Month Working Experience Twenty Years′ Experience Range of Cutting Diameter Diameter 500-1800mm Max Cutting Thickness 130mm Transport Package Standard Package, Be Made According Cutomer Need Specification 2610*2170*1930mm Trademark XINLIHUI Open Type Four Sides Hydraulic Clamp Carr Origin Qingdao City HS Code 84659100 Production Capacity 100/Week

Product Description

There are four modles for this type of shaper, it is a complete wood copying shaper, for the big leisure interest or the joinery and woodware trade. Making your own wooden mouldings is a profitable form of wood processing for most woodware makeing. With a MXZ-71160 you have everything you need for getting started with a much sought-after production. The machine is easy to use and easy to own. You can plane and mould the timber in one operation.You can also order your own design or reproduce old profiles, which can be of great value for you.
Parameter of model MX71160/MX71180MX71200/MX71220

Model	MXZ-71160	MXZ-71180	MXZ-71200	MXZ-71220
Available working diameters	500-1800mm	500-2000mm	500-2200mm	500-2500mm
Max working thickness	130mm	130mm	130mm	130mm
Working table size	diameter 1630mm	diameter 1850mm	diameter 1850mm	diameter 1850mm
Main spindle diameters	35mm	35mm	35mm	35mm
Bearing diameters	100mm	100mm	100mm	100mm
Main spindle speed	8500 rpm	8500 rpm	8500 rpm	8500 rpm
Main spindle power	7.5kW*2	7.5kW*2	7.5kW*2	7.5kW*2
Working table power	2.2kW	2.2kW	2.2kW	2.2kW
Working table speed	0.5-3 rpm	0.5-3 rpm	0.5-3 rpm	0.5-3 rpm
Total power	17.2kW	17.2kW	17.2kW	17.2kW
Dust exit	Φ100*2  Φ120*2	Φ100*2  Φ120*2	Φ100*2  Φ120*2	Φ100*2  Φ120*2
Working air pressure	0.6 Mpa-0.8 Mpa	0.6 Mpa-0.8 Mpa	0.6 Mpa-0.8 Mpa	0.6 Mpa-0.8 Mpa
Net Weight	3900KGS	4400KGS	4900KGS	5400KGS
Overall dimensions	2610*2170*1930mm	3110*2670*2430mm	4110*3670*3430mm	3610*3170*2930mm

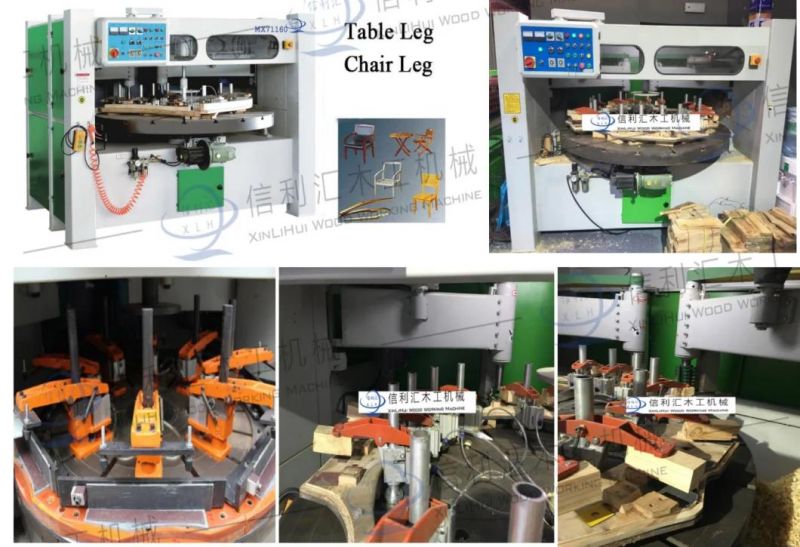

Detail machine pictures, all photoes are for 100% real shooting ! For more pictures, video and details, please email me!
3 Product show:

Feature:
Safety: avoid operators' hands close to the highly rotating cutter and minimize working accident during operation
Efficiency: operator simple load automatic material discharge, improve productivity and efficiency, reduce labor intensity
Environmental protection: united dust collecting device provide nearly- free working environment and slove dust collection difficulty in normal shaper production
