• Model NO.：FX1325ATC
• Customized：Customized
• Condition：New
• Color：Customized
• Working Area：1300*2500mm
• Control：Syntec Controller
• Table：Vacuum Suction Table
• Spindle Power：6kw,9kw
• Transport Package：Plywood
• Specification：CE
• Trademark：FLYING
• Origin：China
• HS Code：84649090
• Production Capacity：100PC,Month

Basic Info.

Model NO. FX1325ATC Customized Customized Condition New Color Customized Working Area 1300*2500mm Control Syntec Controller Table Vacuum Suction Table Spindle Power 6kw/9kw Transport Package Plywood Specification CE Trademark FLYING Origin China HS Code 84649090 Production Capacity 100PC/Month

Product Description

Woodworking CNC router, cnc engraver with atc for wood
Features:

FX1325 Carrousel type ATC CNC router is one of the bestsellers with its high performance and affordable price. It is easy to use and easy to maintain. Available in popular table sizes FX1325-1300*2500mm (4' x 8') provides opportunities for a wide variety of application needs, particulaFLCy in volume oriented enterprises, needing to process a variety of sheet sizes, individual parts and solid wood products. This ATC router qualifies with above average "up-times", low maintenance requirements and ease of operation.

Applicable Industries:

1. woodworking industries:

Three-dimensional wave plate processing, cupboard doors, wooden doors,window  processing,video game cabinets and panels, computer table and Plate furniture auxiliary processing.



2. the advertising industry:

Advertising signs, logo production, acrylic cutting, forming system module, a variety of materials  advertising the production of decorative products.



3. the die-board industry:

A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting,  PVC pipe, wooden planks and other non-metallic mold.



4. other industries:

A variety of large-scale relief sculpture, video carving, widely used in gift processing industry.



Applicable Materials:

Wood: Plywood, Soft Wood, Hard Wood, MDF, Chipboard

Plastic: Acrylic, ABS, HDPE, PVC, UHMW, HDPE

Stone: Granite, Marble, Slate, Basalt, Pebbles, Natural Stone, Ceramic, Porcelain

Metal: Aluminium, Brass, Copper, Mild Steel, Stainless Steel

Composite: Aluminium Composite, Copper Composite, Titanium Composite, Zinc Composite.



Specifications:

Machine model	FX1325 ATC CNC router
ATC type	Linear ATC/Carrousel ATC with 8 tool magazines(with 8 pcs ISO30-ER32 tool holders
X,Y,Z working area(mm)	1300*2500*200mm
Table size(mm)	1300*3040mm

Inverter	Taiwan Delta frequency inverter

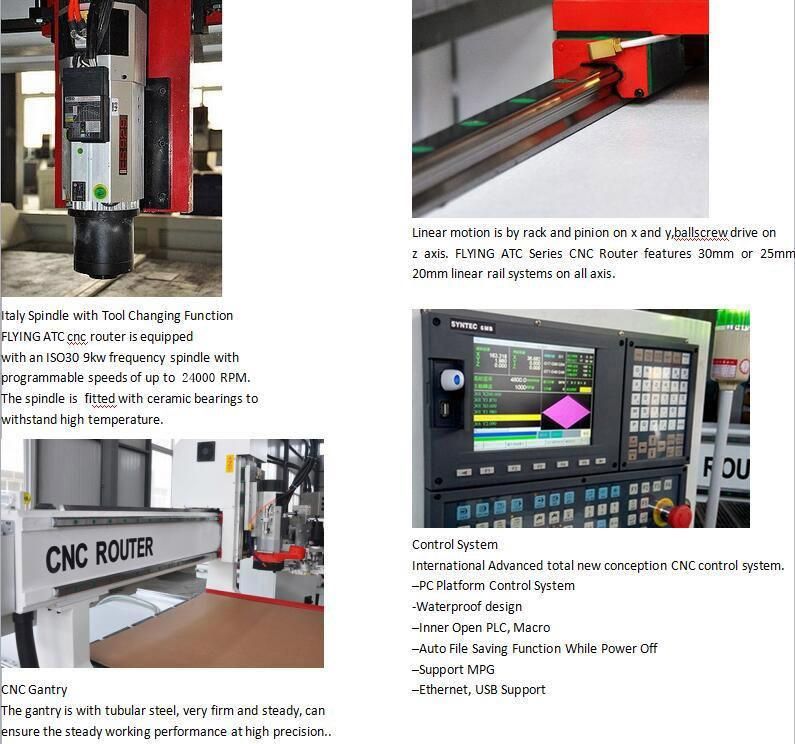

Spindle	Auto tool changer spindle 6kw/9kw / 24000RPM/32000RPM

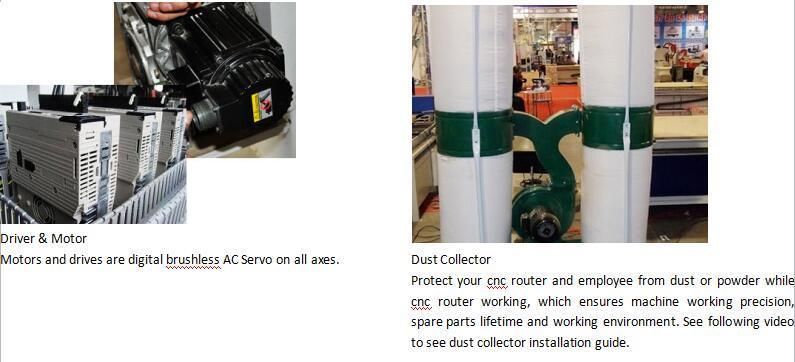

X Y Z axis drive and motor	Japan YASKAWA Servo drive and motorS
Vacuum System	Vacuum table , combined T-slot extrusion&bakelite table+ vacuum pump
Dust collecting system	Dust collector (two bags) and dust collect hood
X, Y, Z Travelling Potioning Accuracy	±0.05mm
X, Y, Z Travelling Repositioning Accuracy	±0.05mm
Frame	Big thickened Square Steel Square Tubes, thickness is 8mm
X, Y structure	Helical Rack and pinion drive, Taiwan Hiwin rail linear bearing 25mm(HGR25)
Z axis structure	Taiwan TBI ballscrew 25mm , Taiwan Hiwin linear rail 25mm(HGR25)
Max Rapid Travel Rate	50,000mm/min
Max working speed	36,000mm/min
Working voltage	220v, 3 phase, 60hz
Delivery time	30 days
Command languages	G code
Control system	NCstudio NK300 controller and MPG handle wheel
Software	Ucancam English version
Switch and emergency stop	SCHNERDER switch, Omron emergency stop from Japan
Auto tool change time	8 seconds
Net weight	2100kg
Gross weight (wooden box weight)	2250kg
