Automatic Hydraulic Cast Iron Body Veneer Peeling Lathe Plywood Making Machine

Linyi Sin San Lin Smart Machinery Co., Ltd.
  • Type:Veneer Peeling Machine
  • Automatic:Automatic
  • Certification:CE, ISO, FDA
  • Voltage:380, 415V
  • Max. Log Dia:380mm
  • Min. Log Dia:30mm

Base Info

  • Model NO.:BXQ1814
  • Knife Size:1400mm
  • Customized:Yes
  • Motor:Siemens
  • Inverter:Mitsubishi Drive
  • Mechanical Knife:Yes
  • Setting Mode:Floor-Type
  • Transport Package:Standard Export Packing
  • Specification:1.4M VENEER PEELING
  • Trademark:METRO MACH
  • Origin:Shandong, China
  • HS Code:8465960000
  • Production Capacity:1000 Sets, Year

Description

Basic Info.

Model NO. BXQ1814 Knife Size 1400mm Customized Yes Motor Siemens Inverter Mitsubishi Drive Mechanical Knife Yes Setting Mode Floor-Type Transport Package Standard Export Packing Specification 1.4M VENEER PEELING Trademark METRO MACH Origin Shandong, China HS Code 8465960000 Production Capacity 1000 Sets/ Year

Product Description

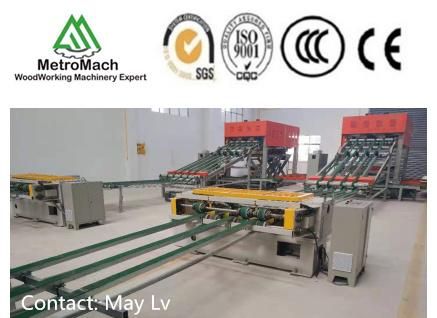

Product DescriptionCast Iron Body Plywood Peeling MachineTechnical Parameters
Model. NoBXQS1814
Max. Log Diameter380mm
Min. Log Diameter30mm
Knife Size1400mm
Veneer Thickness0.8-3mm
Output Speed40-100m/min
Voltage415v 50Hz


Motor Powers
Double Roller 15kw (Siemens Motor  15kw MITSUBISHI Inverter)
Single Roller 7.5kw+7.5kw (Siemens Motor  15kw MITSUBISHI Inverter)
Feeding Motor 11kw (Servo motor  15kw MITSUBISHI Inverter )
Clipper motor 2.2kw( 3.7kw MITSUBISHI Inverter)
Belt conveyor 2.2kw (2.2kw MITSUBISHI Inverter)
Mechanical Knife

Yes

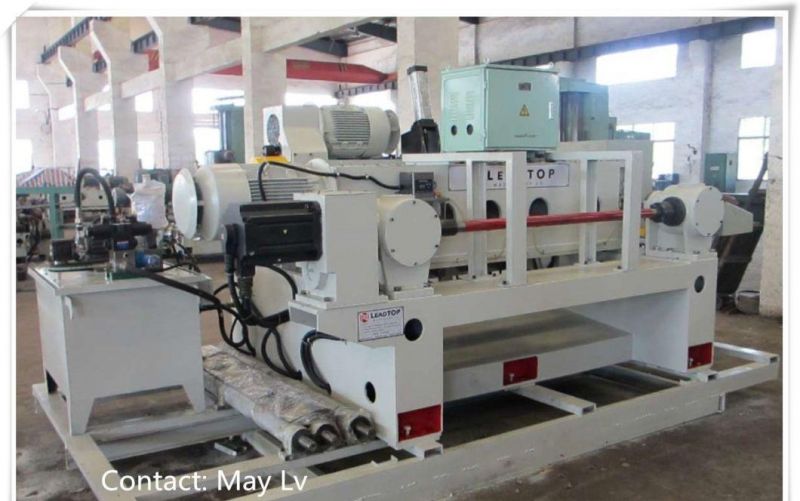

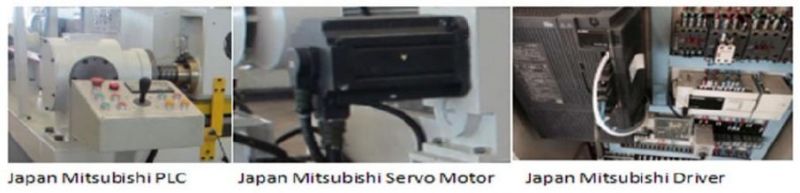

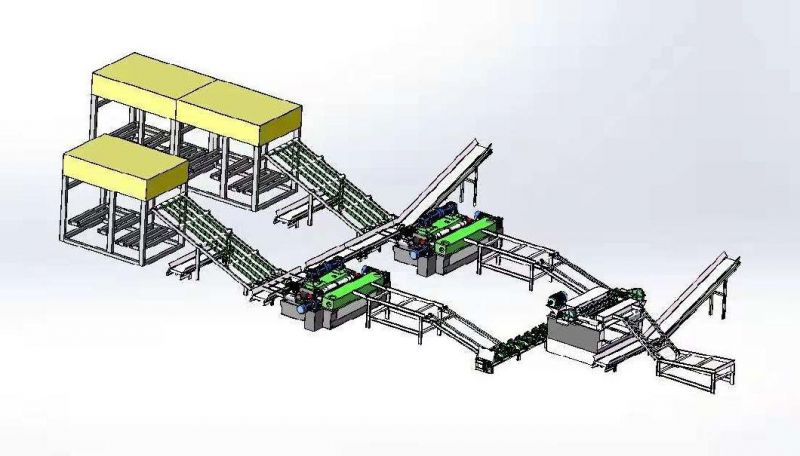

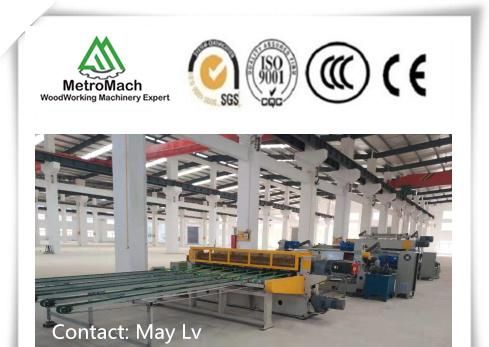

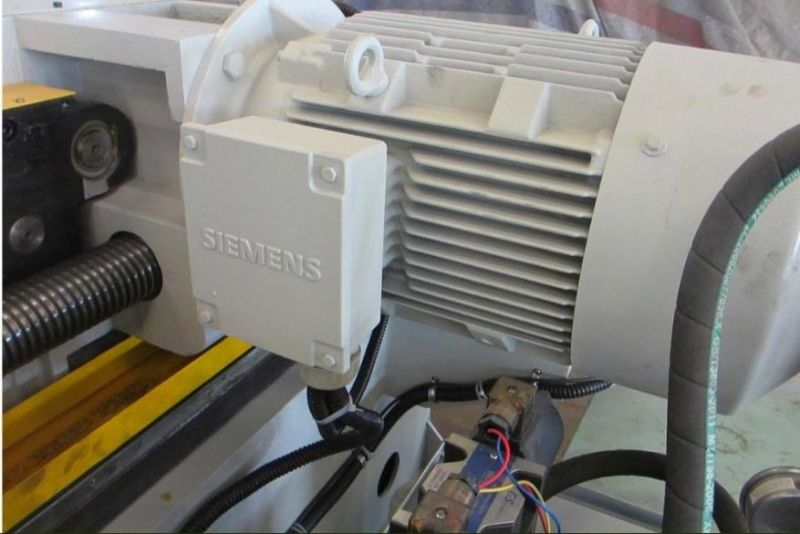

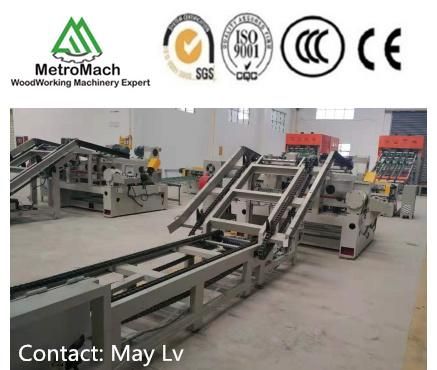

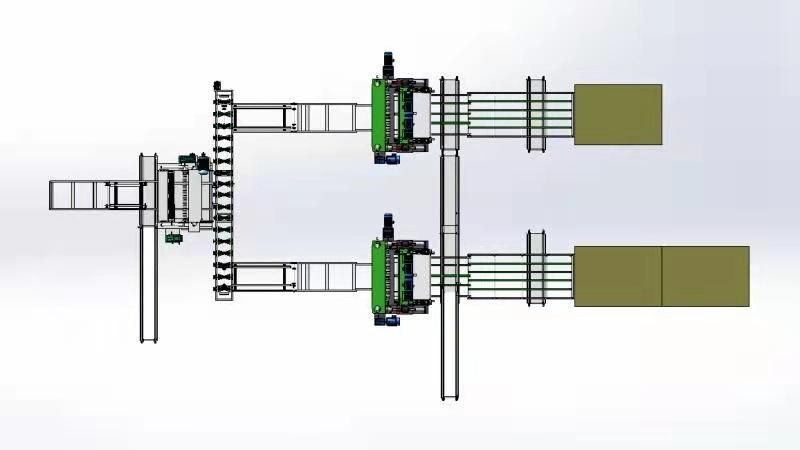

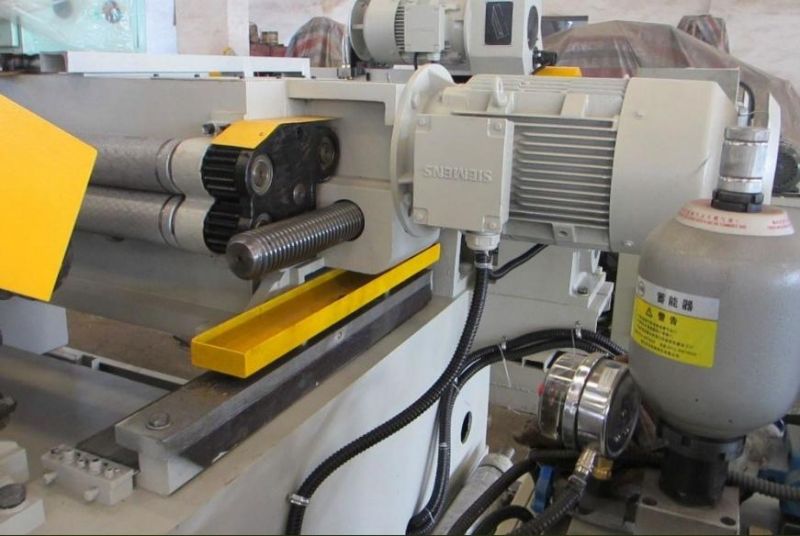

Product Pictures
Automatic Hydraulic Cast Iron Body Veneer Peeling Lathe Plywood Making Machine
Automatic Hydraulic Cast Iron Body Veneer Peeling Lathe Plywood Making Machine
Automatic Hydraulic Cast Iron Body Veneer Peeling Lathe Plywood Making Machine
Automatic Hydraulic Cast Iron Body Veneer Peeling Lathe Plywood Making Machine

Automatic Hydraulic Cast Iron Body Veneer Peeling Lathe Plywood Making Machine
Automatic Hydraulic Cast Iron Body Veneer Peeling Lathe Plywood Making Machine
Automatic Hydraulic Cast Iron Body Veneer Peeling Lathe Plywood Making MachineAutomatic Hydraulic Cast Iron Body Veneer Peeling Lathe Plywood Making Machine

Automatic Hydraulic Cast Iron Body Veneer Peeling Lathe Plywood Making Machine
