• Model NO.：CK1325
• Trademark：CHANKE
• Origin：Shandong China
• HS Code：8465990000
• Production Capacity：500

Basic Info.

Model NO. CK1325 Trademark CHANKE Origin Shandong China HS Code 8465990000 Production Capacity 500

Product Description

Product Description
1.Four axis machine, with 4 Rotaries and 4 spindles, which can work at the same time or independently, and every one's max effective working area is 300mm(diameter) by 1500mm(length).
2. With Scanner or designed photo, it can do any 3D Engraving and 2D Engraving .
3. Whole machine is welded with seamless steel structure, the stability is excellent, not easy to be deformed.
4.Has the 4th rotary which is used for engraving cylinder workpiece.
5.Well compatibility: CAD/CAM designing software e.g. Type3/Artcam/ Castmate/Wentai etc.
6.Has the function of re-carving after break point and power failure
7. Adopting stepper motor and driver, can be optional China or Japanese servo motors

Configuration:

1.Welded steel bed structure 4mm

2.Taiwan HIWIN square guide rails for three axises, Rack transmission for X and Y axis, Ball screw for Z axis

3.2.2KW water cooling spindle with water pump

4." BEST" Inveter

5. NC studio control system

6.Rotary attachment multi-pieces260mm or as your choice

7.Oil lubrating system

8. leadshine H2-758 hybrid servo motor

9. leadshine driver


Specification

Model	CK1325 CNC router
X,Y,Z Working Area	1300*2500*300mm/500mm
X,Y,Z Traveling  Positioning Accuracy	±0.03/300mm
X,Y,Z repositioning  Positioning Accuracy	±0.02mm
Lathe Structure	Thick wall square tubes welding bed
X Structure	Taiwan HIWIN square guide rails
Y Structure	Taiwan HIWIN square guide rails
Z Structure	Taiwan  HIWIN square guide rails
Max.Speed	0-30000mm/min
Max.Working Speed	0-25000mm/min
Spindle	2.2KW water cooling spindle
Spindle Speed	0-24000RPM
Working Mode	stepper motor and driver
Working Voltage	380V/3 phase 50HZ
Command Code	G code(*uoo,*nc,*mmg, *plt)
Operating System	NC studio contol system or DSP A18 /MARCH 3
Interface	USB
X,Y Working Delicacy	<0.01mm
Software	Type3/Ucancam/JDpaint/artcam software
Running circumstance	Temperature: 0°C~45°CRelative humidity: 30%~75%
Waranty	One year
Delivery time	10-20 working days

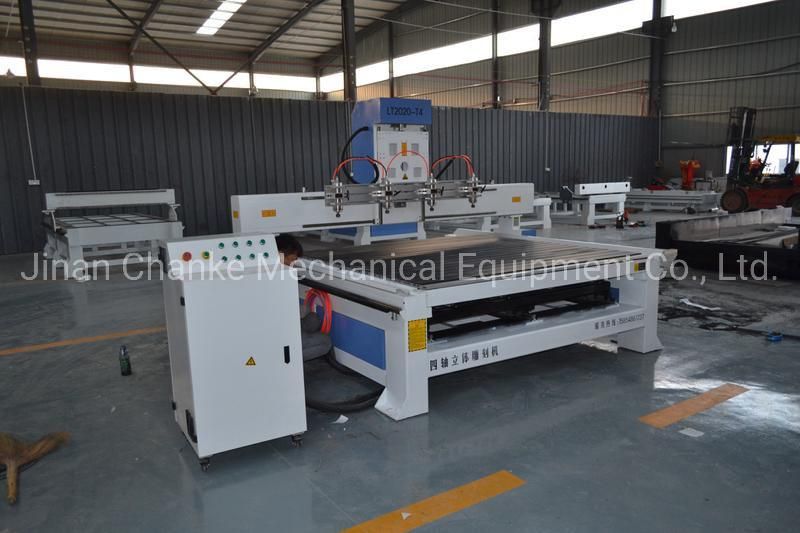

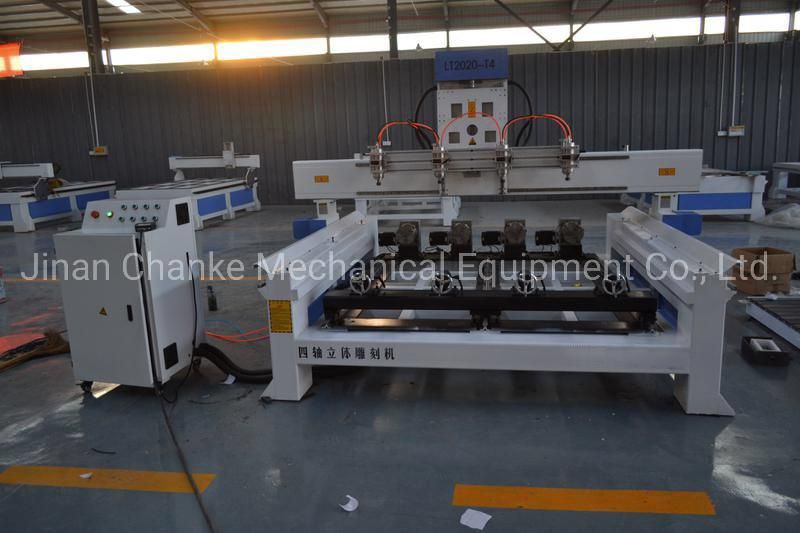

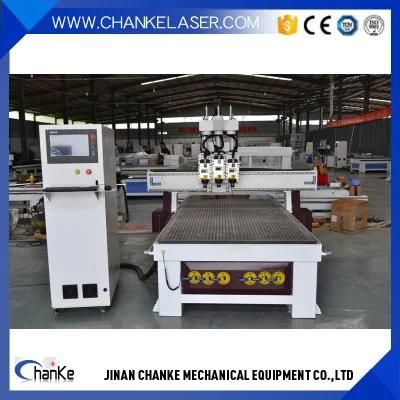

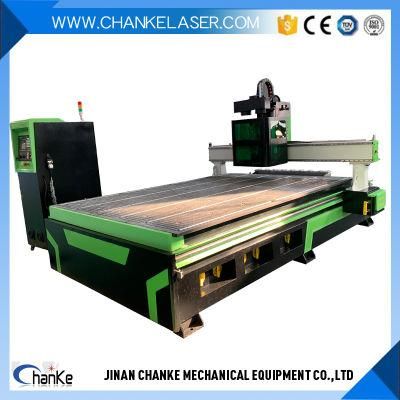

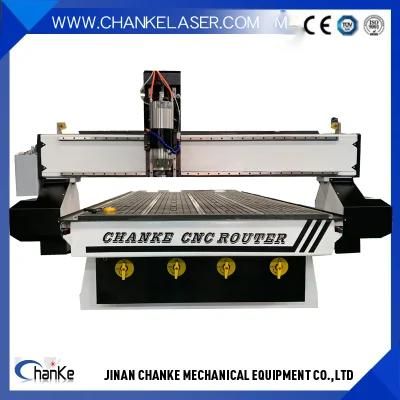

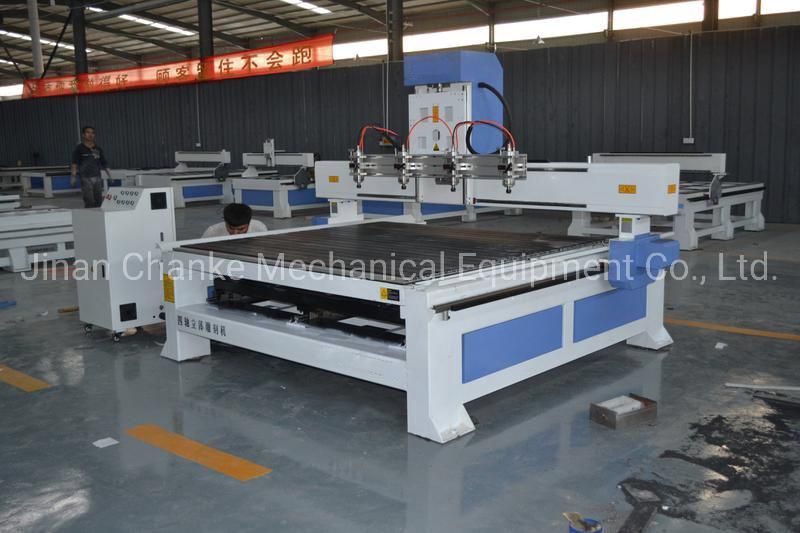

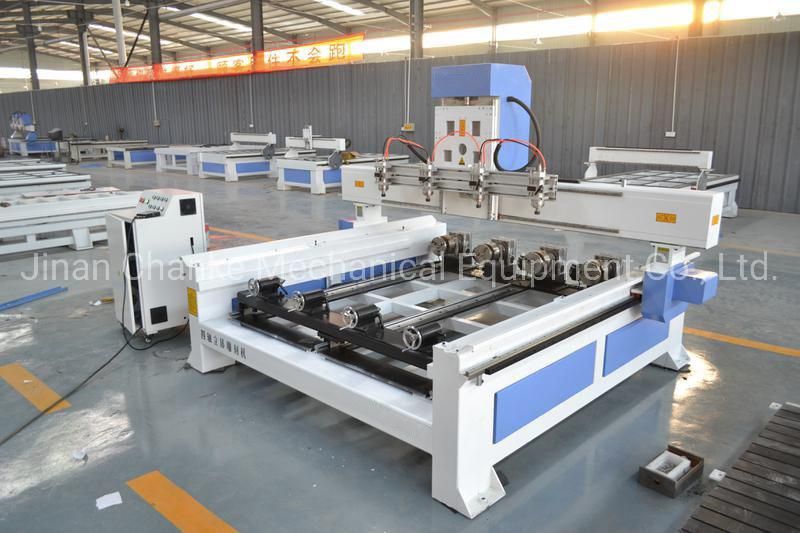

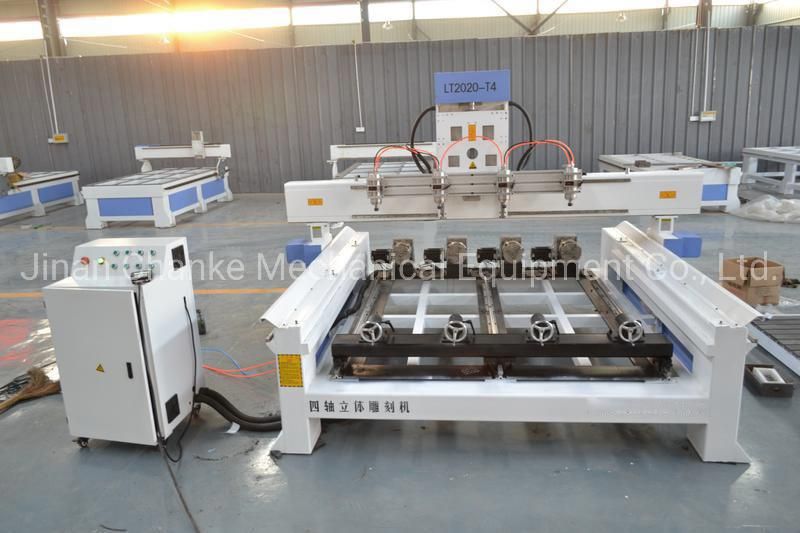

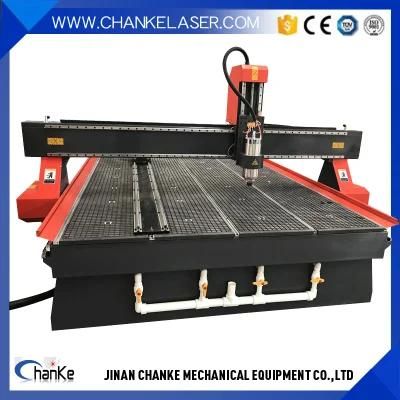

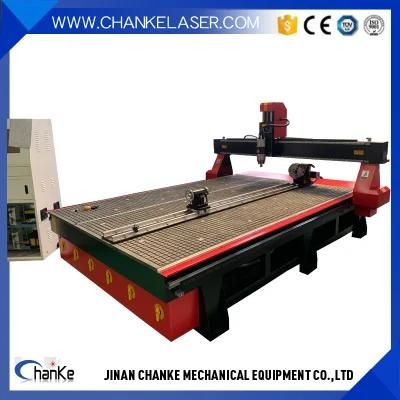

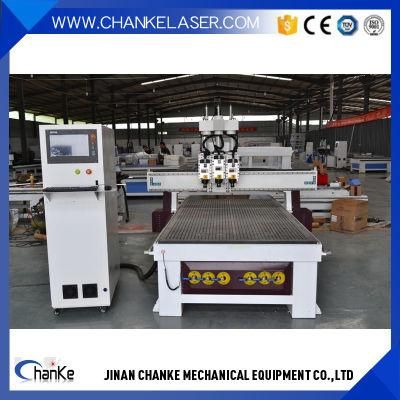

Machine photos:

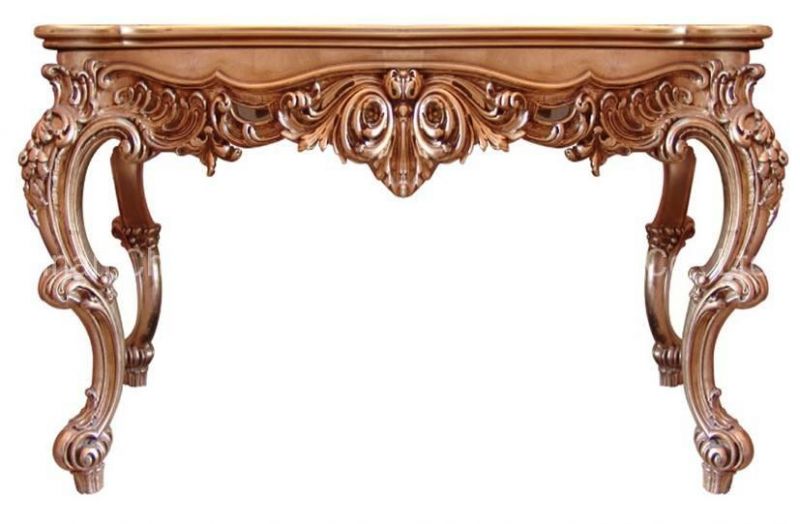

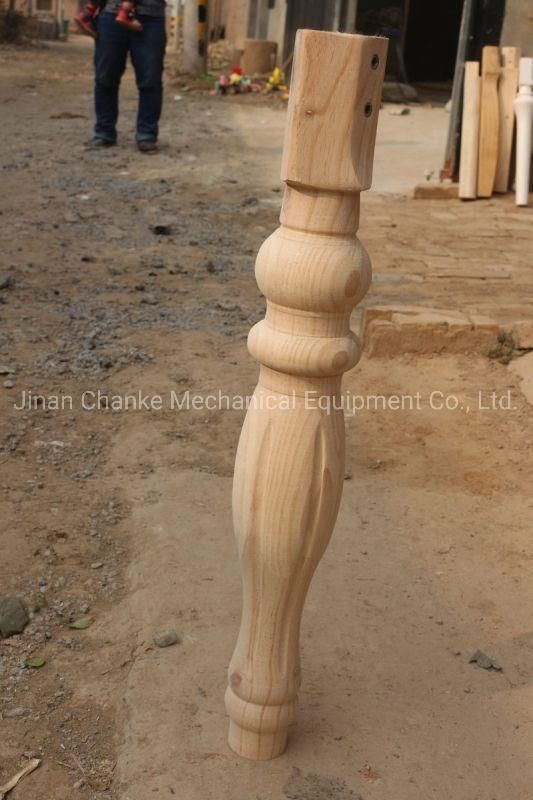

samples :
