• Certification：CE, ISO
• Panel Thinkness：10-60mm
• Min.length panel：120mm
• Min.width panel：80mm
• Manufacturing Principles：Glue Tank Underneath
• Customized：Customized
• After-sales Service：Provided
• Model：Gd2400
• Sealing Side Thickness：0.3-3 mm
• Self Running Moto：60W
• Feeding Motor：25W
• Transport Speed：0-15 M,Min
• Feeding Speed：0-6 M,Min
• Voltage：220V
• Machine Size：1200*540*720 mm
• G.W,：80 Kg
• Sealing Side Shape：Line , Curve
• Left and Right Width Strip Size：50cm
• Sealing Side Height：10-60mm
• Transport Package：Wooden Package
• Trademark：GUANDIAO
• Origin：Jinan Shandong
• Production Capacity：100 Sets,Month

Basic Info.

Certification CE, ISO Panel Thinkness 10-60mm Min.length panel 120mm Min.width panel 80mm Manufacturing Principles Glue Tank Underneath Customized Customized After-sales Service Provided Model Gd2400 Sealing Side Thickness 0.3-3 mm Self Running Moto 60W Feeding Motor 25W Transport Speed 0-15 M/Min Feeding Speed 0-6 M/Min Voltage 220V Machine Size 1200*540*720 mm G.W, 80 Kg Sealing Side Shape Line / Curve Left and Right Width Strip Size 50cm Sealing Side Height 10-60mm Transport Package Wooden Package Trademark GUANDIAO Origin Jinan Shandong Production Capacity 100 Sets/Month

Product Description

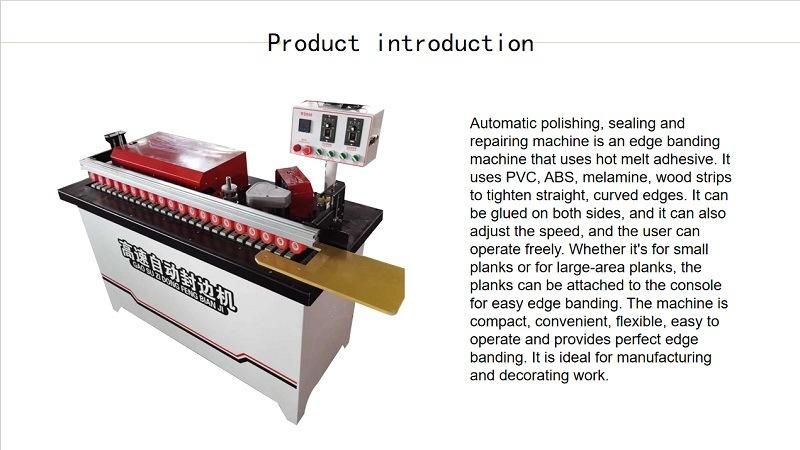

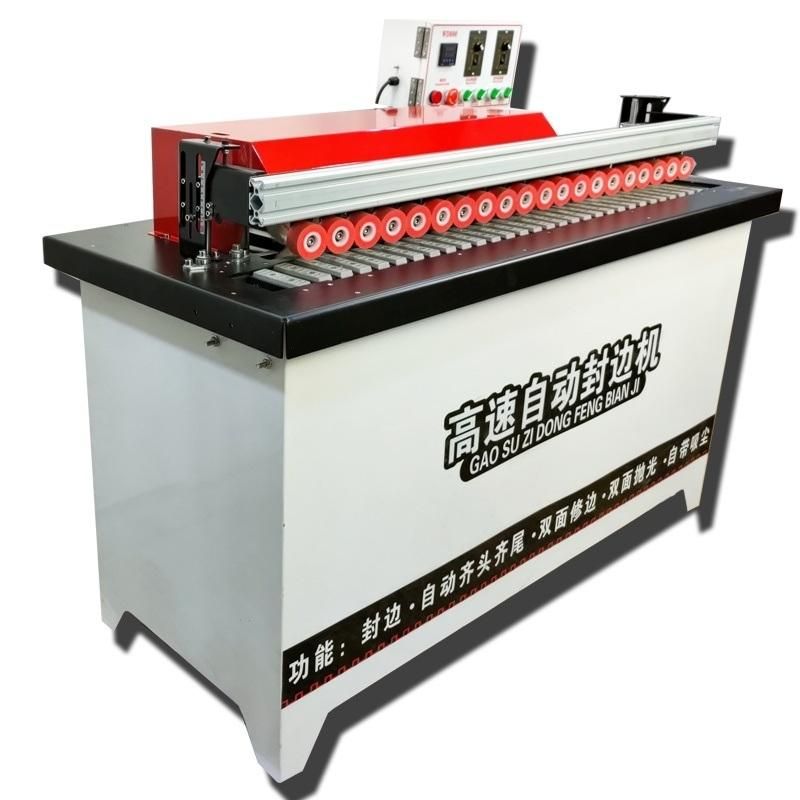

Portable automatic edge bander for sale

Product Descrption



Machine Features :

1.End triming and triming unit adopt imported high-motor, it is high precision, lower noise,long life,processing stability.
2.Adopt imported frequency converter,action is sensitive and reliable and with good stability.
3.The function including 6 function:preheating pressing ,gluing,end cutting,rough trimming,fine trimming scraping.4.Machine frame: Welding frame adopts national standard 50 * 90 * 5mm rectangular pipe square tube and bottom 40 * 80 * 5 channel steel welded frame structure, pre-milled table of heavy-duty gantry milling machine to ensure the flatness of the equipment and the whole machine plastic appearance Beautiful and not rusty.
5.The beams are all 18mm thick high-quality high-strength ship plates. Sheet metal shells are 1.8-6mm thick cold plates.
6.There are feed plates and discharge plates on the front and back of the equipment to ensure the smooth operation of the board. It is more convenient to not touch the material.

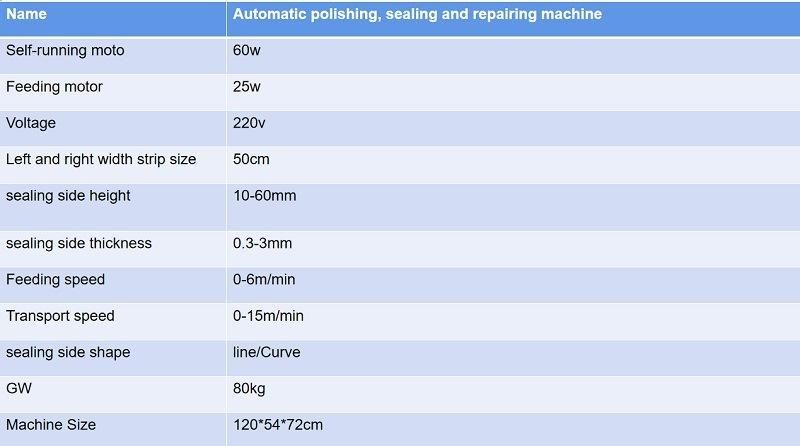

Technical Parameter

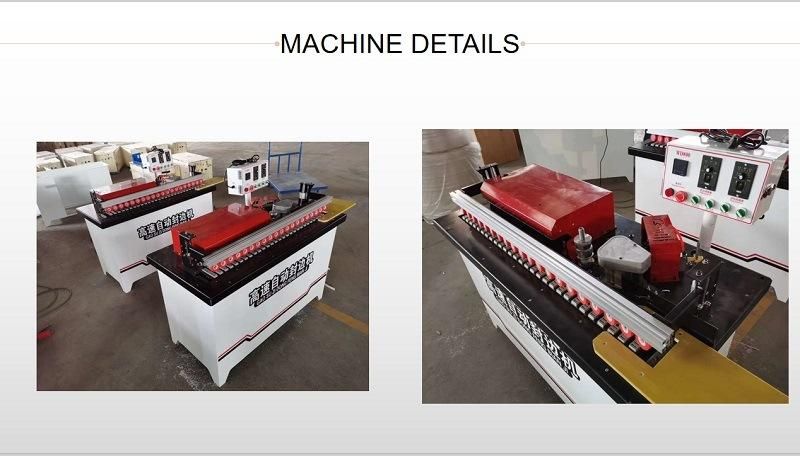

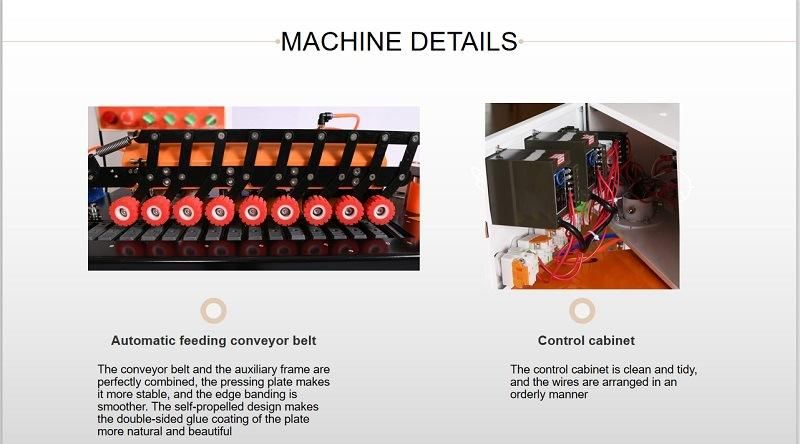

Machine details



Application


The automatic linear edge banding machine is suitable for such plates: MDF, block board, solid wood board, particleboard, polymer door plates, plywood etc.

Packing & Shipping


Packing: Strong wooden box
Shipping: 7-15 working days after get deposit

Company Information


Shandong Guandiao CNC Equipment Co., Ltd is an innovative enterprise engaged in research and development, production, sales and good after- sales service. The company's main products include Panel furniture CNC cutting machine, Woodworking CNC Machining Center, CNC router, Multi-head cylinder CNC engraving machine, Styrofoam CNC router, 3D scanner, Vacuum membrane press machine, Vacuum forming machine, Laser engraving and cutting machine, etc.
