• Model NO.：JCS1530HL
• Customized：Customized
• Condition：New
• Color：Customized
• Machine Name：CNC Router, Wood Router, Carving Machine, Engraver
• Series：4 Axis
• Application：Mold, Furnitures, Decoration, 3D Scultures
• Materials：Wood, Foam, MDF, Aluminum, PVC, Acrylic, Plastic
• Milling Mode：Flat
• Flat Working Size：1500mm(X)*3000mm(Y)*1000mm(Z)*180degree
• Option Device：Rotary Attachment, 3D Scanner
• Title：High Z Axis Heavy Duty CNC Machine for 3D Deep Foa
• Transport Package：Wooden Case with Steel Frame Surport
• Specification：3d cnc
• Trademark：CHAODA
• Origin：Linyi, China
• HS Code：8464909000
• Production Capacity：300sets Per Month

Technical Parameter

Series	4-axis cnc
Model	JCS1530HL
X,Y,Z Working Size	1500*3000*1000mm*180degree
Lathe Bed Structure	Heavy duty thick steel gantry wall structure
Table Surface	T-slot with thick PVC sheet and clamps
X Structure	Rack and pinion, HIWIN linear square rail
Y Structure	Rack and pinion, HIWIN linear square rail, double driver
Z Structure	Ball screw, HIWIN linear square rail
Resolution	±0.02mm
Reposition Accuracy	±0.05mm
Max. Moving Speed	0-60000mm/min
Max. Working Speed	0-30000mm/min
Spindle	9kw air cooling ATC spindle
ATC System	Disk type ATC with 8pcs tool magazine
Spindle Rotation Speed	0-24000RPM
Working Mode	Japan YASKAWA servo motor and driver
Working Voltage	3 phase AC380V 50HZ/60Hz or request
Command Code	G code(*uoo,*nc,*mmg, *plt)
Operating System	4 axis Ncstudio (WEIHONG) controller
Collect Size	ER32
Software	PowerMill
Running Circumustance	Temperature: 0°C~45°C; relative humidity: 30%~75%
Certificates	CE, BV, TUV, SGS
Optional Device	Rotary attachment; 3d scanner
Other Related Machines	4 axis JCW1325HL-4A; JC-5AXIS

Machine Features
spindle rotation 180 degree, can make 2d 3d 4d engraving, arc-surface engraving,
cutting, engraving, drilling and milling!

very suitable for processing large 3d mould/mold, sculptures, composite parts, props,
2d&3d decorations, artworks, vhicle model, prototyping on materials of wood, foam, mdf,
ooling boardand, composite panels, alucobon, fibreglass, carbon fibres and so on!

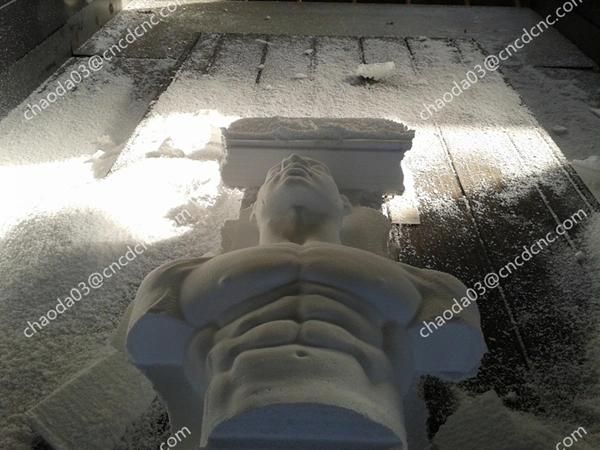

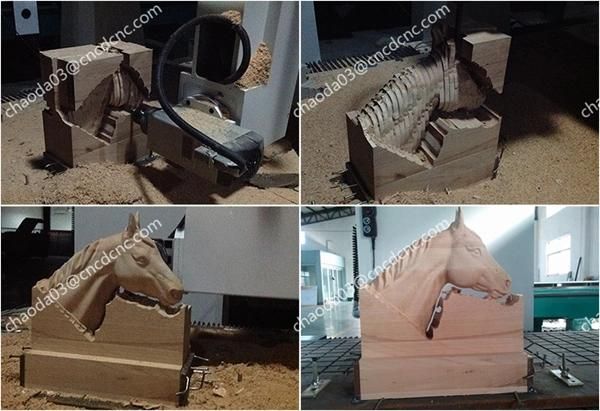

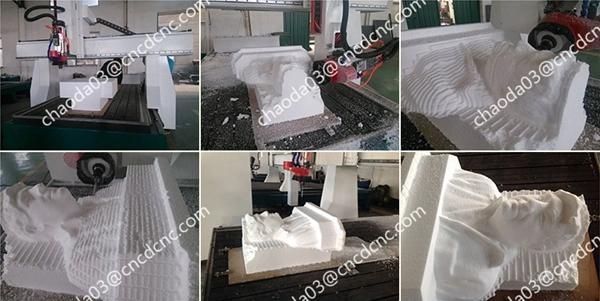

Product Samples

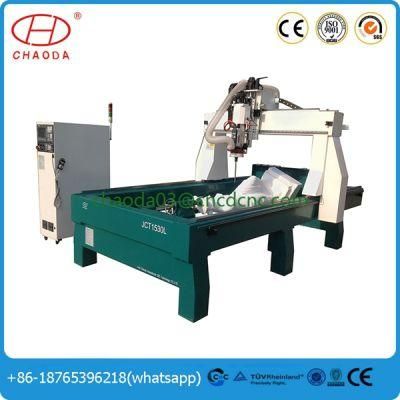

Related Machines You May Like
Question 1: I never use this kind of machine before, is it easy to learn?
User-friendly English manual and operation video will be sent together with the machine. If there is
still any question, we can talk through phone calling, whatsapp or Skype. Moreover, you could come to
our factory to learn how to use it before shipment. Our technician will give you professional guidance.

Question 2: How could I know if this machine is suitable for me?
Before ordering, we will provided every details of the machine for your reference, or you could tell us
what work you planning to do, our technician will recommend the most suitable machine for you.

Question 3: What is your service and ganrantee?
1. Technical supports and suggestions before you order a machine according to your work.
2. Professional instructions for the operation of the machine.
3. Offer one year warranty for the whole machine.
4. Our technician will supply lifetime technical support and problem solving by email, calling and video
conference.

Question 4: Do you supply training? what is the cost?
We supply training free of charge in our factory. When machine production finished, you can come to
inspect and test the machine by yourself, at the same time we will teach you how to use the software
and how to operate/maintain the machine until you satisfied.
If you are too busy to come, we will send detailed operation videos and English manuels for you study.
We will make sure you can operate this machine well and start your work as soon as possible!

Question 5: This machine not suitable for me, can i customize a specific one?
Yes, we can customize your machine to suit your specific needs!
Our experienced program techs can create new programs or modify your existing programs, work with
you on fixturing and tooling, create custom interfaces for your control and much more. Because we are
a professional manufacturer, we can easily modify and hone any part of the machine or control to fit your
exact need. Our ultimate goal is to provide the best solution possible with the lowest learning curve for
you. We'll stay by your side during each step of the way.

Question 6: Can you degrade/upgrade the machine configurations?
Yes, there are many optional parts and functions for your choosing, you can select our standard
configurations or degrade/upgrade them to fit your demand.

CHAODA Gallery:
workshop, our team, CE/BV/TUV/SGS certificates, clients, machines

Contact Us

for quick and accurate quotation, please kindly advise us the following details:
a) material and size of your product
b) sample picture for our reference please
we will recommend a suitable machine with best price according to your advice,
thanking you!!
