Automatic Wood Finger Joint Shaper
Qingdao Samac International Trading Co., Ltd.- Type：Table Panel Saw
- Power Type：Petrol
- Layout：Horizontal
- Controlling Mode：Artificial
- Automatic Grade：Automatic
- Precision：Precision
Base Info
- Model NO.：MXB3515A
- Certification：ISO
- Customized：Customized
- Condition：New
- Color：Customized
- Transport Package：Stretch Film with Wooden Case or as Your Request
- Specification：MXB3515A
- Trademark：SAMACH
- Origin：China
- Production Capacity：90sets,Month
Description
Basic Info.
Model NO. MXB3515A Certification ISO Customized Customized Condition New Color Customized Transport Package Stretch Film with Wooden Case or as Your Request Specification MXB3515A Trademark SAMACH Origin China Production Capacity 90sets/MonthProduct Description

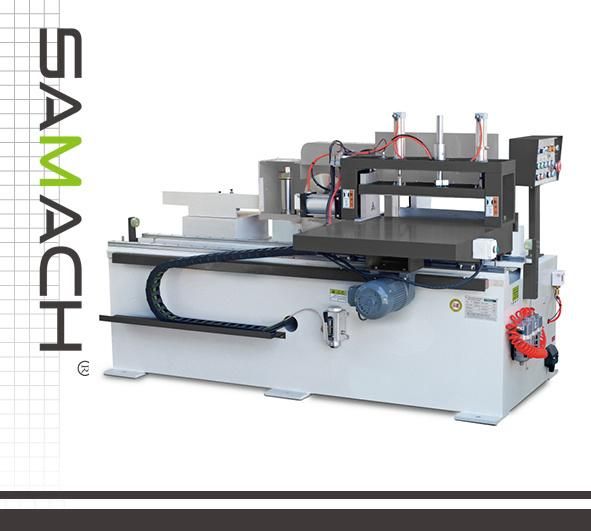

Finger joint shaper MXB3515A
The feeding table guide adopts the precision linear guide imported from Japan, which ensures the precision of the opening.
The sawing part adopts a combination of a double saw shaft and a pulverizing knife to improve the quality of the opening.
The worktable advances and retreats adopts a rack and pinion travel mechanism, which is stable and fast, easy to maintain, and consumes less power.
| Model | MXB3515A |
| Workbench size(LXW) | 760X850MM |
| Maximum mach | 150MM |
| Max.width | 600MM |
| Diameter of main saw shaft | Φ30MM |
| Diameter of cutting tenon and mortise shaft | Φ70MM |
| Rotating speed of main saw shaft | 2840RPM |
| Rotating speed of cutting tenon and mortise | 6000RPM |
| Rated power of motor for cutting tenon and mortise | 11KW |
| Rated power of motor for main saw shaft | 4KW |
| Rated power motor for marking out saw | 0.75KW |
| Total power | 15.75KW |
| Overall dimensions | 2400X1730X1550MM |
| Net weight | 1800KG |
The feeding table guide adopts the precision linear guide imported from Japan, which ensures the precision of the opening.
The sawing part adopts a combination of a double saw shaft and a pulverizing knife to improve the quality of the opening.
The worktable advances and retreats are controlled by the gas-liquid conversion system imported from Germany, which is stable and fast, easy to maintain and consumes less power.
The tooth-shaped anastomosis spray system is used to achieve uniform spray glue, achieving the effect of saving glue.
| Model | MXB3515TA |
| Workbench size(LXW) | 760X850MM |
| Maximum mach | 150MM |
| Max.width | 600MM |
| Diameter of main saw shaft | Φ30MM |
| Diameter of cutting tenon and mortise shaft | Φ70MM |
| Rotating speed of main saw shaft | 2840RPM |
| Rotating speed of cutting tenon and mortise | 6000RPM |
| Rated power of motor for cutting tenon and mortise | 11KW |
| Rated power of motor for main saw shaft | 4KW |
| Rated power motor for marking out saw | 2*0.75KW |
| Total power | 16.5KW |
| Overall dimensions | 2700X1730X1550MM |
| Net weight | 2000KG |
