• Model NO.：1325
• Customized：Customized
• Condition：New
• Color：Customized
• Rail：Square Guide Rail
• Inverter：Best Brand Inverter
• Working Area：1300X2500mm
• Application：Marble
• Transmission：Tbi Ball Screw
• Lubricating：Handle Press Oiling System
• Motor：Stepper Motor
• Table：T-Slot Table
• Control System：Ncstudio Control System
• Spindle：3.2kw Water Cooling Spindle
• Transport Package：Exporting Plywood Package
• Specification：1325
• Trademark：ZK
• Origin：Shandong China
• HS Code：84659900
• Production Capacity：100set ,Month

Basic Info.

Model NO. 1325 Customized Customized Condition New Color Customized Rail Square Guide Rail Inverter Best Brand Inverter Working Area 1300X2500mm Application Marble Transmission Tbi Ball Screw Lubricating Handle Press Oiling System Motor Stepper Motor Table T-Slot Table Control System Ncstudio Control System Spindle 3.2kw Water Cooling Spindle Transport Package Exporting Plywood Package Specification 1325 Trademark ZK Origin Shandong China HS Code 84659900 Production Capacity 100set /Month

Product Description

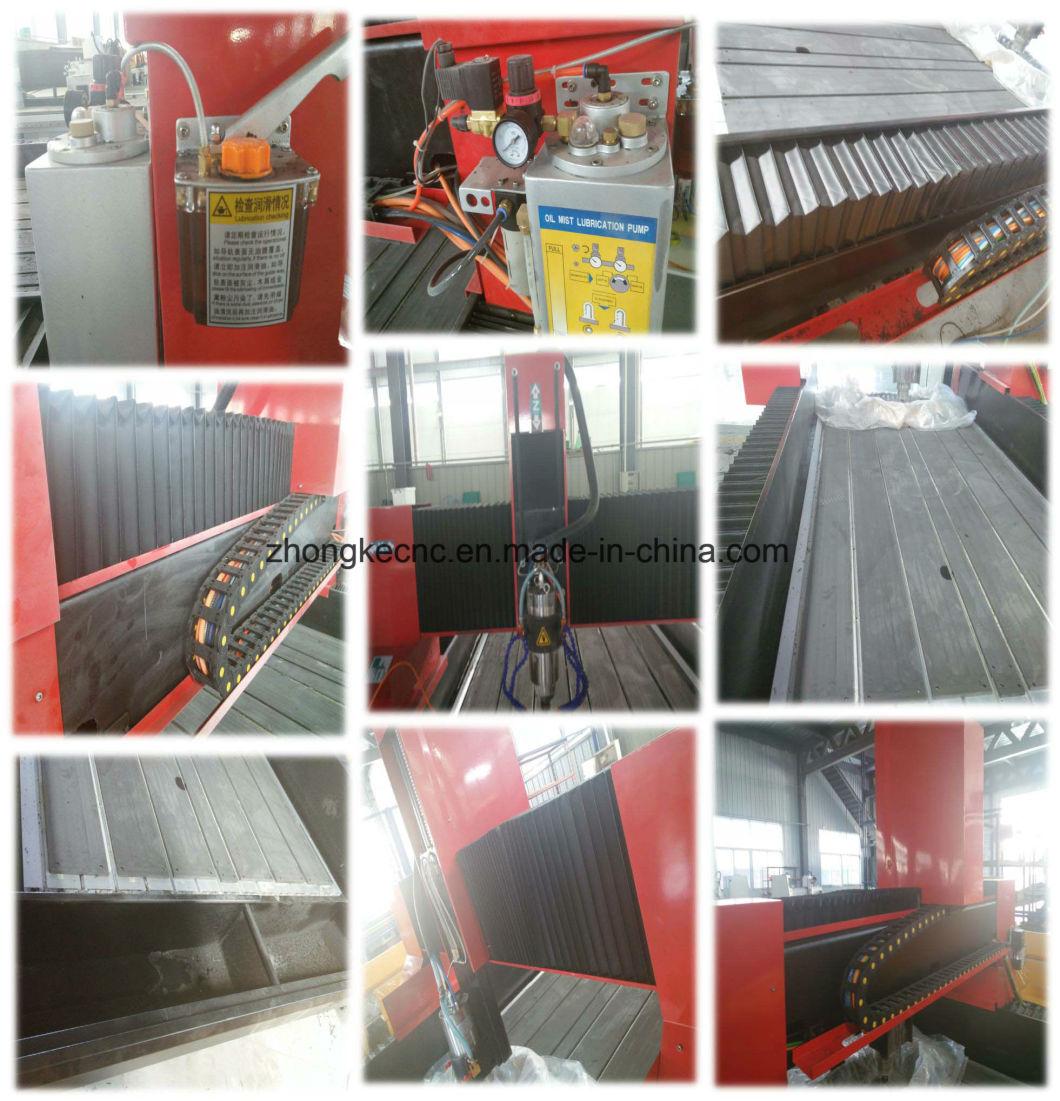

High Quality Stone and Marble CNC Router Machine
Feature:
1.Taiwan HIWIN high precison square guide rail, high efficiency and high precision

2.Taiwan TBI ball screw with high working precision

3.Water cooling spindle, working with high speed

4.Whole machine is welded bed structure when working it's more stable

5.Can change the parts according to your requirment

Technical parameters:
Model                                                                                         ZK 1325 CNC router
X,Y,Z Working Area                                                                  1300*2500*200mm
X,Y,Z Traveling Positioning Accuracy                                      ±0.03/300mm
X,Y,Z repositioning Positioning Accuracy                                ±0.02mm
Lathe Structure                                                                          Thick wall square tubes welding bed
X Structure                                                                                 Taiwan HIWIN square guide rails
Y Structure                                                                                 Taiwan HIWIN square guide rails
Z Structure                                                                                  Taiwan TBI ball screw
Max.Speed                                                                                   0-30000mm/min
Max.Working Speed                                                                    0-25000mm/min

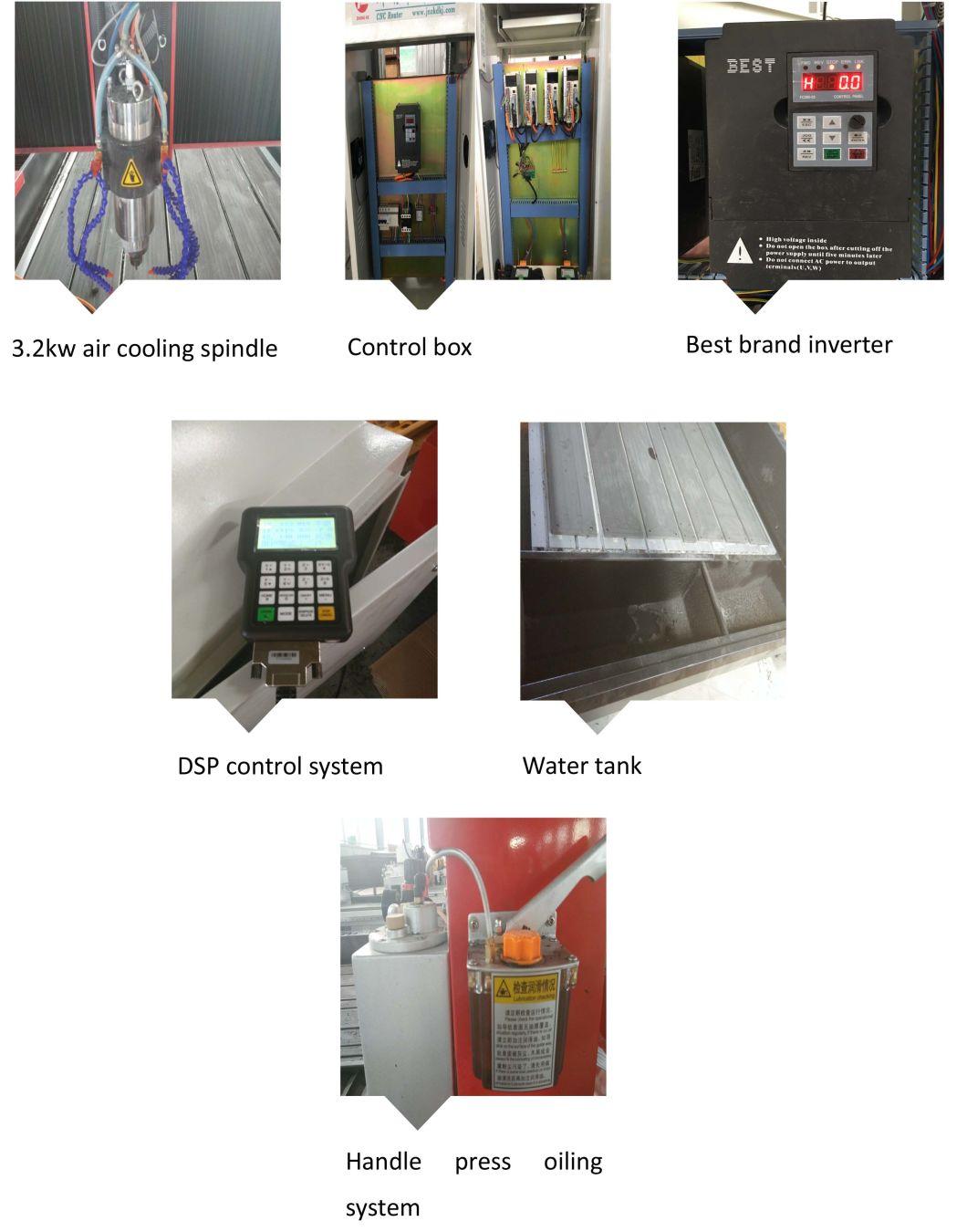

Spindle                                                                                         3.2kw water cooling spindle
Spindle Speed                                                                              600-24000RPM
Working Mode                                                                             Stepper motor
Working Voltage                                                                           380V/3ph 50HZ/60Hz for standard Command Code                                                                            G code(*uoo,*nc,*mmg, *plt)
Operating System                                                                         DSP control system
Interface                                                                                        USB
X,Y Working Delicacy                                                                 <0.01mm

Our service:

• Warranty is 1 year
• 24 hour technical support by email or calling
• User-friendly english manual for machine using and maintaining
• We will send you manual and guide video in English,if you still don't know how to operate it, we can help you by phone .
