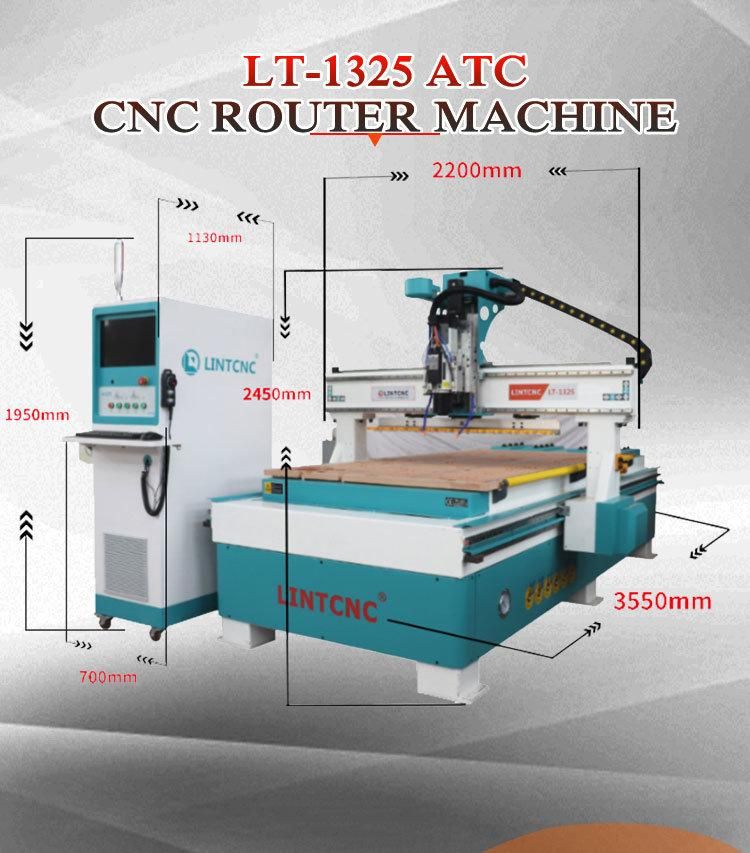

The Latest 1212 1325 1530 2030 Atc Hsd CNC Router Italy 9.0kw Atc Spindle with Automatic Feeding Device for Furniture Door Panel
Shandong Lintianzhiyuan CNC Equipment Co., Ltd.- After-sales Service：Online
- Warranty：24 Months
- Condition：New
- Certification：ISO, CE
- CNC or Not：CNC
- Voltage：380V
Base Info
- Model NO.：LT-1325 ATC
- Model：1325
- Working Area：1300(X)*2500(Y)*200(Z)mm
- Machine Structure：Welded Steel Tube, Cast Iron Vertical Shafts and S
- Working Table：Vacuum Table with Vacuum Pump
- Spindle：Hqd 9.0kw Atc Air Spindle
- Spindle Rotating Speed：12000-24000rpm
- Collet Size：ISO30
- Guide Rail：Taiwan Hiwin Linear Square Guide Rail
- Drivers：Leadshine 2206 Hybrid Servo Motor & Drivers
- Control System：Syntec FC Control System
- Inverter：Fuling Inverter
- Working Accuracy：<0.05,300mm
- Compatible Software：Type3,Castmate,Coreldraw,Autocad and Other Cam,CAD
- Transport Package：One Plywood Case
- Specification：3300*1950*1950mm; 1300KGS
- Trademark：LINTCNC
- Origin：China
- HS Code：8465990000
- Production Capacity：300
Description
Overview
Product Description
Product Parameters

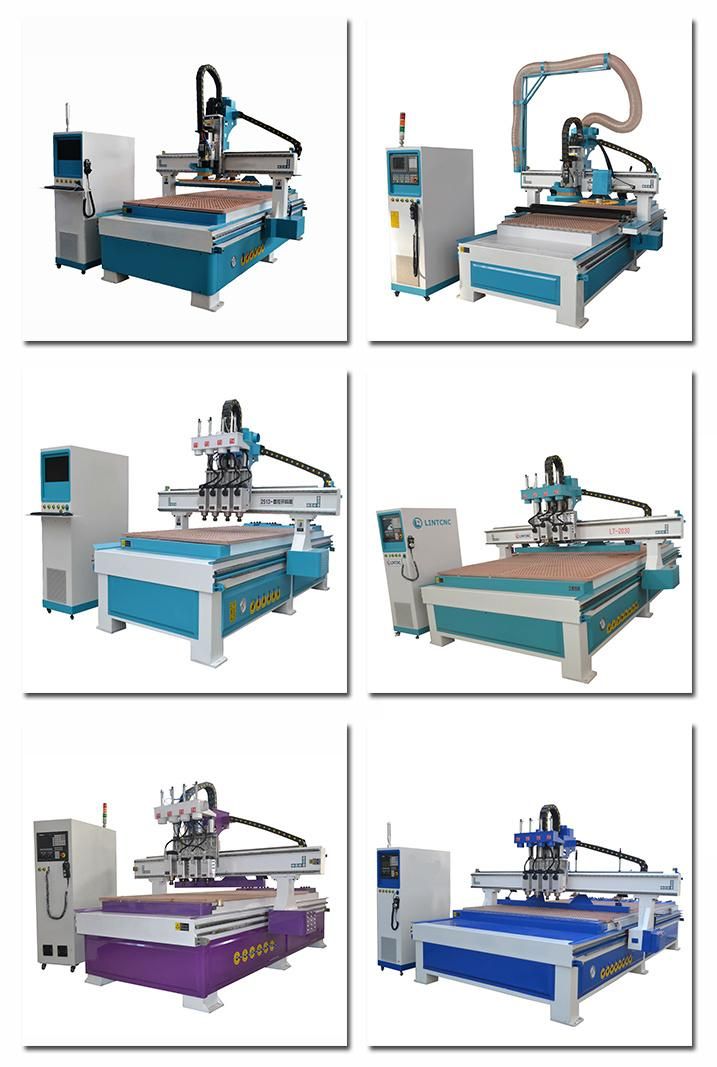

Other Model Machines
Samples
After Sales Service
Company Information
FAQ
