• Model NO.：JZ-D-188
• Transport Package：Container
• Specification：steel
• Trademark：JZ
• Origin：China
• HS Code：84392000
• Production Capacity：1000sets,Year

Basic Info.

Model NO. JZ-D-188 Transport Package Container Specification steel Trademark JZ Origin China HS Code 84392000 Production Capacity 1000sets/Year

Product Description

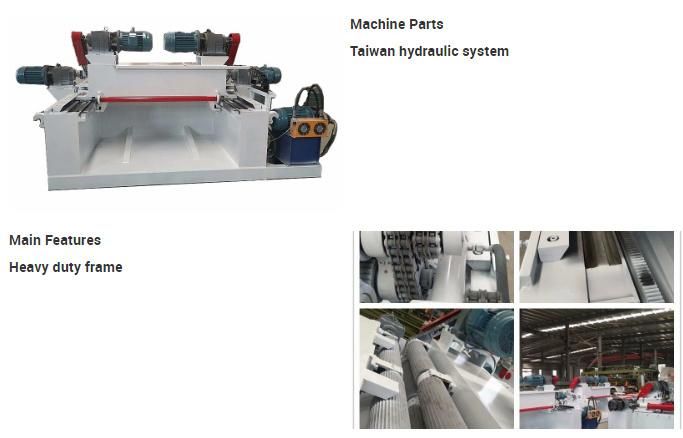

Log debarker
Brief Introduction:

1. The hydraulic driven feed mechanism can be fast and efficient completion of the logs remove the bark to save labor and raise working efficiency.
2. The transmitting mode is ball screwing ( servo motor supply the power to gearbox, gearbox transmit the torque to ball screw, then drive the tool carriage forward and back).
3. It uses hydraulic knife assembling system, so can reduce the labor need and increase the productivity.
4. Big-diameter wear-resistant and grooved roll with bark to increase the barking speed.
5. High quality steel profile to ensure the stability.





Can increase the chopping function of the veneer!

Can be customized according to customer requirements~



Product Description:



Model	SMLD1400/2600
Log dimension processing (D*L)	500*1400 mm
Rotary knife specification (L*W*T):	1500*140*12.7 mm
Diameter of rollers	2*200mm,1*150mm
Line speed	50m/min
Reference output	30m3/day
Hydraulic system power	5.5kw
Roller driving power	11kw,7.5kw
Total power	24kw
Feeding cylinder	800mm*2
Product dimension	4000*1600*1800 mm
Weight	3500kgs
Payment terms	T/T 30%,Balance before leave factory
Delievry time	In 20days

Detail images:






Packing&Shipping:





Certifications:




Our Services:

About us:



Please be comfortable to contact us right now to get more information if you have some interests!

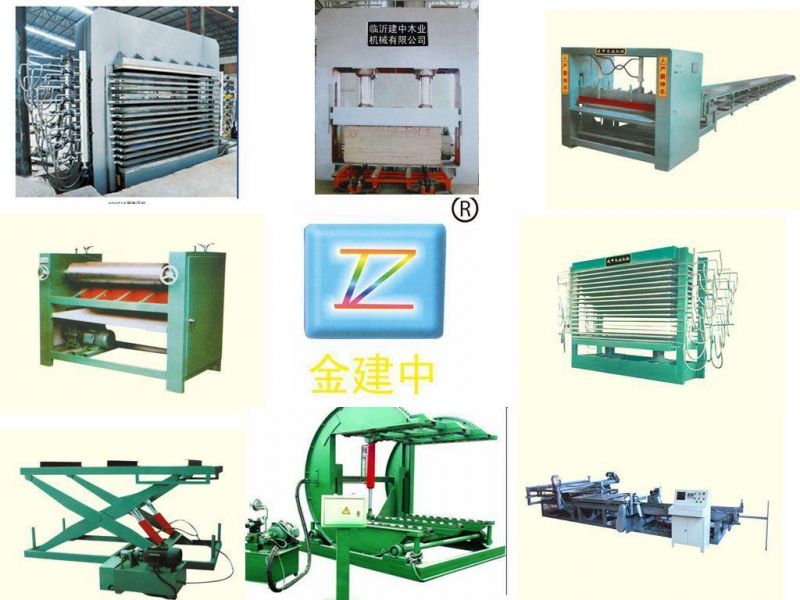

All kinds of plywood and plywood woodworking machinery products can be customized according to your requirements~
