Woodworking Machinery

High Efficiency Wood Drum Chipper; Shredder Machine with High Capacity;

Suzhou Trillion Shine Import & Export Co., Ltd.
  • After-sales Service:Lifttime
  • Warranty:1 Year
  • Type:Chipper
  • Automatic:Semi-Automatic
  • Transport Package:Safe Seaworthy Package.
  • Specification:600-2000mm

Base Info

  • Trademark:TrillionShine
  • Origin:China
  • HS Code:846592

Description

Basic Info.

Trademark TrillionShine Origin China HS Code 846592

Product Description

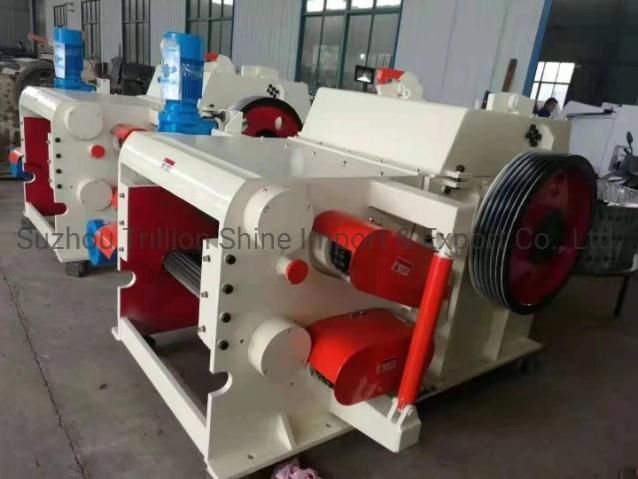

Wood drum chipper with high capacity

Introduction

The wood chipper is used for processing wood logs or tree branches into 20mm-40mm wood chips for various wood products industries and plants. Known as wood cutting machine, it belongs to wood processing equipment series. Wood chipper is widely used in particleboard mill, medium or high-density fiberboard factory, biomass power plant, wood pellet plants and other industrial production factories.
High Efficiency Wood Drum Chipper; Shredder Machine with High Capacity;

Product Application

The drum wood chipper is a special device of producing wood chips. It is widely used in stock workshop section of industrial manufacture, for example, the flakeboard, fibre board, building board, straw power plant, etc. drum wood log shredder chipper machine is a kind of special machine to slice the wood for the production of high-quality wood chips.It is a kind of advanced crushing machine based on the advantages of many other crushers. It is developed by using the theories of lashing, shearing, impacting, grinding.

Raw Materials

The Raw materials is wood logs, timber harvesting, processing residues(such as branches, twigs,planks,logs cores,waste veneer,ect...)It can also be used for cutting non-wood materials(such as sugarcane,reed,bamboo,etc...).
High Efficiency Wood Drum Chipper; Shredder Machine with High Capacity;

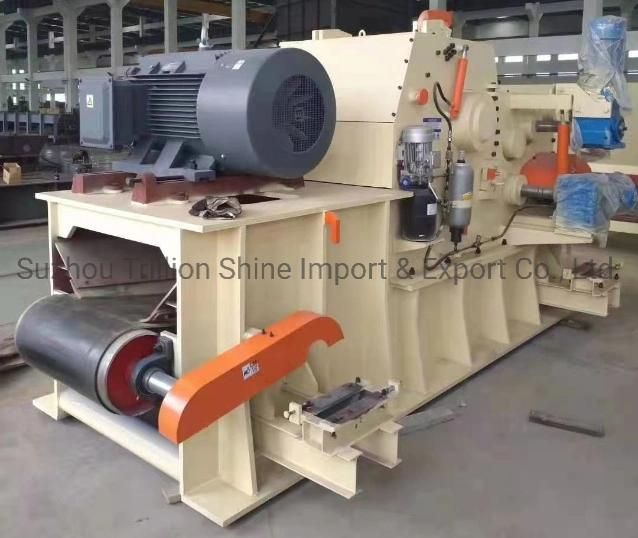

Finished Products

The drum chipper series products are equipment for the production of wood chips. This product is used in particle board factories, medium and high-density fiberboard factories, straw factories, biological power plants, wood chip factories and other industries and manufacturers. . This product has good structure, high quality of cutting material, light adaptability of raw materials, and convenient operation and maintenance. The main raw materials for cutting are small-diameter wood, timber harvesting, and processing residues (such as branches, branches, slabs, slats, round wood cores, waste veneers, etc.), and can also be used to cut non-wood materials (such as sugarcane, reeds, bamboo Wait).
High Efficiency Wood Drum Chipper; Shredder Machine with High Capacity;

Technical specification

ModelBX216BX218BX218DBX2110BX2113ABX2113BBX2113CBX2116BX2120
Knife rotor diameter ddddddddddiaddiameter mm650800800100013001300130016002000
Number of rotor knives(PCS.)2222*233*24*24*23*2
Feed opening (H ×W)mm180*500225*680240*780330*1050400*700400*1050400*1250600*1250850*1250
Knife rotor speed(r/min)5906506505504204789378/340350295
Feed Speed(m/min)37.2373833384336/424231
Max Dim.of log1201601601902302403250310370
Length of wood chips(mm)30303030303024/323035
Capacity(m3/hour)1015-20387560-70100130180200
Main Motor Power(KW)551101322202503154507101000
Feed rotor Motor Power(KW)3*24*25.5*27.5*27.5*211*215*218.5*222*2
Oil Pump Power(KW)0.55 Pump0.550.55444444
Weight(KG)407070008000125001384016700180003200055000
Overall dimensions
(L ×W ×H)mm
4348*2056*12584670*2150*15004670*2250*15152850*2799*14973670*2517*20503485*2350*18285484*5400*18624360*3150*22007970*7150*2750
High Efficiency Wood Drum Chipper; Shredder Machine with High Capacity;

Can the final size of wood chips be adjusted?
Yes. It can be adjusted according to customer's request.
