Light Weight 3030 CNC Router for Wood EPS Non Metal Material Mini CNC Engraving Milling Machine 300*300mm DSP Control System
Shandong Lintianzhiyuan CNC Equipment Co., Ltd.- After-sales Service：Online Support
- Warranty：2 Years for Machine, 9 Months for Spindle
- Condition：New
- Certification：ISO, CE
- CNC or Not：CNC
- Voltage：220V
Base Info
- Model NO.：LT-3030
- Product Keyword：Mini CNC Router Machine 3030
- Guide Rail：Hiwin Square Linear Guide Rail
- Table Surface：Aluminum T-Slot Table
- Working Area：300*300*60mm
- Spindle：0.8kw Water Cooling Spindle
- Motors and Drivers：Stepper Motor & Leadshine Driver
- Bed Structure：Cast Aluminum Bed Structure
- Inverter：Fuling Inverter
- Transmission：X, Y, Z Axis by Tbi Ball Screw
- Software：Artcam Express
- Control System：Rich Auto DSP A11
- Transport Package：Plywood Case
- Specification：860*710*820mm
- Trademark：LINTCNC
- Origin：China
- HS Code：8465990000
- Production Capacity：400sets,Year
Description
Effective working area
300*300mm
Max.feeding height of Z axis
60mm
Bed structure
Cast-aluminum bed structure
Table style
T-slot table
Guide rail
Hiwin square linear guide rail
Driving method
Taiwan Original TBI Ball screw
Spindle
0.8KW water cooling spindle
Invert
Fuling invert
Collect size
ER16
Spindle speed
0-24000rpm
Motors and drivers
stepper motors and Leadshine drivers
Control system
DSP A11 control system
Main parts of the machine:

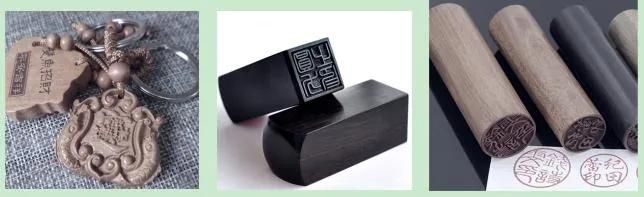

Application:
Wood, EPS, and a variety of non-metallic materials, carving a variety of small and
medium-sized non-metallic molds, special shape of the workpiece and other products
of precision production.
Packaging & Shipping
Our Services
After-sale service
1.Two years quality guaranty for the machine and online service everyday day, free technical support.
2.Free training to guarantee you can operate machine correctly.
3.We will provide the consumable parts at an agency price when you need replacement.
4.Our staff can be sent to your company to install or adjust if necessary.
5.The processing demo video and E-catalogue will be mailed as your request.
Technical service
1. Professional technical suggestion before you order a machine.
2. Professional instruction for the operation of machine
3. Compleed machine manual and CD will be provided together with machine.
4. Machine has been adjusted before delivery.
5. 24-hour technical support by email or calling.
6. Machine can e shipped to port within 7 working days after receiving payment.
1) This is the first time I use this kind of machine, is it easy operate?
There is English manual or guide video that show how to use machine.
If there is still have any question, we can talk from phone or Skype.
2)Can you recommend a CNC ROUTER MACHINE to me,thanks?
Yes, In order to give you a suitable router machine, pls tell me the max working area, materials
for processing and the thickness for materials processing engraving or cutting.
Then perfect suitable cnc router will be recommended
3) If machine have any problem after I ordered it, how could I do?
Free parts send to you in machine warranty period if machine have any problem.
Free after-sales service life for machine, please feel free contact us if your machine have
any problem.
we will give you 24hours service from phone and Skype.
Contact Us:
Any requirement or question feel free to contact me. I will be very glad to serve for you.
