Zd300 Semi Automatic Edge Banding Machine with 3 Functions

Qingdao Zhongding Machinery Co., Ltd.
  • Function：Gluing, Fine Trimming, Buffing
  • Type：Linear Edge Banding Machine
  • Edging thickness：0.4-3mm
  • Automatic Grade：Automatic
  • Panel Feeding Speed：13m,min
  • Certification：CE, ISO

Base Info

  • Model NO.：ZD300
  • Panel Thinkness：10-60mm
  • Min.length panel：100mm
  • Min.width panel：50mm
  • Manufacturing Principles：Glue Tank Overhead
  • Customized：Customized
  • Heating Power：0.75kw
  • Feeding Motor Power：0.75kw
  • Glue Spreading Motor Power：0.37kw
  • Fine Trimming Motor Power：0.75kw*2
  • Polishing Motor Power：0.18kw*2
  • Air Pressure：0.7MPa
  • Transport Package：Wooden Case
  • Specification：5.8CBM
  • Trademark：QDZD
  • Origin：Qingdao
  • HS Code：84659400
  • Production Capacity：500sets,Year

Description

Basic Info.

Model NO. ZD300 Panel Thinkness 10-60mm Min.length panel 100mm Min.width panel 50mm Manufacturing Principles Glue Tank Overhead Customized Customized Heating Power 0.75kw Feeding Motor Power 0.75kw Glue Spreading Motor Power 0.37kw Fine Trimming Motor Power 0.75kw*2 Polishing Motor Power 0.18kw*2 Air Pressure 0.7MPa Transport Package Wooden Case Specification 5.8CBM Trademark QDZD Origin Qingdao HS Code 84659400 Production Capacity 500sets/Year

Product Description

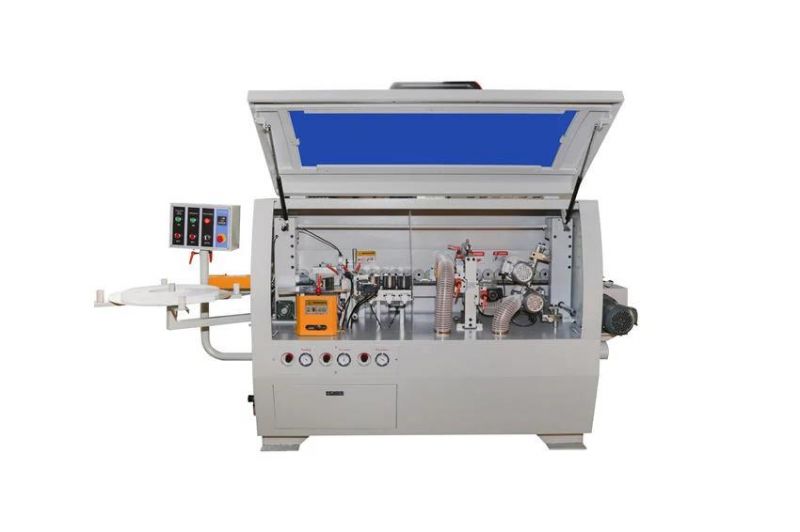

ZD300 Semi-Automatic Edge Banding Machine
Technical Specification:

TypeR3A
Banding tape thickness0.4-3 mm
Banding tape width10-60 mm
Work piece thickness10-60 mm
Work piece length>=100 mm
Heating power0.75 KW
Feeding motor power0.75 KW
Glue spreading power0.37 KW
Fine trimming power0.75 KW x 2
Polishing motor power0.18 KW x 2
Feeding speed13 m/min
Air pressure0.7 Mpa
Machine size2930*830*1460mm



Feature:

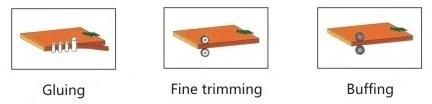

1. The glue mechanism adopts a special structure to gelatinize the plates and costing materials uniformly, ensure a more solid conglutination.

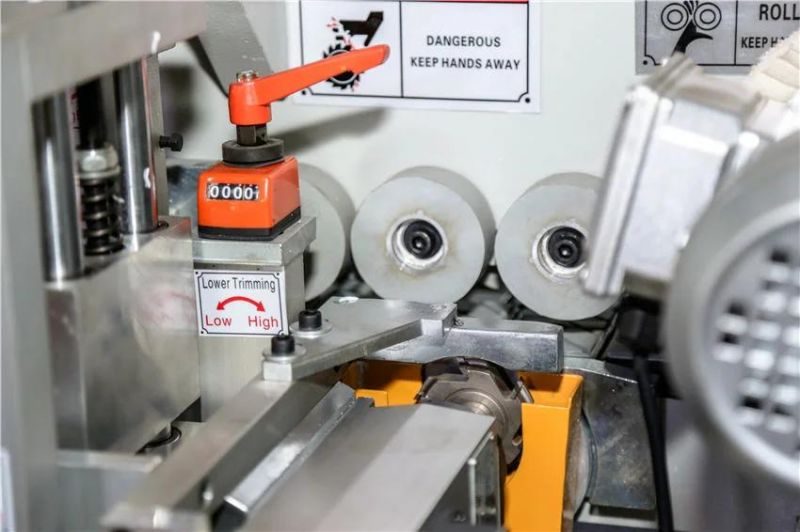

2. Fine trimming mechanism is used for repairing the excess edge materials, adopt automatic tracking and high frequency motor fast cutting structure to ensure the trimming plates smoothly.
3. The buffing device adopts the board processed by cotton polishing wheel, by end polishing to make a smoother surface.

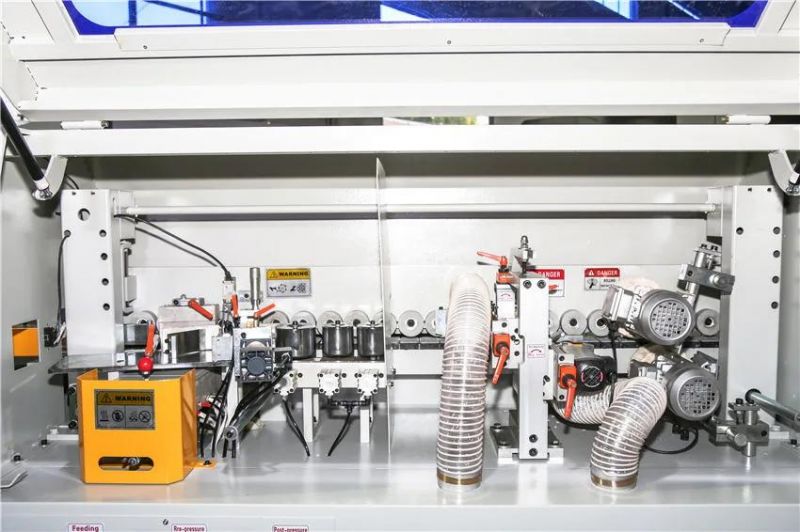

Product Details:
Zd300 Semi Automatic Edge Banding Machine with 3 Functions
Zd300 Semi Automatic Edge Banding Machine with 3 Functions
Zd300 Semi Automatic Edge Banding Machine with 3 Functions
Zd300 Semi Automatic Edge Banding Machine with 3 Functions
Zd300 Semi Automatic Edge Banding Machine with 3 Functions
Zd300 Semi Automatic Edge Banding Machine with 3 Functions
Zd300 Semi Automatic Edge Banding Machine with 3 Functions

Zd300 Semi Automatic Edge Banding Machine with 3 Functions




Certificate:
Zd300 Semi Automatic Edge Banding Machine with 3 Functions




Our company:

Zd300 Semi Automatic Edge Banding Machine with 3 Functions


Qingdao Zhongding Machinery Co., Ltd is professional at manufacturing woodworking machines. Our main products includes: sliding table saw(panel saw), edge banding machine, hydraulic cold press, hot press, carpenter drilling machine ( boring machine), etc. We are factory, we provide the machine with reasonable price and high quality, and welcome to visit our factory and our products.
