• Model NO.：HGF80
• Net Weight：3300kg
• Max Machining Size：2500*1250mm
• Min Machining Size：1200*450mm
• Max Machining Thickness：90mm
• Spindle Power：Syntec3*6kw
• Transport Package：Plywood Boxes
• Specification：1250*2500
• Trademark：Mars
• Origin：China
• HS Code：8465910000
• Production Capacity：300sets,Month

Basic Info.

Model NO. HGF80 Net Weight 3300kg Max Machining Size 2500*1250mm Min Machining Size 1200*450mm Max Machining Thickness 90mm Spindle Power Syntec3*6kw Transport Package Plywood Boxes Specification 1250*2500 Trademark Mars Origin China HS Code 8465910000 Production Capacity 300sets/Month

Product Description

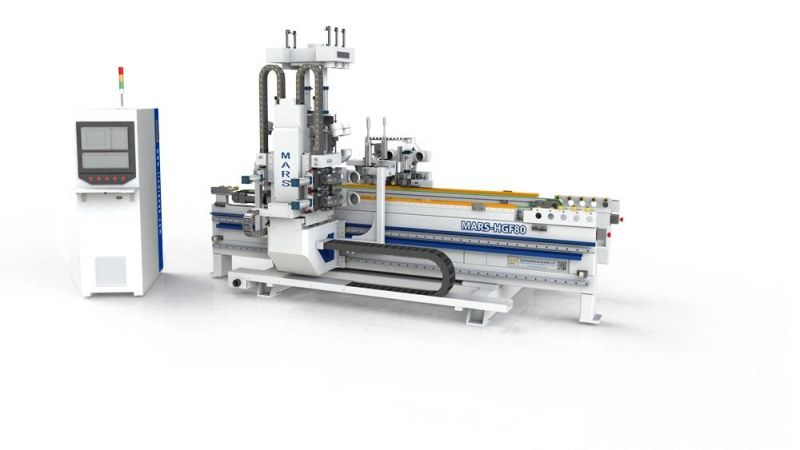

Mars HGF80 Wooden Door lock hole CNC Machine



1,Main parameters


Machine model	MARS-HGF80
Machine Dimension	3920*2900*2400mm
Working table height	900mm
Net Weight	3300kg
Max Machining Size	2500*1250mm
Min Machining Size	1200*450mm
Max Machining Thickness	90mm
Spindle Power	3*6KW
Spindle Power	5*1.5KW
Total Power	34.5KW
Fastest Machining Speed For Y Axis	18m/min
Fastest Machining Speed For X/Z Axis	15m/min
Working Voltage	AC380V
Control System	DELTA
Drive &Servo Motor	DELTA

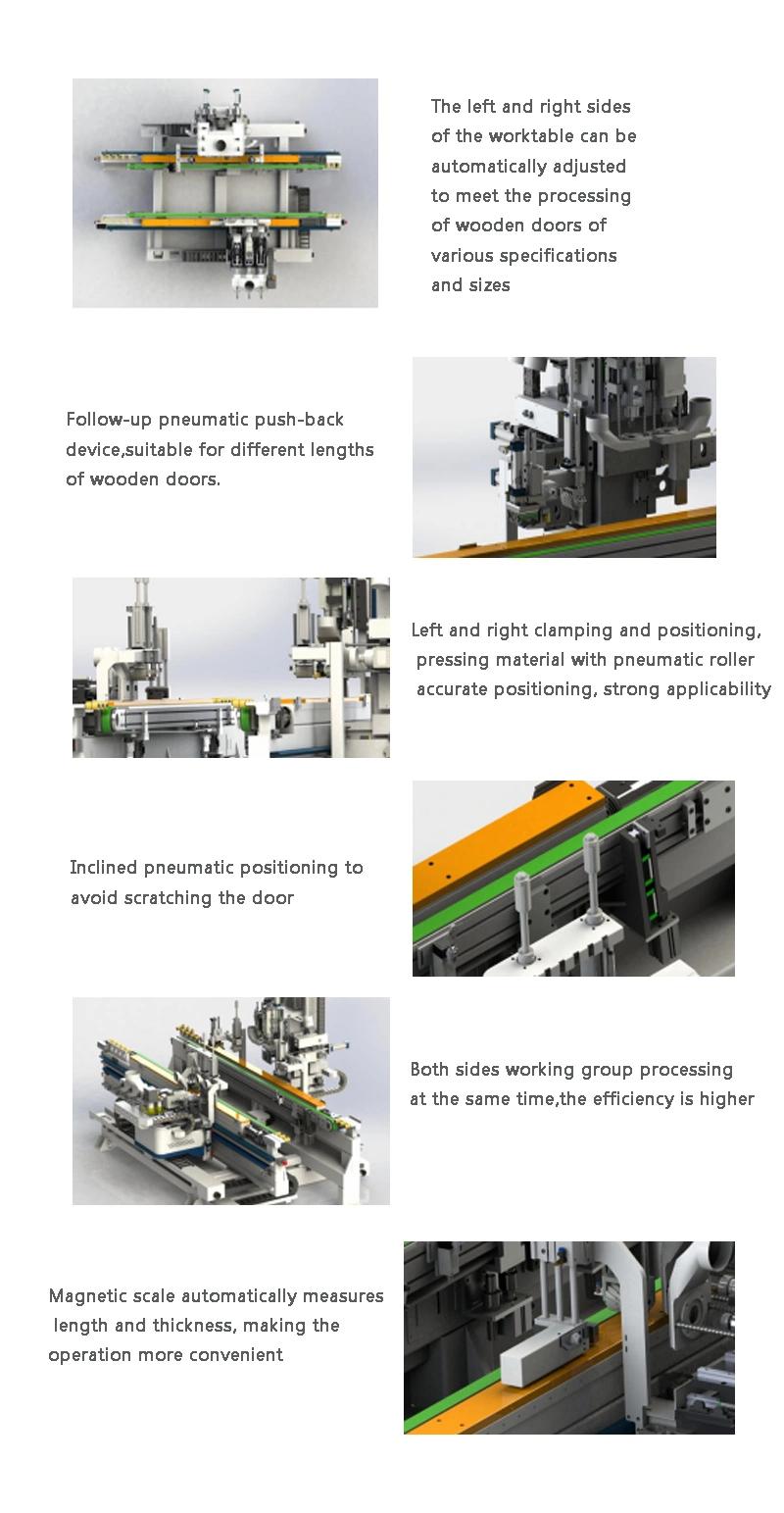

2,Details

3,Application scopeWooden doors,cabinets,Showcases,panels,office furniture,tables and chairs,doors and windows,speaker,
game cabinets, computer desks, sewing machine tables, musical instruments, acrylic, PVC, density board
milling, punching, slotting, cutting, plane, curved surface, etc. processing

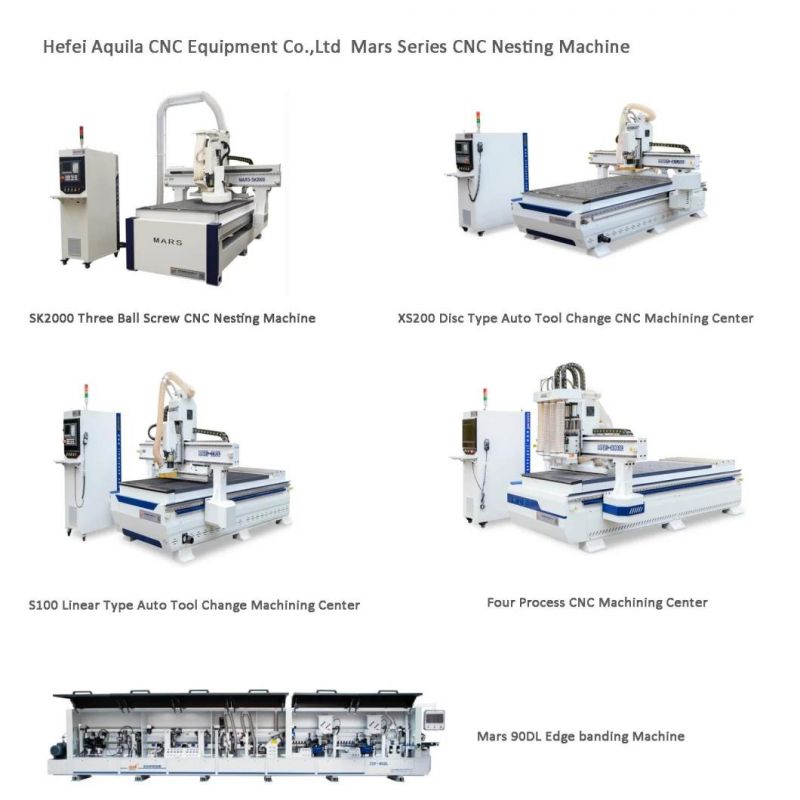

4,Our Main Products
5,Certification

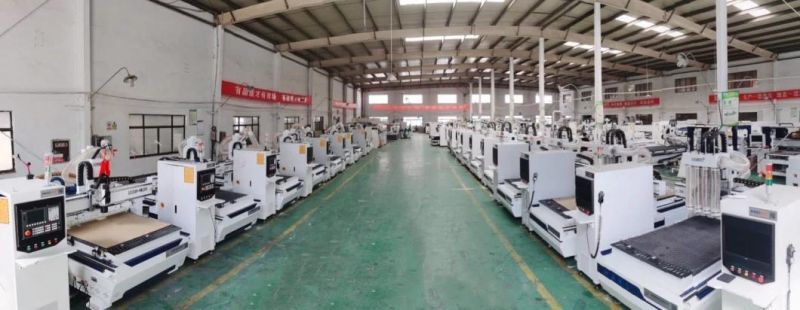

6,About us

( With 20 years experience of production)
Hefei Aquila CNC Equipment Co., Ltd local in the beautiful hometown of Lord Bao- Hefei, Anhui Province. Covering an area of 20,000 square meters, we specialize in the innovation, manufacturing and trading of Panel Furniture Production Line Equipment, Nesting CNC Machining Center, ATC CNC Machining Center, Woodworking CNC Router, Stone CNC Router, Jade CNC Router, 4- AXIS Rotary CNC Router, Mold-making CNC Router etc. numerical control technology. With over 15 years experience and dozens of national patents, our company has passed the ISO9001:2008 Quality Management System and CE Certificate, and is also entitled as the AAA Level Enterprise which Honors Contract and Keeps Promise. Our sales& service network has covered all dometic major cities and overseas markets, such as the USA, European, Southeast Asia, Middle East etc. Our company adheres to the principle of "Customer First" and "Win- win Cooperation". Pursuing excellence and keeping making progress, we devote to developing the landmark brand in the CNC industry. We are searching distributors all over the world. If you have any demands, welcome to contact us !
