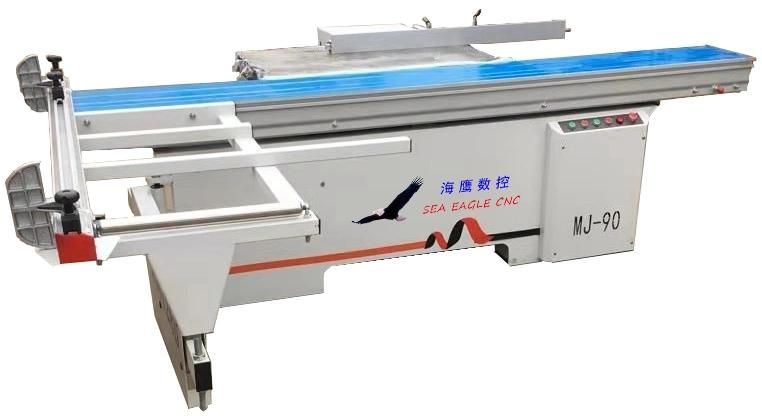

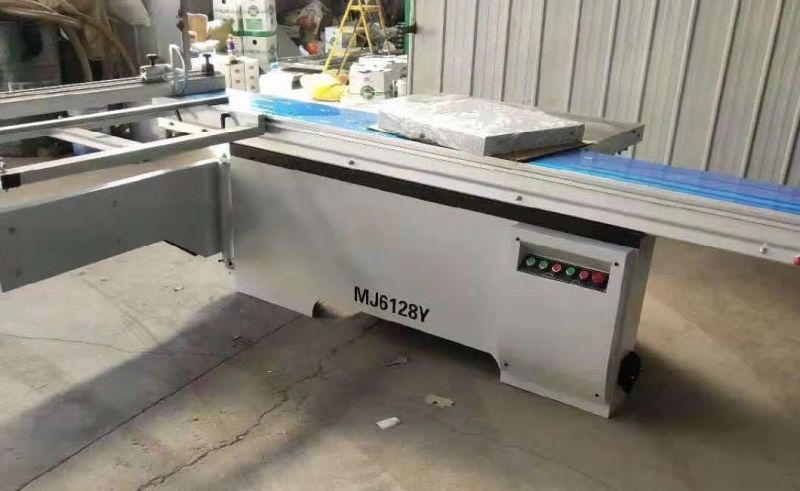

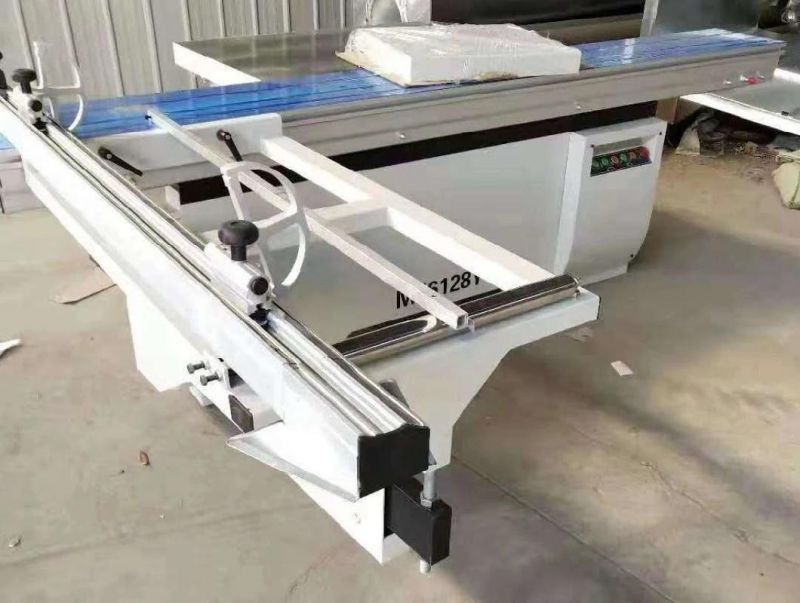

Timber Processing Machinery Woodworking/Wood/Wooden Machine Cutting Machine Precision Sliding Table Saw Panel Saw Woodworking Saw Machine
Jinan Sea Eagle Cnc Machinery Co., Ltd.- Type:Table Panel Saw
- Power Type:Electric
- Layout:Horizontal
- Controlling Mode:CNC
- Automatic Grade:Manual
- Precision:High Precision
Base Info
- Model NO.:6130
- Certification:CE, ISO, FDA
- Customized:Customized
- Condition:New
- Color:Customized
- Transport Package:Plywood Box
- Specification:3000, 3200mm
- Trademark:sea eagle
- Origin:China
- HS Code:84659100
- Production Capacity:10000 Sets ,Year
Description
Basic Info.
Model NO. 6130 Certification CE, ISO, FDA Customized Customized Condition New Color Customized Transport Package Plywood Box Specification 3000, 3200mm Trademark sea eagle Origin China HS Code 84659100 Production Capacity 10000 Sets /YearProduct Description
• Cast iron work table |

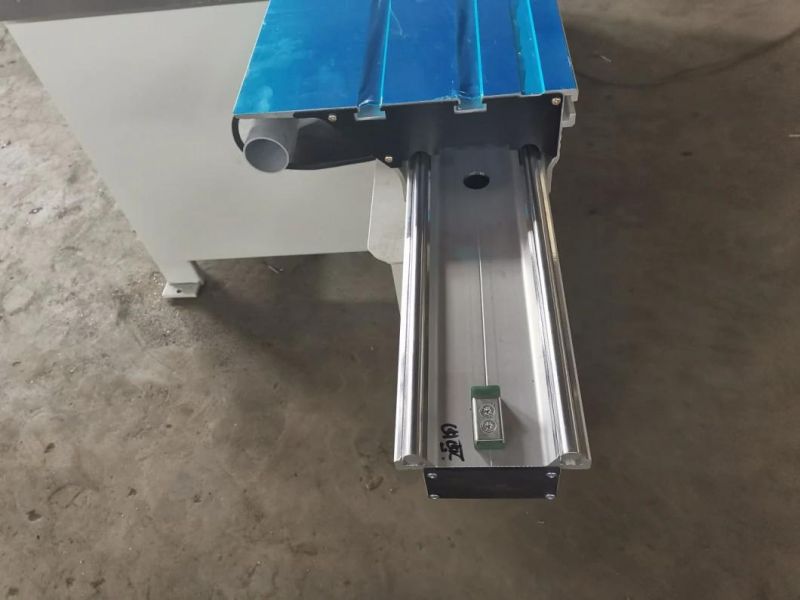

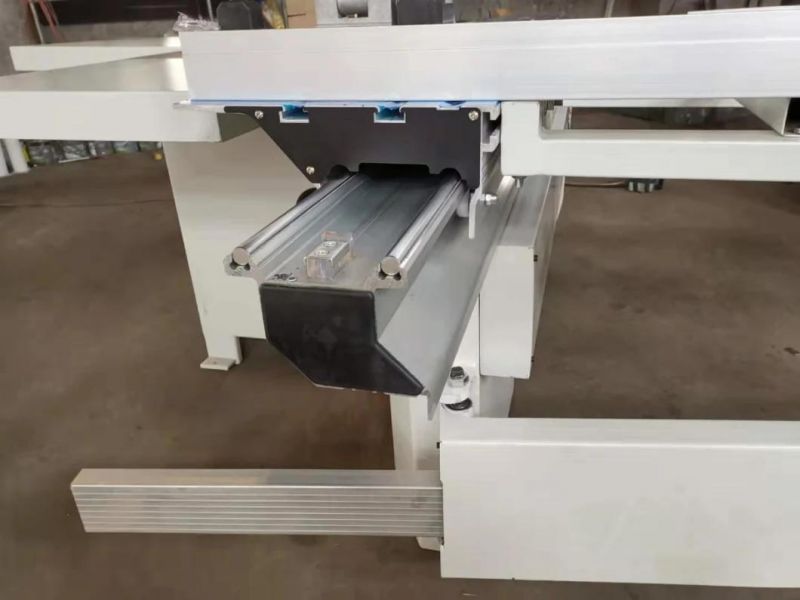

• Anodized aluminum carriage on precision guides |

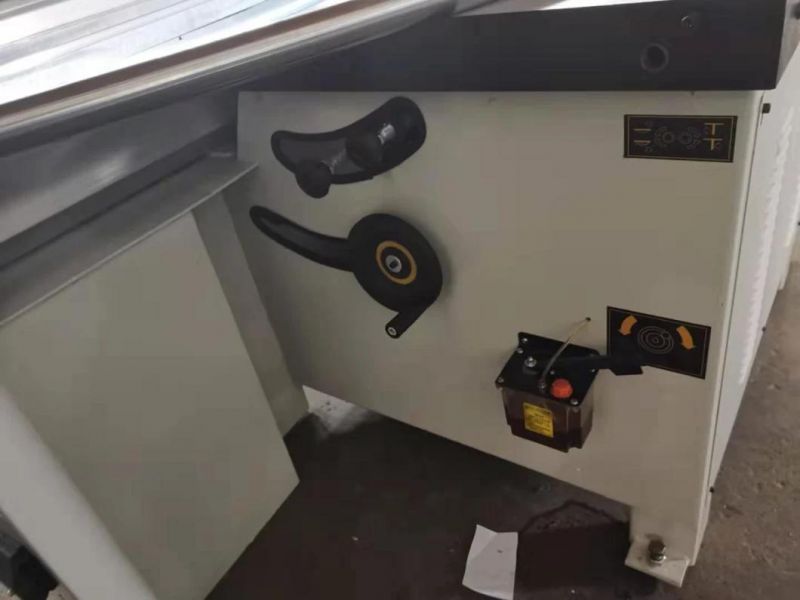

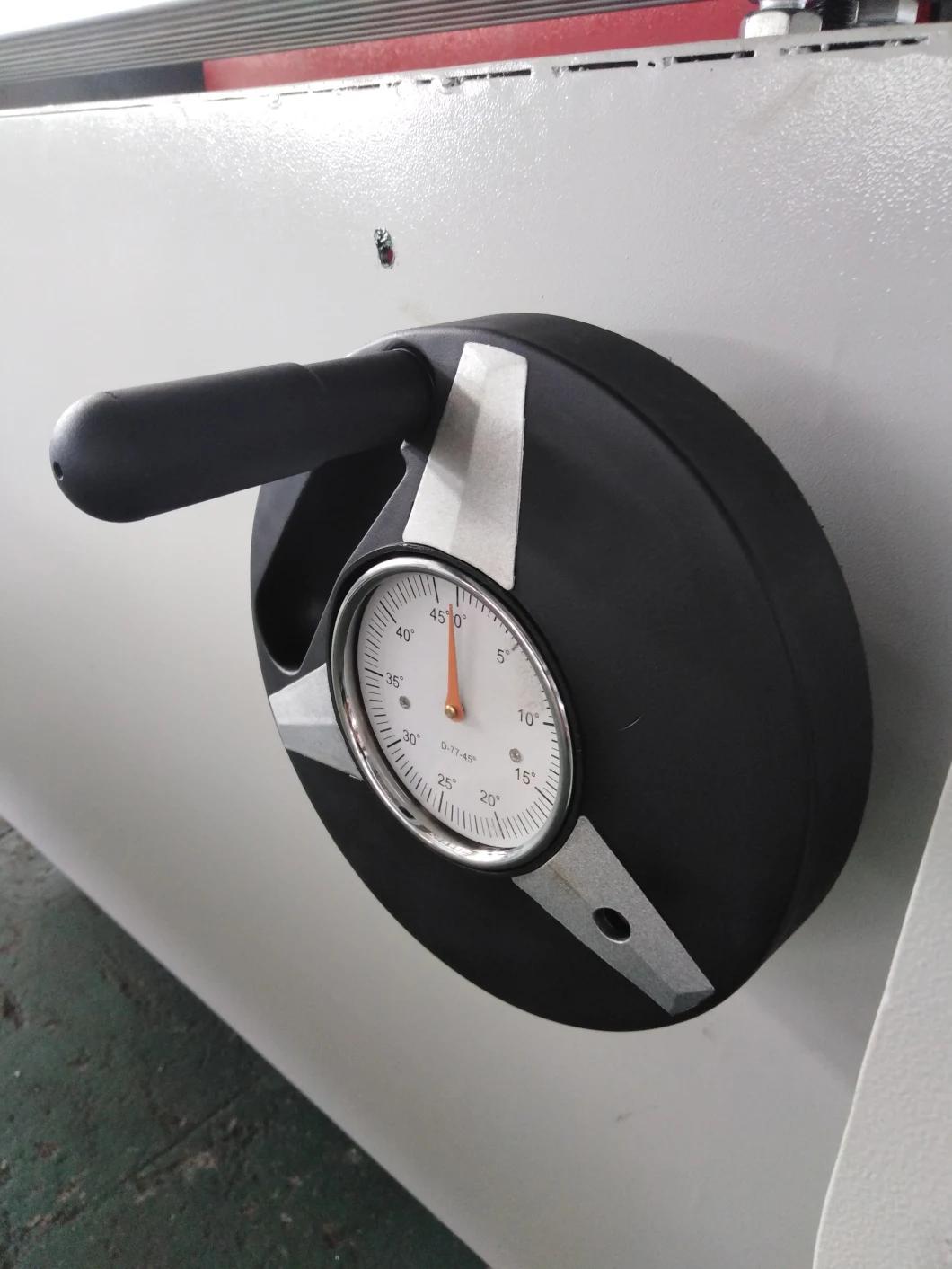

• Saw blade adjustable via hand wheels |
• Digital read out for saw blade tilting |

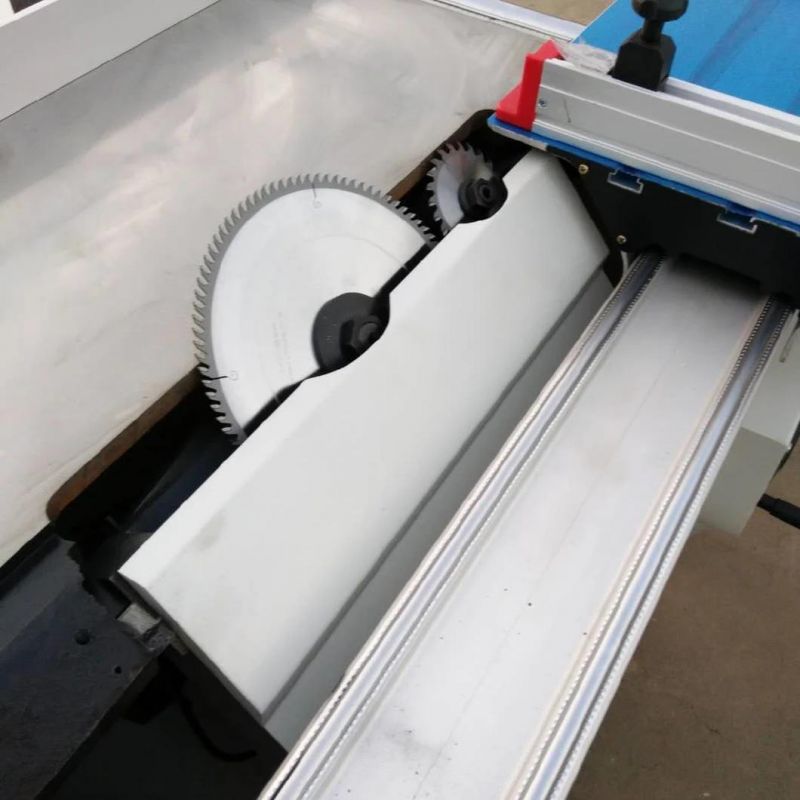

• Saw blade guard mounted to riving knife |
• Rip fence with eccentric locking & fine adjustment |
• Squaring frame with telescoping fence & flip-over stops |
• Eccentric clamping |
• Table with extension on out-feed side |
Lifting of saw blade | Electrical | Speed of main saw spindle | 3000/4000/5000 r.p.m |

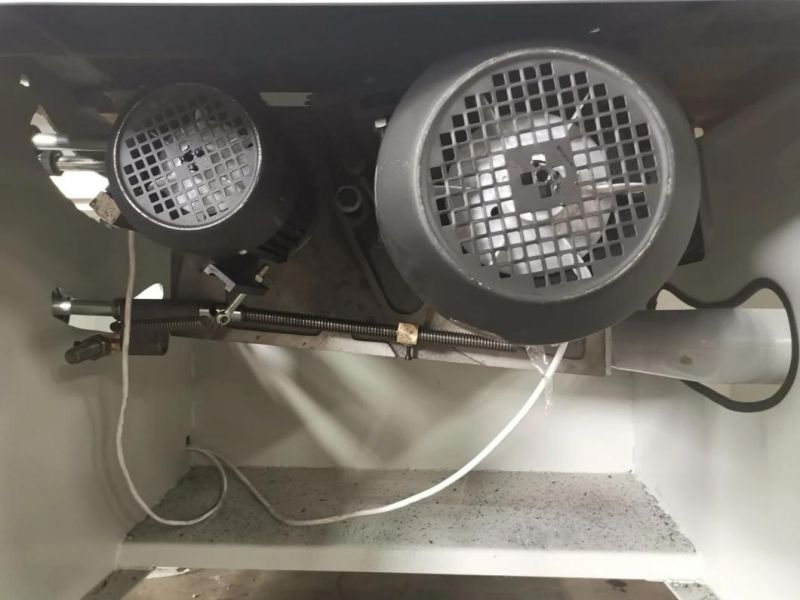

Angle Adjustment | Manual | Main saw motor power | 5.5 kw |
Cutting degree readout | Yes | Main spindle diameter | 30 mm |

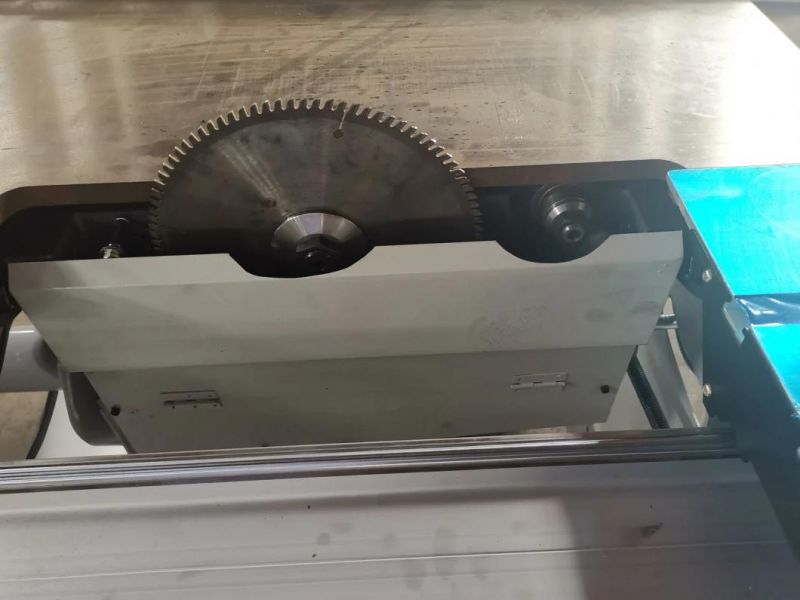

Dimension of sliding table | 3200x415 mm | Diameter of scoring saw blade | 120 mm |
Gross cut capacity | 3200 mm | Speed of scoring saw spindle | 8000 r.p.m |
Width of cut between saw blade and rip fence | 1250 mm | Scoring saw motor power | 1.1 kw |
Tilting saw group | 0-90° | Scoring saw spindle diameter | 22 mm |
Diameter of main saw blade | 400 mm | Weight | 1100 KGS |
Max cutting height (90°) | 125 mm | Overall dimension | 3250x3150x900 mm |
