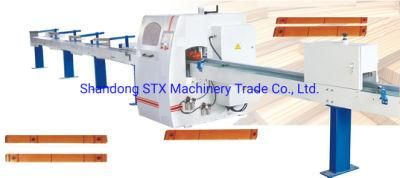

High Precision Woodworking Optimizer Optimizing Cross Cut off Saw
Shandong STX Machinery Trade Co., Ltd.- Warranty：18 Monthsj[
- Type：Cross Cut Saw
- Power Type：Electric
- Layout：Horizontal
- Controlling Mode：CNC
- Automatic Grade：Automatic
Base Info
- Model NO.：MJD344
- Precision：High Precision
- Certification：CE
- Customized：Customized
- Condition：New
- Color：Customized
- After-sales Service：Online Support
- Cutting Speed：25-35m,Min
- Cutting Thickness：9-75mm
- Mini Material Length：350mm
- Max Cutting Section：75*125mm , 50*180mm
- Max Feeding Speed：100m,Min
- Transport Package：Wood Case
- Trademark：STX
- Origin：China
- HS Code：846591
- Production Capacity：2000 Sets,Year
Description
Model
MJD344
Max feeding speed
100m/min
Efficiency
25-35m/min (Cut 4-5 pieces per minute)
Saw Blade Diameter
450*3.2*30*100T / 500*3.8*30*120T
Max Cutting Section
75*125mm / 50*180mm
Cutting thickness
9-75mm
Mini material length
350mm
Max material length
No limited
Motor rotary speed
4000 r/min
Saw spindle power
5.5kW
Feeding servo motor power
4.5kW*2
Top press roller qty
6
Bottom press roller qty
6
Feeding conveyor width
200mm
Overall diameter
14000*1400*1550mm
Weight
2000kg
Or load the cutting list in this system by USB Key
Mark the knots using a marker pen.
Then the machine will automatically identify the marking line and cut

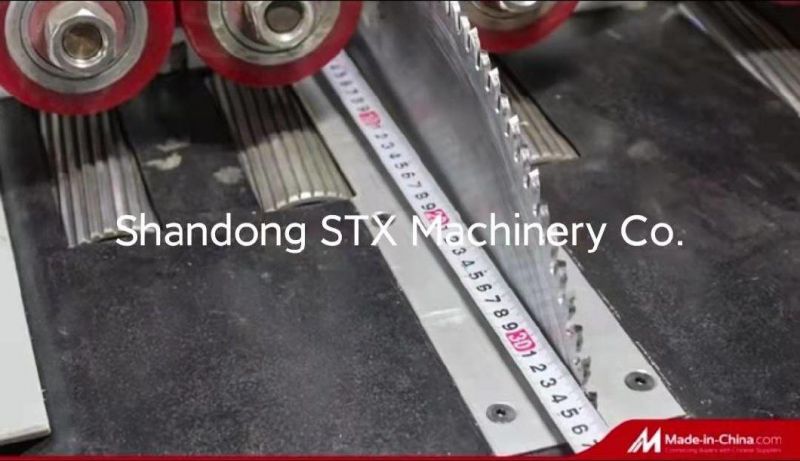

Scanning unit is the eyes of machine to tell the main system how length the matrial or where is the defect need to be cut
