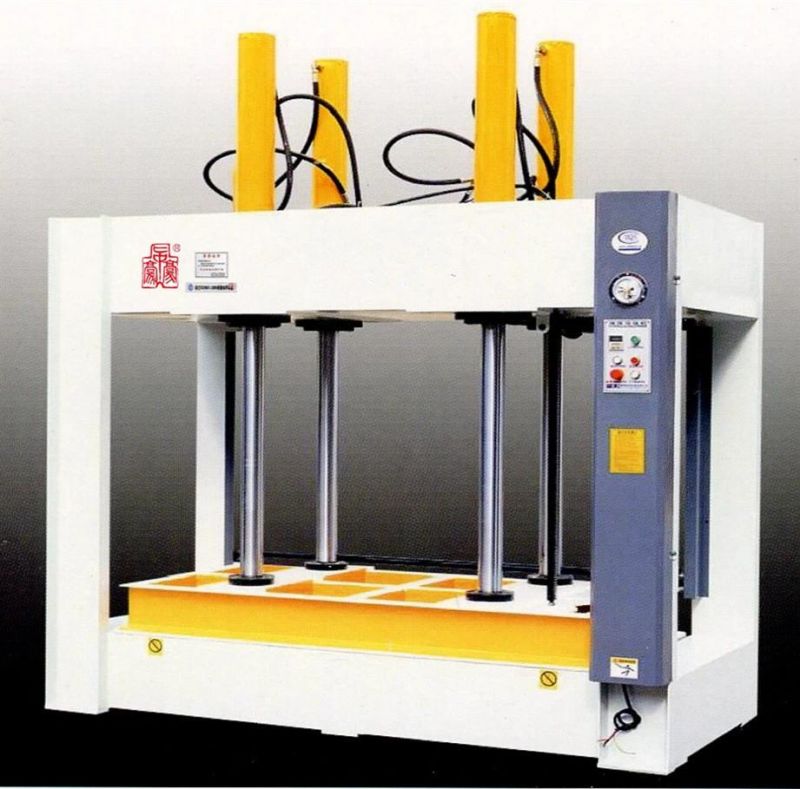

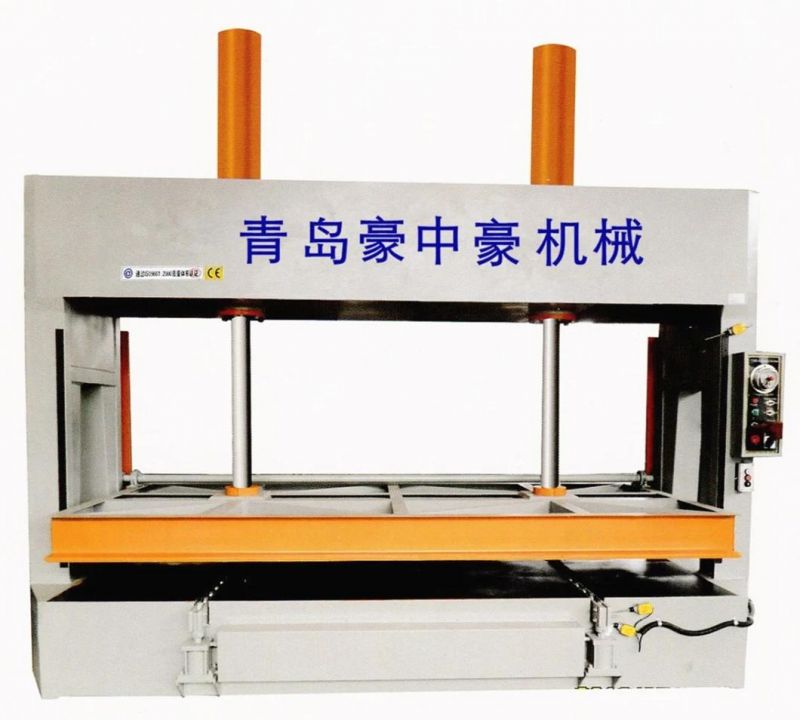

Various Specs Plywood Cold Press Machine Hydraulic Cold Press
Qingdao Haozhonghao Woodworking Machinery Co., Ltd.- Work Forms：Hydraulic Pressure
- Processing Technics：Cold Press
- Structure：Frame Type
- Pressing Shape：Moulding Press
- Platen Surface Pressure：High Pressure
- Pressing Layer：Single Layer
Base Info
- Model NO.：MYJ80t
- Work Mode：Continuous
- Controlling Mode：CNC
- Automatic Grade：Automatic
- Certification：CE, ISO
- Net Weight：3300kg
- Cylinder Number：2
- Serve Opening：1000mm
- Transport Package：Plastic Film
- Specification：2860x1300x2320mm
- Trademark：HZH
- Origin：Qingdao
- HS Code：846599
- Production Capacity：20sets,Month
Description
Basic Info.
Model NO. MYJ80t Work Mode Continuous Controlling Mode CNC Automatic Grade Automatic Certification CE, ISO Net Weight 3300kg Cylinder Number 2 Serve Opening 1000mm Transport Package Plastic Film Specification 2860x1300x2320mm Trademark HZH Origin Qingdao HS Code 846599 Production Capacity 20sets/MonthProduct Description
| Model | MYJ50T | MYJ80T |
| Max. pressure | 50T | 80T |
| Dimension of the platen | 1250x2500mm | 1250x2500mm |
| Working speed | 180mm/min | 180mm/min |
| Total power | 3Kw | 5.5Kw |
| Serve Opening | 1000mm | 1000mm |
| Cylinder Number | 2 | 2 |
| Cylinder Diameter | Φ110-70mm | Φ110-70mm |
| Net weight | 2800Kg | 3300Kg |
| Overall dimensions | 2900x1250x2320mm | 2860x1300x2320mm |
| Voltage | 380V 50hz | 380V 50hz |
The press machine adopts hydraulic system, work fast and steadily.
There are feeding rollers on the worktable
The working pressure is adjustable, eg: MYJ80T, working pressure is 0-80T adjustable
Validity: 60 Days
Payment: 30% by T/T deposit in advance as down payment, balance by T/T before shipment.
Package: Plastic film package, if plywood case package, it is USD550.
Delivery: About 30 days after receive the down payment.
Warranty: Machine supplied quality guarantee period is: one year for mechanical parts and three months for electrical parts. Warranty is counting from the date of B/L.
