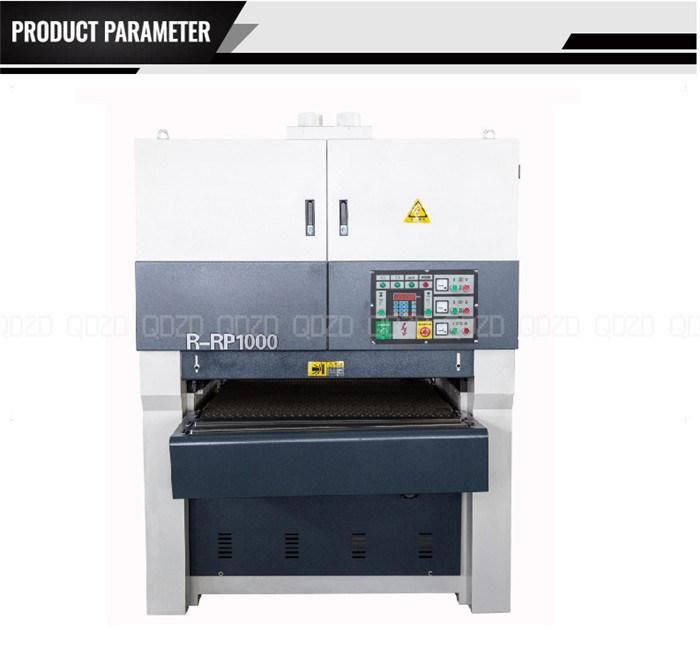

Different Kind of Wide Belt Sander Wood Sanding Machine
Qingdao Zhongding Machinery Co., Ltd.- Warranty：2 Years
- Type：Belt Wood Sander
- Automatic Grade：Semiautomatic
- Variable Speed：Variable Speed
- Certification：CE, ISO
- Customized：Customized
Base Info
- Model NO.：ZDP-R-RP1000
- Condition：New
- Color：Customized
- After-sales Service：2 Years
- Transport Package：Plywood Case
- Specification：Net weight: 2200kg
- Trademark：QDZD
- Origin：China
- HS Code：84659300
- Production Capacity：500sets
Description
Model
ZDR-RP630
ZDR-RP1000
ZDR-RP1300
Max working width
630mm
1000mm
1300mm
Material thickness
2.5-120mm
2.5-120mm(option 2.5-160mm)
2.5-120mm(option 2.5-160mm)
Min. Working length
350mm
350mm
350mm
Feeding speed
6-30m/min
6-30m/min
6-30m/min
1# sanding belt speed
18m/min
18m/min
18m/min
2# sanding belt speed
14m/min
12m/min
12m/min
Size of sanding belt
650*1900mm
1020*2020mm
1320*2020mm
Main motor power
11kw,7.5kw
15kw,11kw
37kw,22kw
Total power
20.74kw
28.94kw
56.74kw
Working air pressure
0.5mpa
0.55mpa
0.55mpa
Volume of dust collecting
5000m³/h
5000m³/h
5000m³/h
Speed of dust collecting
25-30m/s
25-30m/s
25-30m/s
Overall dimension
(L*W*H)
1700*1100*2050mm
1700*1400*2050mm
2750*2200*2050mm
Weight
1300kg
2000kg
3200kg
Features:
Imported converter to adjust the belt line speed, feeding system selected VCT.
Dust clean device effectively remove dust. Cooling extending belt belt life and improve the precision sanding.
Insufficient air pressure or belt breakage, automatic shutdown when the deviation, the table automatically drops to ensure safety.

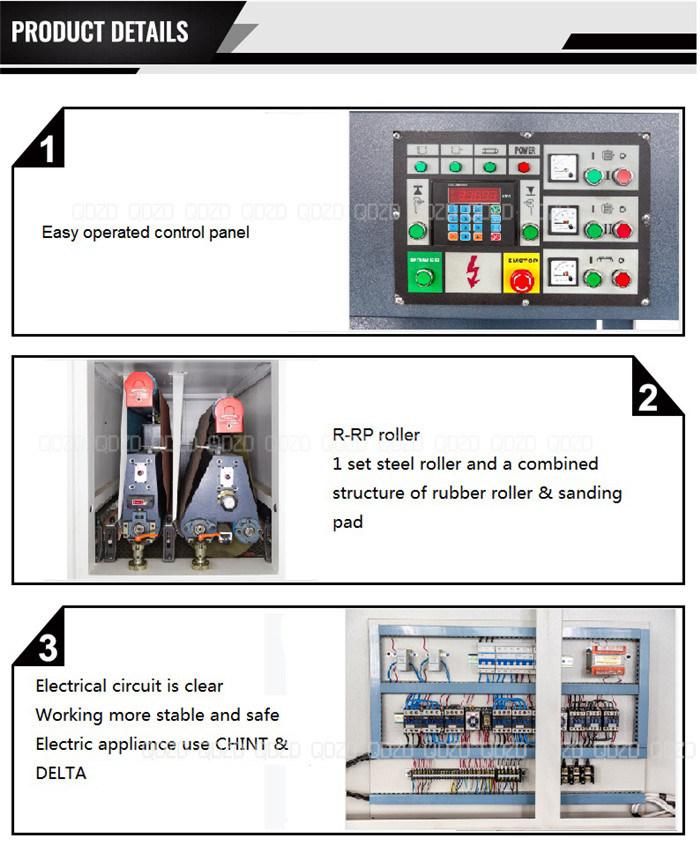

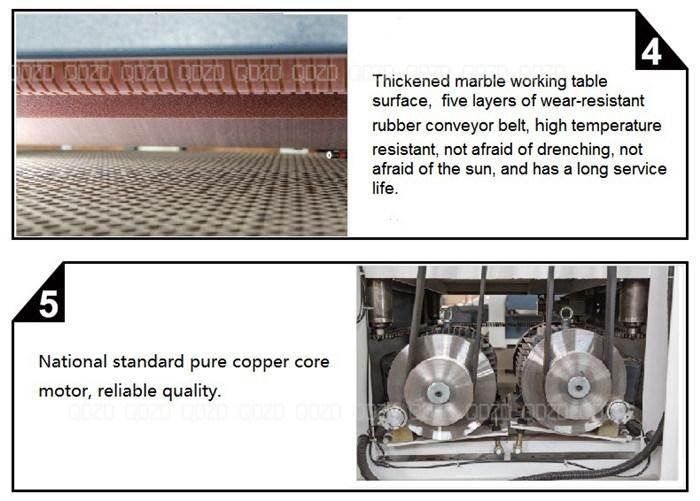

Machine details:
Package:
whole container loading or plywood box.
Others
About the machine, rollers we offer customization service, if you need add sanding roller or brush roller please contact for comfirm.FAQ
Delivery: 20 days
Warranty: 1 year
MOQ: 1 set
Term of Payment: T/T, L/C, Western Union
