• Model NO.：CK6090
• Feed Mode：Mechanical
• Controlling Mode：CNC
• Customized：Customized
• Condition：New
• Color：Customized
• Working Size：600X900X200mm
• Spindle Power：1.5kw,2.2kw,3kw
• Working Table：Vacuum or T Solt
• Control Software：DSP or Weihong
• Rail：Square Rail
• Software：Artcam,March 3,Wentai Software
• Rotary：as Your Choice
• Structure：Steel Structure of Lathe Bed with Heavy
• Voltage：3 Phases and 220V 50Hz,380V,60Hz
• Xy：Helical Rack and Pinion From Xy Axis
• Transport Package：Plywood Packing
• Specification：iso ,SGS,FDA,CE
• Trademark：chanke
• Origin：Shandong
• HS Code：847989999
• Production Capacity：50sets,Months
• Package size per unit product：2.10cm * 1.30cm * 1.80cm
• Gross weight per unit product：317.000kg

Basic Info.

Model NO. CK6090 Feed Mode Mechanical Controlling Mode CNC Customized Customized Condition New Color Customized Working Size 600X900X200mm Spindle Power 1.5kw/2.2kw/3kw Working Table Vacuum or T Solt Control Software DSP or Weihong Rail Square Rail Software Artcam/March 3/Wentai Software Rotary as Your Choice Structure Steel Structure of Lathe Bed with Heavy Voltage 3 Phases and 220V 50Hz/380V/60Hz Xy Helical Rack and Pinion From Xy Axis Transport Package Plywood Packing Specification iso /SGS/FDA/CE Trademark chanke Origin Shandong HS Code 847989999 Production Capacity 50sets/Months

Packaging & Delivery

Package size per unit product 2.10cm * 1.30cm * 1.80cm Gross weight per unit product 317.000kg

Product Description

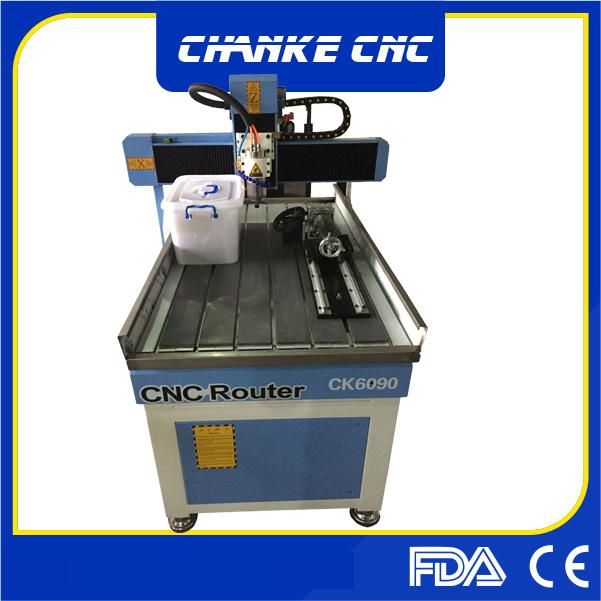

This machine working size is: 600x900mm advertising cnc router, it can engrave on the acrylic, double colour board, ABS, PVC, glass, aluminum,iron,plastic, stone..

1. If it works on the cylinder, the max diameter is: Φ 100mm. The max length is: 1200mm.
2. It adopt the T slot with clamp as working table, then you could fit different size of carved materials.
3. DSP control system, no need computer.
4. It has the break-point memory points for 10 pcs, reducing materials waste.
5. Iron cast wholly frame, double-screw auto eliminating clearance ball screw, floor-type liner guide transmission.
6. Well designed dust and water proof device ensure the machine easy maintenance.
7. CAD/CAM designing software like Type 3/ArtCAM/Castmate /wentai and so on.

It fit for the small work production

Applicable industry:
outdoor light box, advertising logo, signage, seal, breastplate, handicraft, stationery, ornament, instrument panel, PCB board, carpentry product, etc

Forget to tell you, we can according to your requirements to produce the machine.

Agent price and end user price is different, so please tell me you are the end user or agent, when you send us the letter.

so don't hesitate contact us !

Items	Destription
Effective working area	600(X)mm*900(Y)mm*120(Z)mm
Max.thickness of the materials	≤200mm(the distance between Z-axis and the bottom of the working station)
Materials	Cast iron machine bed ,cast aluminum gantry
Guide rail	Linear square  guide rail
Transmission	ball screw
Working table	Aircraft aluminum T slot
Voltage	AC 220v 50/60Hz single phase
Driving mode	Stepper motor
Spindle motor	2.2kw water cooling
Collet type	ER11
Suitable tools diameter	3.175mm,4mm,6mm
Spindle speed	0-24000rpm/min
Empty traveling speed	0-60000mm/min
Engraving speed	0-25000mm/min
Voltage	AC 220V 50/60Hz single phase or
Machine accuracy	0.05mm
Control system	MACH3 /Original NcStusio /DSP

 Features

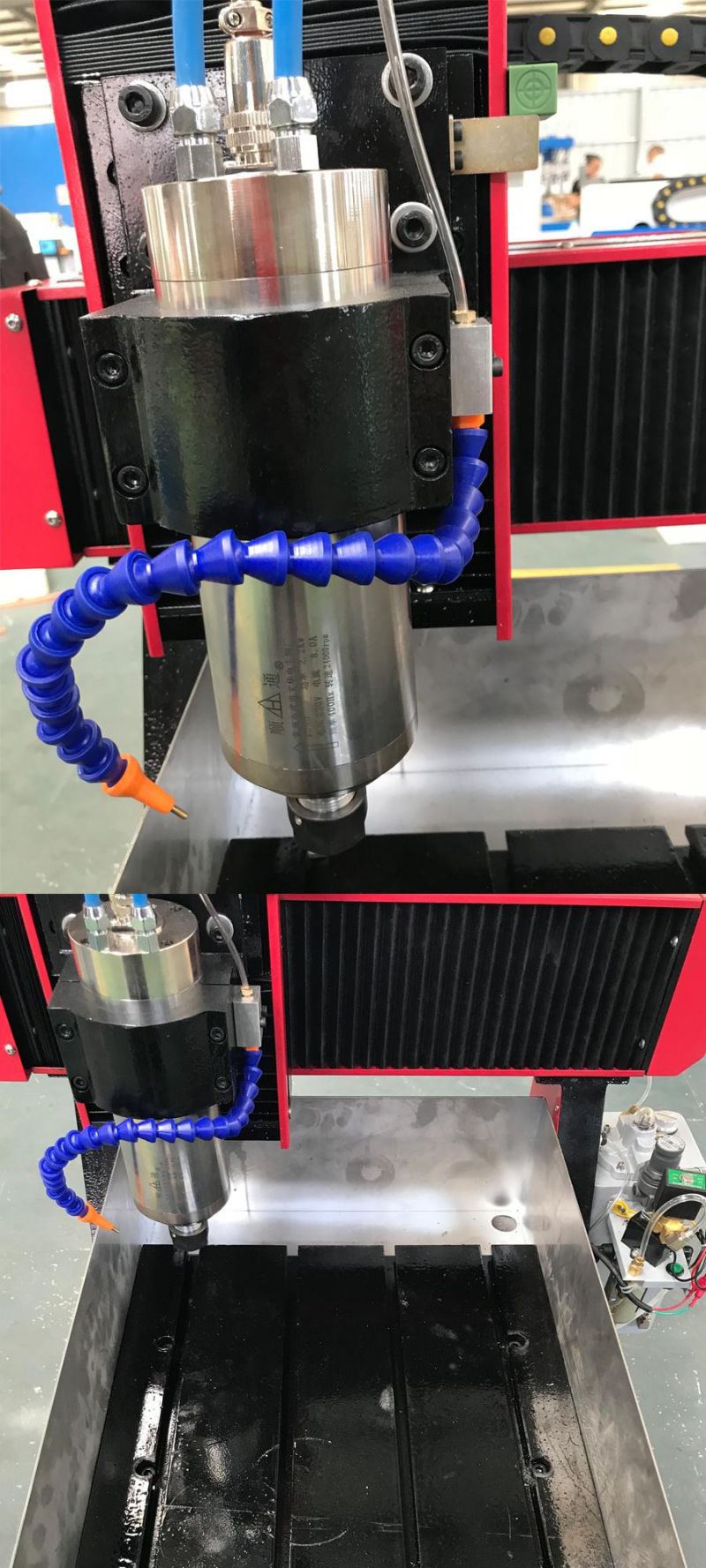

1 , 2.2kw water cooling  spindle ,high rotated speed,hign power can engraving on the hardness materials(or air cooling spindle ),low noise .

2,Dustproof system,make the working table more convenient

3,Aircraft aluminum T slot working table covered PVC protects the tools from breaking .T-slot with clamps makes it convenient to fix the materials

4,The machine cast iron machine bed ,cast aluminum gantry , more stable ,no deformation ,little shock ,moving stability .

5,linear square guide rail ,ball screw transmission,more precision.

6,T-shape dragon gate makes 3 axis working stable ,high speed and accuracy.Dragon gate moving,customer can work on any area  of the materials.

7,Optional control system ,such as Ncstudio/DSP/Mach3,high stability ,high efficiency ,easy to learn

8,Continuing working after the break point /power failure,lower the rejection rate

9,Good software compatibility ,can compatible with th Artcam/Type3/Ucancam/JDPaint such CAS/CAM software ,convenient to using.

10,Control cabinet it includes :round transformer ,leadshine driver,inverter

(1) Round transformer:change the local power voltage into 40-60v

(2) Inverter :it can control the spindle speed and save energy

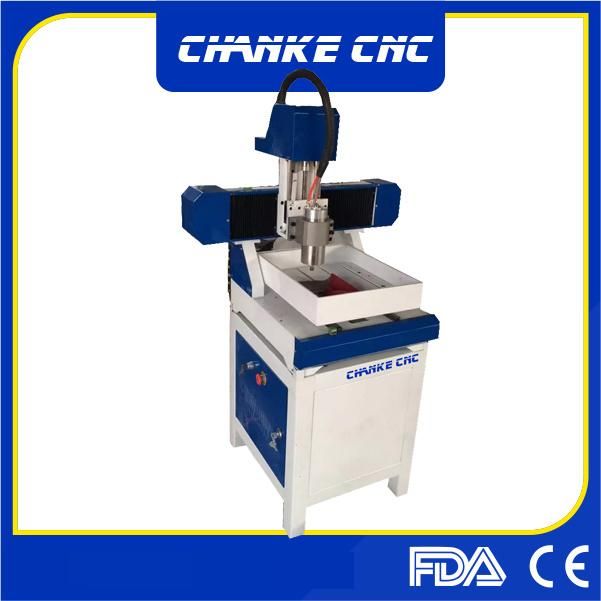

 Whole machine :



Packing:
All wood working machine are packed with standard inner plastic wrap and steel structure and outer plywood case, inner package would be help to tight all the Small parts in the package. and the plywood is firm enough to protect the laser machine during shipping.

The advantages of plywood case package:

Firstly, plywood case, its compressive strength and bearing quality is better, is the market of choice for the goods of high weight packing.

Secondly, the board area is big, the soil structuer is good and operational process is simple, so its is better in leakproof ness and waterproof.

Thirdly, when importing, the plywood case is with fumigation-free, the produre is simple.

After sale service:

1. 2 years warranty
2. Engineer can go to your country help you install and repair the machine if machine has big problems.

3. the easy broken parts are all change within the 9 months, so within 9 months if the easy brokens are working under a normal enviroment, so we can change for you for free.

4. 24 hours online to help you slove all the problems.

5. Engineers can speak English.
