High Precision M1 M2 M3 M4 M5 1000mm Rack Gear for CNC Machine
Foshan Hongli Weiye Electromechanical Hardware Co., Ltd.- Warranty：1 Year
- Function：Pre Milling, Edge Banding, End Trimming
- Type：Linear Edge Banding Machine
- After-sales Service：Provide Technical Guidance
- Transport Package：Export Wooden Case
- Specification：20*20*1000
Base Info
- Model NO.：SSGH1.5-10
- Trademark：BSG
- Origin：China
- HS Code：8483900090
- Production Capacity：20000 PC,Month
Description
Overview

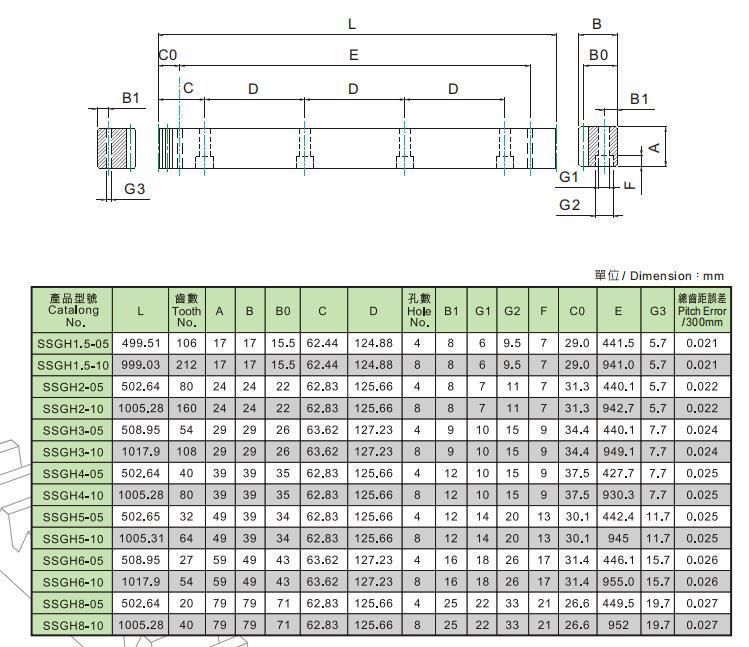

Product Parameters
Product Advantage
Related Product
15x15x1000mm gear rack;17x17x1000mm gear rack;20x20x1000mm gear rack;
Module 2:
22x25x1000mm gear rack;24x24x1000mm gear rack;25x25x1000mm gear rack;
Module 3:
30x30x1000mm gear rack;30x35x1000mm gear rack;30x40x1000mm gear rack;
Module 4:
40x40x1000mm gear rack;50x50x1000mm gear rack;etc.
Module:M1,M1.5,M2,M3,M4,M5,M8
Precision:Din5,Din6,Din7,Din8
Material:S45C,45#,C45,40Cr,304 stainless steel etc.
Heat treatment:quenched and tempered HRC20-25;hardened HRC50-55.

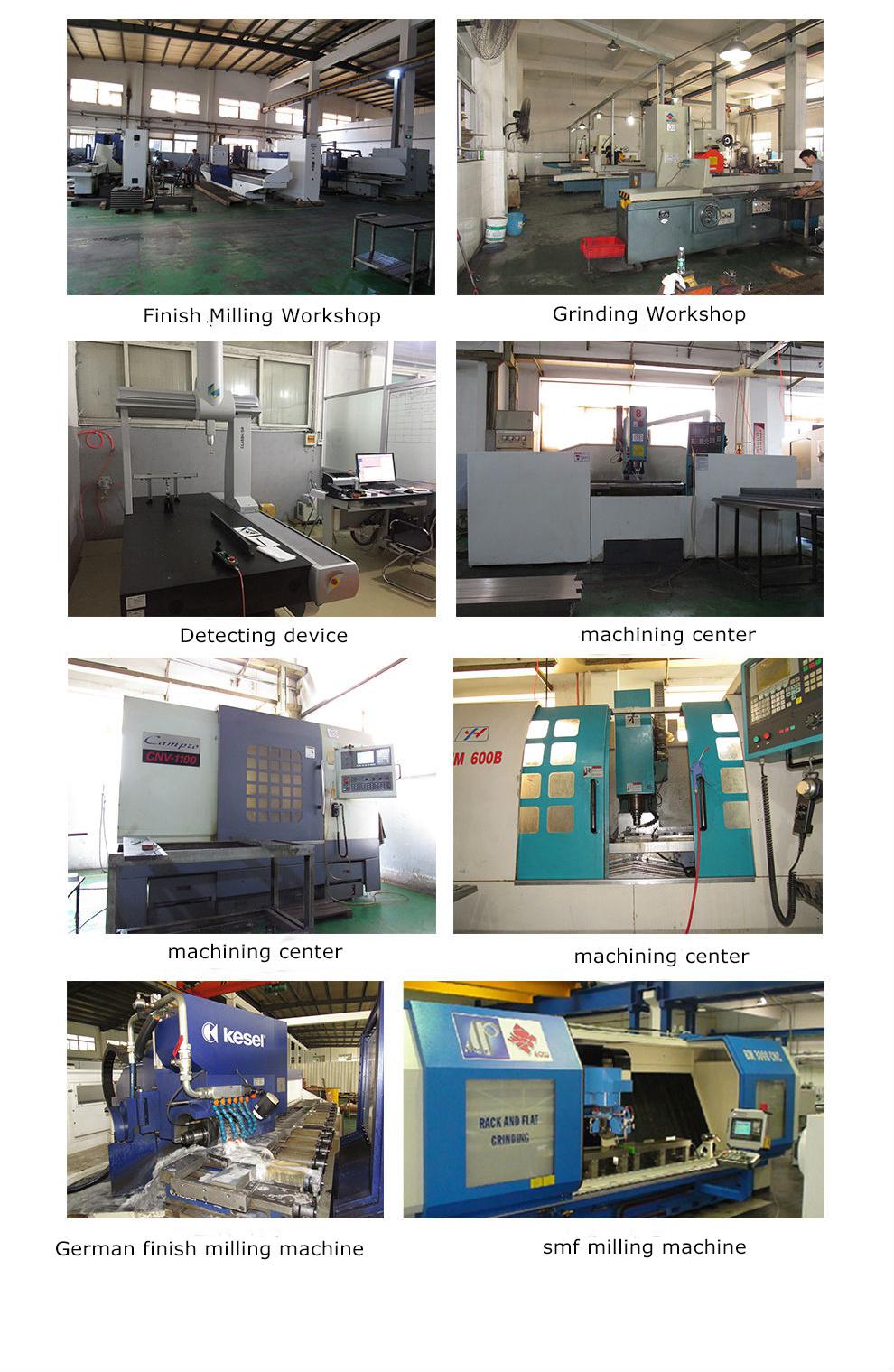

Production Process

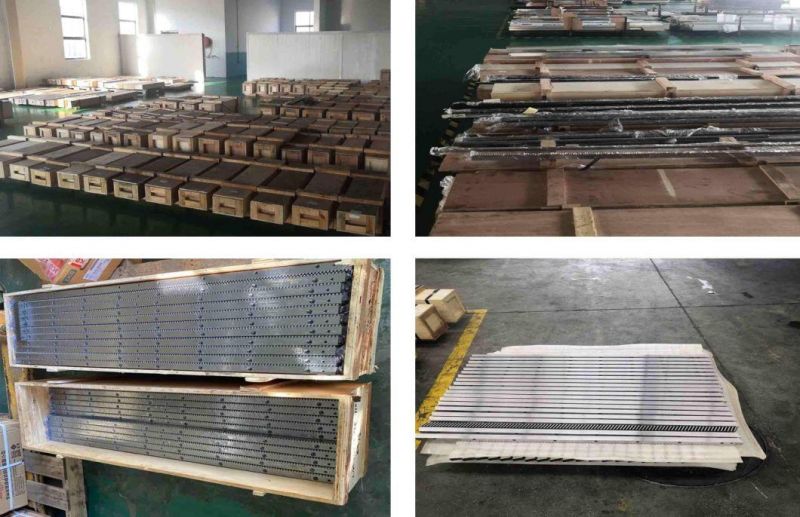

Packaging & Shipping
FAQ
Click the link get contact information
