• Model NO.：BXQ1826
• Controlling Mode：CNC
• Power Source：Electric
• Processing Accessory：Chuck CNC Lathe
• Certification：CE, ISO, FDA, Intertek
• Color：White
• Knife Clamp Way：Mechanical or Hydraulic
• Transport Package：Container
• Specification：7500x2600x2800mm
• Trademark：METRO
• Origin：China
• HS Code：8465960000
• Production Capacity：500sets,Year

Basic Info.

Model NO. BXQ1826 Controlling Mode CNC Power Source Electric Processing Accessory Chuck CNC Lathe Certification CE, ISO, FDA, Intertek Color White Knife Clamp Way Mechanical or Hydraulic Transport Package Container Specification 7500x2600x2800mm Trademark METRO Origin China HS Code 8465960000 Production Capacity 500sets/Year

Product Description

 SPINDLE ROTARY PEELING MACHINE FOR FACE VENEERMain features:
1. Spindle rotary peeling machine is the main machine for face veneer production, its maximum working diamter upto 700mm and final left diameter reach to 120mm.
2. Big motor drive and transmission to make the machine can peel minimum 0.1mm to maximum 2.6mm big range thickness range at the most suitable working speed.
3. Log hoisiting device on the top of the machine make the logs charging easily.
Main technical specifications:

Machine name	Spindle Rotary Peeling Machine For Face Veneer
Machine model	BXQ1826
Max. working diameter	Φ1700mm
Min. working diameter	Φ120mm
Max. working length	2600mm
Veneer thickness range	0.1-2.6mm
Veneer peeling speed	0-90m/min
Main motor power	30kw
Total motor power	42Kw
Machine weight	17000Kgs

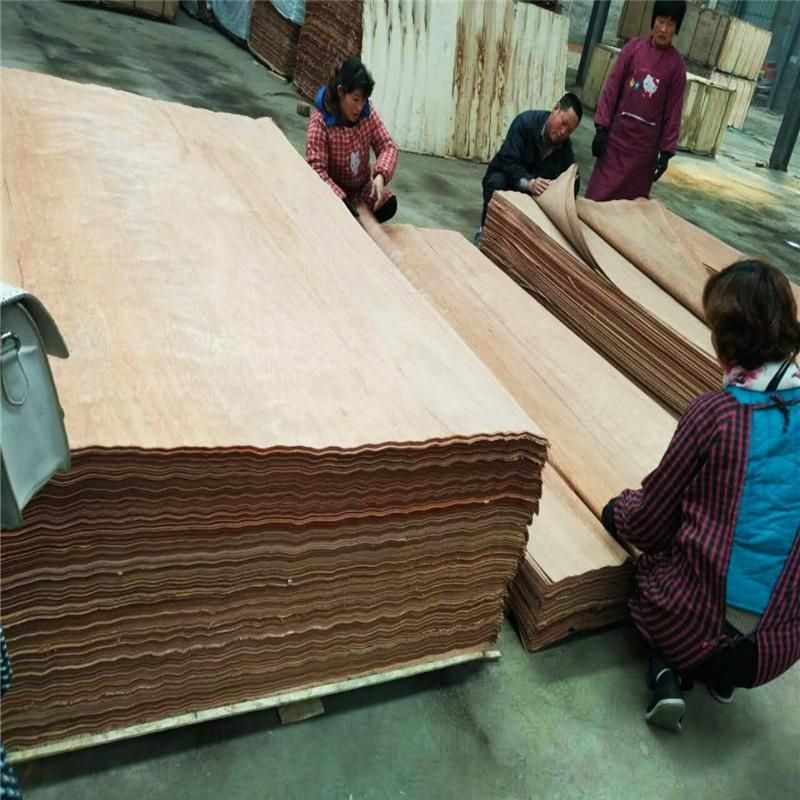

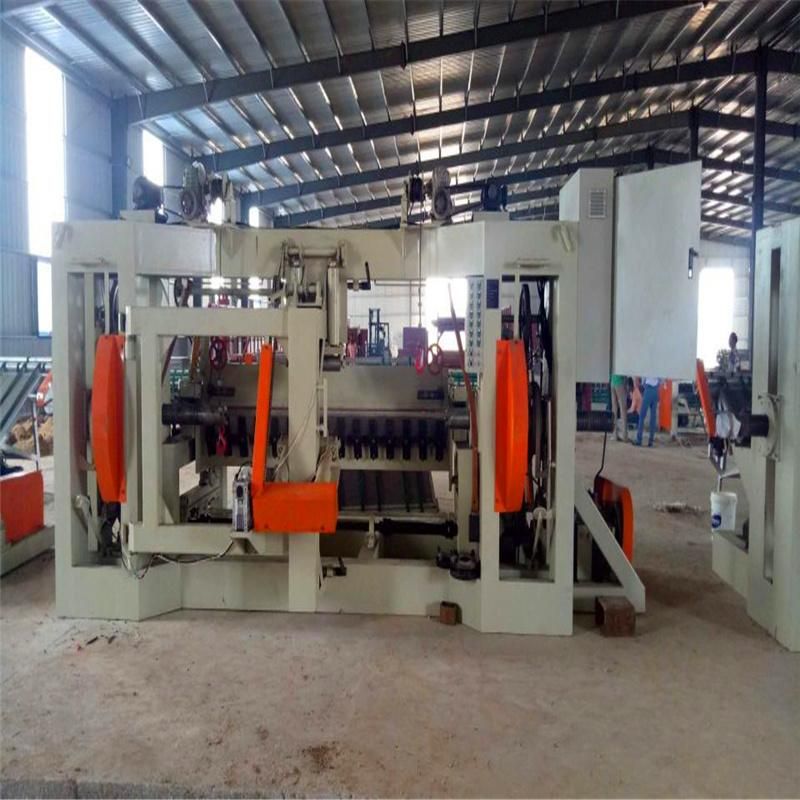

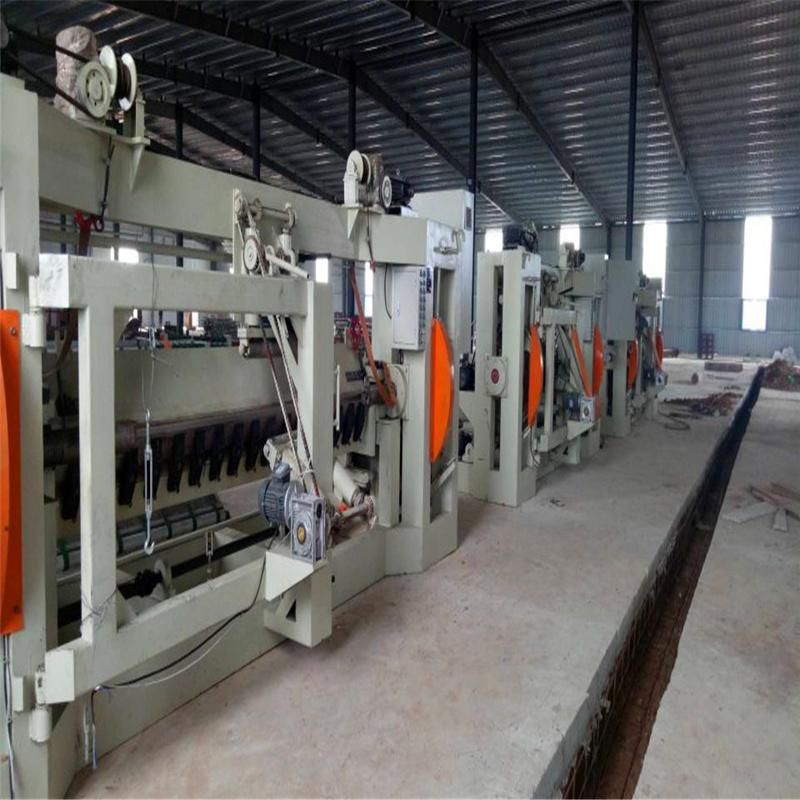

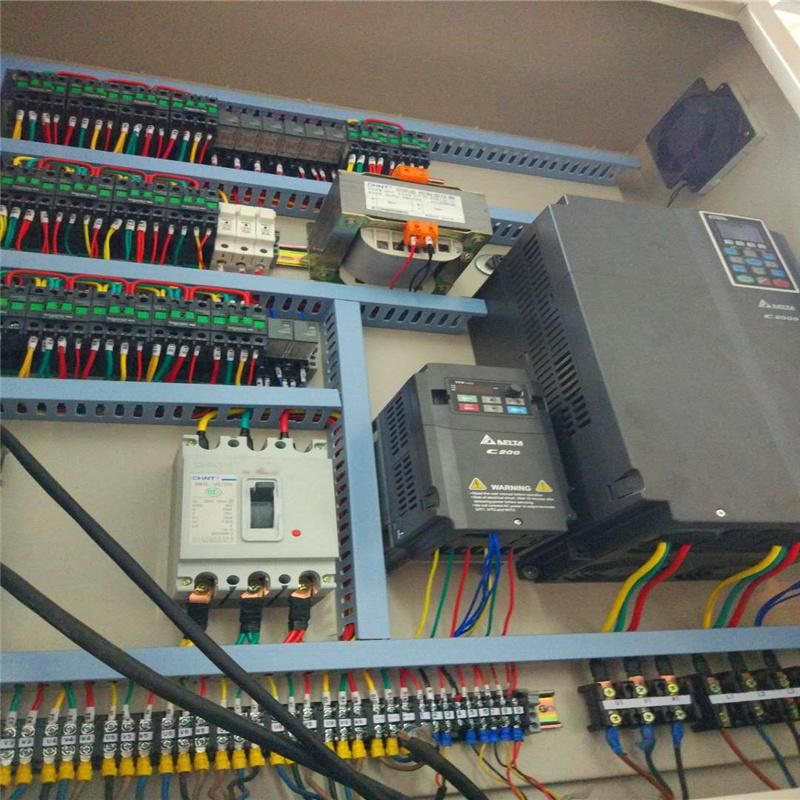

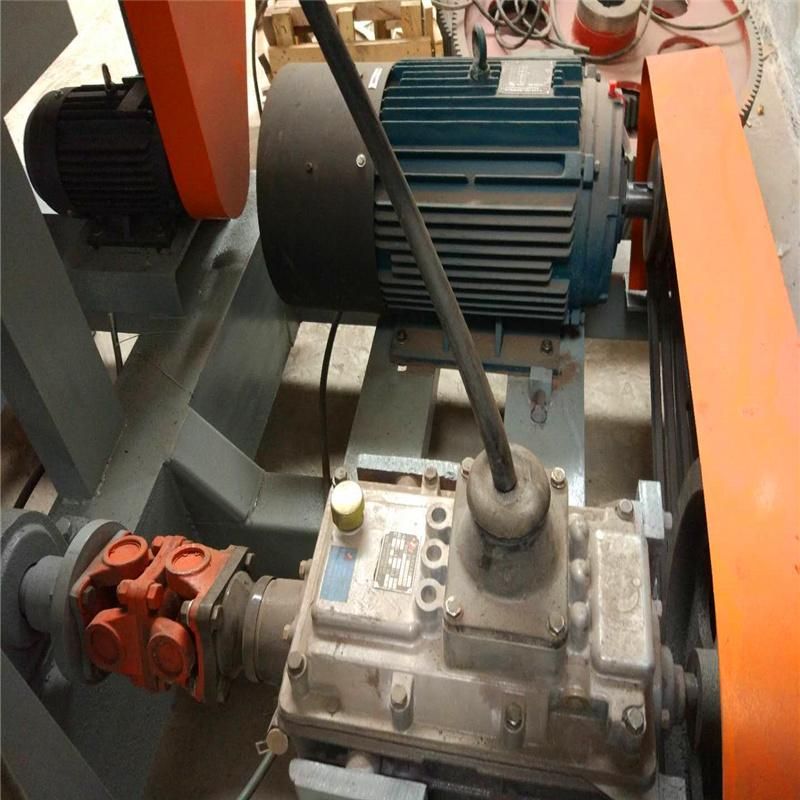

 Main photos show:
