• Model NO.：GD-MS270
• Precision：High Precision
• Certification：CE, ISO
• Customized：Customized
• Condition：New
• Color：Customized
• Product Name：CNC Panel Saw,CNC Beam Saw,Computer Saw
• Power：20kw
• Feature：Eco-Friendly
• Model：Gd-Ms270
• Max Cutting Length：Unlimited
• Cutting Material：Wood
• Gross Cut Capacity：3000mm
• Spindle Diameter：180mm
• Tilling Saw Blade：0-45°
• Scoring Saw Blade：120mm
• Net Weight：1000kg
• Overall Dimensions：3050×3150×900mm
• Dimensions Sliding Table：3100×360mm
• Saw Blade φ：300mmφ250-φ300
• Height of Cut φ300mm：70mm
• Transport Package：Woodcase
• Specification：2000kg
• Trademark：Guandiao
• Origin：Jinan, China
• Production Capacity：50000pieces,Year

Cutting length2440mmSawing thickness

80mm

Main saw blade diameter

355mm

Main saw blade shaft diameter

75mm

Main saw blade speed

5800mm

Slot saw blade diameter

180mm

Slot saw blade shaft diameter

45mm

Saw seat retreat speed30-120m/minMain saw motor

15kw

Saw base drive motor2.2KW frequency conversionAutomatic feeding motor1.5KWHigh-pressure blower motor

2.2kw

Automatic feeding speed0-100m/min

Features

1.Adopt the structure of double saw blades, which can eliminate the cracking phenomenon of sawing veneer, and there is no need to go through other processes to process and trim.

2. The key-type dust curtain can make the working environment more tidy, and the cutting precision is higher.

3. The telescopic ruler makes the sawing of long workpieces more accurate and saves working space.

4 It can accurately saw wood, aluminum-plastic panels, wood-based panels, etc.

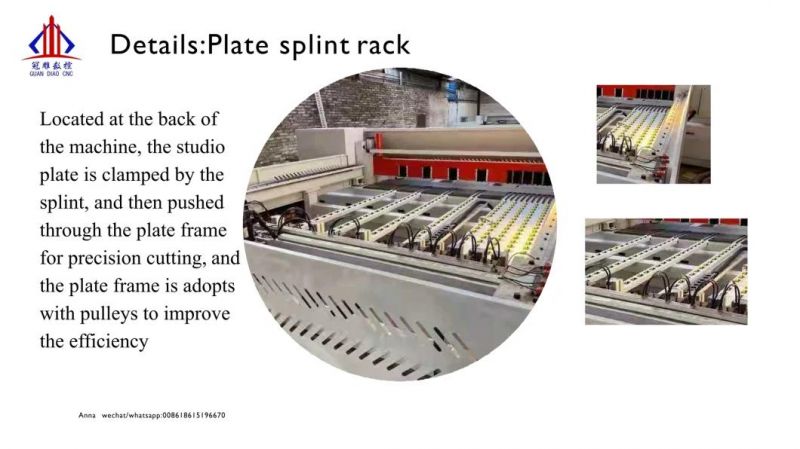

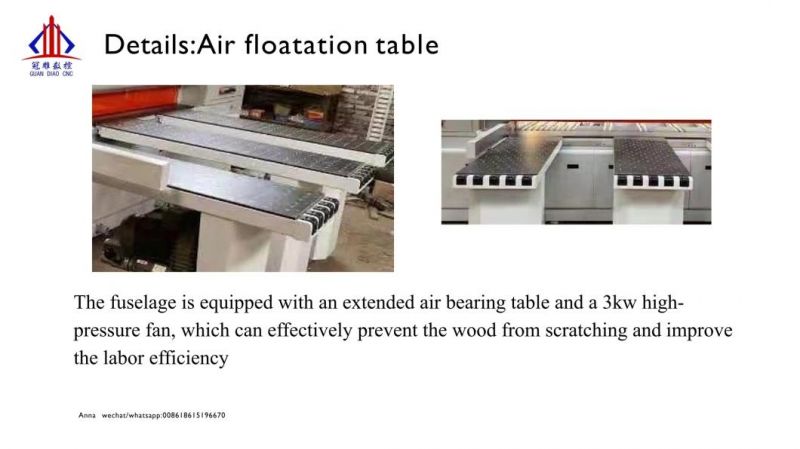

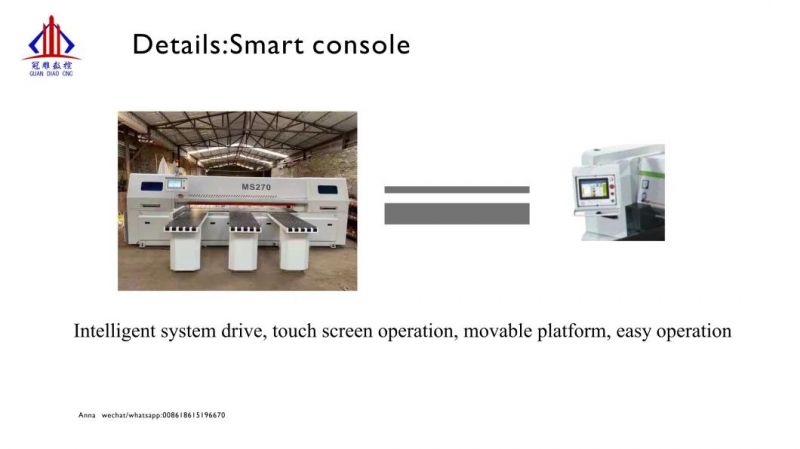

Intelligent system drive, touch screen operation, movable platform, easy operationthe fuselage is equipped with an extended air bearing table and a 3kw high pressure fan, which can effectively prevent the wood from scratching and improve the labor efficiencydetails:plate splint rack
located at the back of the machine, the studio plate is clamped by the splint, and then pushed through the plate frame for precision cutting, and the plate frame is adopts with pulleys to improve the efficiency

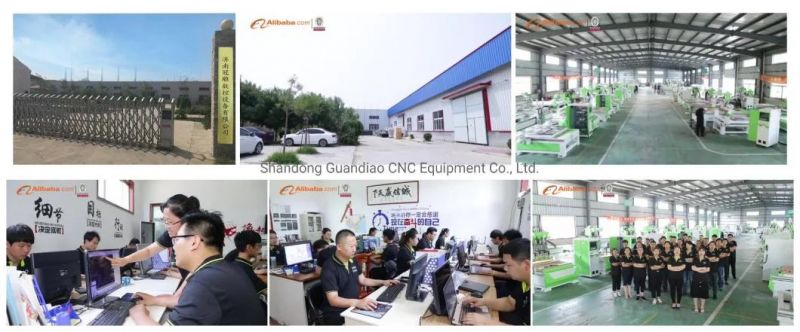

Company informationGuandiaoThe company has a factory building of 6,000 square meters and an office area of 1,500 square meters. The application is reasonable. The production area is constructed in strict accordance with the national safety and environmental protection policies to ensure a reasonable delivery period.
We have a well-established sales and marketing team, technical research and development team, and after-sales service team to meet the needs of the market and customers.

Packing & shipping


Our service
1. 1 years quality guaranty, the machine with main parts(excluding the consumables)  shall be changed free of charge if there is any problem during the warranty period.
2. Lifetime maintenance free of charge.
3. Free training course at our plant.
4. We will provide the consumable parts at an cost price when you need replacement.
5. 24 hours on line service each day, free technical support.
6. Machine has been adjusted before delivery.
If you have any questions about us, please contact me with no hesitate.
FAQ
1. This is the first time I buy the machine, is it easy to operate?
A: We provide the operation manual or video for guiding. If it is hard for you learning, we can also help you by "Team
viewer" online, with telephone or Skype explain.
2. Are you a factory or trading company?
A: We are a factory.
3. Can I visit your factory?
A: Yes! We greatly welcome you to visit our factory!
4. What is your MOQ?
A: Our MOQ is 1 set. We could send machine to your country port directly, please tell us your port name.The we can give you a freight for your reference.
