• Model NO.：1325,1825
• Key Selling Points：Multifunctional
• Travel (Y Axis)(mm)：2500mm
• Positioning Accuracy：0.05mm
• Power (Kw)：4.5kw
• Color：Customized
• Warranty：12 Months
• Range of Spindle Speed：1000 - 24000
• No. of Spindles：Single
• Travel (X Axis)(mm)：1300mm
• Spindle Motor Power：3.2kw
• Running Temperature：0-45ºC
• Packing Size：3.2*2*1.7m
• Weight：1000kg
• Transport Package：Wood Case
• Specification：1300*2500*200
• Trademark：Guandiao
• Origin：Shangdong, China
• HS Code：8465990000
• Production Capacity：10000pieces,Year

Basic Info.

Model NO. 1325/1825 Key Selling Points Multifunctional Travel (Y Axis)(mm) 2500mm Positioning Accuracy 0.05mm Power (Kw) 4.5kw Color Customized Warranty 12 Months Range of Spindle Speed 1000 - 24000 No. of Spindles Single Travel (X Axis)(mm) 1300mm Spindle Motor Power 3.2kw Running Temperature 0-45ºC Packing Size 3.2*2*1.7m Weight 1000kg Transport Package Wood Case Specification 1300*2500*200 Trademark Guandiao Origin Shangdong, China HS Code 8465990000 Production Capacity 10000pieces/Year

Product Description

 Product Description

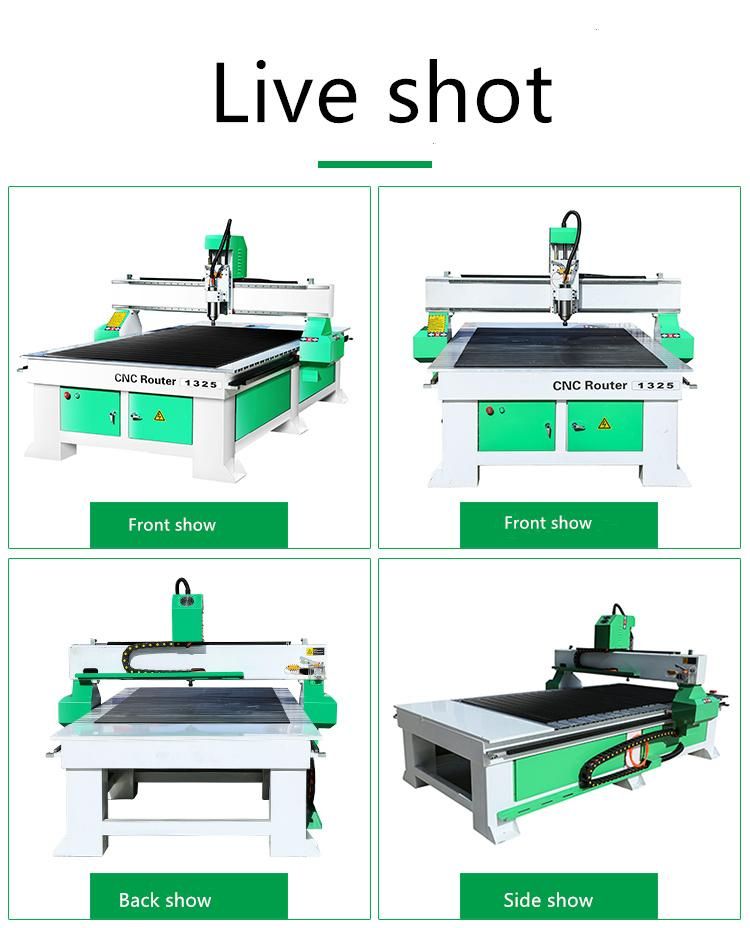

Model	LD-1325
Working Area	1300*2500*200 mm

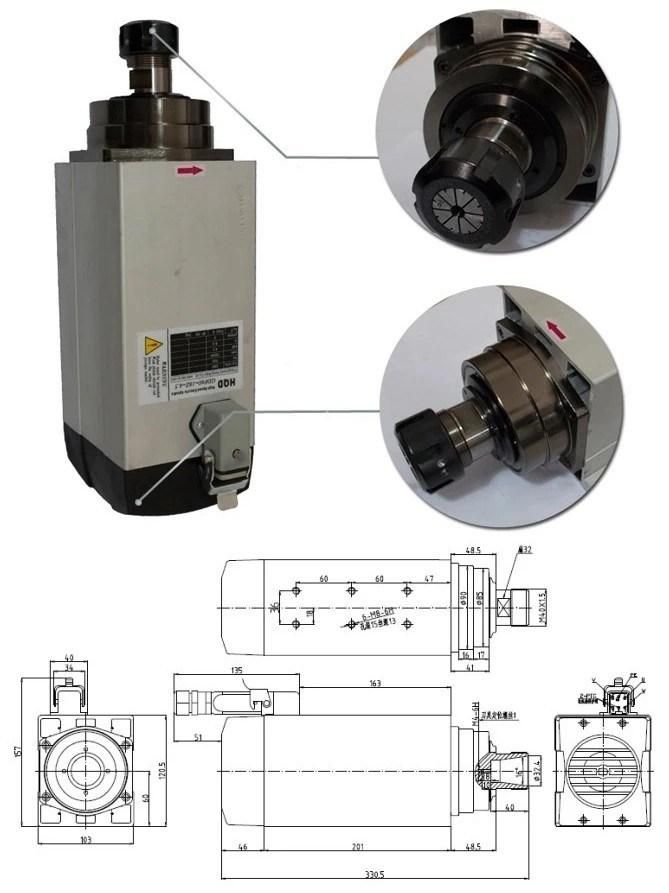

Spindle	3.2 kw,/4.5kw 24000 rpm, Air cooling(Optional)
Table	Vacuum Suction
Transmission	Rack and pinion for x.y, ball screw for z
Guideway	HIWIN square linear guideway
Resolution	0.01 mm
Traveling speed	35m/min
Working Speed	30 m/min
Driver	China stepping motors and leadshin driver
Code	G Code, HPGL Code
Power Supply	AC380V/50Hz
Control System	NC Studio / DSP(optional)
Software	JD/TYPE3/Artcam/Castmate/UG/CAD/CAM,etc
Software Environment	Windows98/2000/XP
Relative humidity	30%-75%
Running Environment Temperature	0-45ºC
Packing	Wooden Box
Weight	Net weight:800 kg        Gross Weight:1000 kg
Packing size	3.2*2*1.7m
Applicable Materials	wood, PVC, acrylic, MDF, Plexiglass, and aluminum, copper,  aluminum composite panel, etc.
Stand accsssories	5.5Kw air pump, USB line,  Tool box(Spanner,brush, etc). cutting tools.  Dust collector.  Manual

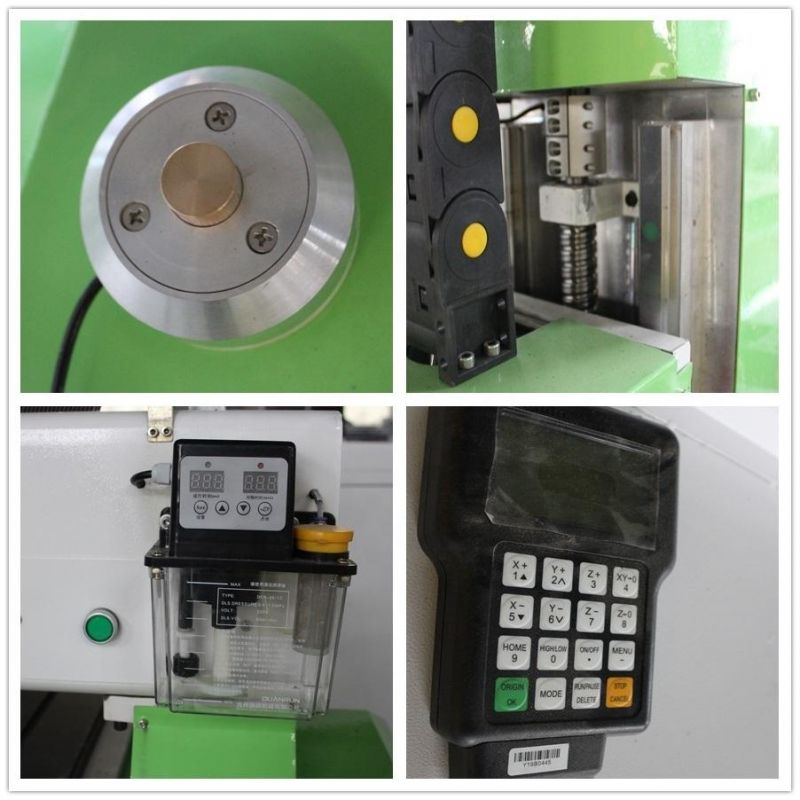

Show details








Application

Advertising industry : used to engrave all kinds of board signs, plexiglass, three-dimensional billboards, two-color figure
statues, relief medals, organic board reliefs, three-dimensional door heads and so on.
Model industry: making sand table models, house models, mold making operation: printing bronzing mold, injection mold,etc.
Wood industry: used for embossed pattern design and production.
Seal industry:seal engraving of various types of materials.
Automotive industry:tire molds, lamp molds and decorative mold processing.


Packing & Delivery

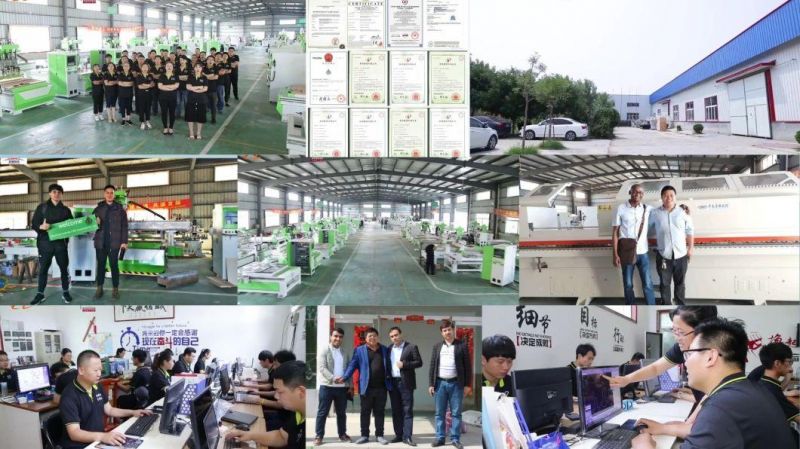

Company Profile
Shandong Guandiao CNC Equipment Co., Ltd is an innovative enterprise engaged
in research and development, production, sales and good after- sales service.

 FAQ1. This is the first time I buy the machine, is it easy to operate?
A: We can provide the operation manual or video for guiding. If it is hard for you learning, we can also help you by "Team
viewer" online, with telephone or Skype explain.
2. ARE YOU TRADING COMPANY OR MANUFACTURER ?
A: We are factory.
3. Can I visit your factory?
A: Yes! We greatly welcome customers to visit our factory!
4. What is your MOQ?
A: Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your port name.
There will be best shipping freight and machine price send to you.Our Service1.24 hours online by Ali Trademanager, Skype, Email, QQ, Whatsapp or telephone.
2.We will provide free training, free maintenance, free technical upgrading,
3.We accept the ODM, OEM
4.Oversea agents wanted, if any interest, pls let me know
