• Model NO.：450MX
• Warranty：2 Years
• Customized：Customized
• Condition：New
• Color：Multi Color
• Size of Final Fuel Pellets：Adjustable
• Capacity Range：800-4000kg,Hour
• Motor Power Range：55kw-160kw
• Applications：Biomass Fuel Energy
• Suitable for Raw Materials：Kinds of Biomass Waste, Agriculture Wasrte, Wood,
• Types of Wood Pellet Mill：Ring Die or Flat Die with Electric or Diesel
• Used for：Cooking, Indoor Heating System,etc.
• Keywords 1：Straw Pellet Mill
• Keywords 2：Wood Pellet Mill
• Keywords 3：Wood Granulator
• Transport Package：Ocean Freight with Wooden Package or 20′gp Contain
• Specification：ISO, SGS
• Trademark：Agii
• Origin：China
• HS Code：8474802000
• Production Capacity：100 Sets,Month

Basic Info.

Model NO. 450MX Warranty 2 Years Customized Customized Condition New Color Multi Color Size of Final Fuel Pellets Adjustable Capacity Range 800-4000kg/Hour Motor Power Range 55kw-160kw Applications Biomass Fuel Energy Suitable for Raw Materials Kinds of Biomass Waste, Agriculture Wasrte, Wood, Types of Wood Pellet Mill Ring Die or Flat Die with Electric or Diesel Used for Cooking, Indoor Heating System,etc. Keywords 1 Straw Pellet Mill Keywords 2 Wood Pellet Mill Keywords 3 Wood Granulator Transport Package Ocean Freight with Wooden Package or 20′gp Contain Specification ISO, SGS Trademark Agii Origin China HS Code 8474802000 Production Capacity 100 Sets/Month

Product Description

Biofuel Waste Rice Husk Straw Sawdust Wood Pellet Granulator Mill


1. Specifications of Wood Pellet Granulator:

Model	Inner Dia of Ring die	Power (Kw)	Capacity (ton/hour)	Dimension (m)	Weight (Kg)
450 MX	450mm	55 kw	0.8-1.0T	1.4*0.75*1.55	2800
550 MX	550mm	90 kw	1.5-2T	1.9*0.95*1.8	4500
800 MX	800mm	132 kw	2-3T	2.5*1.35*2.1	7000
1000 MX	1000mm	160 kw	3-4T	2.65*1.45*2.1	8500

2. Introductions of Wood Pellet Granulator:

This type of vertical ring die 1000kg/h wood pellet mill machine is widely used in the biomass-energy fuels plant, power plant, wood processing plant, fertilizer plant, chemical plant etc. It is the ideal pressing shaping pelletizing equipment with low investment and high profit.



3. Descriptions of Final Pellets:

Wood pellets are the most common type of pellet fuel and are generally made from compacted sawdust and related industrial wastes from the milling of lumber, manufacture of wood products and furniture, and construction. Other industrial waste sources include empty fruit bunches, palm kernel shells, coconut shells, and tree tops and branches discarded during logging operations



4. Features of Wood Pellet Granulator:

(1).Gearbox: Driving with high-precision gears, Automatic Lubricant pump system keep the gearbox working stability and warranty period

(2).Vertical motor: the most characteristic is mounting hole with output shaft as the center, Equidistant distribution around, More powerful and stability of machine working



(2). Blower system:
Located in one side of work bin, Free control the working time, The main function is dedusting and discharge steam

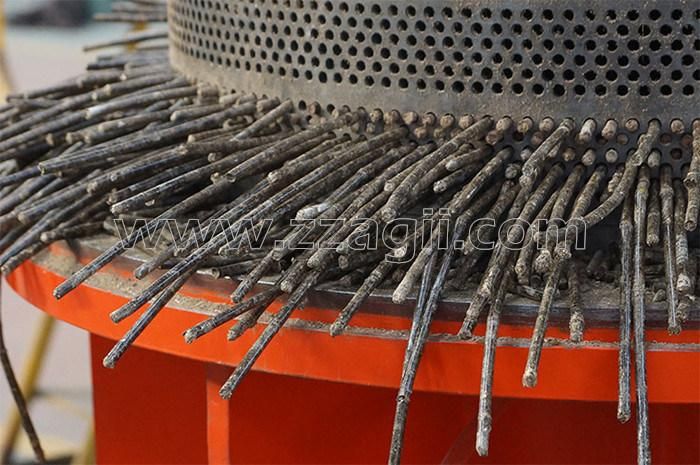

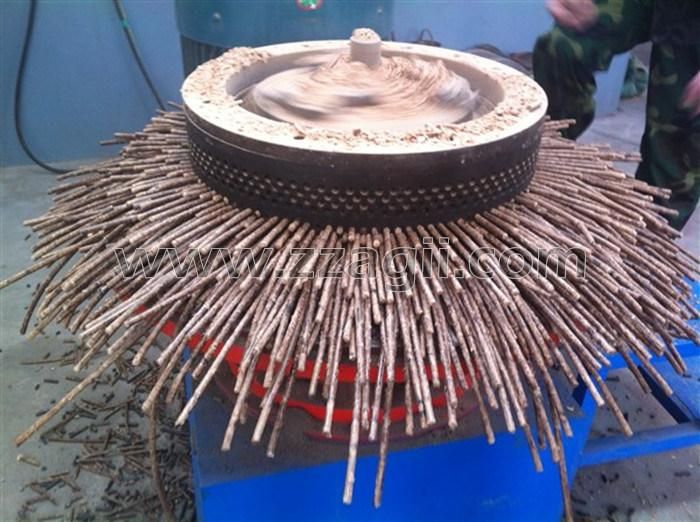

(4). Working parts:
Ring-die and rollers materials are alloy steel, Heat treatment made by ourselves, Hardness more than 52,In this hardness can assure the pelleting quality and warranty time, Working manner is from inside to outside press, Centrifugal force and extrusion pressure together, Produced more capacity, At the same time assure hardness and density, The special design is 4 rollers working, Increase press rate then increase capacity, Ring-die is "vertical double-deck" structure, It can use one mould with same hole size for working life increased, Moreover it can use one mould with different hole size for saving the money for another size mould.



5. Raw Materials for Wood Pellet Granulator:

Widely used in pelletizing wood, sawdust, crop straw (rice straw, wheat straw, corn stalks, sorghum stalk, soybean stalk, cotton stalk, grape straw, peanut seedlings, and sunflower stalk), rice husk, grass, shrubs, branches, wood cut-off head, bamboo debris, bagasse, etc..



6. FAQ:

(1). How many days will be ready for delivery after payment?
----Normally, It will cost around 7-15 Working Days.

(2). What kind of Types we can choose for Making Fuel Pellets?
----We have Flat Die pellet making machine with capacity range from 100Kg/Hour to 500Kg/Hour.
and Ring Die Pellet Making Machine with Capacity Range from 800Kg/Hour to 4000Kg/Hour.

(3). Final Pellets Size?
----Normally, Diameter of Biofuel Pellets are 6mm, 8mm, 10mm, etc.
Length of Biofuel Pellets Adjustable according to your demand.

(4). Package Safe?
-----Yes, It is safe. We are using Plastic firstly before wooden package.

(5). Can you offer Whole solutions of wood making machinery?
----Yes, We have a whole series machinery related to wood machinery, from wood splitter, wood chipper, wood crusher, drying machine, wood pellet making machine, cooling machine, and packing machine, etc.
