• Working Area：1200X2400mm
• Max. Feeding Height of Z Axis：200mm
• Table Type：Aluminum T-Slot Table with PVC
• Spindle：1.5kw Water Cooling Spindle
• Collet：Er16
• Guide Rail：Round Guide Rail
• Transmission：X, Y, Z Axis by Tbi Ball Screw
• Motor and Driver：Stepper
• Control System：Nc Studio,Mach3 with USB
• Inverter：Fuling
• Transport Package：Plywood Case with Water-Proof Material
• Specification：3150x1900x1650mm
• Trademark：LINTCNC
• Origin：China
• HS Code：8465990000
• Production Capacity：300 Pieces,Year

Basic Info.

Working Area 1200X2400mm Max. Feeding Height of Z Axis 200mm Table Type Aluminum T-Slot Table with PVC Spindle 1.5kw Water Cooling Spindle Collet Er16 Guide Rail Round Guide Rail Transmission X, Y, Z Axis by Tbi Ball Screw Motor and Driver Stepper Control System Nc Studio/Mach3 with USB Inverter Fuling Transport Package Plywood Case with Water-Proof Material Specification 3150x1900x1650mm Trademark LINTCNC Origin China HS Code 8465990000 Production Capacity 300 Pieces/Year

Product Description

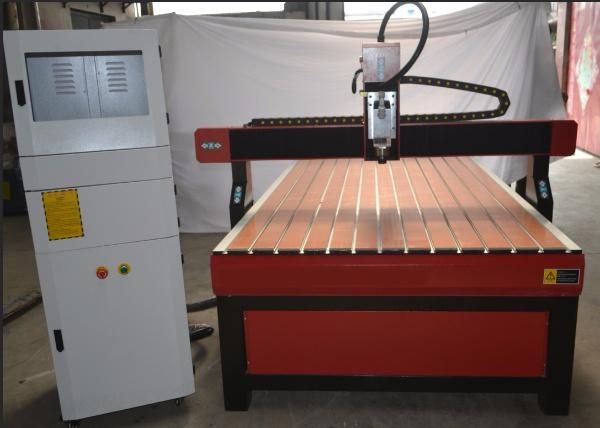

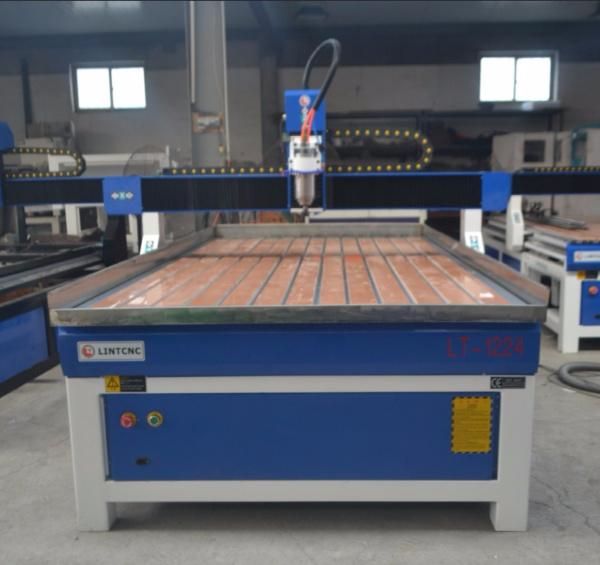

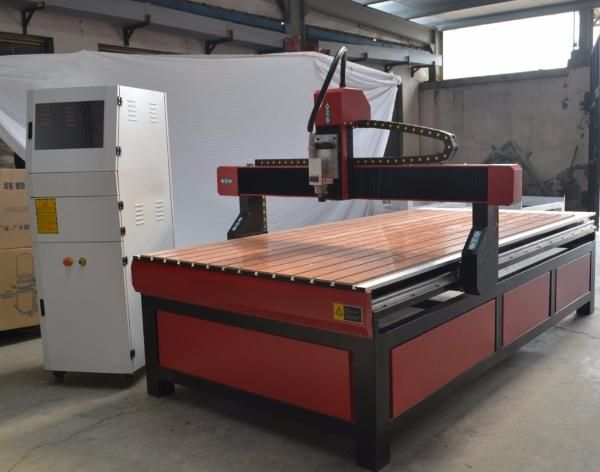

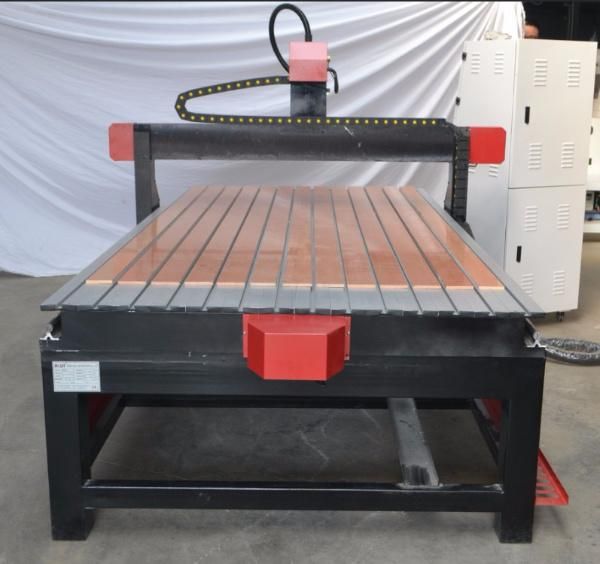

1224 wood router cnc cutting machine 4 axis cnc router aluminum cutting machine

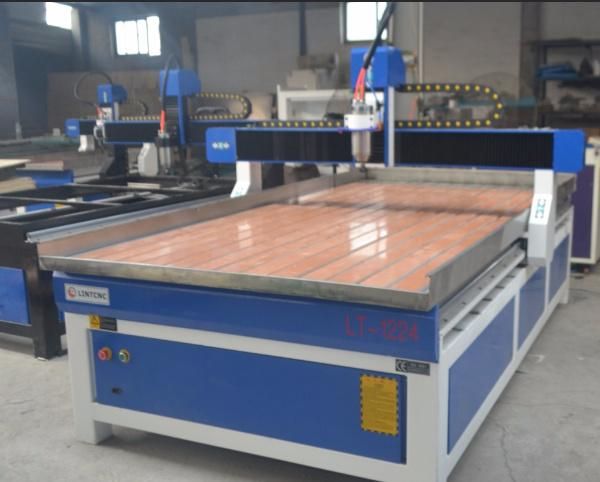

Standard LT-1224 Machine details:

1). Working area: 1200*2400*200mm Aluminum T-slot table with PVC;

2). Machine structure Cast-iron structure;

3). Guide rail: Round guide rail;

4). Driving method: Taiwan TBI Ball screw for X,Y,Z axis;

5). Spindle: 1.5KW water cooling spindle(ER16)

6). Motors and drivers: 86BYG-450B stepper motors and MA860H Leadshine Driver;

7). Control system: Mach 3 control system with USB

8). Software: Artcam;

9). Tool box;

10). Tool sensor;

Packing details: one plywood case with water-proof materials; 1600mm*1300mm*1730 mm; 400KGS ;

Optional:

1). Water tank(work for metal and stone), it can cooling tools, extand the tools lifetime

2). Rotary axis(engraver round wood): 80mm, 100mm and 150mm diameter.

3). Mach3 or DSP control system

4). Hiwin square guide rail

Any other optional items, please let me know.


Parameter

Model No.	LT-1224 Wood CNC Router
Table Size	1200mm*2400mm
Max. feeding height of Z axis	200mm
Table Structure	Aluminum table with T-slot
Machine body	Cast-iron
X Y Z axis Transmission	TBI Ball Screw
X Y Z Guide rail	Round Guide Rail
Spindle Power	1.5kw water cooling spindle
Max.Spindle Speed	24000 rpm/min
Max. Traveling Speed	7000mm/min
Max. Working Speed	7000mm/min
Processing Accuracy	±0.025mm
Reposition Accuracy	≤0.025mm
Driving System	Leadshine drivers
Command Language	HPGL, G Code
Control System	NCSTUDIO/MACH3/DSP
Working Voltage	AC110/220V, 50/60HZ
Net Weight/Gross Weight	400KGS
Package Dimension	3150x1900x1650mm

Our company

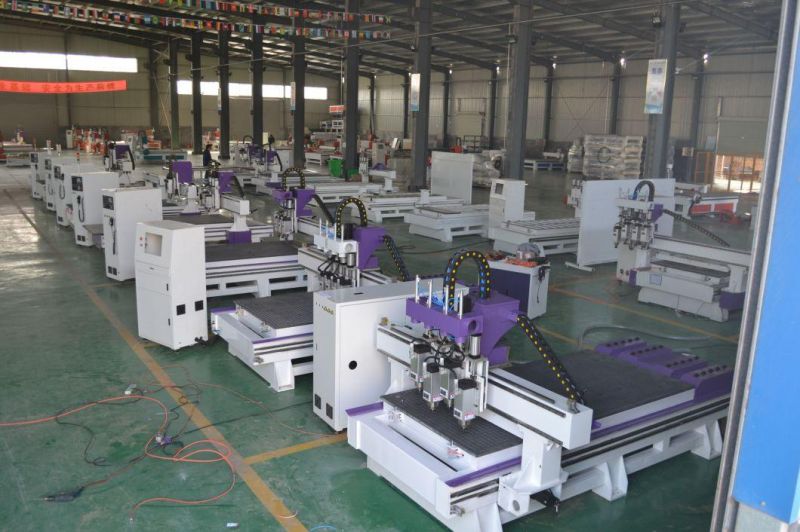

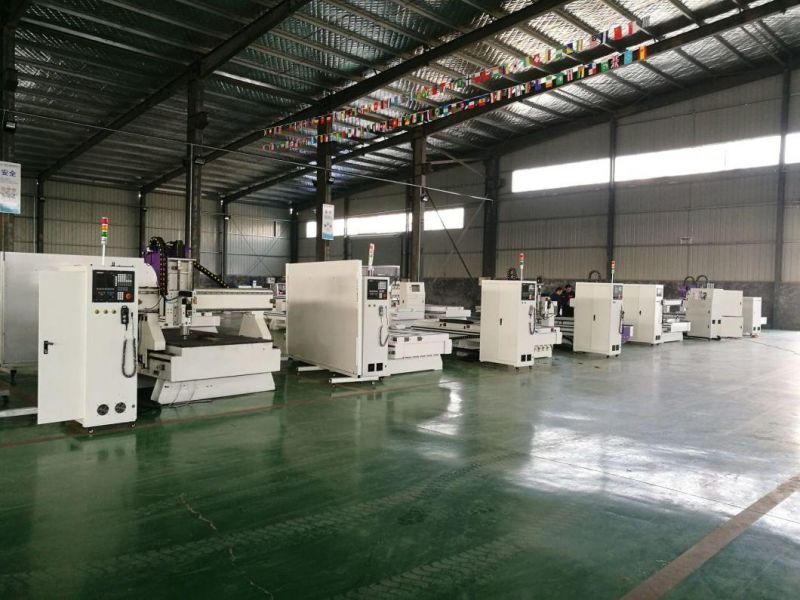

Shandong Lintianzhiyuan CNC Equipment Co., Ltd. is famous in CNC and laser equipment, located in Jinan, Shandong. Our company integrates the R&D, production, sale and maintenance services. We depend on high-tech and high-quality products to build the world brand.Our main products: large-scale (automatic tool change) CNC woodworking engraving machine, CNC advertising engraving machine, CNC marble engraving machine, CNC plasma cutting machine, CNC glass engraving machine, CNC jade engraving machine, CNC metal mold machine, laser cutting machine, laser cutting bed, laser seal engraving machine and computer cutting plotter product.

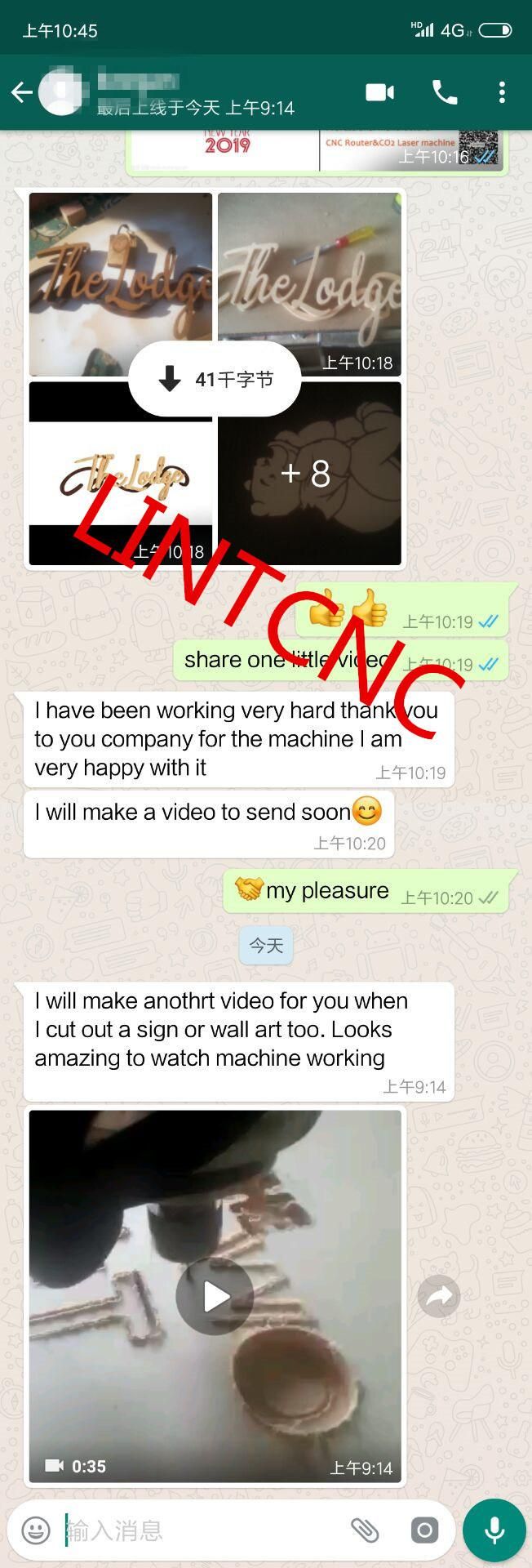

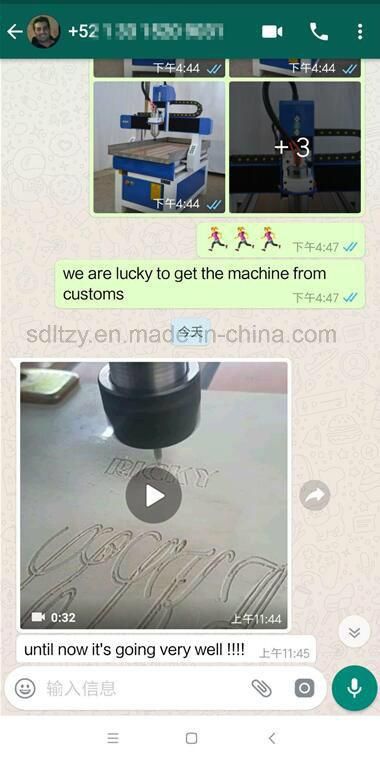

Good Feedback



FAQ
1) This is the first time I use this kind of machine, is it easy operate?

There is English manual or guide video that show how to use machine.
If there is still have any question, we can talk from phone

2)Can you recommend a CNC ROUTER MACHINE to me,thanks?

Yes, In order to give you a suitable router machine, pls tell me the max working area, materials
for processing and the thickness for materials processing engraving or cutting.
Then perfect suitable cnc router will be recommended

3) If machine have any problem after I ordered it, how could I do?

 Free parts send to you in machine warranty period if machine have any problem.
 Free after-sales service life for machine, please feel free contact us if your machine have
any problem.
we will give you 24hours service from phone and Skype.
