• Model NO.：800
• Capacity：40-500kg Per Hour
• Speed：2900rpm
• Motor：55kw
• Screen Motor：3kw
• Transport Package：Wooden Cases Packing and Container
• Specification：model 500
• Trademark：YUFCHINA
• Origin：Henan, China
• Production Capacity：20 Set,Sets Per Month

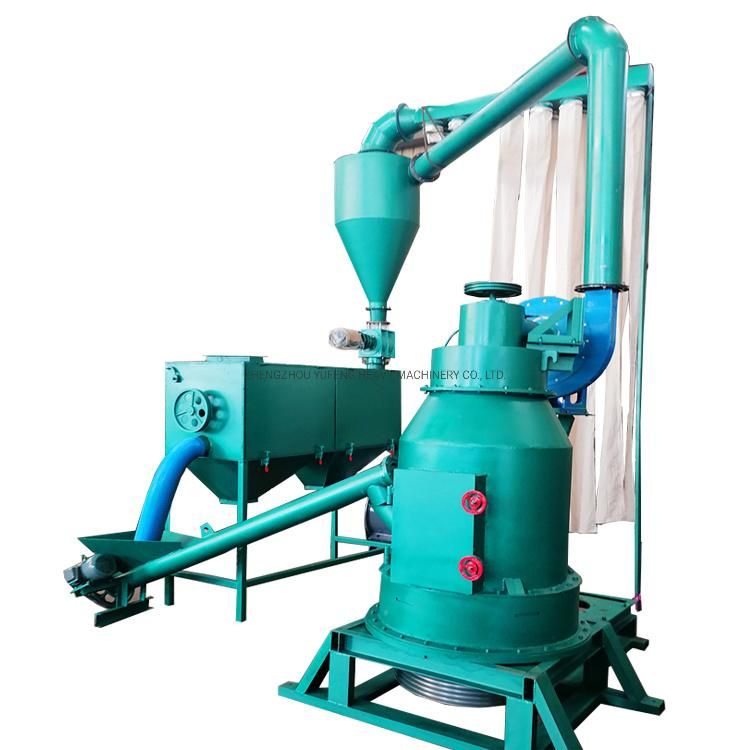

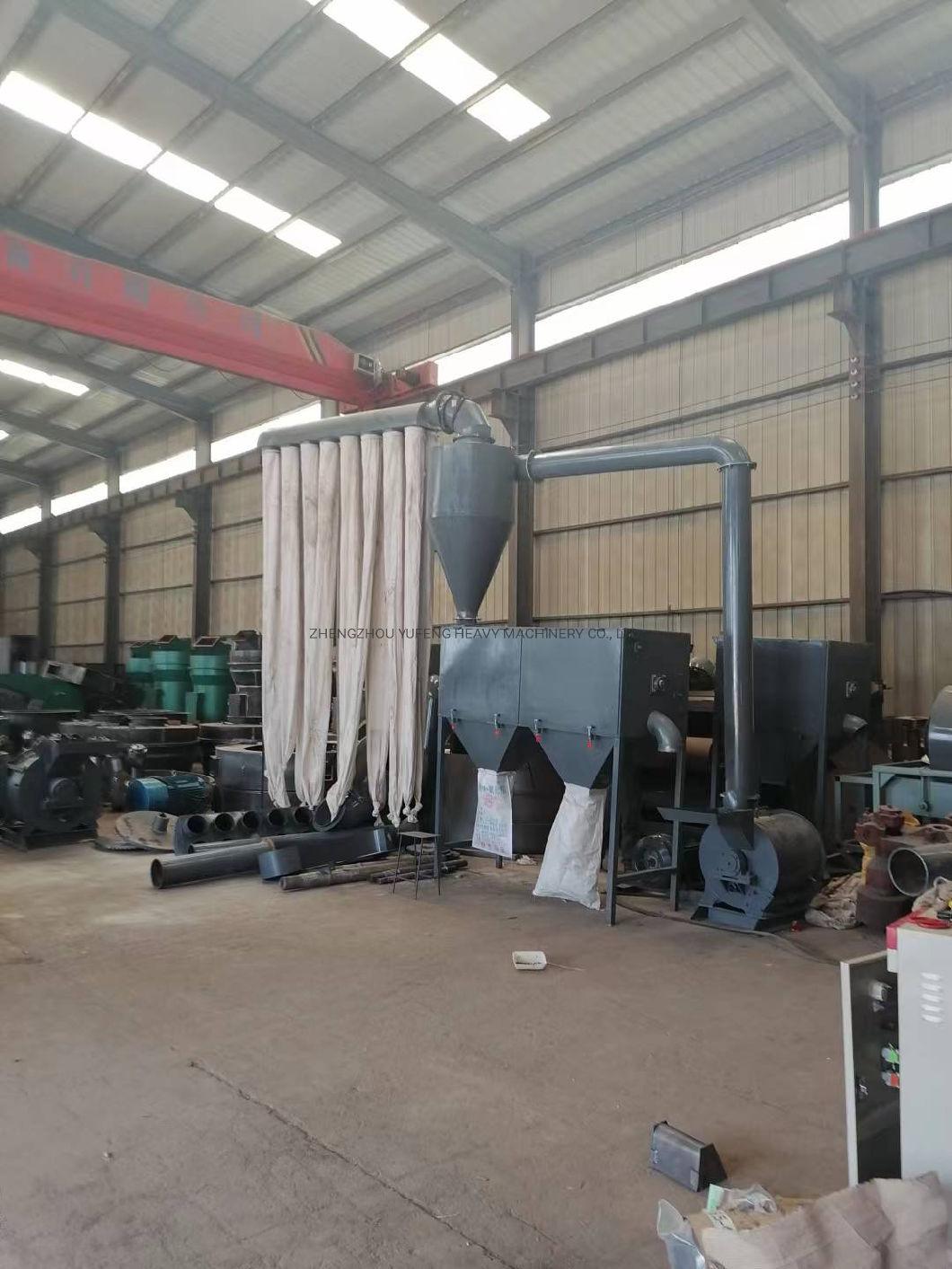

This commercial wood powder making machine is also called the horizontal wood powder machine. It is mainly used for further crushing wood chips and sawdust to make wood flour particles with a fineness of 40-300 mesh. And the wood flour can be used for making various incense and cardboard.


Short Description Of Wood Flour Making Machine


This commercial wood powder making machine is also called the horizontal wood powder machine. It is mainly used for further crushing wood chips and sawdust to make wood flour particles with a fineness of 40-300 mesh. And the wood flour can be used for making various incense and cardboard.






Applications Of The Horizontal Wood Powder Machine


Bamboo, husks, Chinese herbal medicines, bark, leaves, wheat bran, taro, sesame, rice husk, corn cob, orange stalk, starch, food, shrimp skin, fish meal, seaweed, dehydrated vegetables, hawthorn, dried ginger, Dried garlic flakes, seasoning, jujube, paper, circuit board, plastic, chemical raw materials, mica, graphite, perlite, distiller's grains, furfural, charcoal, activated carbon, cellulose, potato residue, tea, soybean meal, cotton, plant root, stem, leaves, dried flowers and fruits, various dried edible fungi, etc. can be crushed by this wood flour milling machine.

This wood powder making machine is very versatile, suitable for ultra-fine crushing of conventional non-mineral materials, non-flammable and explosive materials with Mohs hardness below 6 grade. The pulverizer is commonly used in the chemical industry, building materials, medicine, health care, breeding, food, mosquito coils, and other industries.



Main Features Of The Wood Flour Mill Grinder

1. The fineness of the products processed by this horizontal wood flour machine can be adjusted arbitrarily between 40-300 mesh. And its output and fineness vary according to the proportion of materials to be processed. The main motor of the wood flour mill can be large or small, depending on the fineness and output of the material.
2. This wood powder making machine is equipped with an air volume regulator, which can adjust the air volume of the fan. When the air volume is large, the fineness of the wood powder is low, and when the air volume is small, the fineness of the wood powder is high. The machine can be continuously produced by adjusting the machine to the desired fineness.




Wood flour machine technical data

 Model5006008001000Moisture content of raw material≤10≤10≤10≤10Fineness after process (mesh)20-30020-30020-30020-300Hourly capacity (kg)20-30050-400100-600200-1000Speed (rpm)2900290029002900Motor power (kw)22305590Screen motor power (kw)2.22.235.5
