630mm Plywood Solid Wood Precise Calibrating Wide Belt Sander Sanding Machine

Qingdao Zhongding Machinery Co., Ltd.
  • Type：Belt Wood Sander
  • Automatic Grade：Automatic
  • Variable Speed：Variable Speed
  • Certification：CE, ISO
  • Customized：Customized
  • Condition：New

Base Info

  • Model NO.：R-RP630
  • Color：Iron Grey
  • Transport Package：Plywood Case
  • Specification：1700*1100*2050mm
  • Trademark：ZD
  • Origin：China
  • HS Code：84659300
  • Production Capacity：2 Sets,Week

Description

ModelZDR-RP630ZDR-RP1000ZDR-RP1300Max. working width630mm1000mm1300mmMaterial thickness2.5-120mm2.5-120mm (option 2.5-160mm)2.5-120mm (option 2.5-160mm)Min. working length350mm350mm350mmFeeding speed6-30m/min6-30m/min6-30m/min1# sanding belt speed18m/min18m/min18m/min2# sanding belt speed14m/min12m/min12m/minSize of sanding belt650*1900mm1020*2020mm1320*2020mmMain motor power11kw, 7.5kw15kw, 11kw37kw, 22kwTotal power20.74kw28.94kw56.74kwWorking air pressure0.5Mpa0.55Mpa0.55MpaVolume of dust collecting5000m³/h5000m³/h5000m³/hSpeed of dust collecting25-30m/s25-30m/s25-30m/sOverall dimension1700*1100*2050mm1700*1400*2050mm2750*2200*2050mmWeight1300kg2000kg3200kg

Detailed pictures:

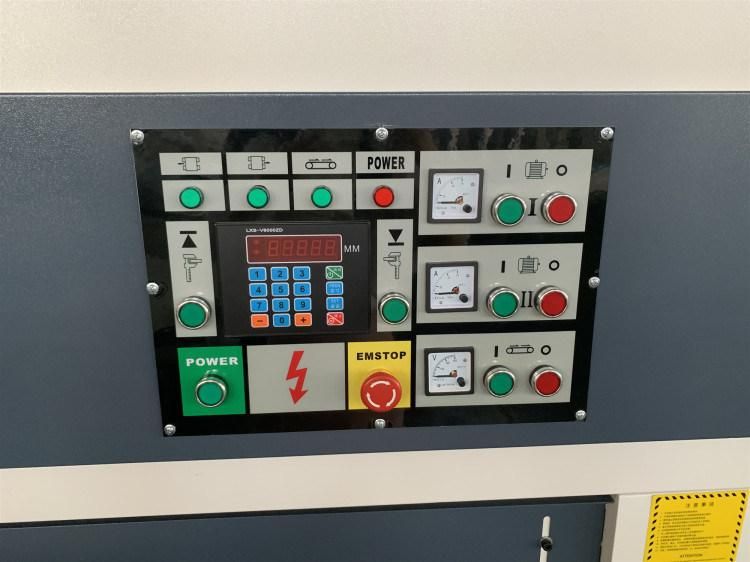

Control panel
630mm Plywood Solid Wood Precise Calibrating Wide Belt Sander Sanding Machine

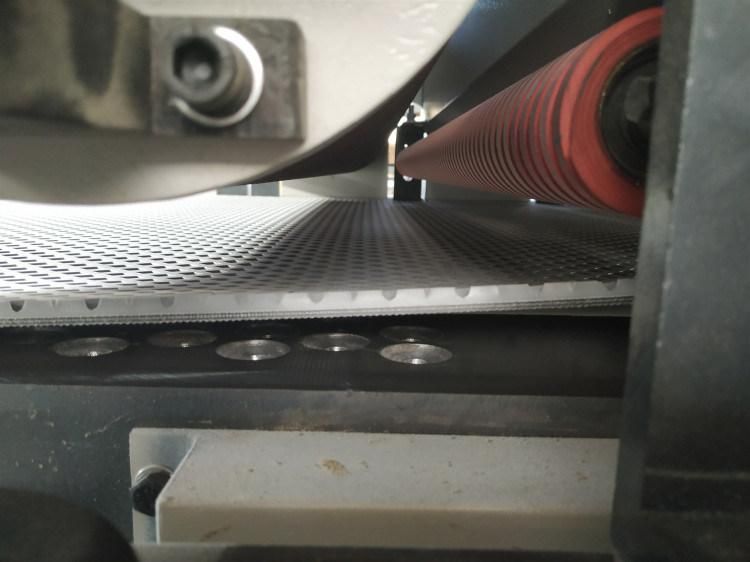

Working table
630mm Plywood Solid Wood Precise Calibrating Wide Belt Sander Sanding Machine

Vacuum table optional
630mm Plywood Solid Wood Precise Calibrating Wide Belt Sander Sanding Machine

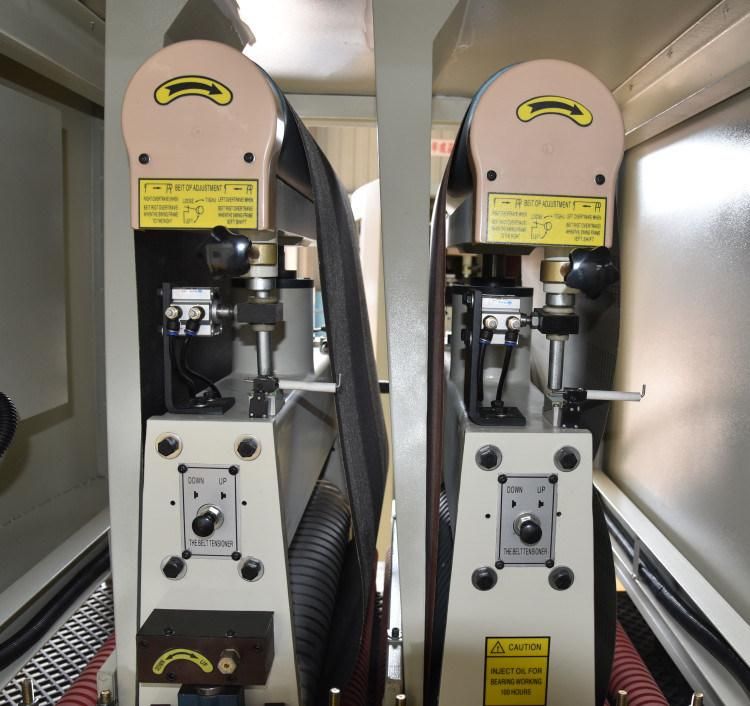

Sanding belt
630mm Plywood Solid Wood Precise Calibrating Wide Belt Sander Sanding Machine

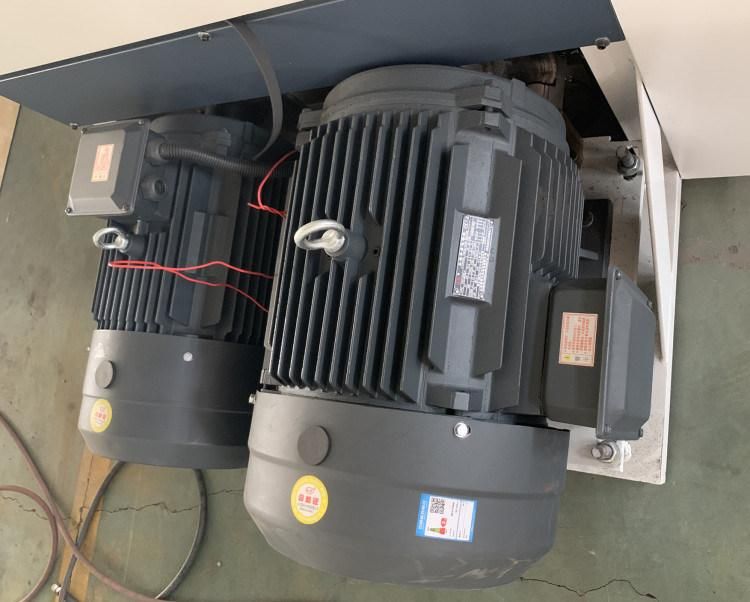

Main Motors
630mm Plywood Solid Wood Precise Calibrating Wide Belt Sander Sanding Machine

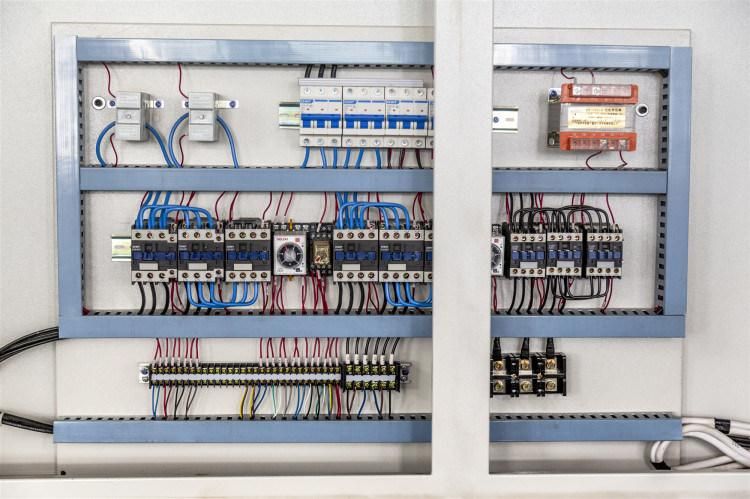

Electric box
630mm Plywood Solid Wood Precise Calibrating Wide Belt Sander Sanding Machine

630mm Plywood Solid Wood Precise Calibrating Wide Belt Sander Sanding Machine


Packaging & shipping:

630mm Plywood Solid Wood Precise Calibrating Wide Belt Sander Sanding Machine
 Company information:

630mm Plywood Solid Wood Precise Calibrating Wide Belt Sander Sanding Machine
630mm Plywood Solid Wood Precise Calibrating Wide Belt Sander Sanding Machine
630mm Plywood Solid Wood Precise Calibrating Wide Belt Sander Sanding Machine

For more details, pls feel free to contact us.
