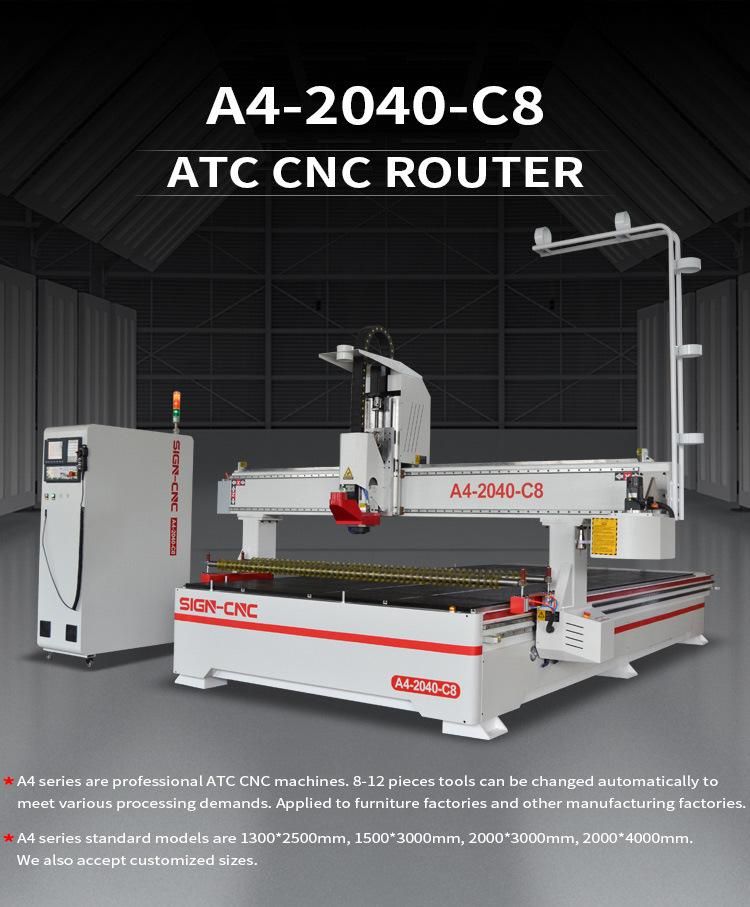

1325/1530/2030/2040/2060 Atc 3D Wood Cutting and Engraving Machine Woodworking CNC Router
Jinan Sign CNC Equipment Co., Ltd.- Warranty:Two Year
- Condition:New
Base Info
- Model NO.:A4-2040-C8
- Certification:ISO, CE, FDA
- CNC or Not:CNC
- Voltage:AC 220V,380V,50 60Hz
- Working Area:2000*4000mm
- Z Feed Height:300mm
- Z Structure:Tbi Ball Screw and Hiwin Square Rails
- Spindle Power:9kw Atc Air Cooling
- X,Y Structure:25mm Hivin Rail Linear Bearings and Ball Scres
- Control System:Taiwan Syntec
- Software:Type3,Ucancame V9
- Spindle Speed:0-24000rpm
- Key Words:Atc CNC Router
- Main Wors:CNC Machine
- Product Name:Wood CNC Engraving Machine
- Transport Package:Standard Wooden Package with Water Proof Materials
- Specification:A4-2040-C8
- Trademark:SIGN-CNC
- Origin:China
- HS Code:84659900
- Production Capacity:200sets,Month
- Package size per unit product:200.00cm * 200.00cm * 200.00cm
- Gross weight per unit product:69.000kg
Description
Basic Info.
Model NO. A4-2040-C8 Certification ISO, CE, FDA CNC or Not CNC Voltage AC 220V/380V/50 60Hz Working Area 2000*4000mm Z Feed Height 300mm Z Structure Tbi Ball Screw and Hiwin Square Rails Spindle Power 9kw Atc Air Cooling X,Y Structure 25mm Hivin Rail Linear Bearings and Ball Scres Control System Taiwan Syntec Software Type3/Ucancame V9 Spindle Speed 0-24000rpm Key Words Atc CNC Router Main Wors CNC Machine Product Name Wood CNC Engraving Machine Transport Package Standard Wooden Package with Water Proof Materials Specification A4-2040-C8 Trademark SIGN-CNC Origin China HS Code 84659900 Production Capacity 200sets/MonthPackaging & Delivery
Package size per unit product 200.00cm * 200.00cm * 200.00cm Gross weight per unit product 69.000kgProduct Description
1325/1530/2030/2040/2060 ATC 3D Wood cutting and engraving machine Woodworking CNC Router1.Application Industries:
Wood processing: processing of various furniture such as door, window, cabinet, craft wood door
screen and so on.
Advertisement: engraving and cutting various labels and number plate.
Art craft: engraving characters of any languages and graphics on souvenirs.
Applicable materials:
Wood, aluminium board, plastic, density board, wave board, PVC, acrylic,crystal, light marble and
other nonmetal materials ect...
Prccessing effect:
It can manufacture the following effects: relief, shadow, enchasement and so on

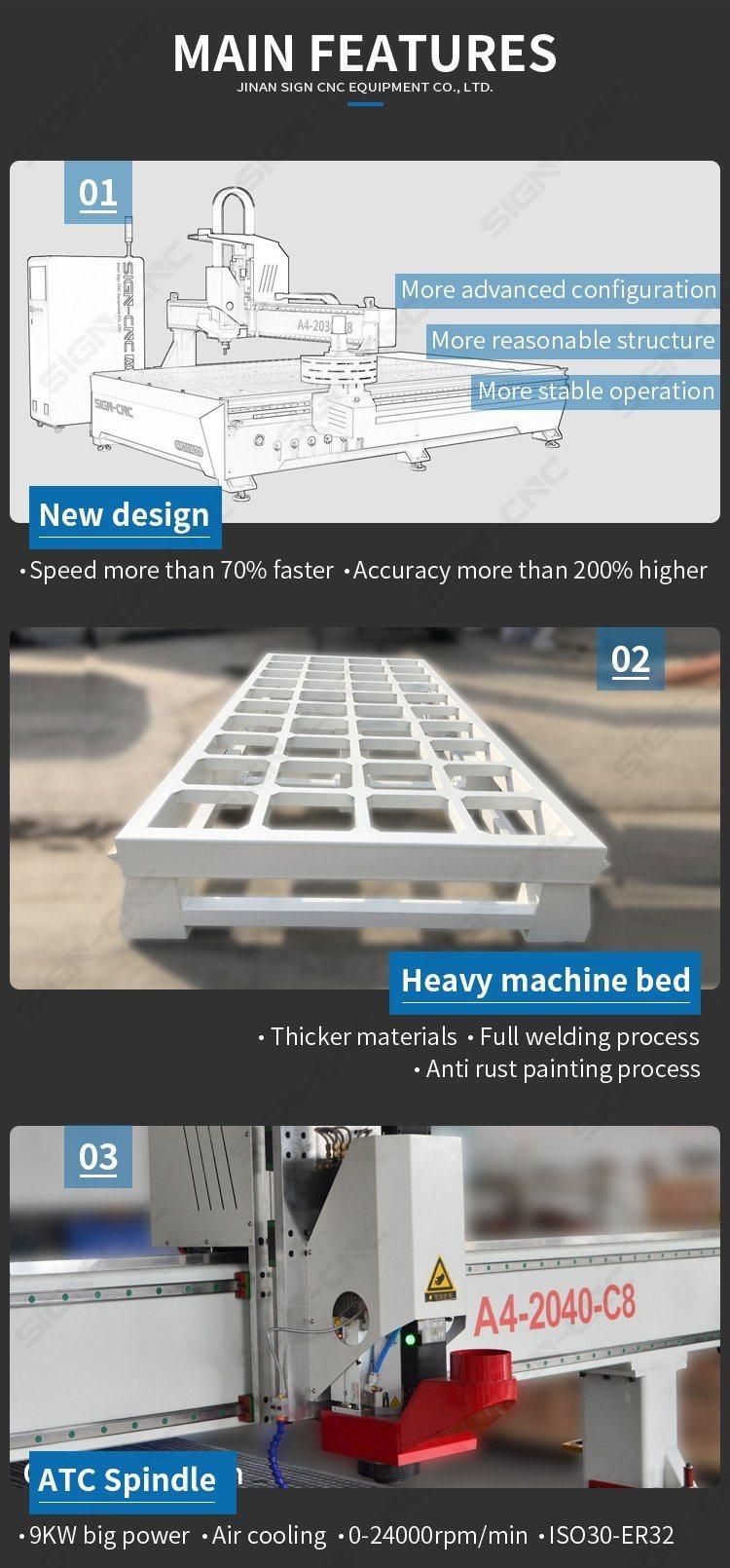

2.CNC Router Features and Main Parts:
Model | A4-2040-C8 |
X, Y Working size | 2000*4000*300mm |
Table Surface | Vacuum working table + 7.5KW pump |
X, Y Structure | Rack and Pinion Drive, Taiwan Linear Square Guide Rail |
Z Structure | Taiwan Linear Square Guide Rail and Ball Screw |
Max. Power Consumption | (Without spindle) 2.0Kw |
Max. Rapid Travel Rate | 33000mm/min |
Max. Working Speed | 25000mm/min |
Spindle Power | 9KW HQD/ HSD air cooling spindle |
Spindle Speed | 0-24000RPM |
Drive Motors | Syntec 1000W servo motor |
Working Voltage: | AC380V/60Hz |
Command Language | G code |
Control System | SYNTEC 60W-E |
X,Y,Z repositioning Accuracy | ±0.01mm |
X,Y Resolution | <0.01mm |
Software | Artcam |
Running Temperature | 0 degree - 45 degree |
Relative Humidity | 30% - 75% |

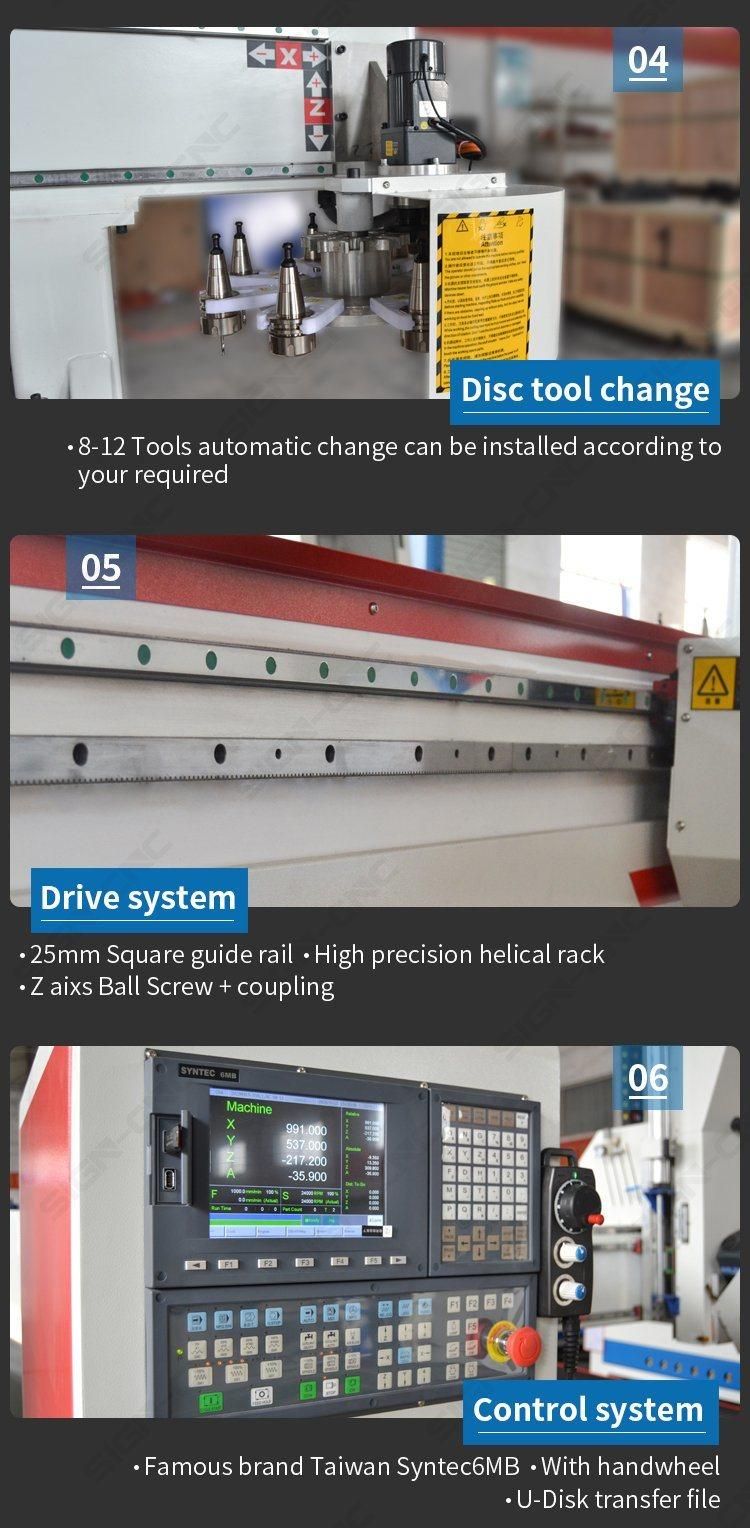

3.Machine parts

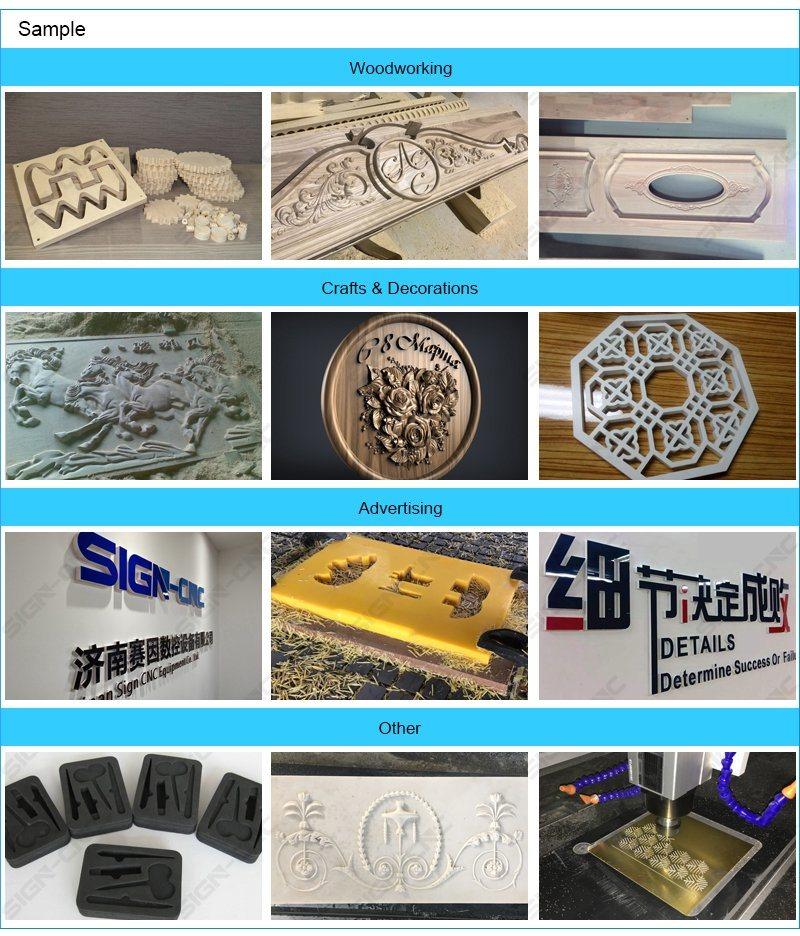

4. Machine samples
5. Machine Package :
All the machine parts have been packaging, and whole of the machine with waterproofing membrane. And then have been package use standard wood case (The fumigation-free ), on the case top and bottom have steel tube for support. Let it more strong to avoid damage during the transport and for long distance transportation
6. Our Service
1.Two year warranty time, we can repair and replace parts for free in two year.
2.Technical support in 24 hours online, such as whatsapp,Skype, E-mail,facebook,ect.
3.Life time free maintenance service.
4.Free training course at our factory with professional engineers.
5.We provide the consumable parts at agent price when you need replacement
FAQ :
Q 1. I have no idea which machine can meet my need,what should I do?
A . Please tell the what's material you want to working on ?
What's the MAX size of these material ?( length ? Width ? Thickness ?)
Then I will recommend the most suitable machine for you
Q 2. I do not know how to handling CNC Router,what should I do?
A . We will supply you a training video and English handbook to teach you how to
operate.Or we will welcome you to arrive China to field-based learning .
Q 3. If my machine has some problems in the warranty period,what should I do?
A . If the machine part broken within warrantry time,we will send new part to you for free.
Pls Kindly Talk with us for more machine details and prices and other machine models
Atc 3D Woodworking CNC Router 1325/1530/2030/2040/2060 for Wood Carving Engraving and Cutting Machine
