• Model NO.：ERM 1325
• Motor：450b Stepper
• Rail：Taiwan PMI,Hiwin,Shac
• Software：Artcam,Jdpaint
• Table：T-Slot Table
• Spindle Power：3.5,4.5,6kw
• Spindle Brand：Hqd,Hsd
• Payment Item：30% in Advance, 70% Before Shipment
• Package：Water-Proof Film and Plywood
• Transport Package：Plywood
• Specification：1300*2500mm
• Trademark：Eastrise
• Origin：Jinan, China
• HS Code：8465990000
• Production Capacity：5000 Sets,Year

Basic Info.

Model NO. ERM 1325 Motor 450b Stepper Rail Taiwan PMI/Hiwin/Shac Software Artcam/Jdpaint Table T-Slot Table Spindle Power 3.5/4.5/6kw Spindle Brand Hqd/Hsd Payment Item 30% in Advance, 70% Before Shipment Package Water-Proof Film and Plywood Transport Package Plywood Specification 1300*2500mm Trademark Eastrise Origin Jinan, China HS Code 8465990000 Production Capacity 5000 Sets/Year

Product Description

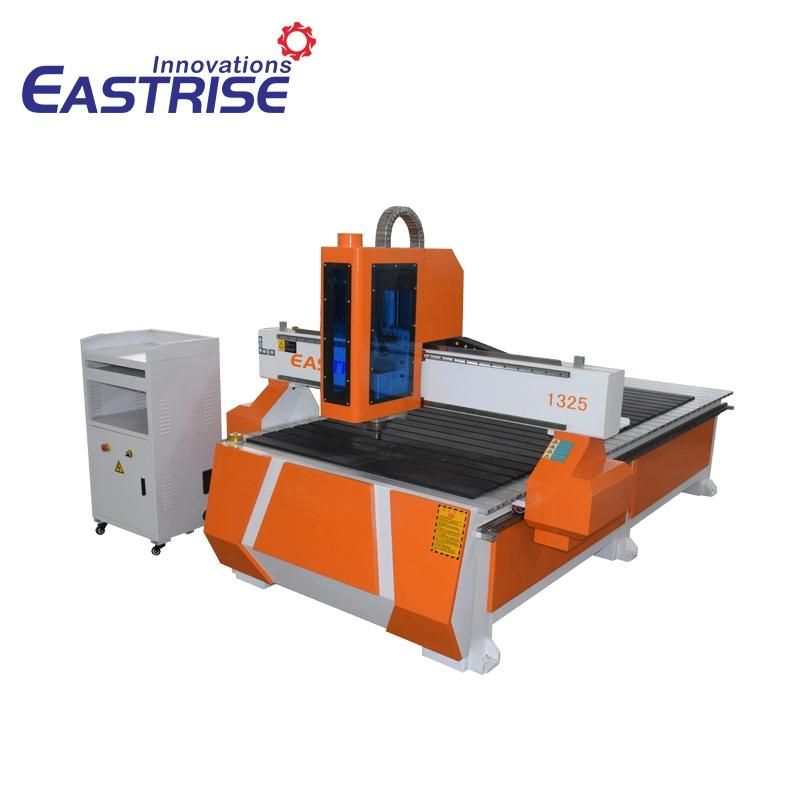

Woodworking 3 Axis 1325 1530  CNC Router Engraving cutting machine  for Wood MDF



Advantage

1.The three axis adopts the Taiwan straight square rail Big power ,anti-dust  water cooling spindle., Small noise,strong and powerful,maintenance free, can achieve  continuous operation.
2.Intelligent processing cross-border protection, Preventing body collision due to processing format reach out working size
3.Intelligent high-speed module high-speed operation, can achieve power recovery, breakpoint continued carving,the next day processing, convenient and easy.
4.Type3/Artcam/Castmate/PRO-e/Ug/CAD/Illustrator softwares compatible:Advanced professional control system,compatible with a variety of software Type3/Artcam/Castmate/PRO e/Ug/CAD/Illustrator

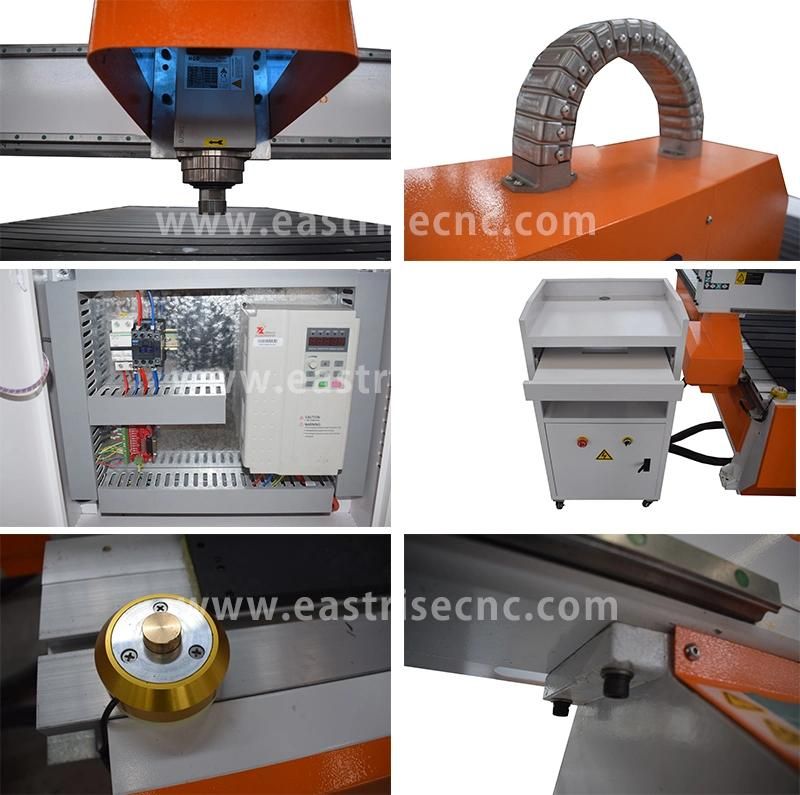

Features

1.Working area:1300*2500*200mm
2.3.5KW/4.5/6KW HQD air cooling spindle
3.Nc-studio/DSP control system
5.Manual oil mist cooling sprayer for working on metal
6.Taiwan linear guide rail
7.Taiwan TBI high precision ball screw
8.T-slot table
9.Stepper motor and leadshine drivers
10.Fuling/Best/Delta inverter
PS :We can customize different size and different configurations for you.

Application

Applicable industry: wood furniture ,wooden crafts processing industry, suitable for large panel
cutting,large relief carving products and large carpentry engraving.
Applicable material: solid wood panel, artificial board,Acrylics , PVC,MDF,Plexiglass, plastic .
etc non-metal panels.

Technical parameters

Model	ERM1325
Working size	1300*2500mm
Max feeding height	200mm(or customized)
Max traveling speed	20m/min
Transmission	High precision Ball screw
Software environment	WindowsXP/7/8/10
Spindle power	3.5KW/4.5/6KW(Optional)
Power without spindle	2KW
Voltage	220V/1P,380V/3P
Recognizing language	G code(nc),mmg,plt,eng,dxf
Spindle speed	6000-18000rpm/min
Control system	NC studio/DSP

Machining

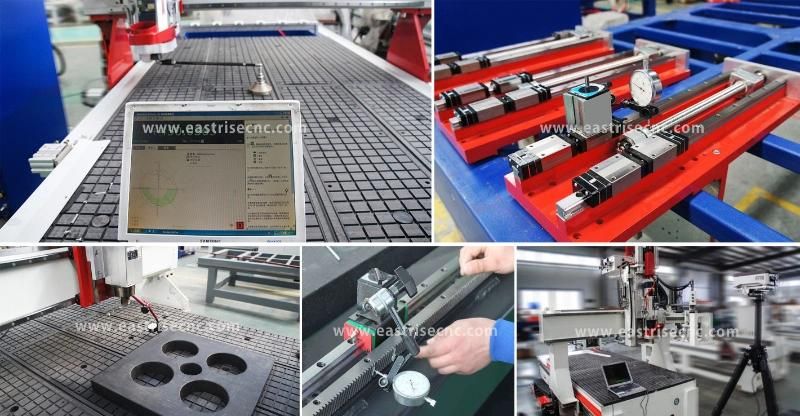

Testing

Certificates

Exhibition

Technical Department

FAQ

1.How long is your machine's warranty?

3 years

2.How about your after-sales service ?

Technical support by phone, WhatApp,Skype,e-mail or QQ around the clock.

3.How can we install the machine?

English version manual and operation video CD disk.

4.How about the payment terms?

30% T/T for deposit, 70%T/T paid before shipping. T/T, West Union, Paypal

5.How about package of shipment?

Inner packing:water-proof film
Outter packing:plywood case
Bottom:strong steel tube
