• Model NO.：woodworking machinery
• Product Name：2130 Atc CNC Router
• Working Area：2100*3000mm
• Spindle：Atc 9kw Hqd Air Cooling Spindle
• Rotate Spindle：180 Degree Rotate
• Control System：Nk280
• Motor：Dorna Servo Motors
• Driver：Dorna Servo Driver
• Tools：1box (10 Pieces)
• Inverter：Fuling
• Transport Package：Wooden Case
• Specification：2130
• Trademark：IGOLDENCNC
• Origin：China
• HS Code：84659900
• Production Capacity：2000 Per Year

Basic Info.

Model NO. woodworking machinery Product Name 2130 Atc CNC Router Working Area 2100*3000mm Spindle Atc 9kw Hqd Air Cooling Spindle Rotate Spindle 180 Degree Rotate Control System Nk280 Motor Dorna Servo Motors Driver Dorna Servo Driver Tools 1box (10 Pieces) Inverter Fuling Transport Package Wooden Case Specification 2130 Trademark IGOLDENCNC Origin China HS Code 84659900 Production Capacity 2000 Per Year

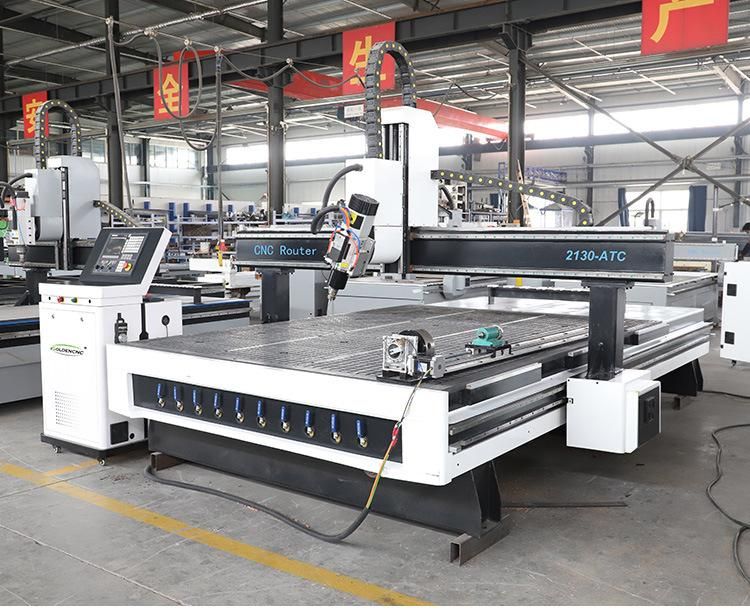

Product Description

4 axis 1325 2130 atc engraving router cnc milling machine automatic wood carving cnc woodworking machinery

Features:
This 4 axis atc wood cnc router engraving machine is a cost-effective intelligent CNC Carving Machinery, which integrates automatic positioning, optimized cutting, punching, slotting and engraving, so as to maximize the use efficiency of labor.
 ATC CNC ROUTER PARAMETERS:

NO.	Model	2130 ATC CNC Router
1	Working area	2100*3000mm
2	Spindle	ATC 9KW HQD air cooling spindle, rotate 180 degree
3	Inverter	Fuling
4	Motor	Dorna servo motors
5	Driver	Dorna servo driver
6	control System	NK280 control system
7	Table	Vacuum & T-slot table with air cooling pump
8	Oil lubrication	Automatic lubrication
9	Limit	Omron limit
10	Transmission	XY axis helical rack Z axis Taiwan ball screw
11	Rail	X,Y,Z axis Taiwan HIWIN 25 Square guide rail
12	Screw	Z axis TBI 3210 ball screw
13	Bed	Thick steel welded big square tube
14	Gangry	Strong frame
15	Pillars	Steel pillar(Suitable for high-end customers)
16	Cabinet	Independent cabinet
17	Voltage	3 phase/380V
18	Color	As requirement
19	Tools	1 box(10 pieces)
20	Rotary axis	Optional

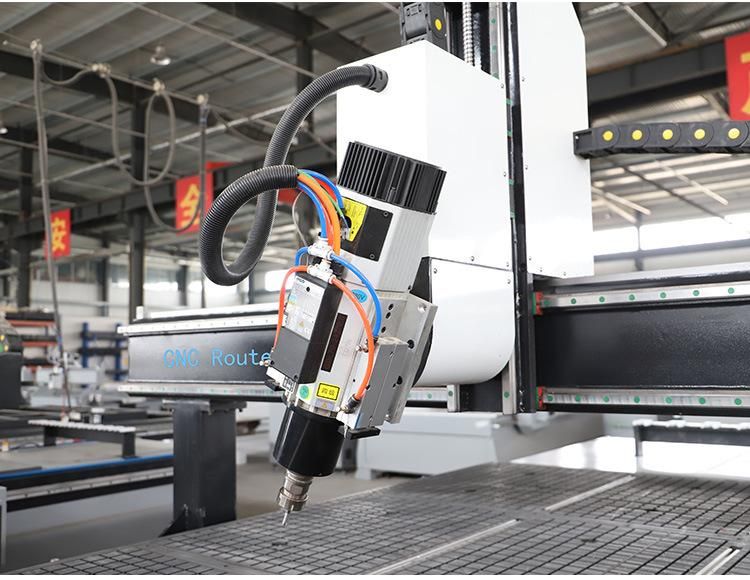

ATC 9KW HQD air cooling spindle, rotate 180 degree.

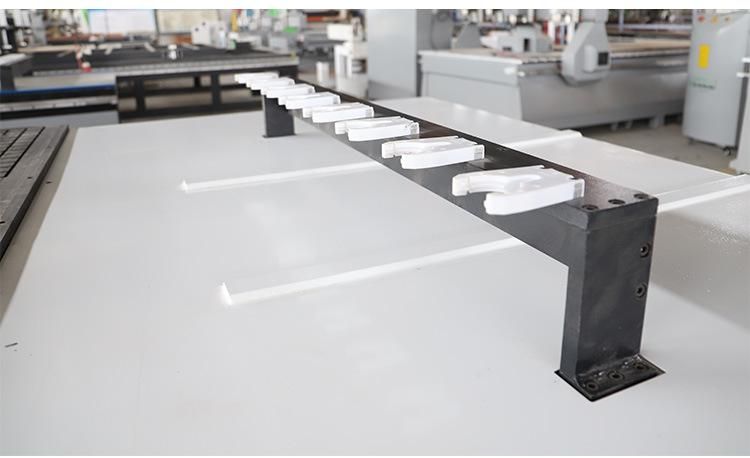

12 automatic tools change

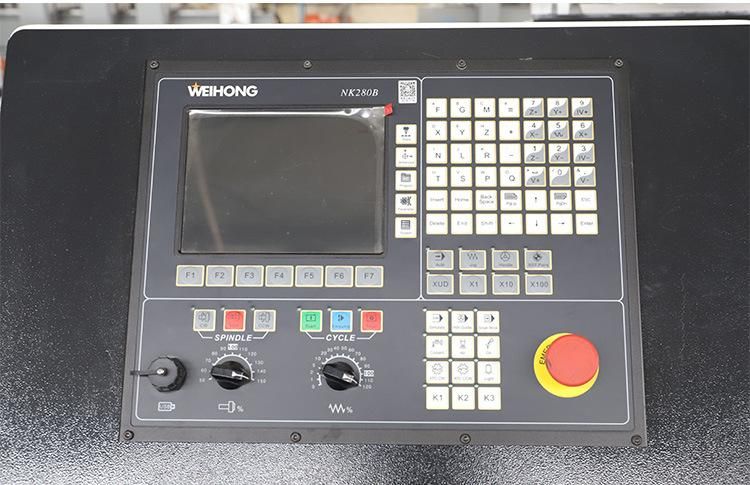

NK280 Control System:

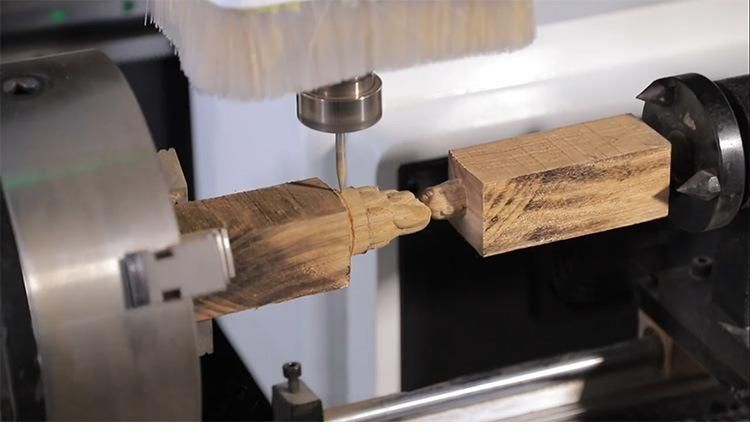

Table rotation axis for 3d engraving (option):

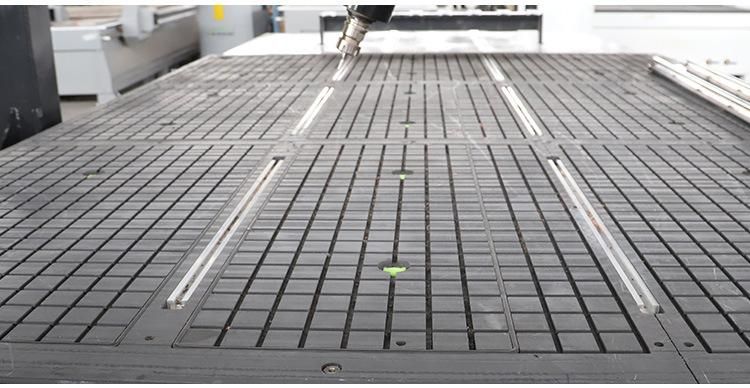

Vacuum&T-slot table with air cooling pump:

Applications of atc cnc machine:

(1) Cabinet, wardrobe, bank office furniture, computer desk, children's furniture, panel furniture, office furniture;
(2) Decoration with hollow lattice, soft bag background wall production;
(3) Panel furniture cutting, slotting and hole arranging.

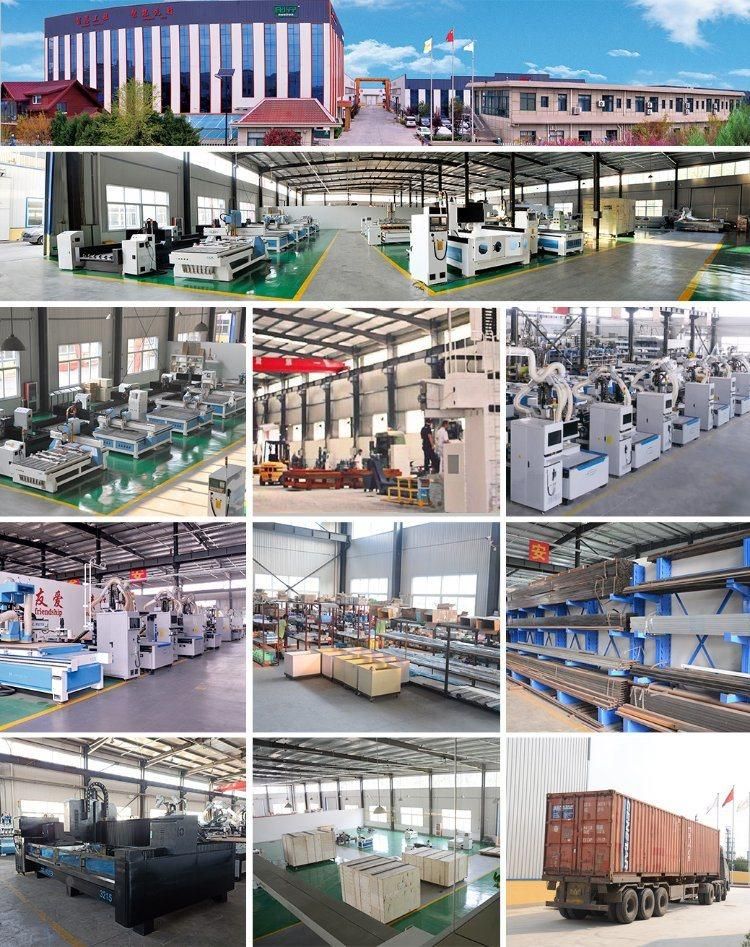

Company information:

iGoldencnc group is one of manufacturing and research and development of the company that focus on CNC engraving machine and cutting machine for many years since 2002. Located in Jinan,shandong province,covers the area of 6000 square meters.

Our products have been certified by various parties, including CE, ISO9001 and FDA. Products can meet different needs of customers. Advanced technology, experienced engineers and first class service are our fundamental guarantee.
