Tony Hot Sale 3-4tons/Hr Wood Log Pellet Production Line Biomass Wood Pellet Line Wood Pellet Plant Sawdust Pellet Making Line Straw Pellet Line
Shandong Tony Environmental Protection Sci-Tech Co., Ltd.- Type：Pellet Line
- Voltage：380V
- Automatic Grade：Automatic
- Controlling Mode：CNC
- Energy Saving：Energy Saving
- Certification：CE, ISO
Base Info
- Model NO.：3-4Tons,hr
- Warranty：1 Year Except Spare Parts
- Customized：Customized
- Condition：New
- Color：Multi Color
- After-sales Service：All Working Life Service
- Capacity：3-4tons,Hr
- Diameter of Pellet：4-12mm
- Ideal Moisture：10-15%
- Structure：Vertical Ring Die
- Matrice (Matrix) Type：Ring Die
- Installation：Manual,Video Chat,Engineer Guide
- Raw Materials：Wood Chips, Sawdust, Timber, Trunks
- Usage：Making Biomass Pellets
- Transmission：Big Gear
- Lubrication：Auotomatic
- Spare Part：Ring Die and Roller Group
- Material of Die and Roller：High Alloy Steel
- Transport Package：Iron Case
- Trademark：TONY
- Origin：China
- HS Code：8479300000
- Production Capacity：10sets,Month
Description

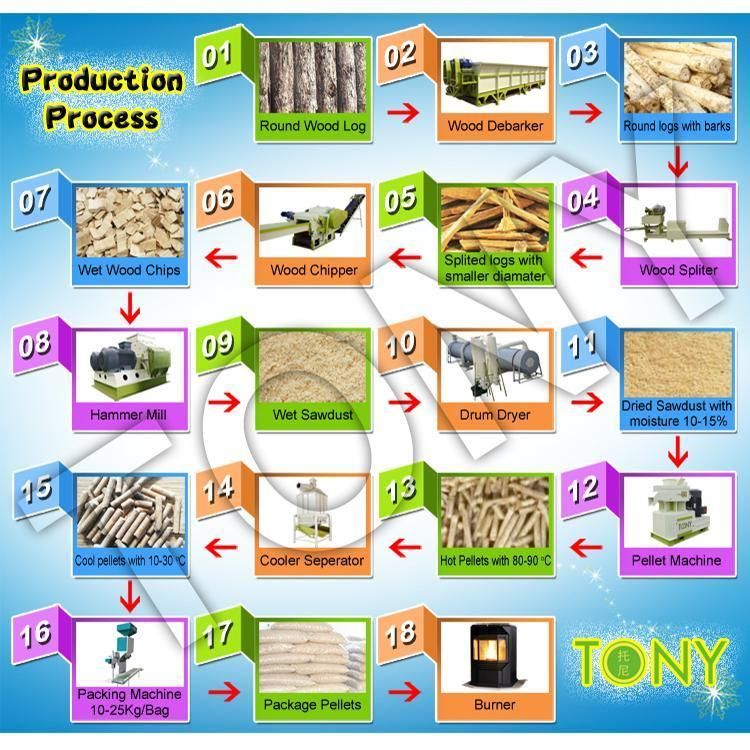

Detailed explanation of wood pellet production line
1.Crushing Process
a. If the raw material is big wood log with bark,we need wood debarker machine and wood splitter machine to make the wood with small size.

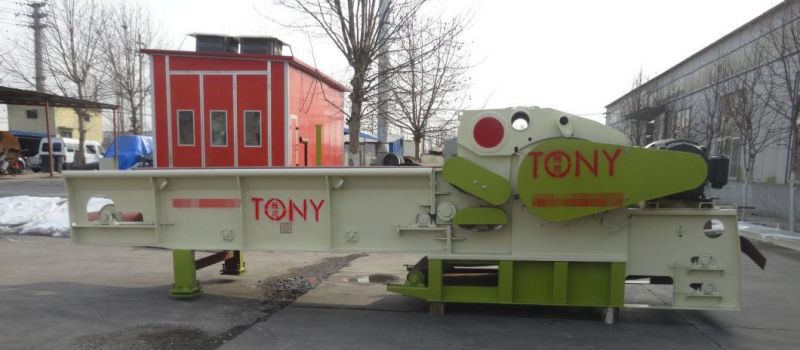

b. If the thickness of raw wood material is >10mm, and >50 * 50mm(L * W), we need use the Wood Chipper to chip them into small pieces.
Main Crushing Machines:
1.Log splitter
2.Sawdust Chipper
3. Drum Chipper,Wood Pallet Crusher
4.Mobile Branches Grinder
5.Chaffer Cutter
6.Palm Fiber Making Machine

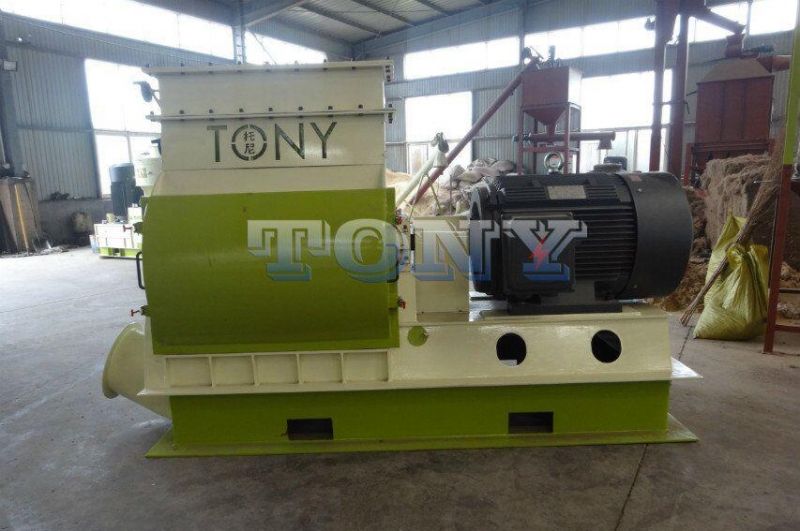

2.Grinding ProcessThe chips or small size raw material are ground by hammer mill to particle size less than 5mm suitable for pelleting.
Main Grinding Machines:
1.High efficiency Hammer mills
2.Multifunctional hammer mills
3.Wood Crusher
4.Straw Hammer Mill
5.Straw Rotary Chopper
3.Drying Process
Rotary Dryer includes Stove and Main Rotary Dryer, which can reduce the moisture from 50% to 10%. Our stove is fueled by coal and biomass fuel, saving electrical energy largely.
(client can build the hot stove by self, and we provide its drawing)
The moisture content of raw materials must be controlled :10%-15%.
Main Drying Machines:
1.Rotary Drum Dryer
2. Air Flow Dryer
4.Pelleting ProcessPellet mill machine is the most important equipment : Press raw material into pellet.
Raw material: hard wood, waste wood and straws, woodchips(palm, mahogany,rubber tree), bamboo shavings, rice husk, peanut shells, wheat straw, corn stalk, cotton stalks, alfalfa grass, bagasse, palm fiber.
Main Pelleting Machines:
1.TYJ series Ring Die pellet mills
2.Skj series Flat Die pellet Milll

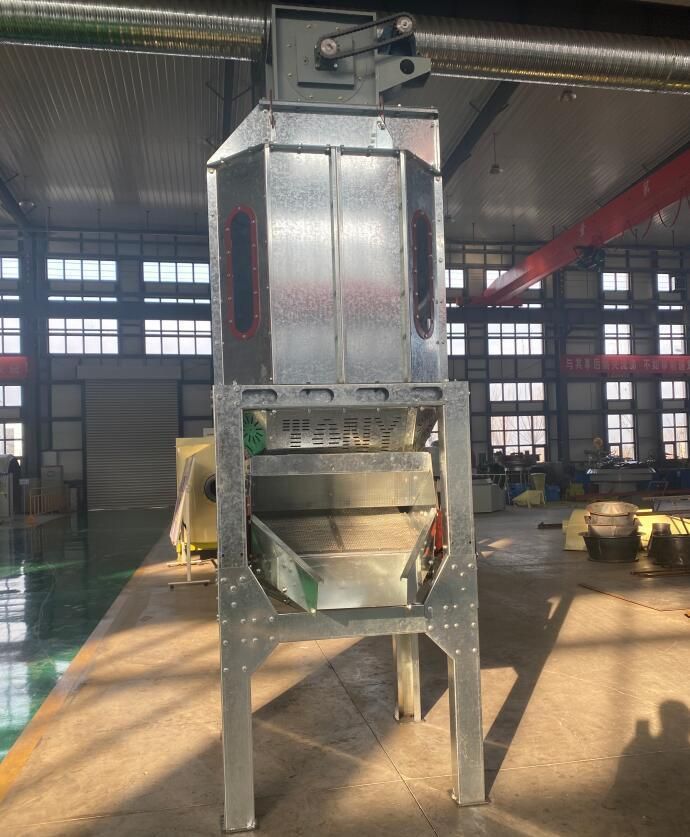

5.Cooling ProcessComplete closed structure, stainless sieve,
low noise and stable operating
Main Cooling Machines:
1.Cooler Separator
2.Simple cooler

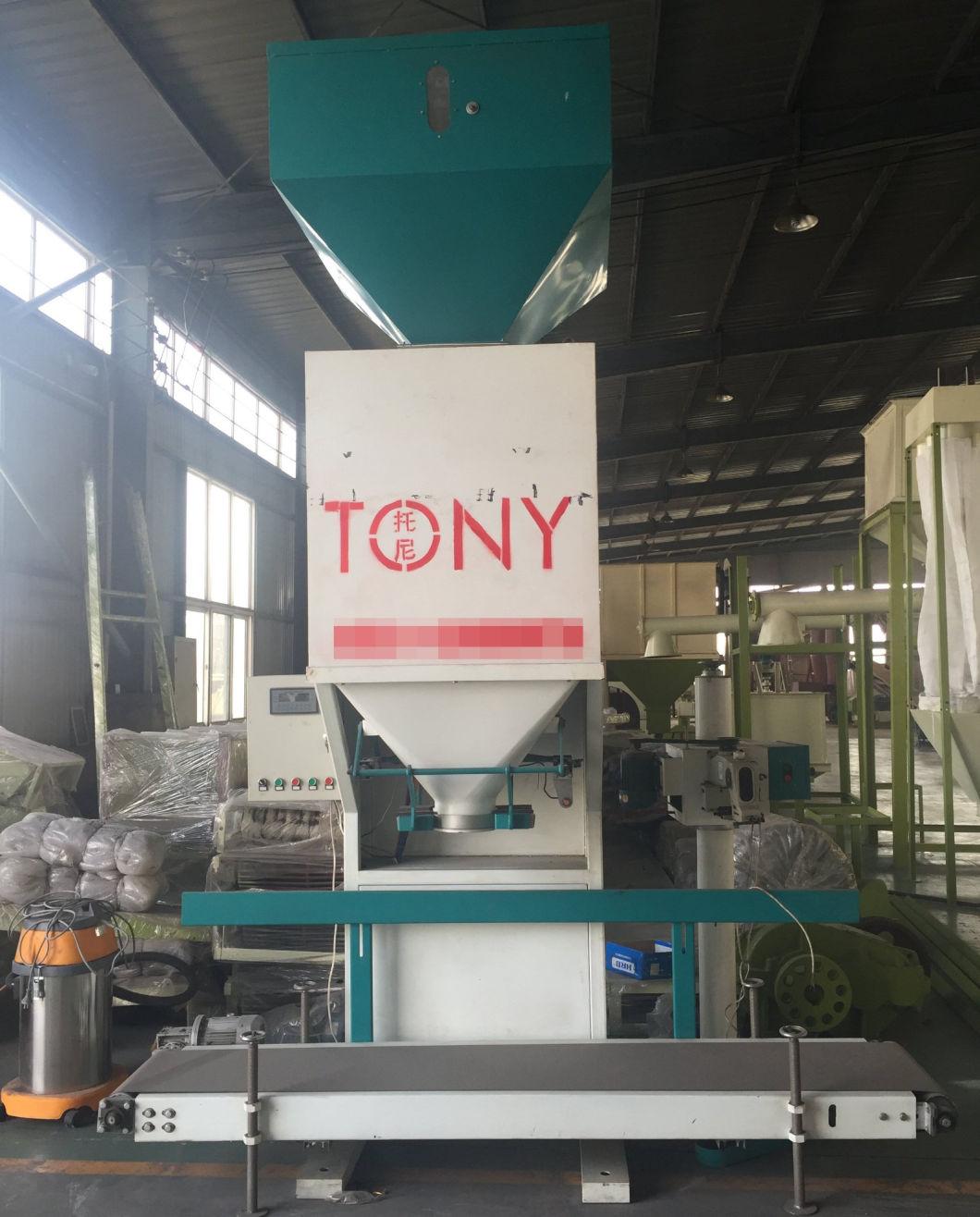

6.Packing Process
In this process, we suggest our Semi-Auto Packing Machine to you.
The weighting scope of this machine is 15kg-50kg
per bag.
Main Packing Machines:
1.Ton Packing Machine
2.Automatic Packing Machine
3.wood Shavings Bales
Certifications of complete wood pellet production line

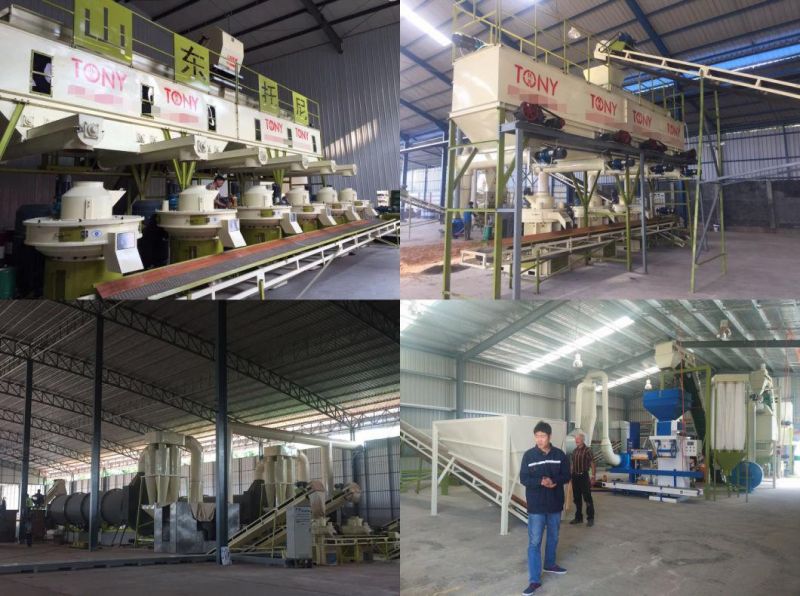

Clients on site

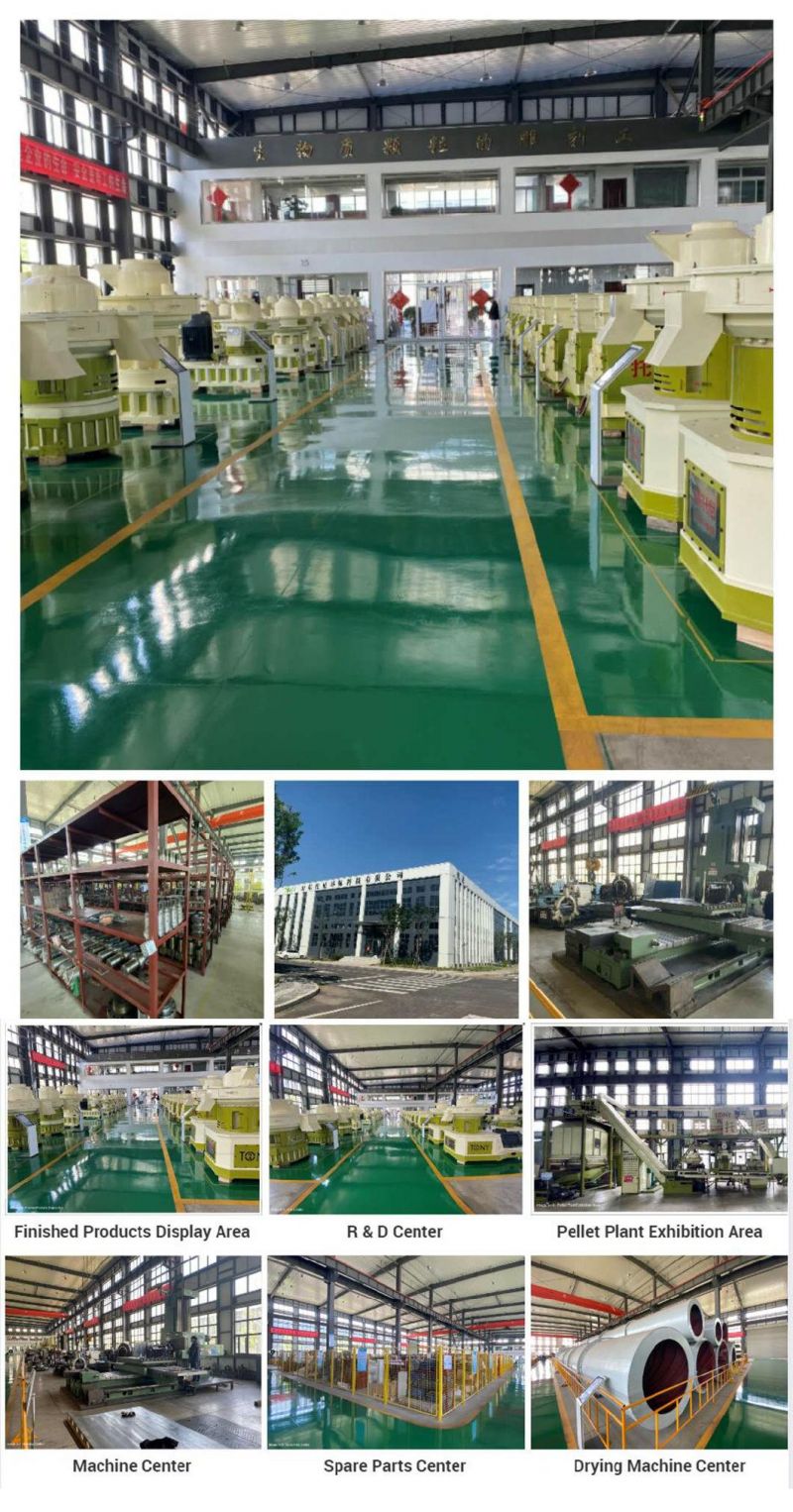

Welcome to TONY CompanyTONY is a professional manufacturer and exporter engaged in the research, production, sale and service of Biomass wood pellet line, wood pellet mill, grinding equipment, crushing equipment, drying equipment, cooler and other screening, conveying equipment.Having developed the pellet machines with reliable functions, reasonable design, energy saving and high efficiency low consumption, our vertical ring die pellet mill which use special gear transmission has sold very well during home and aboard.
We always supply the most suitable machines for customers with excellent quality and competitive price.
We can also supply for the pellet machines as following:
1. The SKJ Series flat die pellet mill with the volume 100kg to 4 ton per hour.
2.TheTY Series ring die pellet mill with the volume 800kg to 5 ton per hour.
3.The SKJD Series Pellet Mill with Diesel Engine with volume 100kg to 400kg/h.
4.The SKJT Series Pellet Mill with Tractor Engine with volume 80kg to 400kg/h.
5.Hammer Mill
7.Wood chipper
8.Drum dryer
9.Packing machine
10.Whole pellet making production line from the volume 0.5 ton to 20 T/h.
Service commitment
Best Service-24 Hours Online Service.
-Inquiry will be replied within 2 hours.
-All-the-way tracking service offered from placing order to delivery.
-Free training for operation, debugging and daily maintenance.
-We can provide professional guide installation.
-One year warranty and all-round after-sales service.
-Customized design and flow chart are available for our clients.
-Independent R&D team and strict & scientific management system.
Dear friends, in order to help you choose the most suitable machine, pls tell me the following information:
1. What's the capacity you want?
2. What's the raw material?
3. What's the size of the raw material?
4. What's the moisture content of your raw materials?
5. What's the final pellet size do you want?
6. Automatic packing or manual packing needed?
7. What's your country voltage?
Our promise to you...
- I promise to provide a high quality product at a fair price that will last for years and years, shipped as quickly as possible along with professional engineers support you require to get you up and running.
- You can call me anytime on trademanager. I'm always working and I never sleep! (Ok, maybe sometimes.)
- All the parts of products are rechecked before transportation, therefore the clients will receive the best quality products..
- Free consulting service, please contact us when you have any questions about biomass pellet machinery.
