Hot Sale Disc Type Auto Tools Changer Woodworking CNC Router Machine with Syntec 60CB Controller

Jinan Upgoal Mechanical Equipment Co., Ltd.
  • Warranty:1 Year
  • Condition:New

Base Info

  • Model NO.:UG-1325ATC
  • Certification:ISO, CE
  • CNC or Not:CNC
  • Voltage:AC380V Three Phases
  • Working Area:1300(X)mm*2500(Y)mm*300(Z)mm
  • Working Table:Vacuum Table with Aluminum Alloy T Slot
  • Guide Rail:Linear Square Guide Rail ( Hiwin, Taiwan,)
  • Transmission:Helical Rack and Pinion Transmission
  • Driving Mode:Syntec 1000W Servo Motor Driver
  • Spindle Motor:9.0kw China Hqd Air Cooling Atc Spindle
  • Control System:Syntec 60CB Taiwan, 3 Axis, 4 Axis
  • Tools Changer:Disc 6 PCS or More
  • Vacuum Pump:7.5kw Air Cooling
  • Dust Collector:5.5kw
  • Tools Calibration:Automatic
  • Lubrication:Automatic
  • Lubrication System:with
  • Feeding Wheels & Pilot Pin:with
  • Transport Package:Plywood Case
  • Specification:3480*2275*2480mm, 2100kgs
  • Trademark:UPGOAL
  • Origin:Jinan City, Shandong Province, China
  • HS Code:84659900
  • Production Capacity:50 Sets,Month
  • Package size per unit product:348.00cm * 227.00cm * 248.00cm
  • Gross weight per unit product:2100.000kg

Description

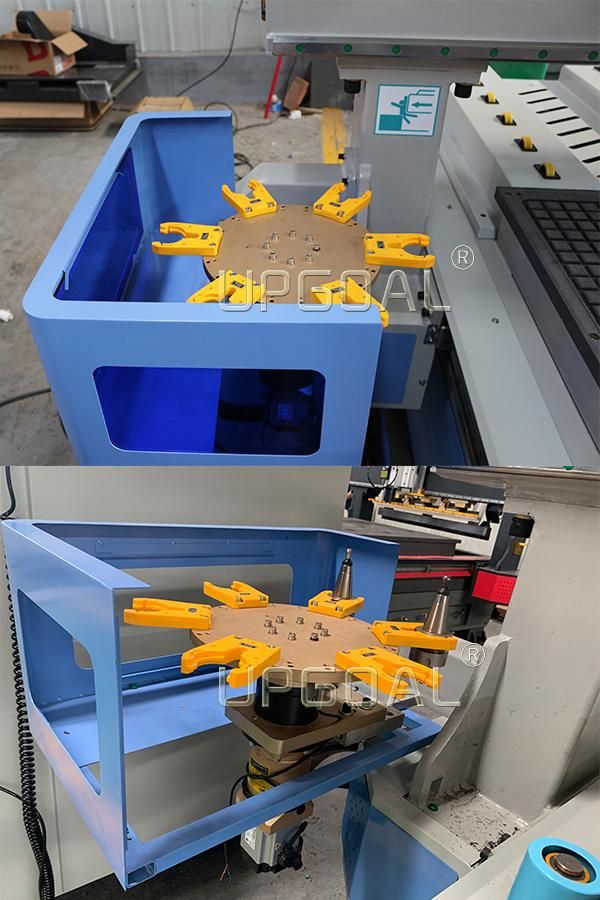

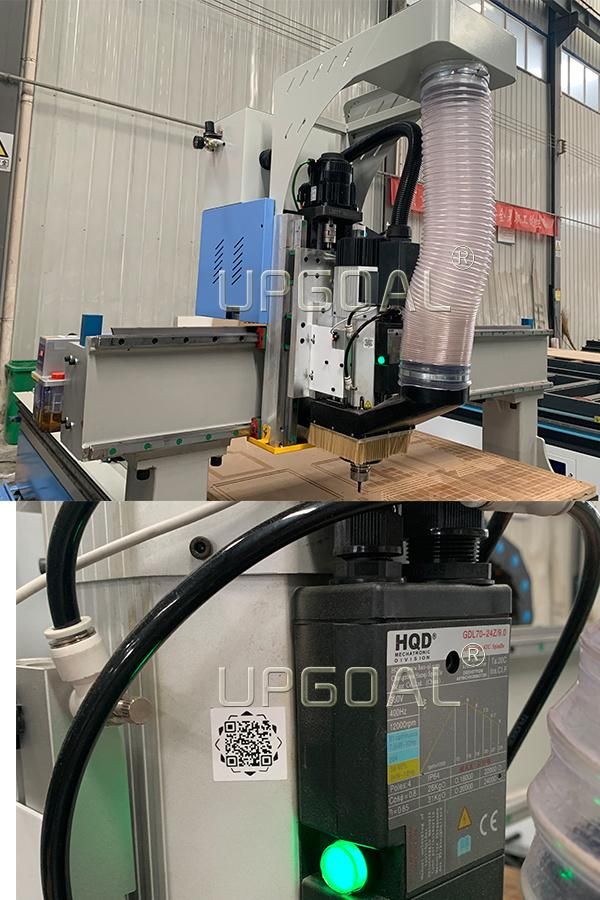

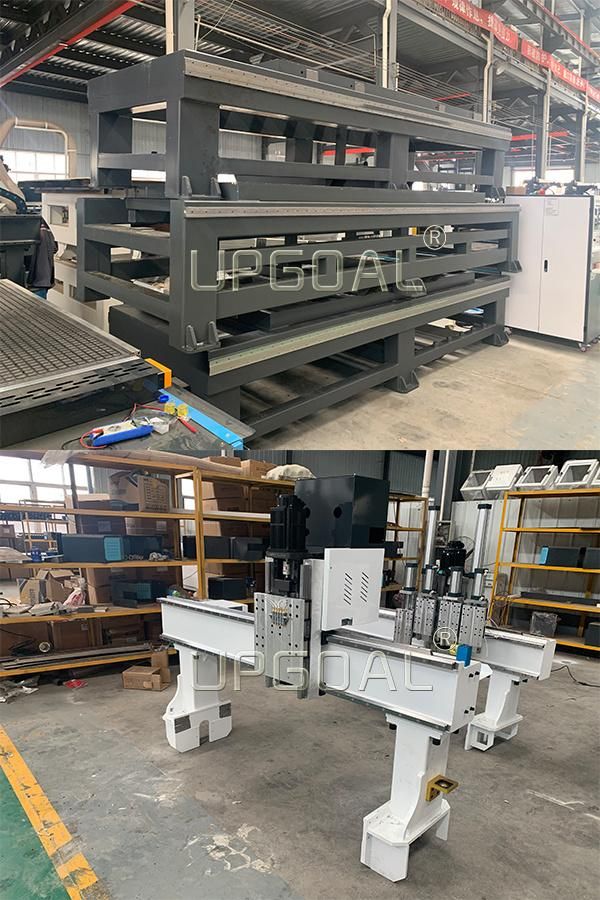

1.Whole machine is welded by strong steel structure, with tempering aging treatment, no distortion, long time using.Hot Sale Disc Type Auto Tools Changer Woodworking CNC Router Machine with Syntec 60CB Controller2. Disc type auto tool changer system, total 6 pcs(or more) bits in the tool magazine, only 8 seconds to change bits, can change the needed bits intelligently, saving bits changing time, improving efficiency.Hot Sale Disc Type Auto Tools Changer Woodworking CNC Router Machine with Syntec 60CB Controller3.Adopted with  famous China HQD 9.0KW ATC air cooling spindle, high precision, low noise, high RPM, long life time , and stable moving.Hot Sale Disc Type Auto Tools Changer Woodworking CNC Router Machine with Syntec 60CB Controller

4.Famouns Delta brand 11KW inverter, for spindle muti-speed adjusting.

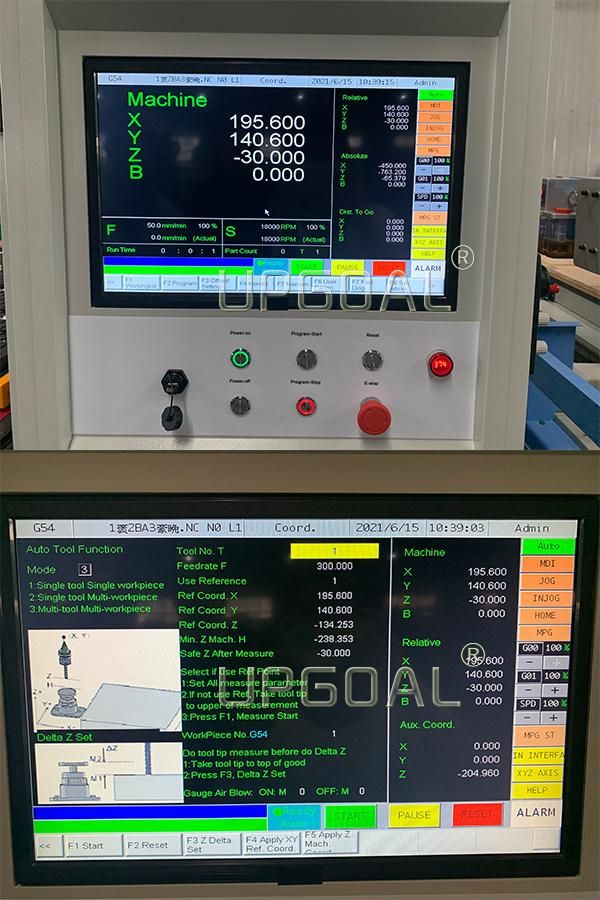

5.The latest SYNTEC Taiwan 60CB high performance industrial control system, intelligent controlling, has the protection function for beyond the working table, avoiding the mechanical collision due to the larger designed layout. Intelligent control the speed, can control the processing speed severally, truly improve the processing efficiency and lengthen the tools life time, increase the rate of finished products. Can do multi layer 3D processing, fast and smooth do three-dimensional processing, engraving and cutting.Hot Sale Disc Type Auto Tools Changer Woodworking CNC Router Machine with Syntec 60CB Controller6Powerful SYNTEC 1000W servo motor and driver for XYZ-axis, suitable all kinds of heavy solid wood engraving and cutting, high precision and fast speed.Hot Sale Disc Type Auto Tools Changer Woodworking CNC Router Machine with Syntec 60CB Controller

7.Advanced bus control method for numerical control and motion control, when turn on the machine, then can work directly no need do set the O point every time, higher reliability , stronger the anti-interference ability is stronger, and no pulse loss.

8. Japan Shimpo reducer for servo motor, used for replace traditional rack and belt,to make machine more powerful and stable.

9. Linear square guide rail, Hiwin, Taiwan, dia 30mm for XYZ-axis, double raw four columns, good weight capacity, stable moving and ensuring the precision. Germany WHM Heilon helical gears pinion and rack transmission for X and Y axis, higher running speed and efficiency, saving cost. Z- axis with precision ball screw, high precision and more durable.Hot Sale Disc Type Auto Tools Changer Woodworking CNC Router Machine with Syntec 60CB Controller

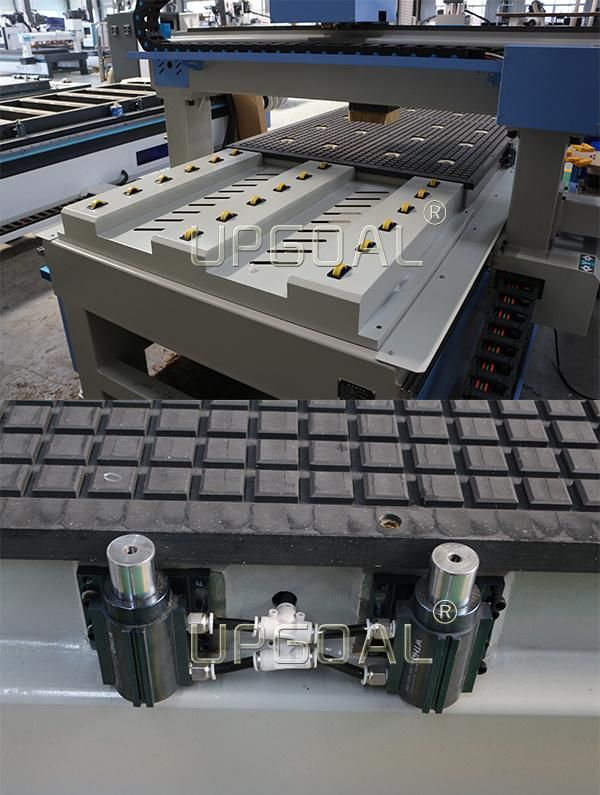

10.Vacuum adsorption system: vacuum adsorption table with aluminum alloy T slot & pilot pin & feeding wheels , adopted bakelite table, high density, no deformation and high adsorption, can for different size materials adsorption, saving time compared the traditional mechanical plate fixing, the vacuum pump is 7.5kw air cooling type to solve water cooling vacuum pump changing water issue in the frigid weather.With feeding wheels on the back of machine, convenient for heavy materials loading.

Hot Sale Disc Type Auto Tools Changer Woodworking CNC Router Machine with Syntec 60CB ControllerHot Sale Disc Type Auto Tools Changer Woodworking CNC Router Machine with Syntec 60CB Controller



11. Double bags dust collector helps to suck the dust, milling dust, saw dust during processing, keeping the working table cleaning and ensuring the machine long time using.

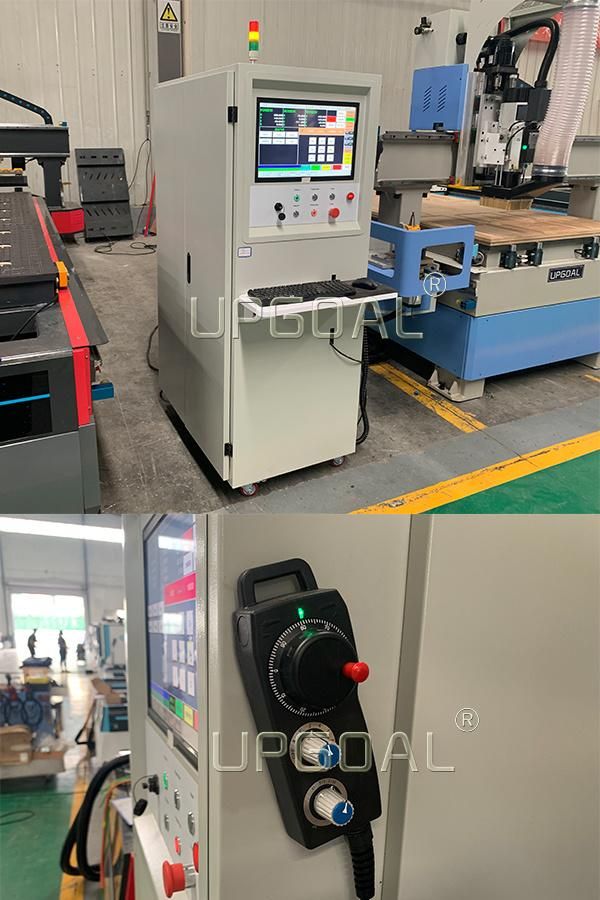

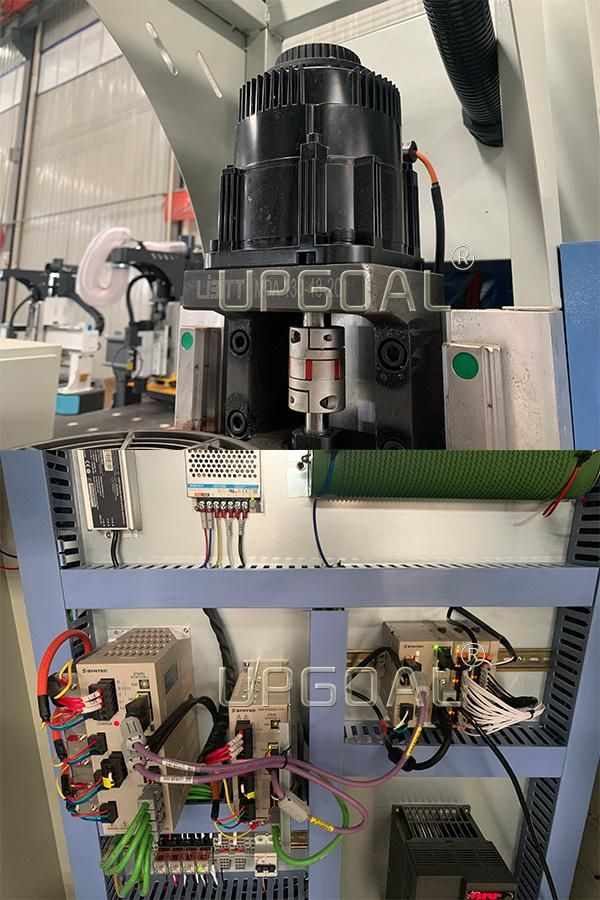

12. Indpendent SYNTEC control cabinet with famous brand electronic parts.
 Hot Sale Disc Type Auto Tools Changer Woodworking CNC Router Machine with Syntec 60CB Controller




13.Precisioin auto tool calibration, more convenient for each time Z-axis 0 point setting.

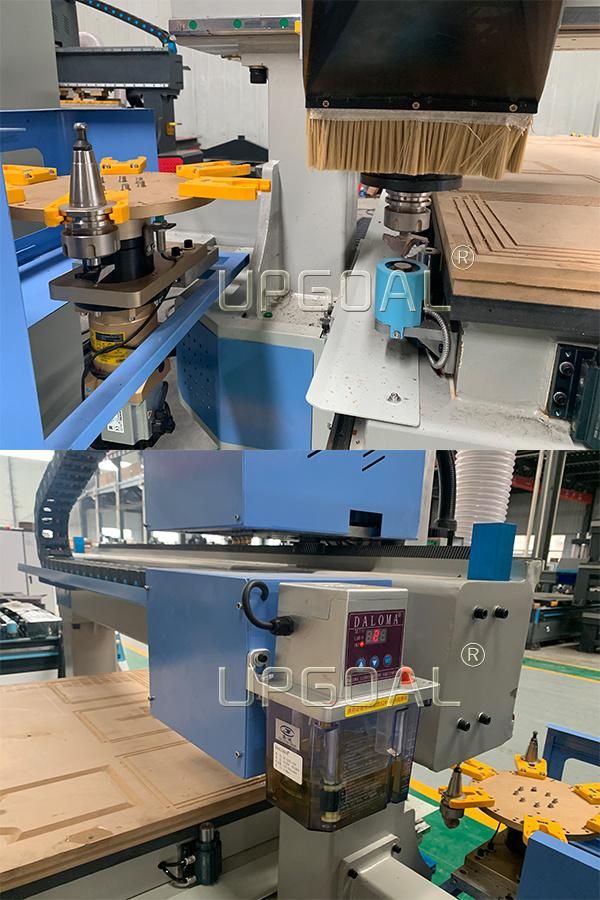

14.Auto lubrication system more convenient for maintenance.

Hot Sale Disc Type Auto Tools Changer Woodworking CNC Router Machine with Syntec 60CB Controller



15.Advanced file processing function, can timely correct faults, and good compatibility forType3/Artcam/Mastercam/Caxa such file. Advanced three dimensional curve forcast algorithm, stable broken line, ensuring the curve moving speed & precision.

16. Memory function after power failure and break point, can auto back to zero point and correct the faults, ensuring the precision for long time working and saving materials.

Technical Parameters


Effective working area

1300(X)mm*2500(Y)mm*300(Z)mm

Materials

Strong square steel pipe welded structure for whole machine

Working table

Vacuum table with aluminum T slot working table

Moving type

Gantry moving

Guide rail

Linear square guide rail ( Hiwin, Taiwan, dia 30mm)

Transmission

WHM helion helical rack &pinion for X Y -axis, Lead ball screw for Z-axis

Driving mode

SYNTEC Taiwan 1000W servo motor and driver for XYZ-axis

Spindle motor

9.0KW China HQD ATC air cooling spindle(ISO30)

Spindle speed

0-18000rpm

Tools changing method& changing ability

Disc auto tool changer, 6  pcs or more

Inverter

Delta,11KW

Voltage

AC 380V/220V ±10%, 50/60Hz, three phases

Maximum traveling speed

60000-800000mm/min

Maximum engraving speed

25000-40000mm/min

Machine accuracy

0.01mm

Control system

SYNTEC 60CB control system( 3 axis, 4 axis)

Hand wheel

SYNTEC HPG( hand pulse generator)

Suitable software

Artcam, Type3, Ucancam V9,etc

Carving Instructions

G code *Uoo *mmg *plt HPGL

Running environment temperature

0-45 ºC

Relative humidity

30%-75%

Dedusting device

Dust collector, 5.5kw

Vacuum pump

Air cooling, 7.5KW

Lubrication system

Automatic

Tool calibration

Auto

Certificate

CE
