• Model NO.：M200
• Working Voltage：AC380,3pH,50Hz
• Control System：Syntec
• Transport Package：Wooden Case Package
• Specification：1230*2450mm
• Trademark：Mars
• Origin：China
• HS Code：84659900
• Production Capacity：300 Sets,Month

Basic Info.

Model NO. M200 Working Voltage AC380/3pH/50Hz Control System Syntec Transport Package Wooden Case Package Specification 1230*2450mm Trademark Mars Origin China HS Code 84659900 Production Capacity 300 Sets/Month

Product Description

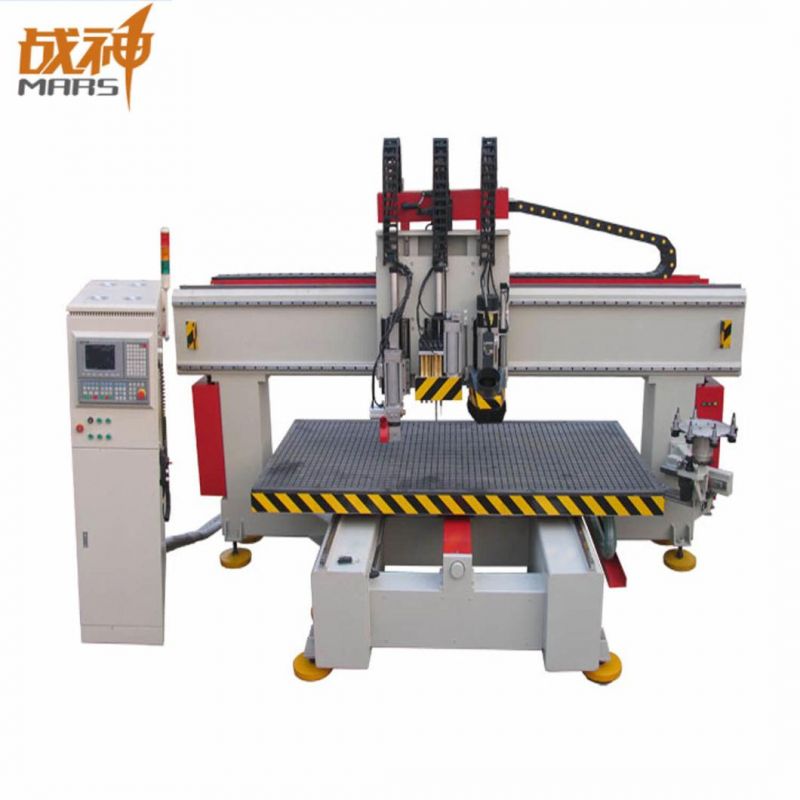

M200 Movable Table Woodworking CNC Router Machine

Keywords:    15 years experience of production
                             ISO9001:2008, CE, SGS, AAA Level Enterprise which Honors Contract
                             Three Brands: Mars, Golden Eagle, Boiro
                             Technicist who go abroad to offer after-sale service





Parameters:


Model	4 Axis CNC Machining Center
X/Y/Z axis working stroke	1300*3000*400mm
The 4th axis working stroke	Can rotate ± 90° left and right
Table surface	T-slot vacuum Table

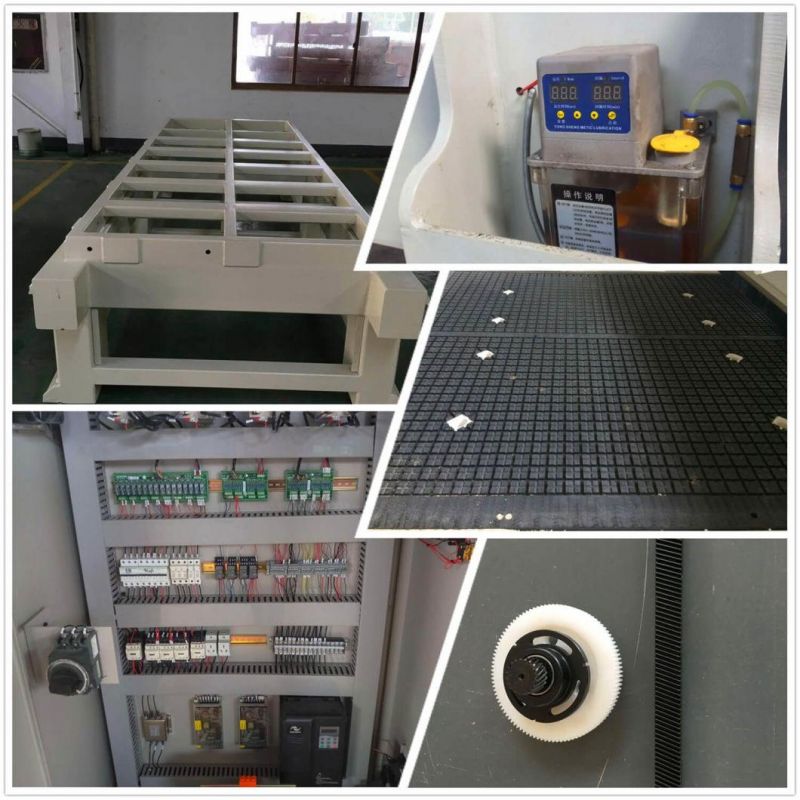

Frame machine	Thick steel tube welded structure, w/ aging treatment
Spindle power	9KW Italy HSD ATC air cooling spindle
Spindle speed	0-24000 rpm
Automaitc tool change	Carousel, 8pcs
Control system	Taiwan Syntec 4 axis control System
Drive sytem	Japan Yaskawa servo motor & driver
Transmission	X/Y axis helical rack & pinion, Z axis ball screw
Gue rail	Taiwan imported linear guide rail
Vacuum pump	7.5kw vacuum pump
Inverter	Fuling or Zoncn
Oil lubrication	Automatic
Positioning Accuracy	± 0.03mm
Repositioning Accuracy	± 0.03mm
Max. Rapid Travel Rate	40 m/min
Max. Working Speed	30 m/min
Command language	G code/ HPGL
Working voltage	AC380V 3PH 50HZ
Software Compatibility	Type3/ Ucancam / Artcam
Running Environment Temperature	0 - 45 Centigrade
Relative Humidity	30% - 75%

Feature:

1.Equipped with world famous control system, with powerful functions, high precision, fast speed.
2.All components are of world top-class brand to ensure high quality.
3.CNC machining center with 5 synchronizing interpolated axes, is well suited for 3D curved surface processing.
4.Working speed/ traveling speed/ cutting speed can all be controlled separately, which dramatically improve  productivity and finish quality.
5.Any machine size can be customized as per your special request.


Optional Accessories :

Aquila Co.devotes to design all products and accessories,can maximize meeting customers demands.According to the market's different demands, its provides various accessory spareparts for kinds of requirements. The production mode of Aquila is to Act according to actual circumstances, which won the customer's trust and favour.




Applicable Scope:




Sample :
