High Efficiency Wood Hammer Mill Wood Hammer Mill Crusher Machine

Jiangsu Liangyou Zhengda Co., Ltd.
  • Type:Wood Hammer Mill
  • Voltage:380V
  • Automatic Grade:Automatic
  • Controlling Mode:CNC
  • Energy Saving:Energy Saving
  • Certification:CE, ISO

Base Info

  • Model NO.:MFSP66*60
  • Warranty:1 Year
  • Customized:Customized
  • Condition:New
  • Color:Blue
  • Output (T/H):3.5-4
  • Power (Kw):75
  • Rotor Diameter(mm):660
  • Grinding Chamber Width(mm):600
  • Rotating Speed(M/Rpm):2970
  • Transport Package:Pallet
  • Specification:CE, ISO, SGS
  • Trademark:Liangyou
  • Origin:Jiangsu China
  • HS Code:8479300000
  • Production Capacity:5 Sets,Month

Description

Basic Info.

Model NO. MFSP66*60 Warranty 1 Year Customized Customized Condition New Color Blue Output (T/H) 3.5-4 Power (Kw) 75 Rotor Diameter(mm) 660 Grinding Chamber Width(mm) 600 Rotating Speed(M/Rpm) 2970 Transport Package Pallet Specification CE, ISO, SGS Trademark Liangyou Origin Jiangsu China HS Code 8479300000 Production Capacity 5 Sets/Month

Product Description

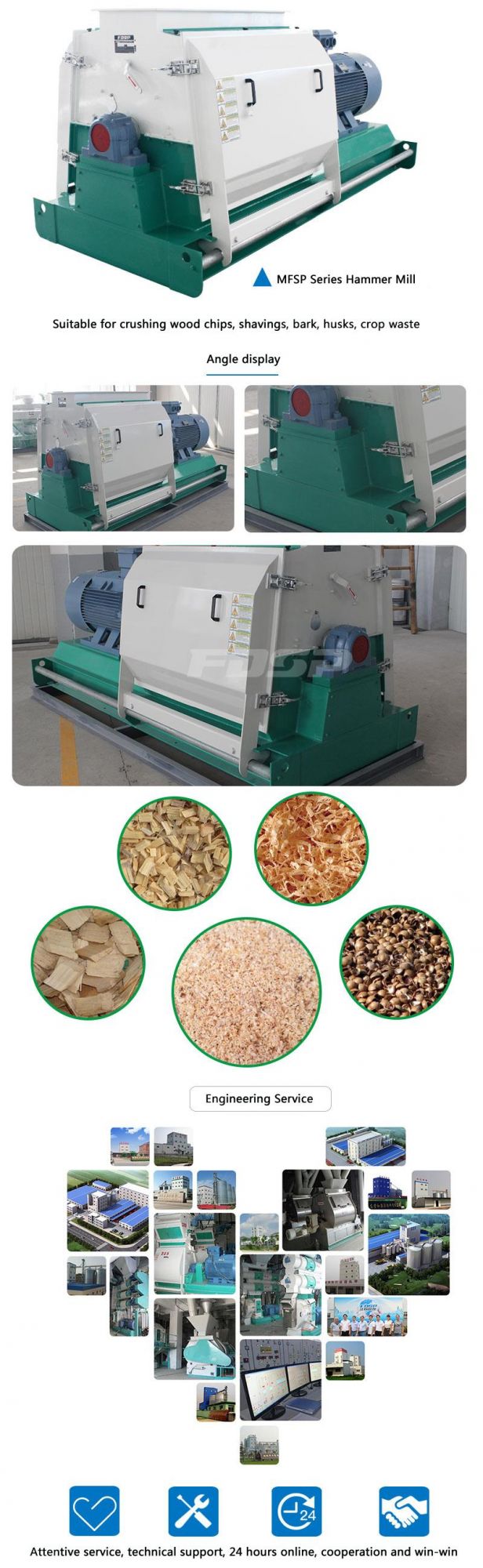

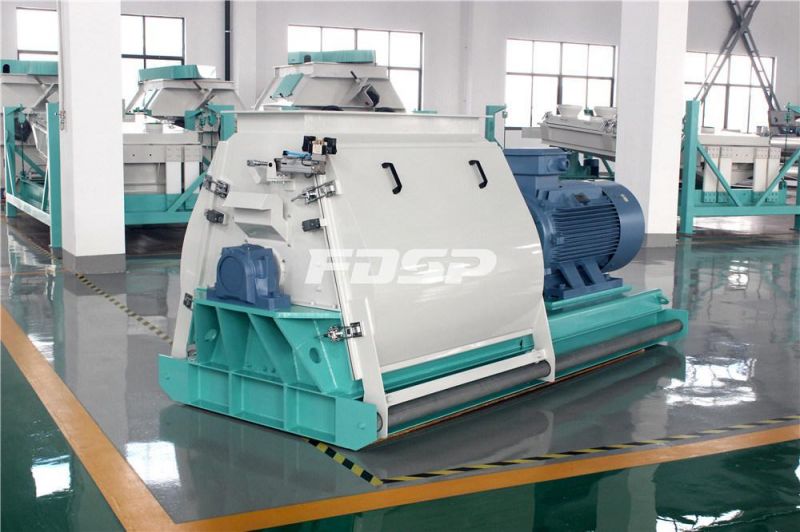

High Efficiency Wood Hammer Mill Wood Hammer Mill Crusher Machine
High Efficiency Wood Hammer Mill Wood Hammer Mill Crusher Machine
Features:

1. It is used for grinding of small wood block, chip before pelleting;
2. Multi grinding chamber to increase efficiency by 15%;
3. Multi grinding chamber to prolong service life of screen and beater;
4. Modified rotor to increase stability and minimize over heating of bearing;
5. Modified screen locking device to make assembling &disassembling easily;
6. Unique structure design of door to absorb shake and reduce noise;
7. Modified design for grinding chamber to reduce airflow resistance and increase efficiency;
8. Depress barycenter of rotor to make more balance and coarse and fine grinding can be executed easily.
High Efficiency Wood Hammer Mill Wood Hammer Mill Crusher Machine

High Efficiency Wood Hammer Mill Wood Hammer Mill Crusher Machine
Parameters of technical and performance as below:
ModelMPSF56*40MFSP60*45MFSP60*60MFSP66*60MFSP66*80MFSP66*100
Power(kw)3745557590110
Capacity(t/h)0.8-11.8-22-2.53.5-45-66-7
Rotor diameter(mm)560600600660660660
Grinding chamber width(mm)4004506006008001000
Rotating speed(m/rpm)297029702970297029702980
Dimension(L*W*H)(mm)1.8*0.8*1.11.8*0.8*1.11.92*1.1*1.12.1*1.3*1.42.6*1.3*1.43*1.3*1.4
 High Efficiency Wood Hammer Mill Wood Hammer Mill Crusher Machine

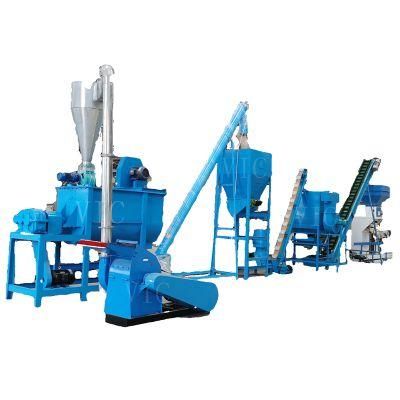

Related main machinery during biomass burning pellets production process:

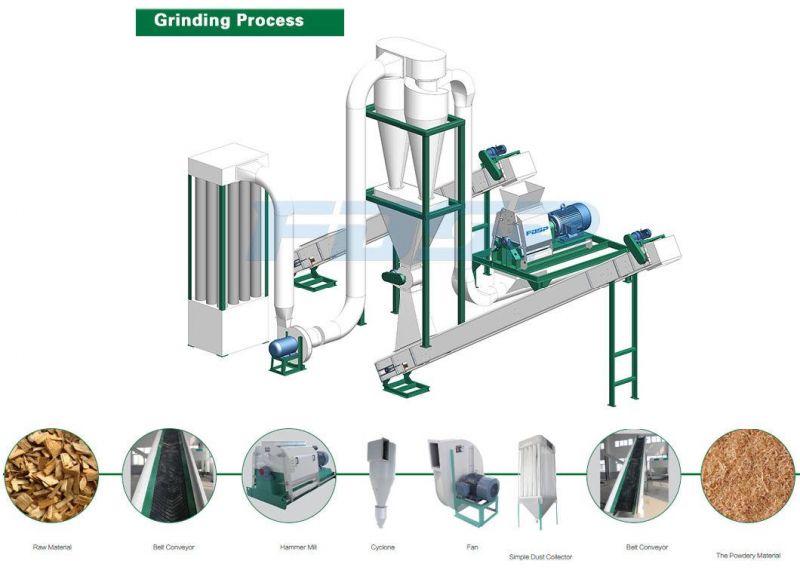

wood chipper-wood hammer mill(pulverizer grinder)-pre-screener-dryer-pellet mill-cooler-vibrating screener-packing machine
Please note the wood pulverizer grinder is used for cutting the wood chips which approximate size 5cm length into sawdust .
High Efficiency Wood Hammer Mill Wood Hammer Mill Crusher Machine

Gold service:
We treat customers sincerely and pay more attention to how to maximize return of investment. We improve quality, reduce power consumption, shorten construction schedule, and quick feedback in terms of technology, production, engineering and service.  We will furnish comprehensive, professional, and thorough service to meet customer's requirements. Thinking from customer's side, and solve problems timely.

High Efficiency Wood Hammer Mill Wood Hammer Mill Crusher Machine
High Efficiency Wood Hammer Mill Wood Hammer Mill Crusher Machine
High Efficiency Wood Hammer Mill Wood Hammer Mill Crusher Machine
High Efficiency Wood Hammer Mill Wood Hammer Mill Crusher Machine

FAQ
1.How does your factory do regarding quality control?
Our factory has gained CE, ISO9001, SGS authentication.'Quality is priority'. We always pay great attention on quality controlling from the beginning to the end.

2.How long is your guarantee?
One year. After this period we will definitely support you when needed. You are welcome to contact us at any time.

3.Will you send engineers to install the plant?
Yes, we can send our engineers do the guide installation overseas.

4.Where is your company located? How can I get there?
Our company is located in Nanjing City, Jiangsu Province, China, near Shanghai.
If you arrived Nanjing Lukou International Airport, you can come to our company by Car about 30 Mins. Or you arrive Shanghai Hongqiao Airport, you can by train about 1.5H.

5. Where is your factory located? How can I visit there?
Our factory is located in Liyang City, Jiangsu Province, China, near Shanghai; and our International Business Centre is in Nanjing City. You can fly to Shanghai airport or Nanjing Airport directly. All our clients, from home or abroad, are warmly welcome to visit us!
