• Model NO.：VICP-1000
• Warranty：1 Year
• Customized：Customized
• Condition：New
• Color：Multi Color
• After-sales Service：online
• Certificate of Origin：Yes
• Certificate：CE
• English Manual：Yes
• Warrenty Time：1year
• Installation and Adjustment：Yes
• Transport Package：Wooden Box
• Specification：CE, SGS
• Trademark：VIC
• Origin：China
• HS Code：84793000
• Production Capacity：6 Sets ,Year

Basic Info.

Model NO. VICP-1000 Warranty 1 Year Customized Customized Condition New Color Multi Color After-sales Service online Certificate of Origin Yes Certificate CE English Manual Yes Warrenty Time 1year Installation and Adjustment Yes Transport Package Wooden Box Specification CE, SGS Trademark VIC Origin China HS Code 84793000 Production Capacity 6 Sets /Year

Product Description

1tph feed pellet processing machine pellet production lineIntroduction of the feed production line:
This complete feed production line is our company's feed processing production line for animal and poultry farmers, farmers, rural cooperatives and feed manufacturers.
It can meet the needs of livestock, cattle, sheep and other full-price compound feed and grass feed.
The complete feed production line includes crushing, mixing, granulating, cooling, screening and packaging and conveying equipment, complete technological process, with powerful functions, can meet the different needs of users.
Working principle:
This feed production line pulverizes various feed materials into powder particles by a pulverizer, and then sent to the mixer through a cyclone dust collector and an airlock by a fan.
The powder that does not need to be pulverized can be directly sent to the mixer through a screw conveyor.
Various raw materials are uniformly mixed in the mixer through the double spiral mixer, and then enter the silo through the screw elevator.
The materials in the silo are conveyed to the granulator by the adjustable speed feeder, and the finished particles are cooled and powdered by the cooling sieving machine.
After screening, the materials enter the packaging machine through a belt conveyor, and then packing pellet into bag and seal the bag to complete the entire production process.

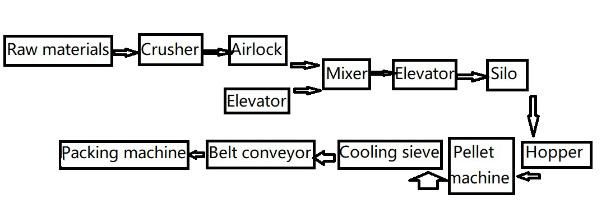

Process Flow chart:
Hammer mill -- cyclone separator -- material silo -- feeder --pellet mill -- vibrating screen -- Finished Products -- control box

The raw materials are feed stock, cover sawdust, twigs, straw, rice husks, and peanut shells and so on.
The range of diameter of pellets: 6-12mm, with pellet density of 1.1-1.3t/m³ and moisture content of ≤8%;
Total installed power: 43.36KW

2.Part machine date of the feed pellet mill line

No.	Name	Model	Quantity	Power (kw)	Remark
1	Elevator	LS160	1	4	Transfer materials from mixer to silo
2	Silo	1m³	1		Storage raw materials
3	Feeder	LS160	1	0.75	Evenly feed-in
4	Pellet mill	VIC-400	1	30	Frequency control, CYCLO
5	Rotary screener	LQ70	1	5.15	With dust collector
6	Belt conveyor	QB380	1	2.2
7	Air compressor				0.6mpa,discharge rate >>0.17m3/m
8	Pellet packing machine	DCS50	1	1.26
9	Control box (MCC)		1
	Total			43.36kw

3. Main machine introduction and details of the feed processing line:

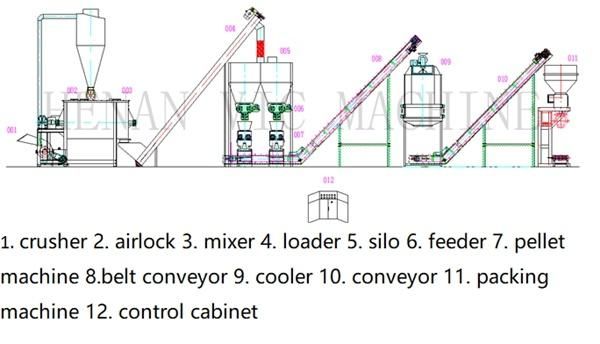

Equipment flow chart

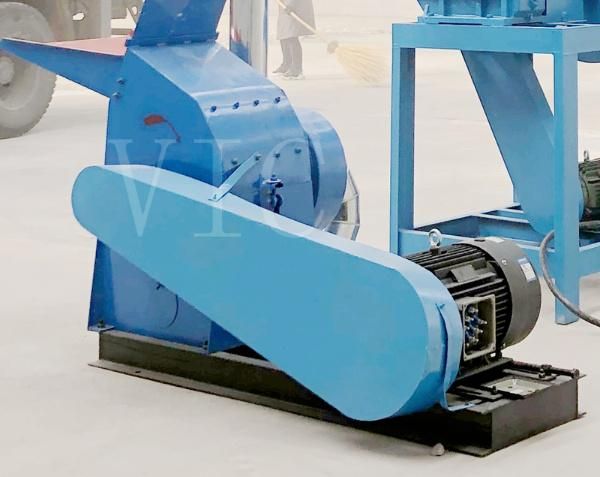

Hammer mill
Introduction:
This crush machine can crush all kinds feed materials and straws into powder directly.
It is small investment, low energy consumption, high productivity, high economic benefit, the crushed sawdust can be put into pellet mill directly.

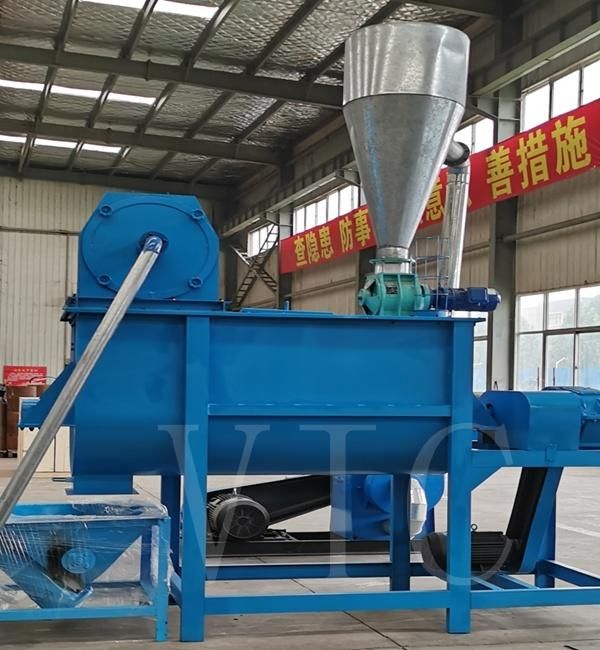

 Mixer with cyclone dust collector and an airlock

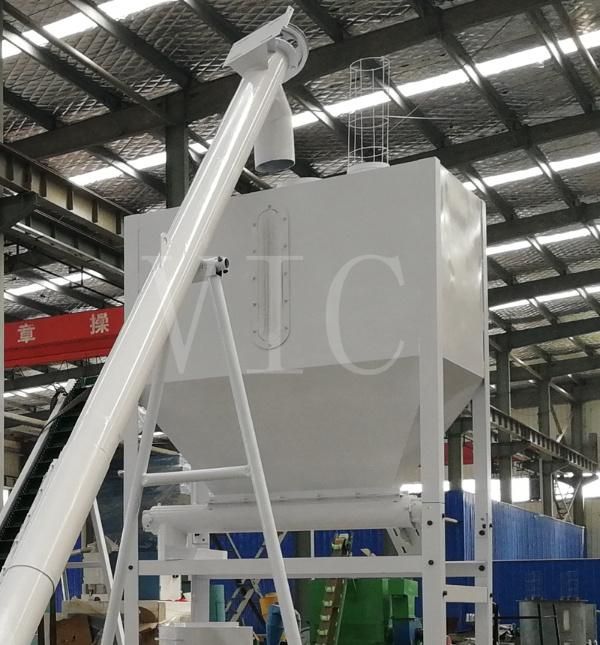

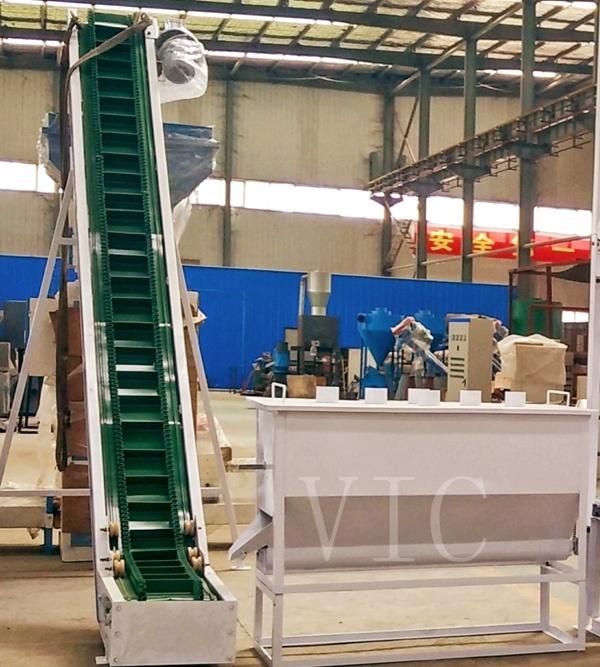

Silo with screw feeder

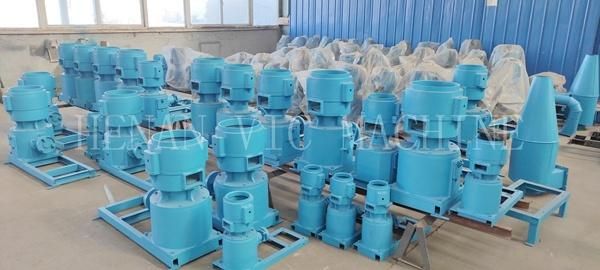

Feed Pellet mill

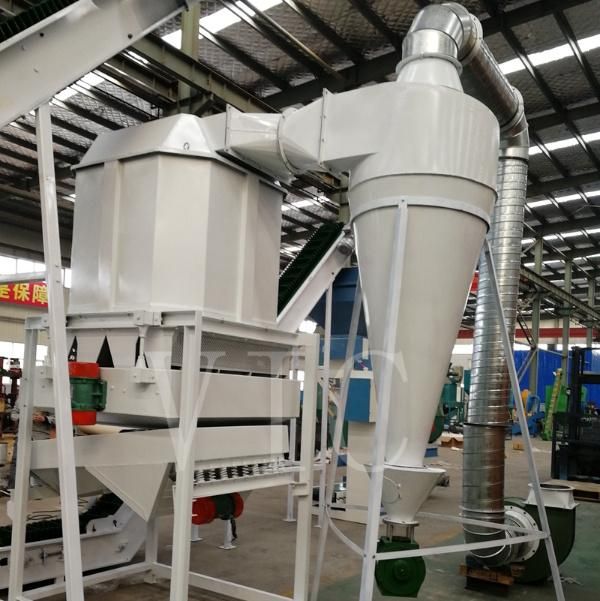

Vibrating screen with cooling system and skirt belt conveyor

Other type cooler

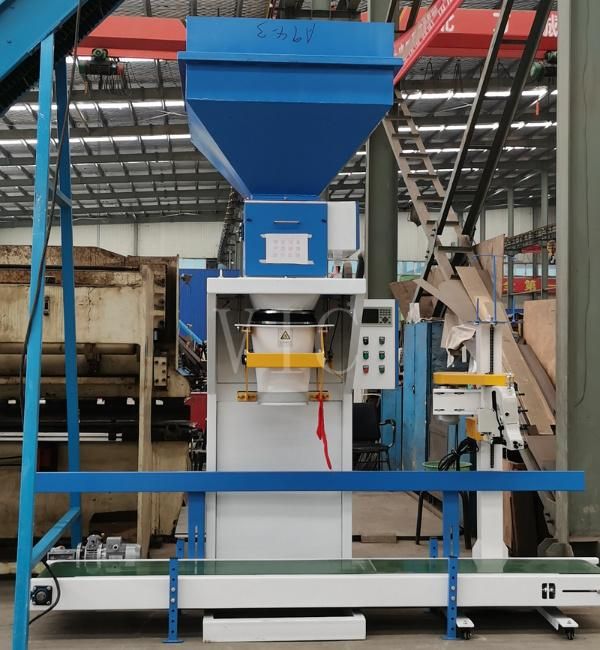

Pellet weighing and packaging machine

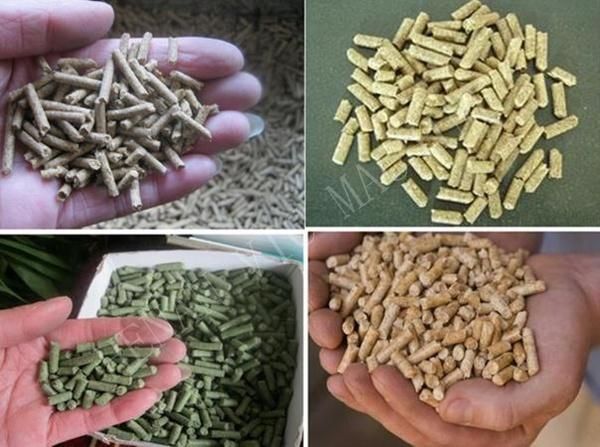

Final product

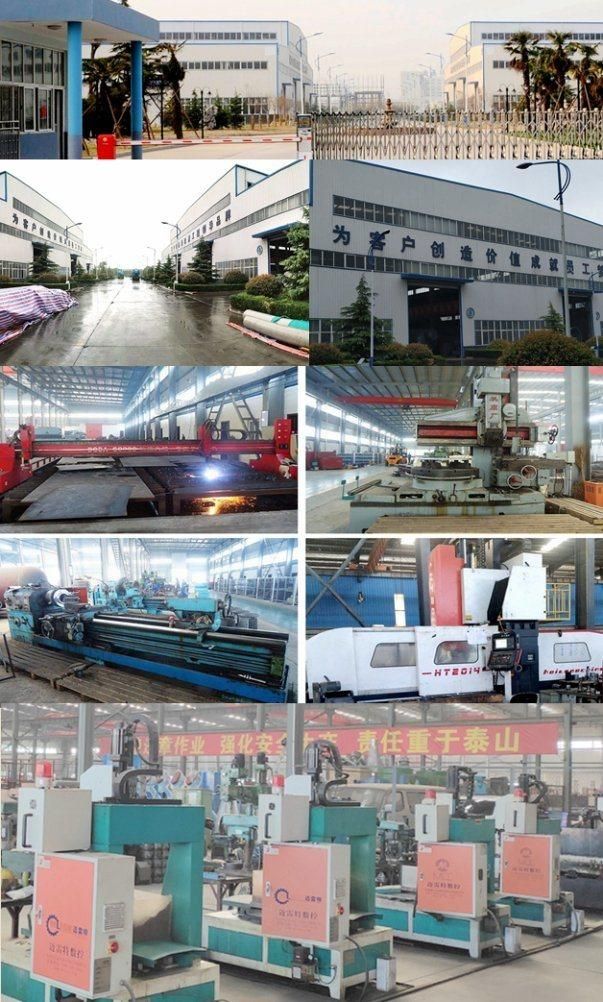

4.Our factory:
